Step support
Made of: machine casting, varnished. Base surface and steps milled flat. Application surface 50 mm wide. The step supports have mounting steps with a height difference of 7.5 mm.
Supports step. DIN6318 320/282.5-320mm AMF
PLN 395.72
Shipping from warehouse: B6
Estimated shipping: Thu, Feb 12 - Mon, Feb 16
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- AMF
- Product code:
- 71423 / 4020772071424
Share this product:

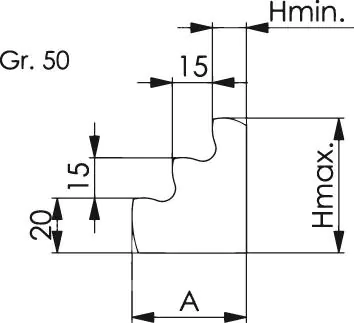

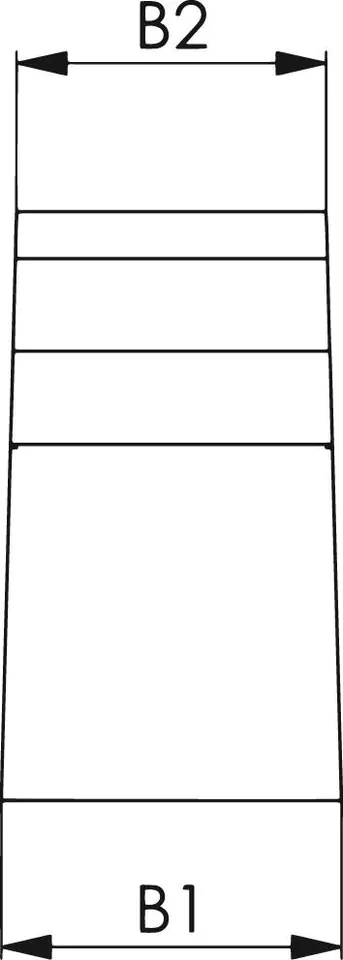

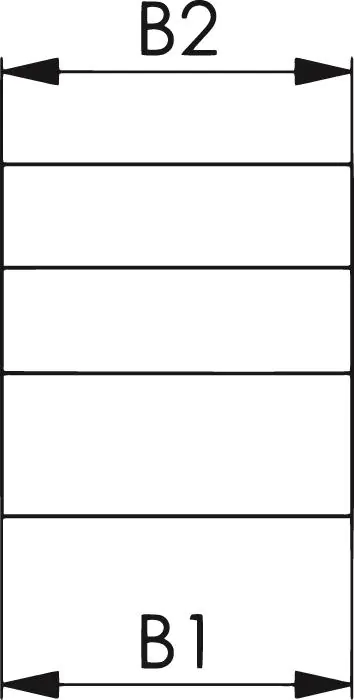

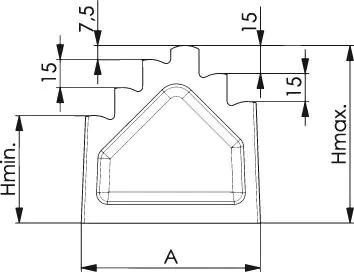

Specification
| Clamping height h-h: | 282.5 - 320 mm |
|---|---|
| Length a: | 120 mm |
| Size: | 320 mm |
| Width b1: | 80 mm |
| Width b2: | 50 mm |
