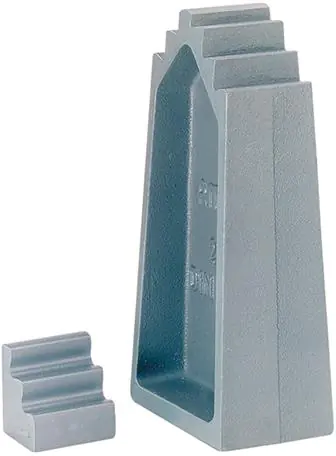

Step support
Made of: machine casting, varnished. Base surface and steps milled flat. Application surface 50 mm wide. The step supports have mounting steps with a height difference of 7.5 mm.
Supports step. DIN6318 230/192.5-230mm AMF
€72.01
Shipping from warehouse: B6
Estimated shipping: Thu, Nov 13 - Mon, Nov 17
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- AMF
- Product code:
- 71407 / 4020772071400
Share this product:

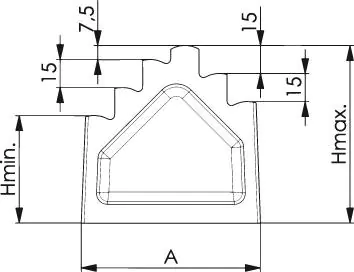

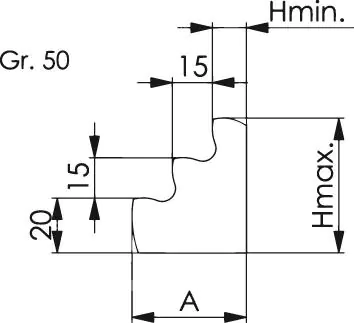

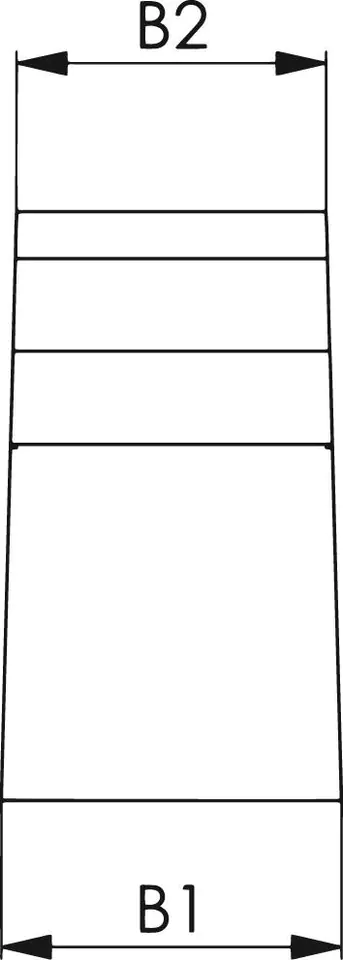

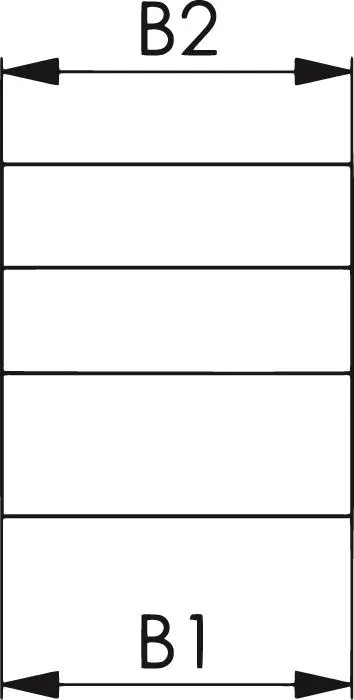

Specification
| Clamping height h-h: | 192.5 - 230 mm |
|---|---|
| Length a: | 110 mm |
| Size: | 230 mm |
| Width b1: | 70 mm |
| Width b2: | 50 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
