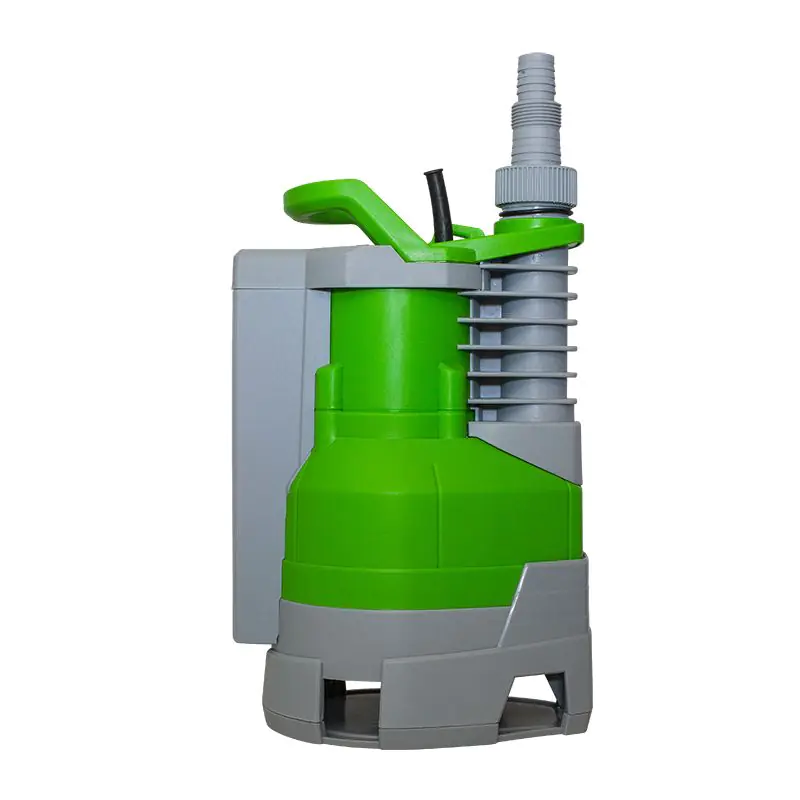

SUBMERSIBLE PUMP SP 230V 750AUT

USE:

The SP 750 AUTO pump is a submersible pump
designed to pump out clean, cold water,
and grey water containing organic pollutants
with a maximum diameter of 25mm, from flooded rooms, cellars,
wells or from pools and reservoirs.
SP 750 AUTO instead of traditional float control has a built-in float,
which allows it to be used in narrow well openings or revisions.
The pump is controlled by a slide on the body
which determines the switching level.
In auto pump mode, it starts when the liquid level reaches the height
marked with the A slider turns off when the liquid level reaches 11cm from the base of the pump.
In MANUAL mode, the pump runs continuously until the level of the pumped liquid
will reach 5cm from the base of the device

Specifications:

Maximum water temperature35°C
Protection classIP 68Immersion depth maximum [meters]10
Working position vertical
Material execution:
Pump housingtechnopolymer
Rotortechnopolymer PPO
Inlet sieveplastic
Pump lidplastic:

Parameters

Maximum capacity: 230 l/min
Maximum lifting height: 8 m
Motor power: 0.75 kW
Voltage: 230 V
Pressure connection: 1"
Power cable length: 10m
Size of impurities max.: 25 mm
