The device works with video intercoms and other panels in the Hikvision IP standard

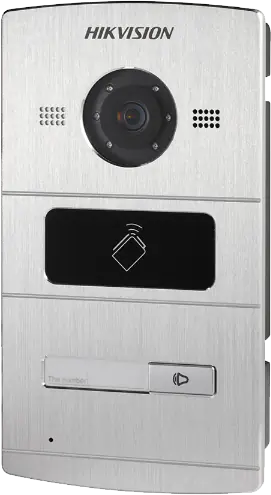

<strong>VIDEO INTERCOM </strong> DS-KV8102-IM Hikvision
Specification
Alarm inputs:: | 4 pcs. |
---|---|
Built-in proximity reader :: | Access Control Cards - Mifare |
Case:: | Aluminum / Plastic, Waterproof |
Colour:: | silver |
Compatibility:: | Hikvision IP video intercoms |
Dimensions:: | 182 x 100 x 33 mm |
Ethernet:: | 1 x RJ-45 - 10/100 Base-T |
Manufacturer / brand:: | Hikvision |
Operating temperature:: | -40 °C ... 70 °C |
Power:: | 12 V DC / 1 A, 24 V PoE |
Relay outputs:: | 1 pc. NO/NC |
Sap code:: | 305300105 |
Scales:: | 0.52 kg |
Sealing:: | IP65 |
Selected features:: | Doorbell button, Two-way communication, Built-in microphone, Built-in speakers, Tamper detection - detachment from the ground, Possibility of cooperation with reed switch and signaling too long door opening |
Supported languages:: | English, Polish, Serbian, Hungarian |
Transducer:: | 1.3 Mpx CMOS |
Utp category:: | UTP cat. 5e |
Warranty:: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
