| Alarm inputs:: | 6 |
|---|---|
| Alarm outputs:: | 1 |
| Backlight display: | Yes |
| Built-in microphone: | Yes |
| Built-in speaker(s): | Yes |
| Colour: | Yes |
| Colour:: | Black |
| Compatibility:: | Intercom installation - DAHUA |
| Connectivity technology: | Wired |
| Control:: | capacitive touch screen |
| Depth: | 21.5 mm |
| Dimensions:: | 222 x 120 x 22 mm |
| Display diagonal: | 17.8 cm (7") |
| Display resolution: | 1024 x 600 pixels |
| Display technology: | LCD |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan data rates: | 100, 10 |
| Height: | 119.6 mm |
| Indoor unit included: | Yes |
| Indoor unit power type: | DC |
| Internal memory:: | 8 GB |
| Manufacturer / brand:: | DAHUA |
| Number of displays supported: | 1 |
| Number of speakers: | 1 |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating system installed: | Linux |
| Operating temperature (t-t): | -10 - 55 °C |
| Operating temperature:: | -10 °C ... 55 °C |
| Outdoor unit included: | No |
| Placement supported: | Horizontal |
| Power consumption (standby): | 1 W |
| Power consumption (typical): | 7 W |
| Power consumption:: | ≤ 6 W (Operating) ≤ 4 W (Standby) |
| Power:: | 12 V DC / 500 mA, 48 V PoE (802.3af) |
| Product colour: | Black |
| Resolution:: | 1024 x 600 mm |
| Scales:: | 0.35 kg |

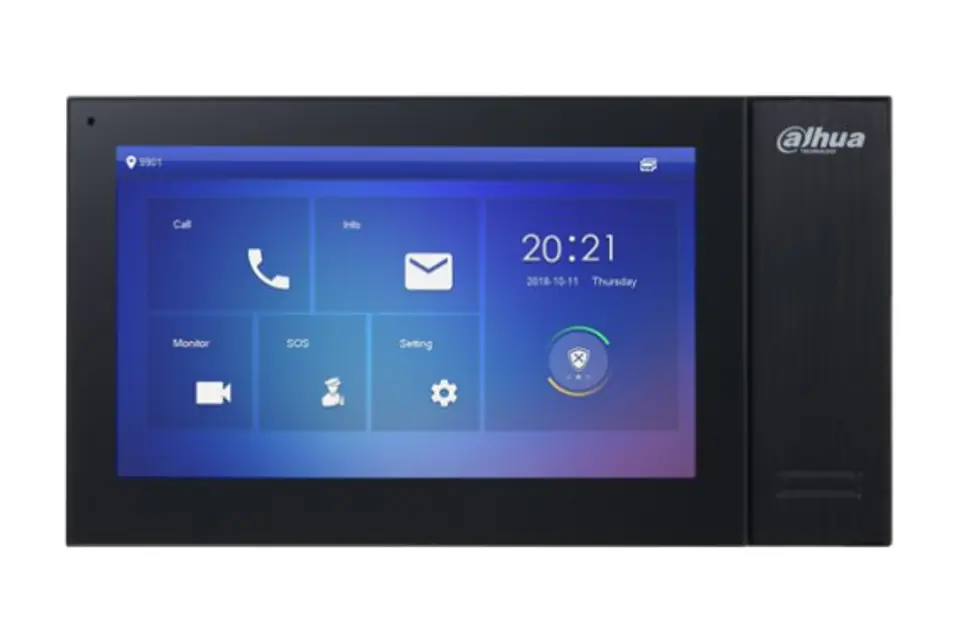

| Screen:: | 7" Color Matrix TFT-LCD |

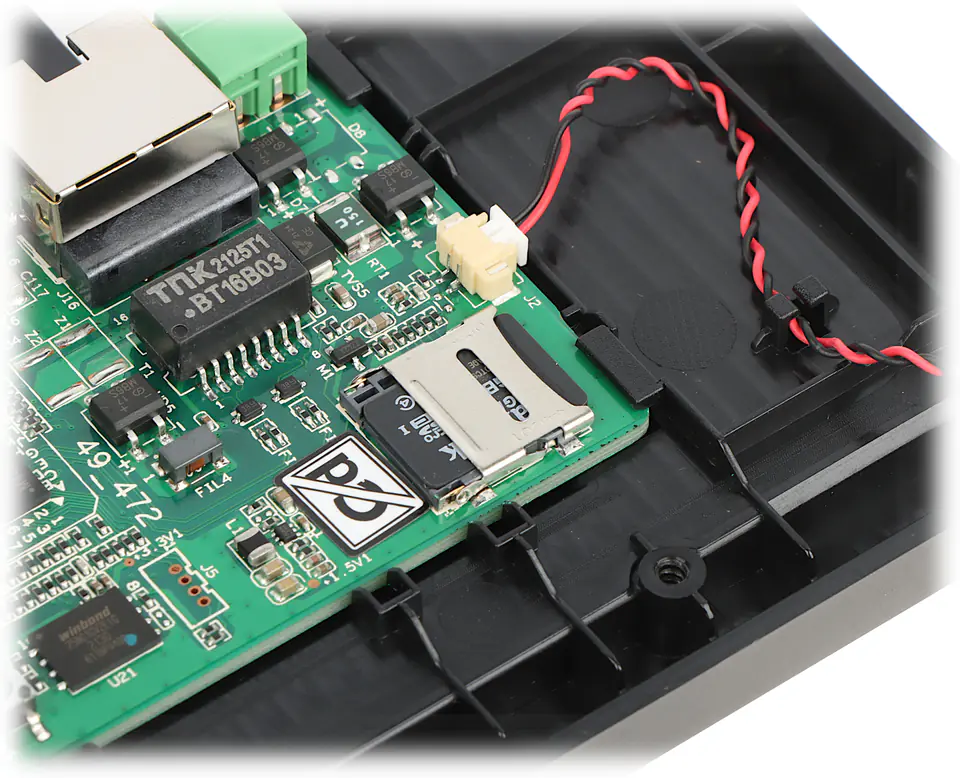

| Selected features:: | Support for Micro SD cards up to 32GB (local recording possible), included: 8 GB, Built-in microphone, Built-in speakers, Two-way communication, Smooth adjustment of monitor parameters: image brightness, ringtone volume and conversation, Ability to automatically take and save photos in case of failure to ring the ringtone, Ability to record a short video message in case of no response to the ringtone button, Cooperation with Dahua IP cameras, Answering video calls from door stations, Possibility of direct communication between two or more panels, Built-in tenant list and call list, Noise and echo reduction, Clear and clear graphical interface, Hands-free mode |
| Speaker power: | 1.5 W |
| Speakerphone: | Yes |
| Supported languages:: | Polish, Bulgarian, Czech, Dutch, English, Finnish, Slovenian, Slovak, Hungarian |
| Supported network protocols: | TCP/IP |
| Touchscreen: | Yes |
| Touchscreen type: | Capacitive |
| Video formats supported: | H.264 |
| Voice codecs: | G.711u, PCM, G.711 |
| Wall mountable: | Yes |
| Warranty:: | 3 years |
| Weight: | 350 g |
| Width: | 221.5 mm |

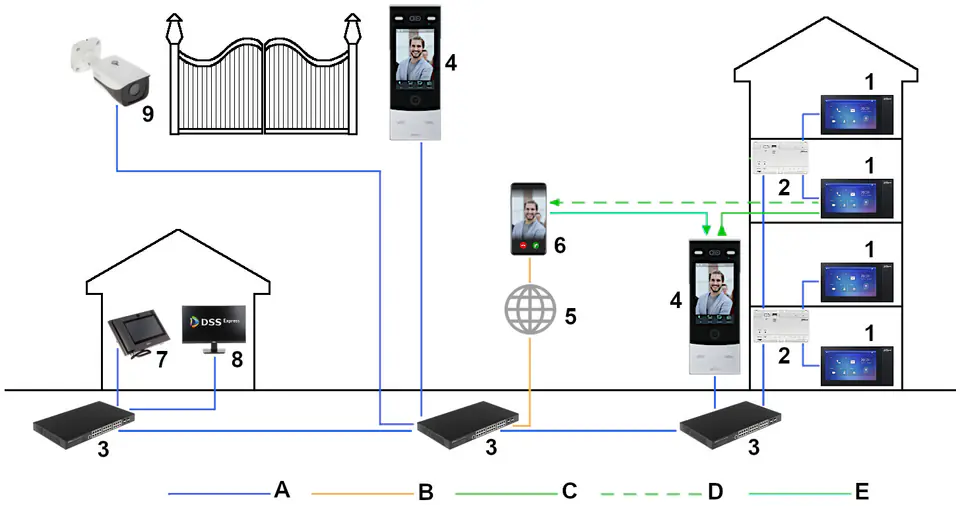

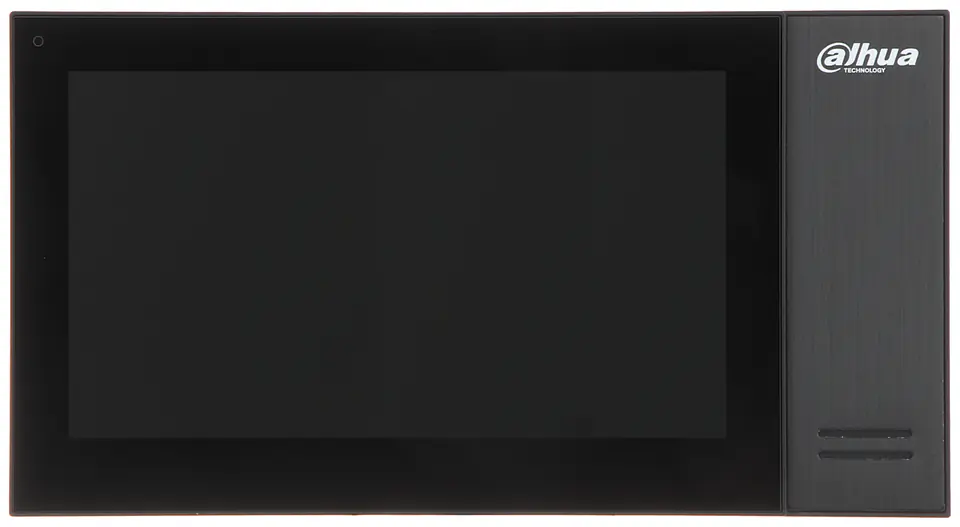

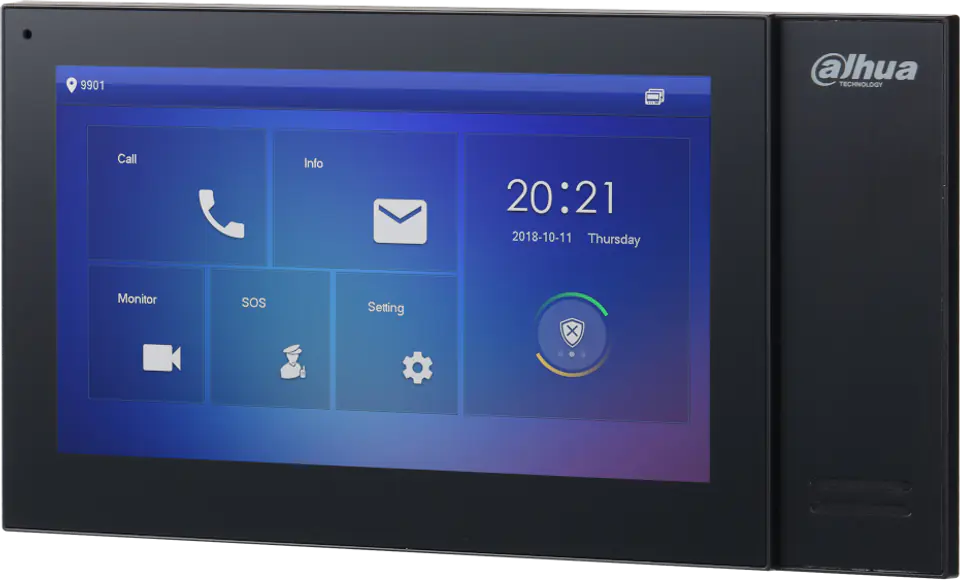

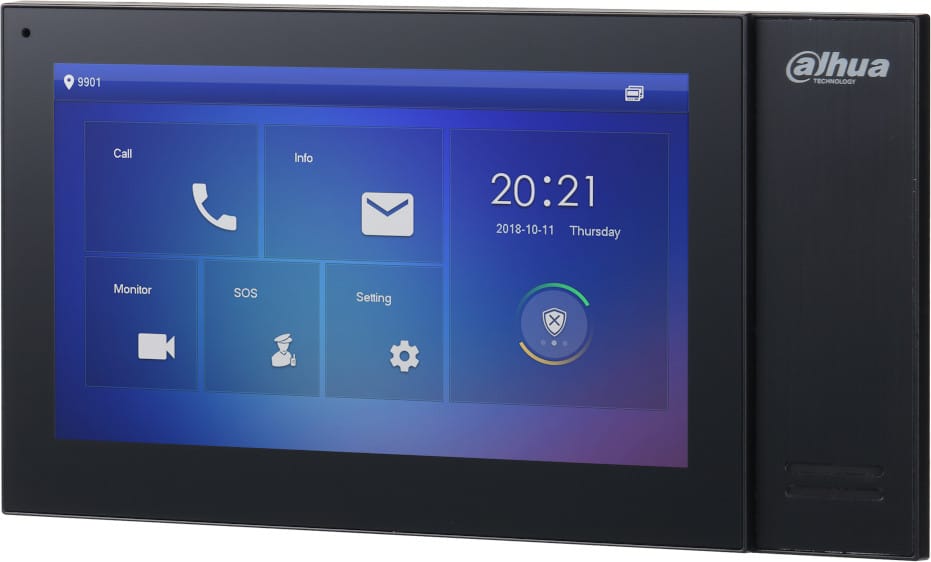

VTH2421FB-P panel is designed to create a simple and efficient local communication system

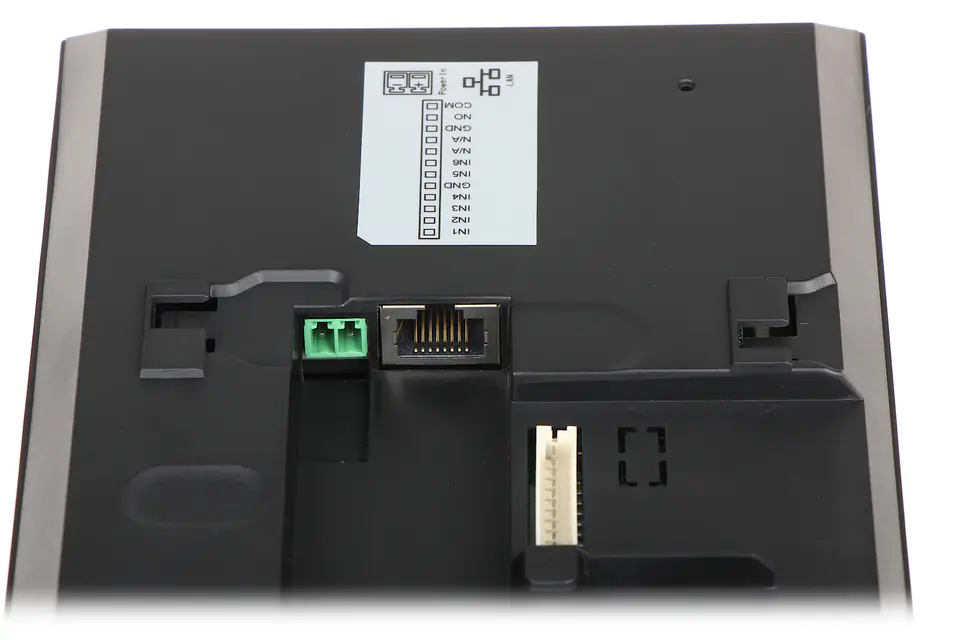

The device works with video intercoms and other panels in the DAHUA IP standardCan also act as a simplified alarm control panel or notification module by operating 6 alarm inputs
REMARK! The device does not work with the analog Dahua system
