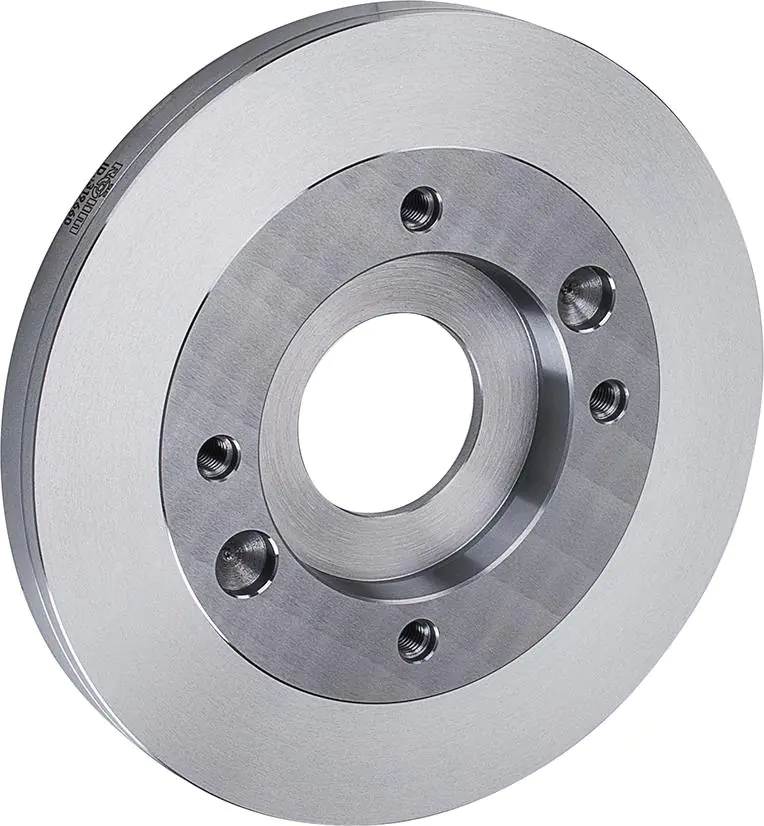

Steel flange with short clamping cone, DIN 55027
Execution: steel flange, finished from the machine side, flat turned from the handle side.
Scope of delivery: flange with double-sided screws, retaining pin or Camlock pin.
Steel collar. DIN55027/22400mm KK 8 RÖHM
PLN 3,474.47
Shipping from warehouse: B6
Estimated shipping: Tue, Jul 22 - Fri, Jul 25
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Röhm
- Product code:
- 319667 / 4019208078786
Share this product:

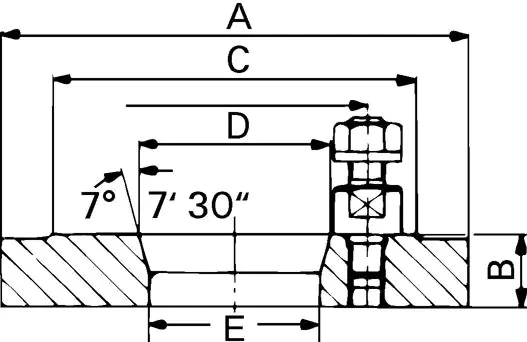

Specification
| Bore diameter e: | 63 mm |
|---|---|
| Cone diameter c: | 220 mm |
| Cone diameter d: | 139.719 mm |
| Diameter a mm/taper: | 400/8 |
| Double sided screws/dowels/camlock pins: | 4/4/6 |
| Height b: | 31 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
