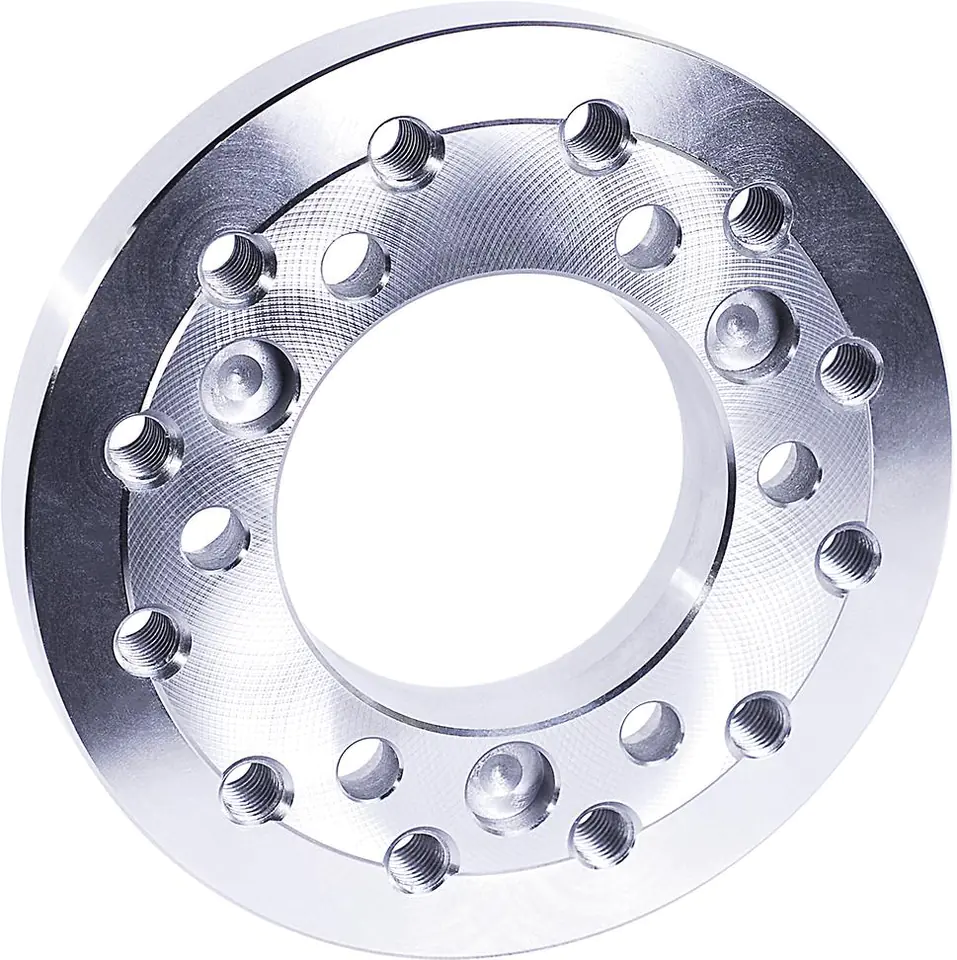

Steel flange
Design: precision grinded.
Usage: adapter for fitting to different spindle sockets.
Steel collar. DIN55026/21170mm 3B KK6 Kitagawa
€485.70
Shipping from warehouse: B6
Estimated shipping: Thu, Nov 6 - Mon, Nov 10
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Kitagawa
- Product code:
- CB08A06 / 4053569817257
Share this product:

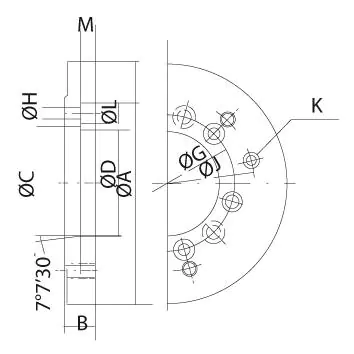

Specification
| B: | 17 mm |
|---|---|
| C: | 106.375 mm |
| Cone: | A2-6 |
| D: | 103 mm |
| Diameter a: | 170 mm |
| G: | 133.35 mm |
| H: | 13.5 mm |
| J: | 150 mm |
| K: | 6,6 |
| L: | 11 mm |
| M: | 7 mm |
| Type: | CB08A06 |
