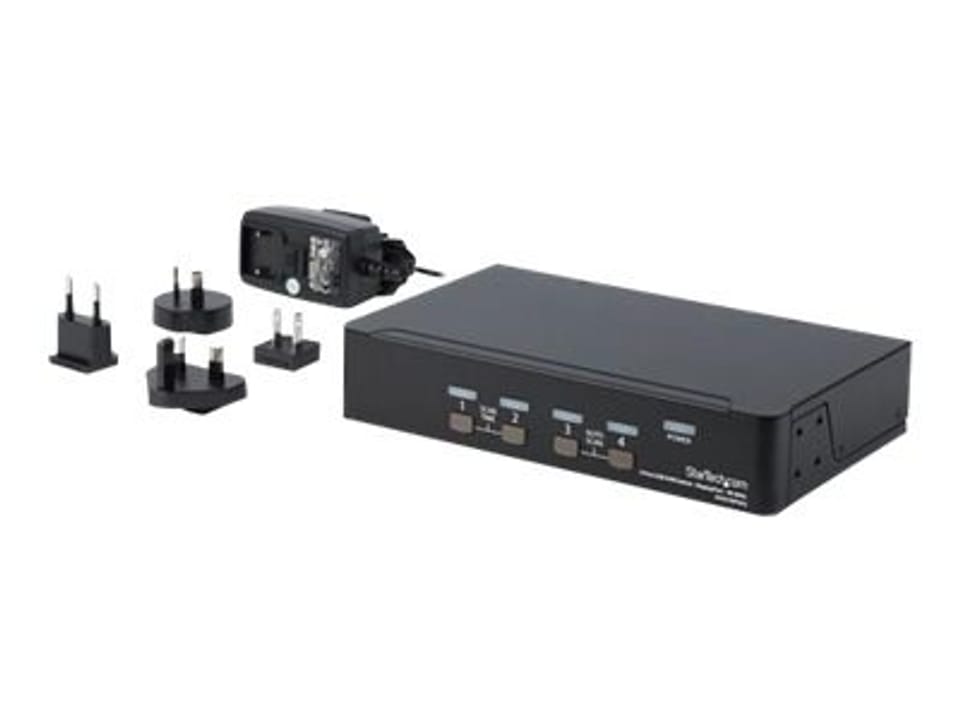

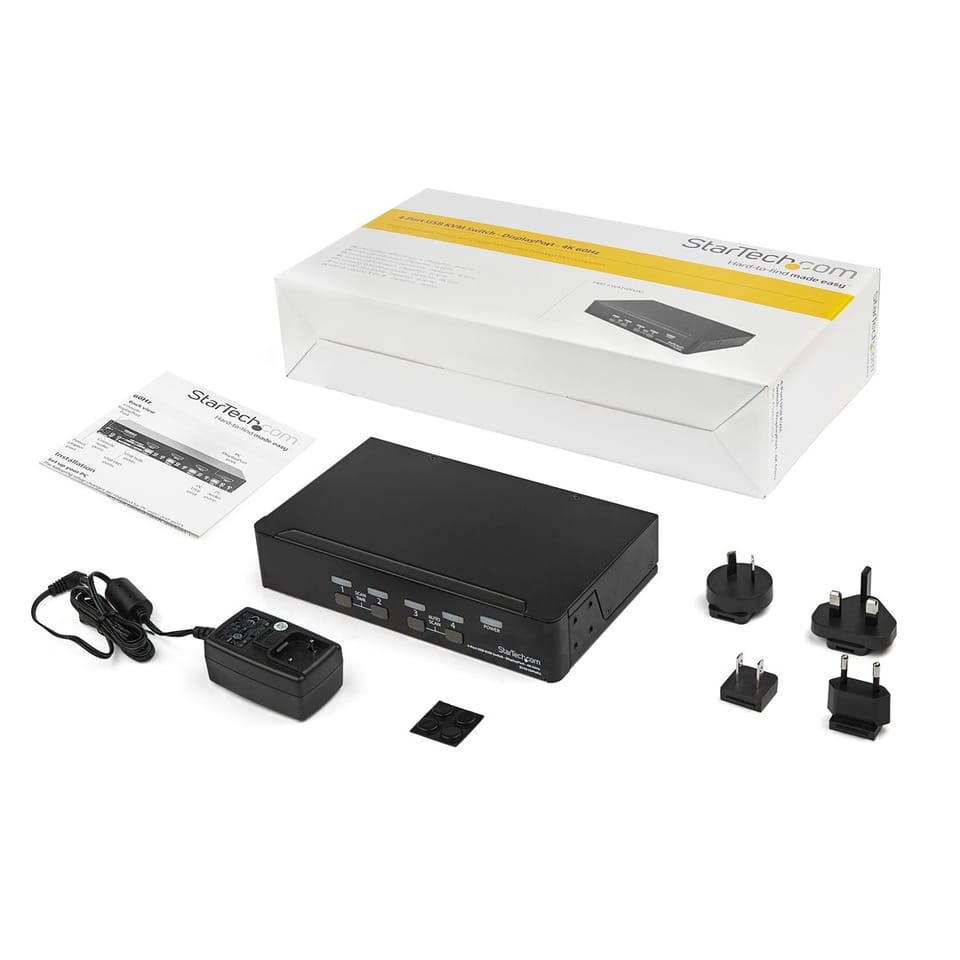

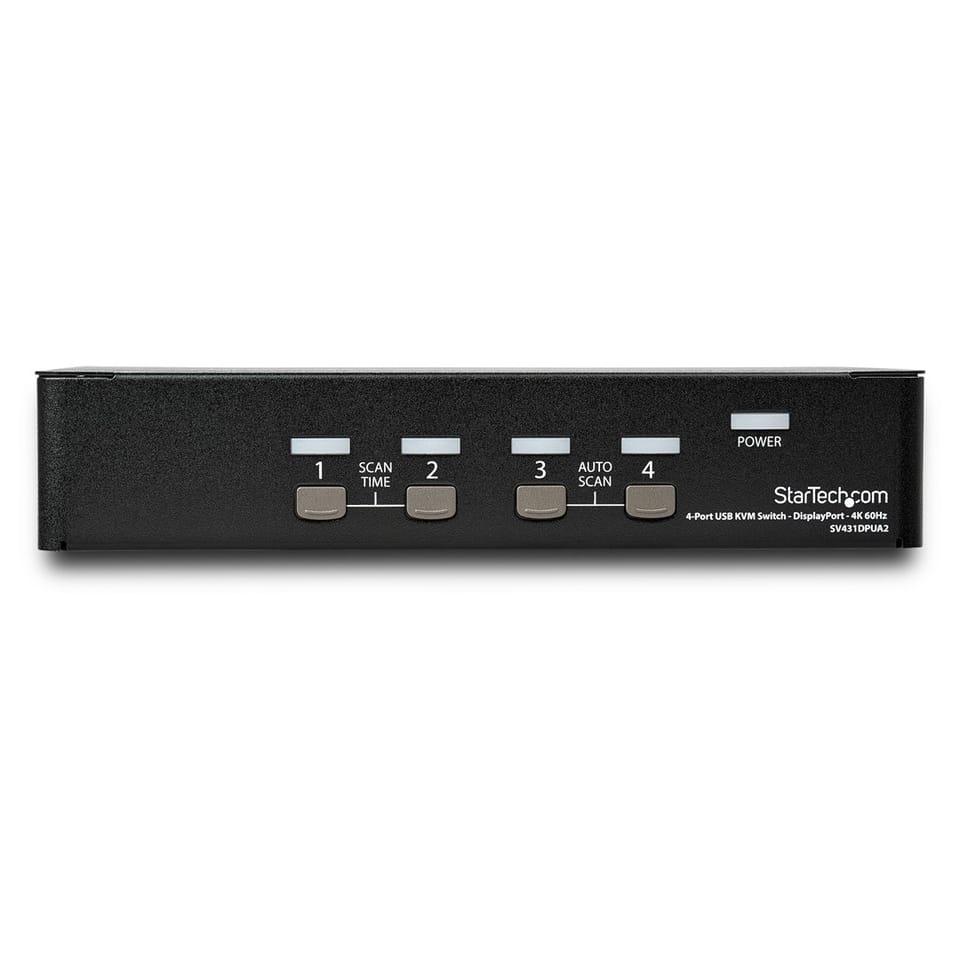

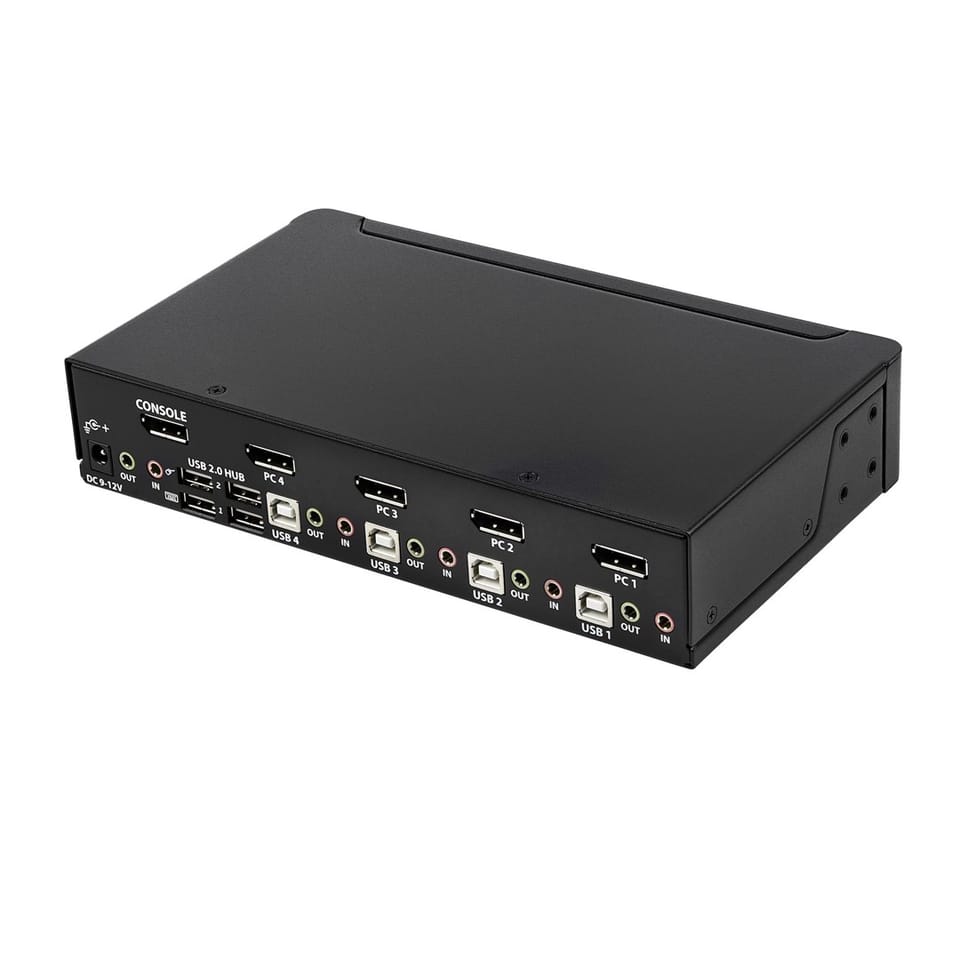

StarTech.com 4 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 2.0 Hub & Audio - Dell, HP, Apple, Lenovo - TAA Compliant
This product is not available
- Availability:
- expected delivery
- Brand:
- StarTech
- Product code:
- SV431DPUA2 / 0065030826372
Share this product:
Specification
| Ac adapter included: | Yes |
|---|---|
| Audio connections: | Yes |
| Audio support: | Yes |
| Compatible power plug types: | US, AU, UK, JP, EU |
| Compliance certificates: | RoHS |

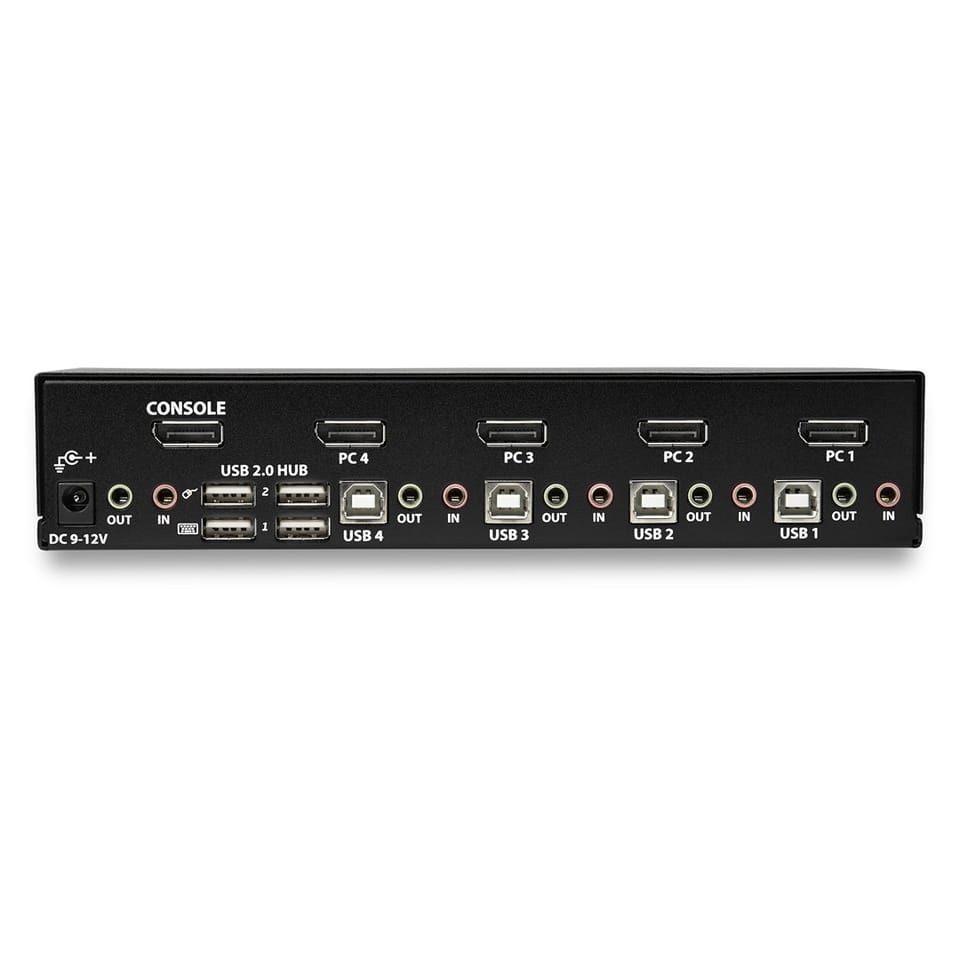

| Console ports: | USB A, 3.5mm headphone, 3.5mm mic, DisplayPort |
| Console usb ports quantity: | 4 |
| Daisy chain: | No |
| Data transfer rate (max): | 0.48 Gbit/s |
| Dc-in jack: | Yes |
| Depth: | 220 mm |
| Displayports quantity: | 5 |
| Ethernet lan: | No |
| External power adapter: | Yes |
| Harmonized system (hs) code: | 85176200 |
| Hd type: | 4K Ultra HD |
| Headphone outputs: | 5 |
| Height: | 45 mm |
| Hot keys: | Yes |
| Housing material: | Steel |
| Input current: | 0.6 A |
| Input voltage: | 100 - 240 V |
| Ip control: | No |
| Keyboard port type: | USB |
| Led indicators: | Yes |
| Master (outer) case height: | 258 mm |
| Master (outer) case length: | 545 mm |
| Master (outer) case width: | 433 mm |
| Maximum resolution: | 3840 x 2160 pixels |
| Mean time between failures (mtbf): | 138327 h |
| Mouse port type: | USB |
| Number of computers controlled: | 4 |
| Number of microphone inputs: | 5 |
| Number of users: | 1 user(s) |
| On screen display (osd): | Yes |
| Operating relative humidity (h-h): | 0 - 40% |
| Operating temperature (t-t): | 0 - 40 °C |
| Output current: | 1.5 A |
| Output voltage: | 12 V |
| Package depth: | 409 mm |
| Package height: | 87 mm |
| Package weight: | 1.6 kg |
| Package width: | 212 mm |
| Plug and play: | Yes |
| Power consumption (typical): | 18 W |
| Power plug type: | Type M |
| Product colour: | Black |
| Products per master (outer) case: | 6 pc(s) |
| Quick installation guide: | Yes |
| Rack capacity: | 1U |
| Rack mounting: | Yes |
| Rubber feet: | Yes |
| Scan interval: | 3, 8, 15, 30 |
| Storage temperature (t-t): | -10 - 60 °C |
| Usb 2.0 type-b ports quantity: | 4 |
| Video port type: | DisplayPort |
| Weight: | 1 kg |
| Width: | 131 mm |
