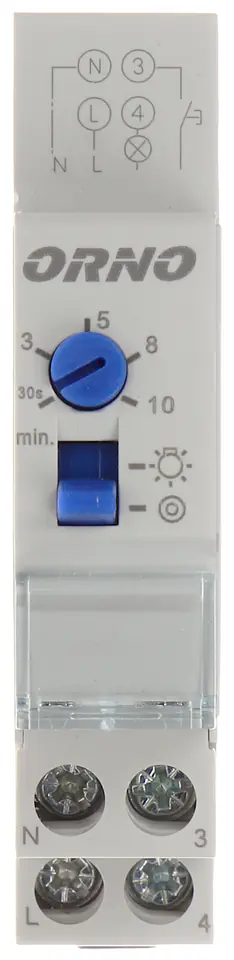

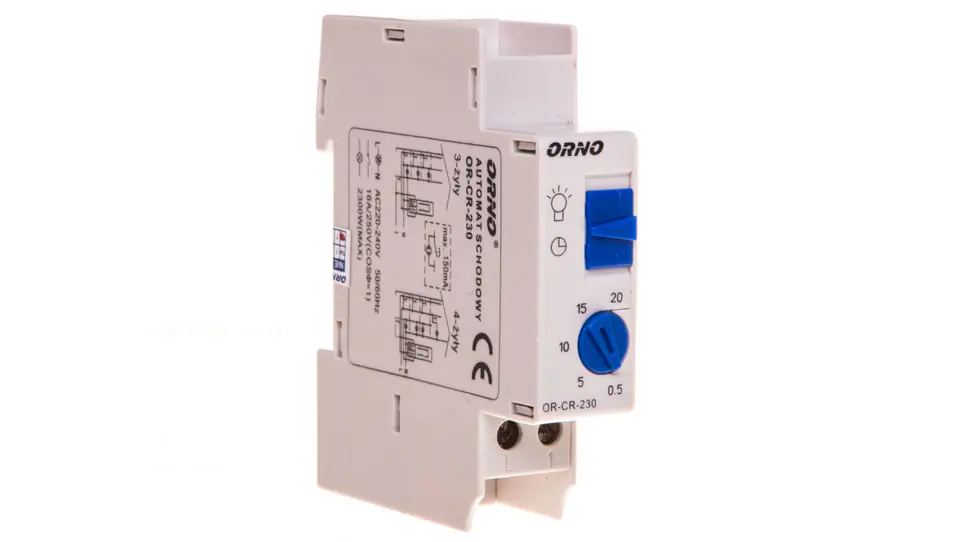

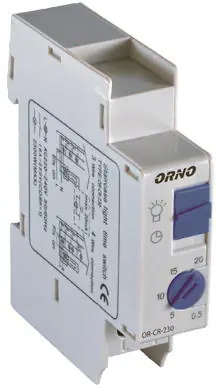

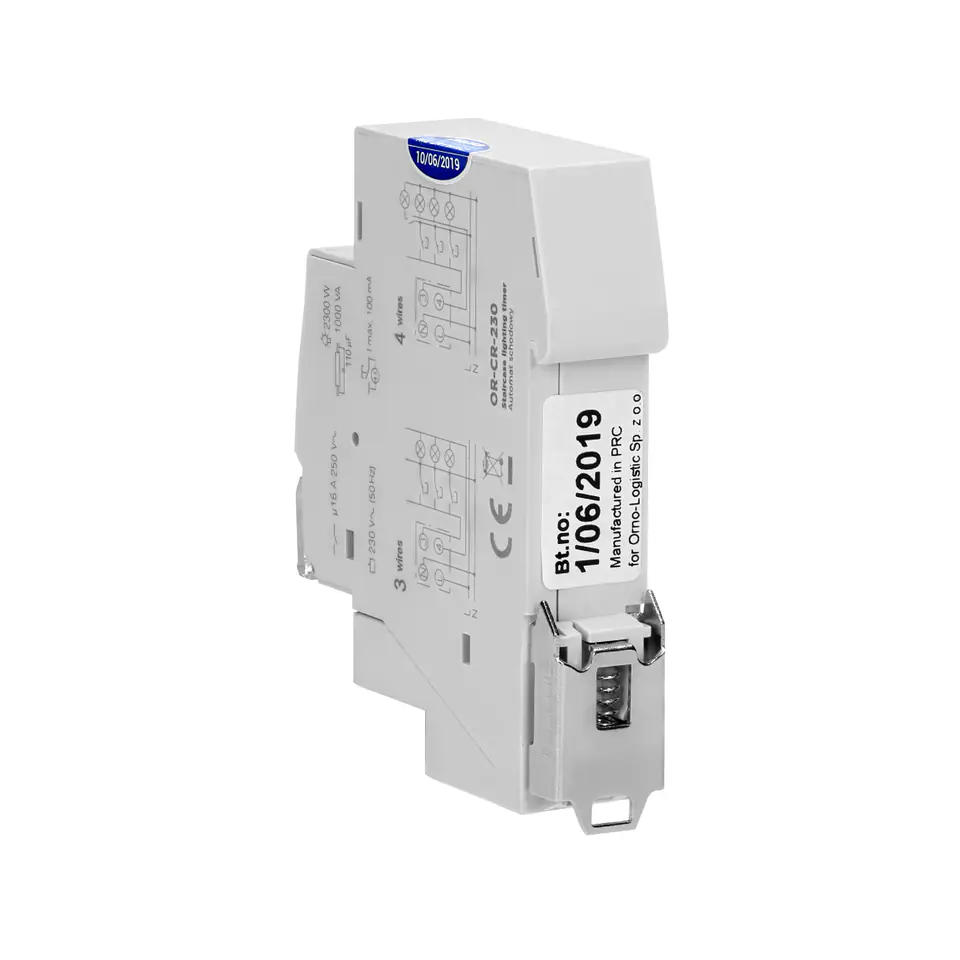

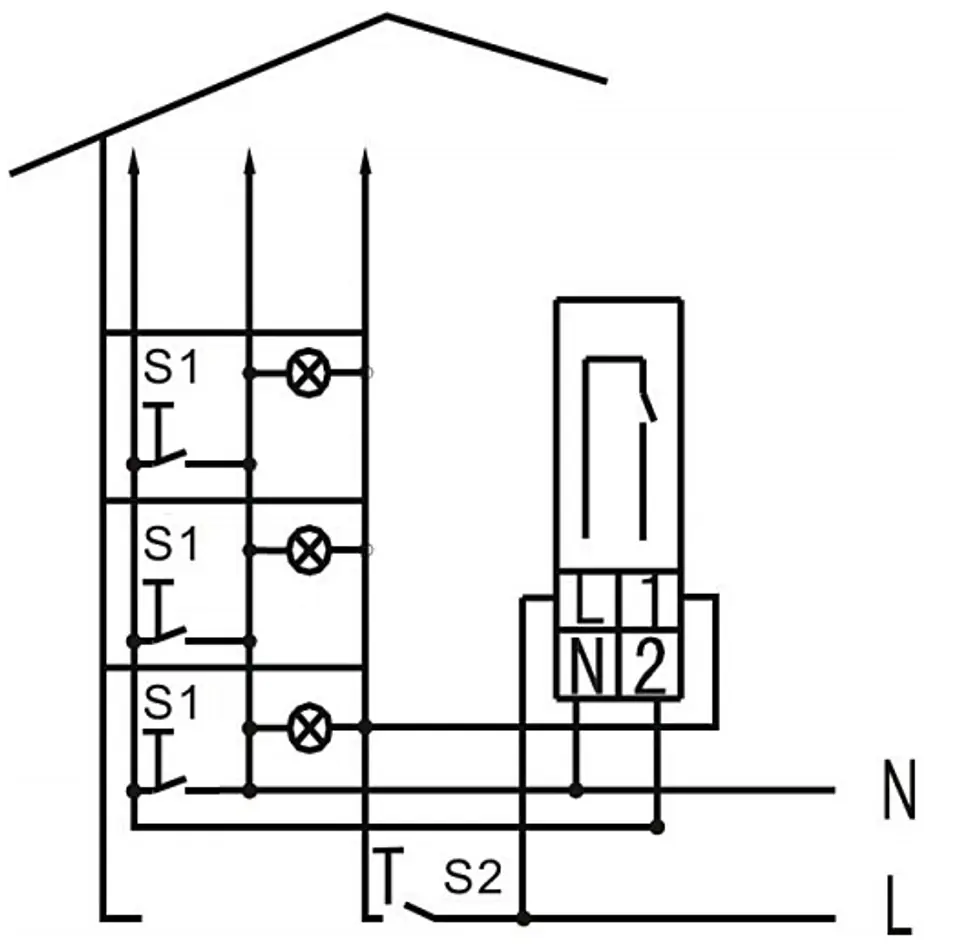

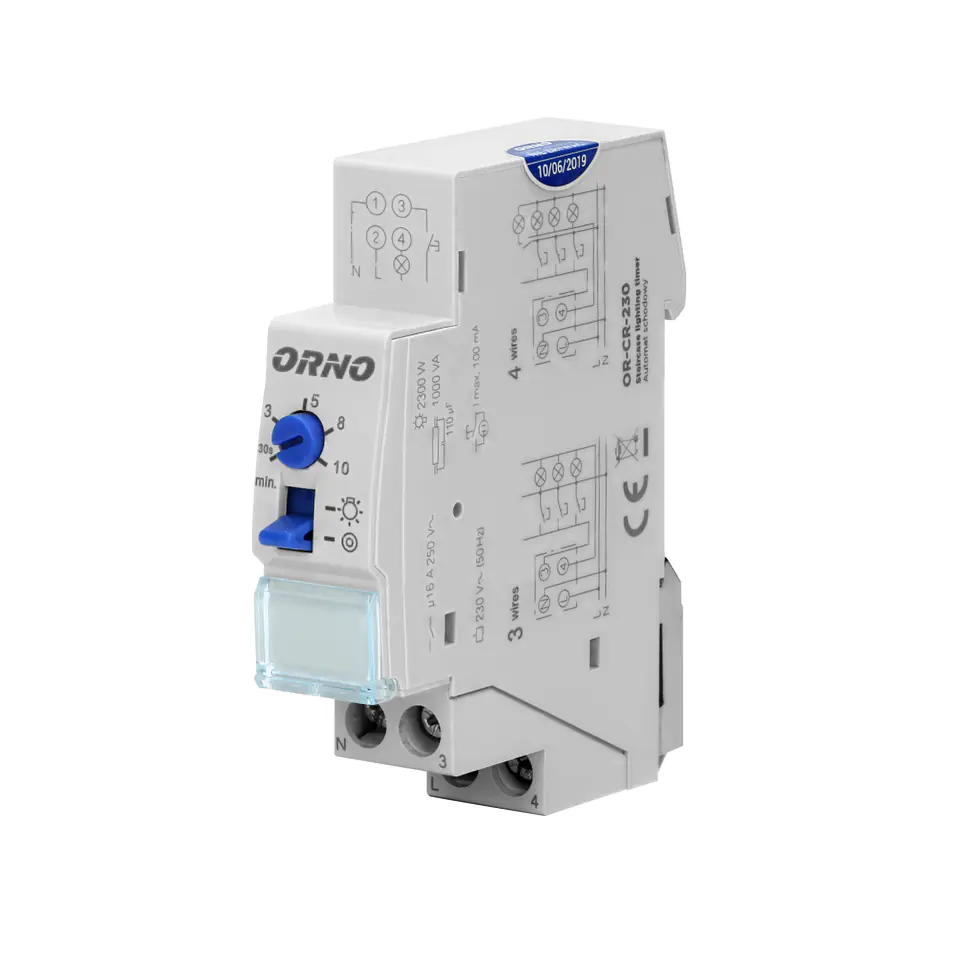

Stair vending machine adapted for installation on a standard TH-35 mm DIN rail. It is used to maintain the lighting on in corridors, staircases, communication routes of office buildings and hotels or other facilities for a certain period of time, after which the lighting will be automatically turned off. Lighting time adjustment: min. 30sec., max. 10min. Mode of operation ? continuous or temporary. 3 or 4-wire installation. Works with LED lighting.

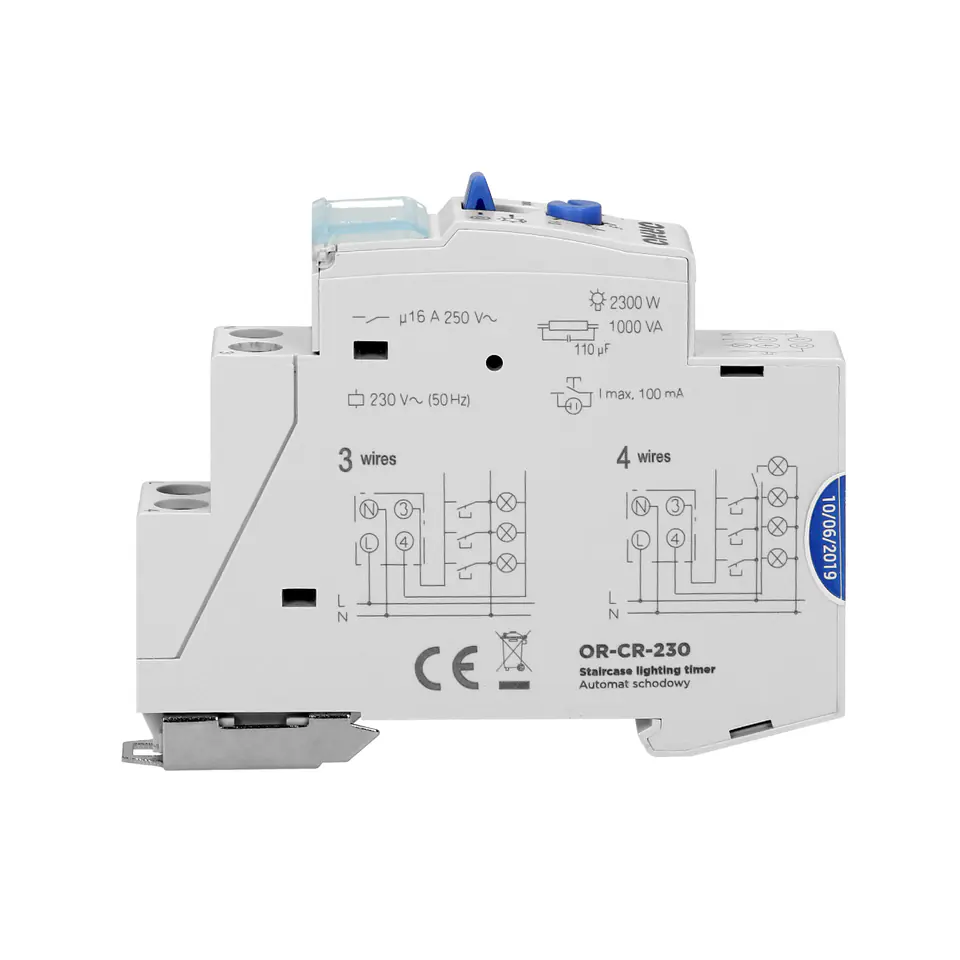

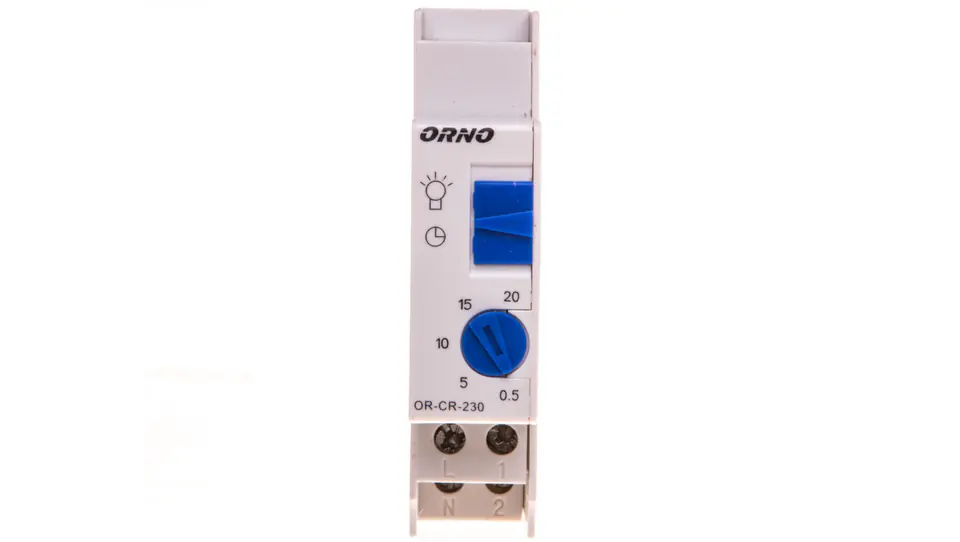

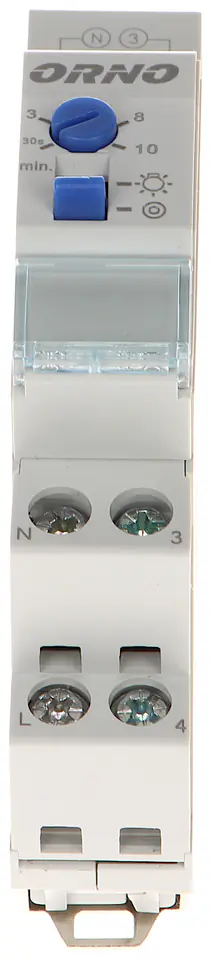

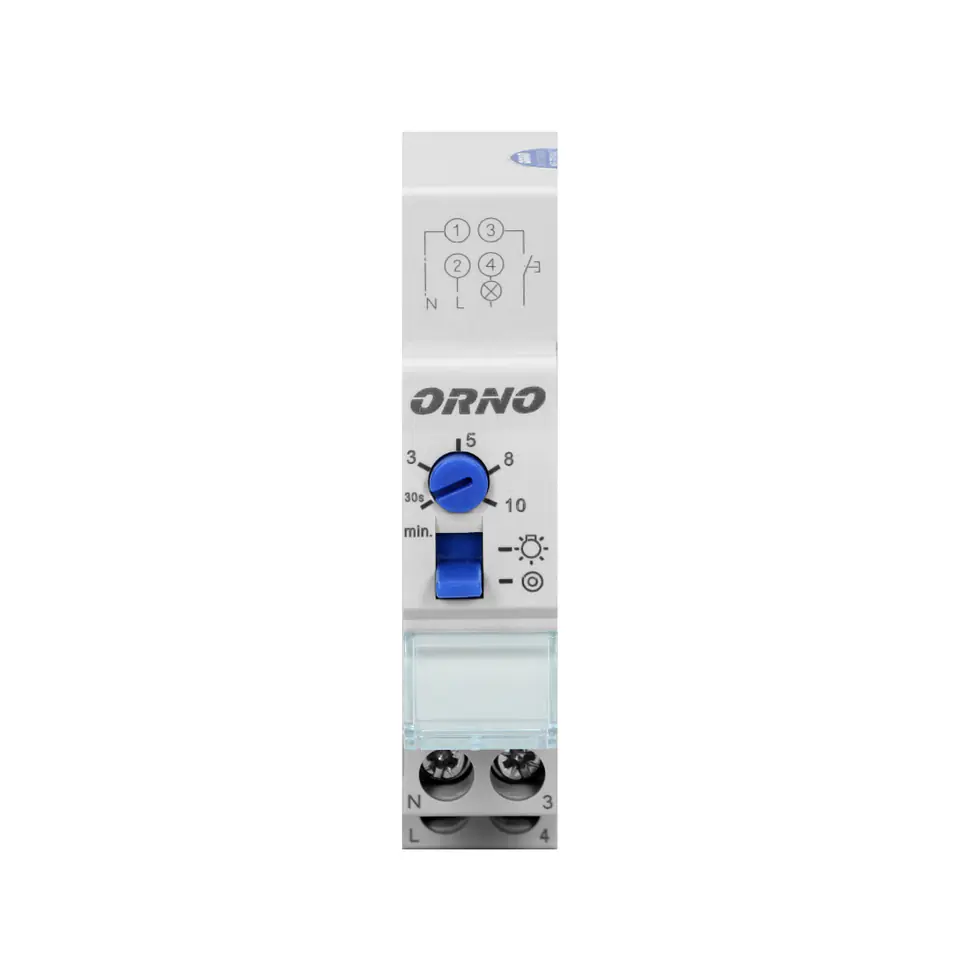

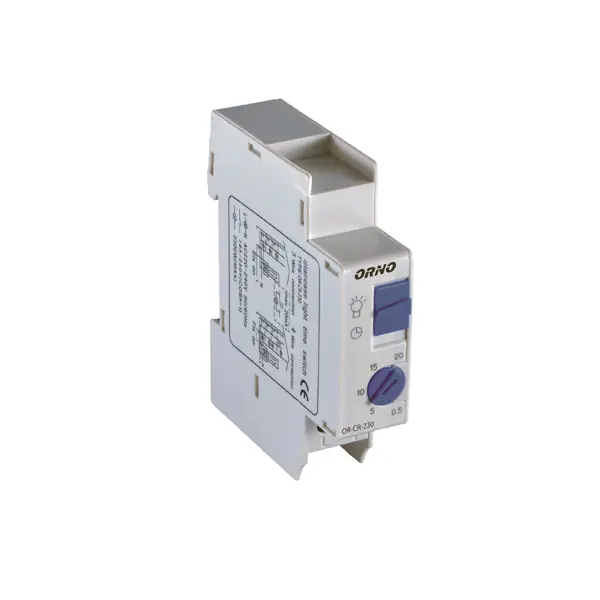

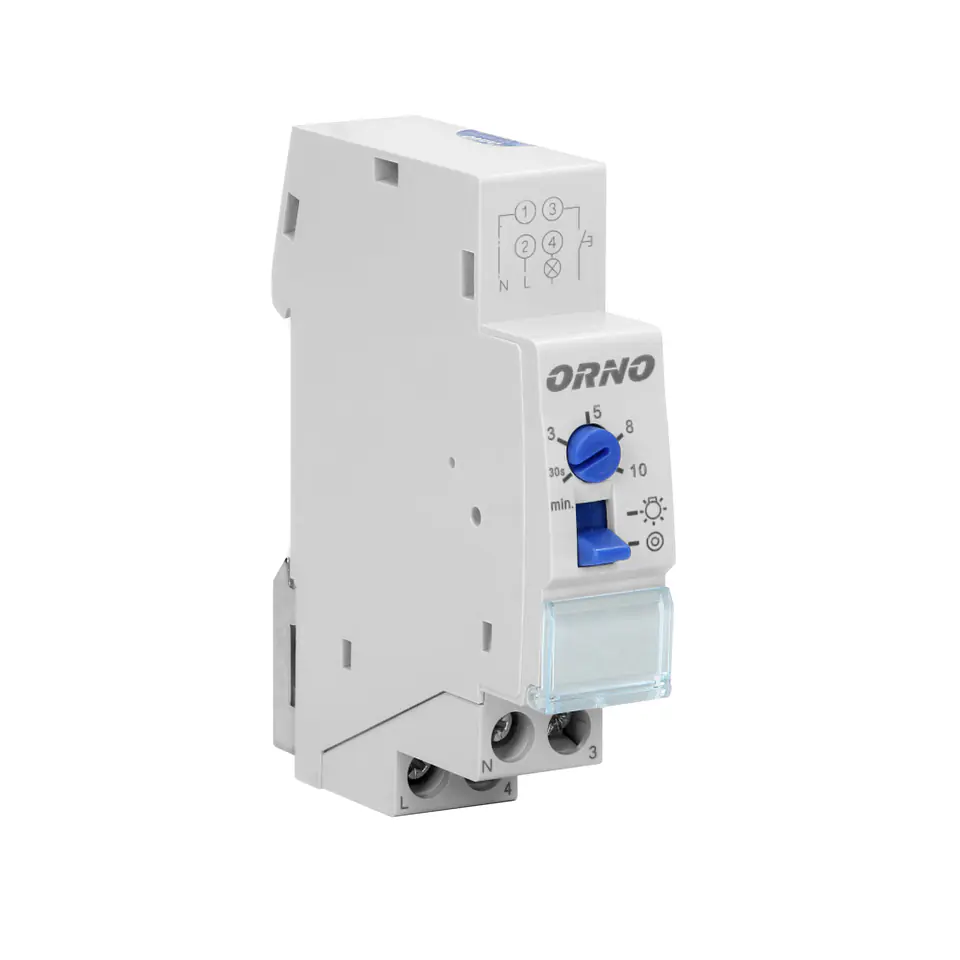

Stair vending machine, 3 or 4 core installation, 1 module, DIN TH-35mm
€15.41
Shipping from warehouse: D4
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Orno
- Product code:
- OR-CR-230 / 5901752483545
Share this product:
Specification
| Built-in depth [mm]: | 44 |
|---|---|
| Circuit breaker fluorescent insert current [ma]: | 0 |

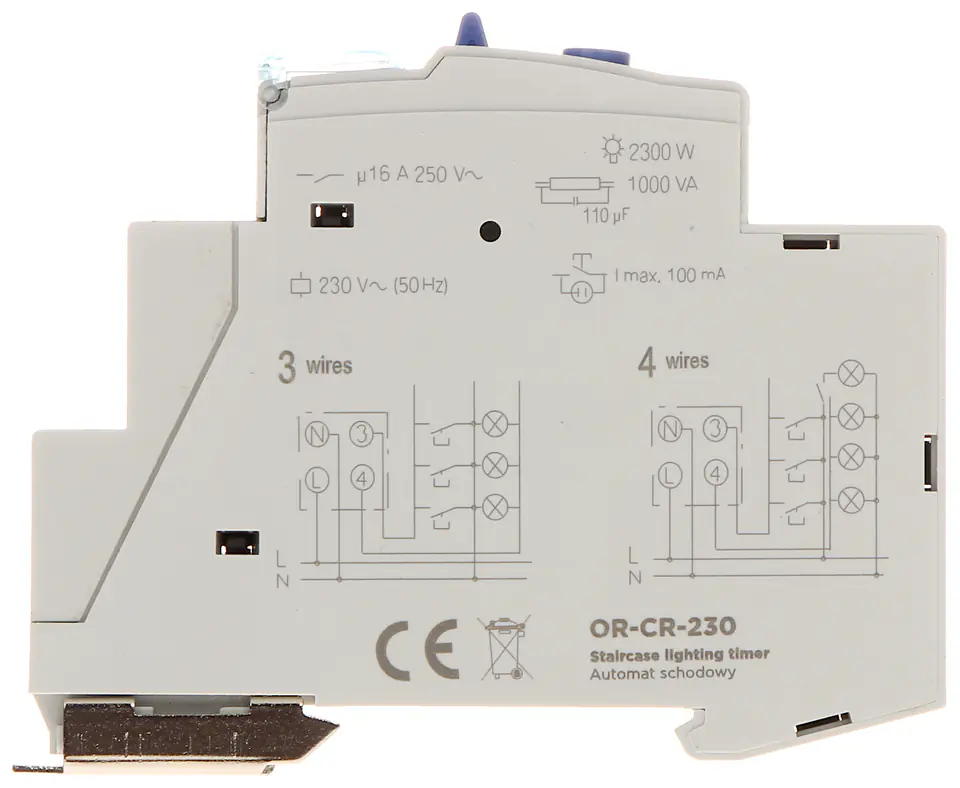

| Connection layout: | 3 and 4 wire |
| Control voltage 1 [v] from: | 230 |
| Control voltage 1 [v] to: | 230 |
| Control voltage 2 [v] from: | 0 |
| Control voltage 2 [v] to: | 0 |
| Control voltage frequency 1 [hz] from: | 50 |
| Control voltage frequency 1 [hz] to: | 60 |
| Control voltage frequency 2 [hz] from: | 0 |
| Control voltage frequency 2 [hz] to: | 0 |
| Control voltage type 1: | AC |
| Current pulse switching function: | No |
| Duty cycle: | Lack |
| Ean: | 5901752483545 |
| Function: | Electronic |
| Maximum switching capacity for filament lamps [w]: | 2300 |
| Maximum switching capacity for fluorescent lamps (duo compensation) [va]: | 0 |
| Maximum switching capacity for fluorescent lamps (with parallel compensation) [va]: | 0 |
| Maximum switching capacity for fluorescent lamps [va]: | 0 |
| Maximum switching current (cos ? = 0,6) [a]: | 0 |

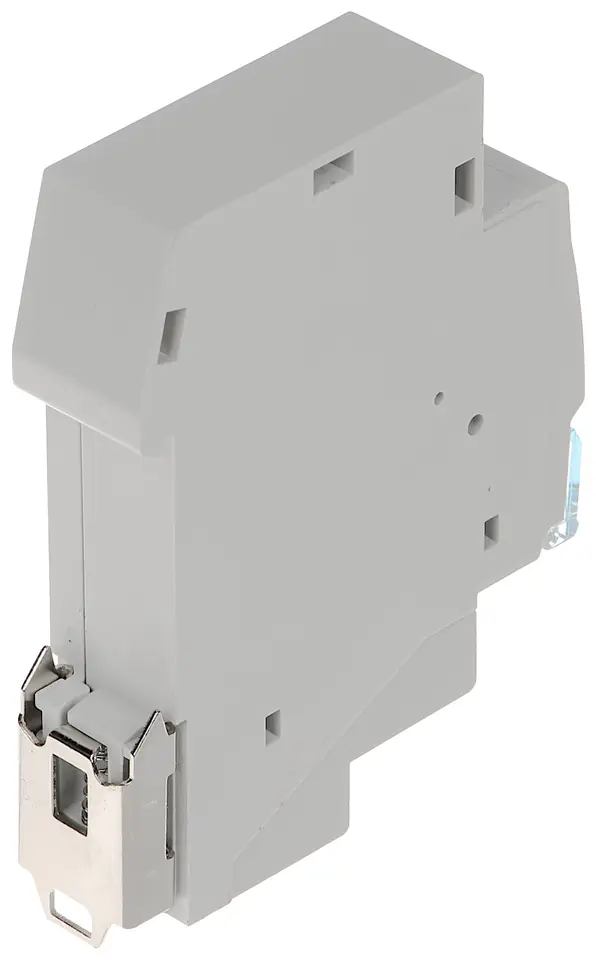

| Mounting method: | DIN rail |
| Number of nc contacts: | 0 |
| Number of no contacts: | 1 |
| Number of switching contacts: | 0 |
| Rated switching current [a]: | 16 |
| Shutdown warning: | Lack |
| Supply voltage range [v] from: | 230 |
| Supply voltage range [v] to: | 230 |
| Trigger delay [min] from: | 0,5 |
| Trigger delay [min] to: | 10 |
| Type of supply voltage: | AC |
| Width expressed by the number of modules: | 1 |
