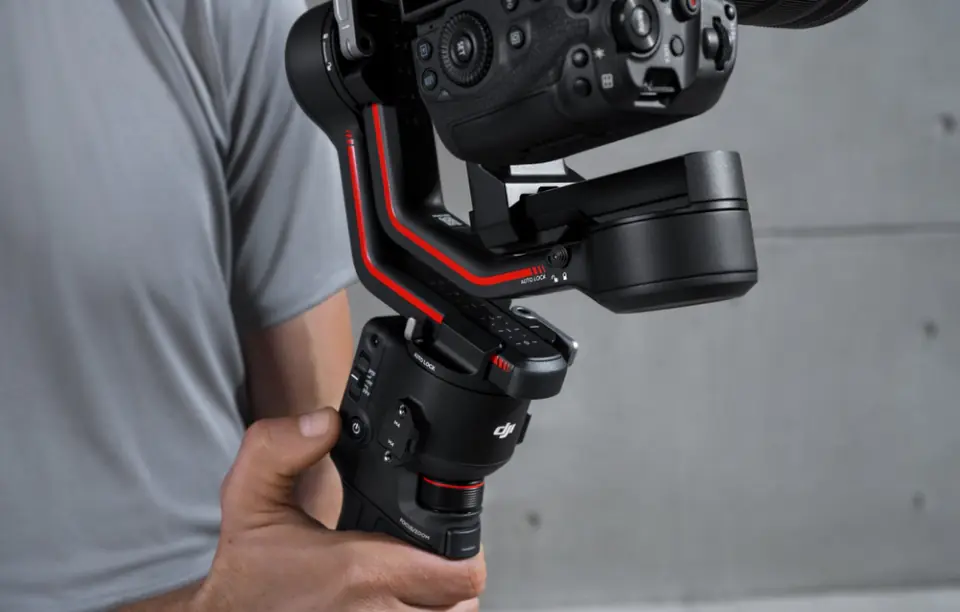

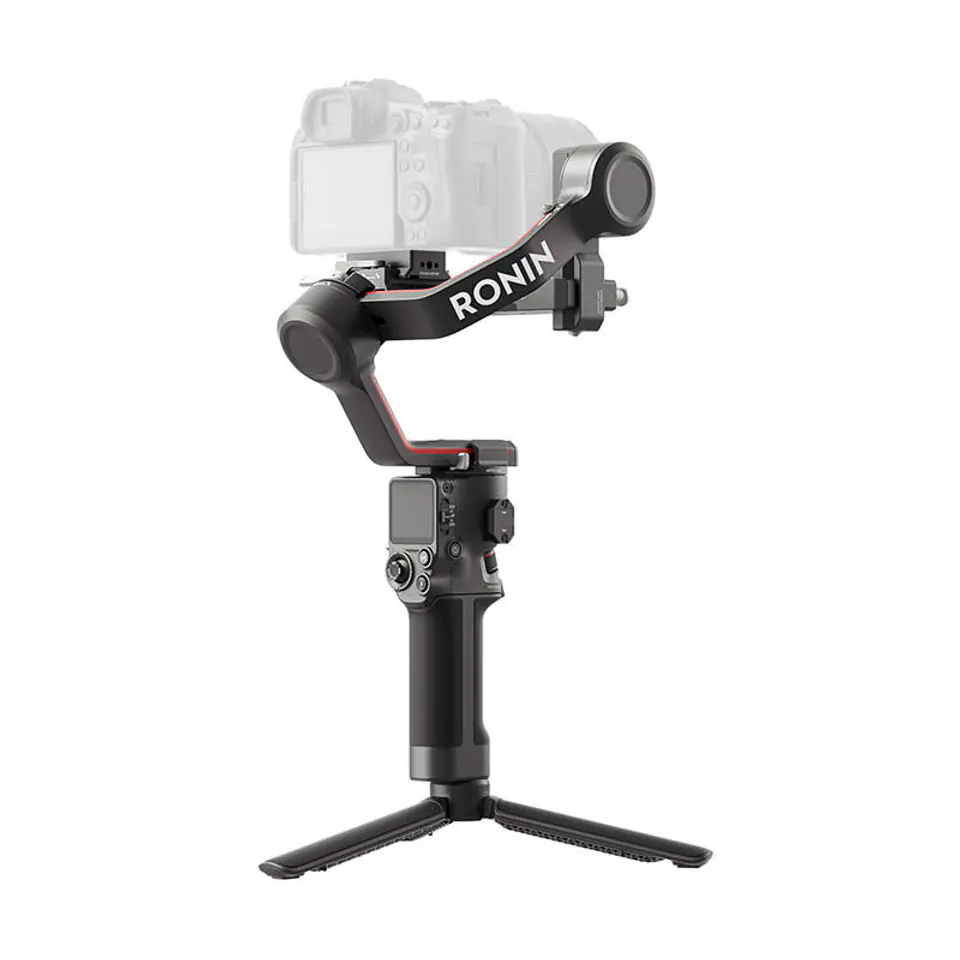

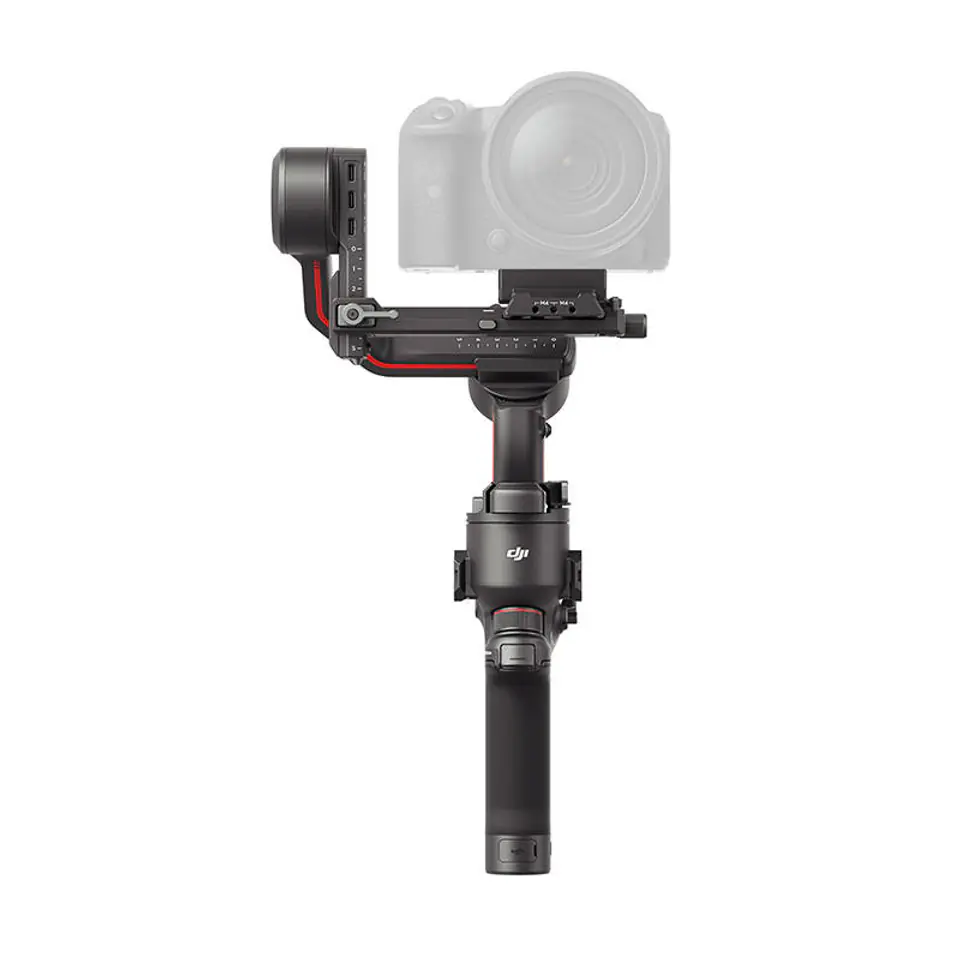

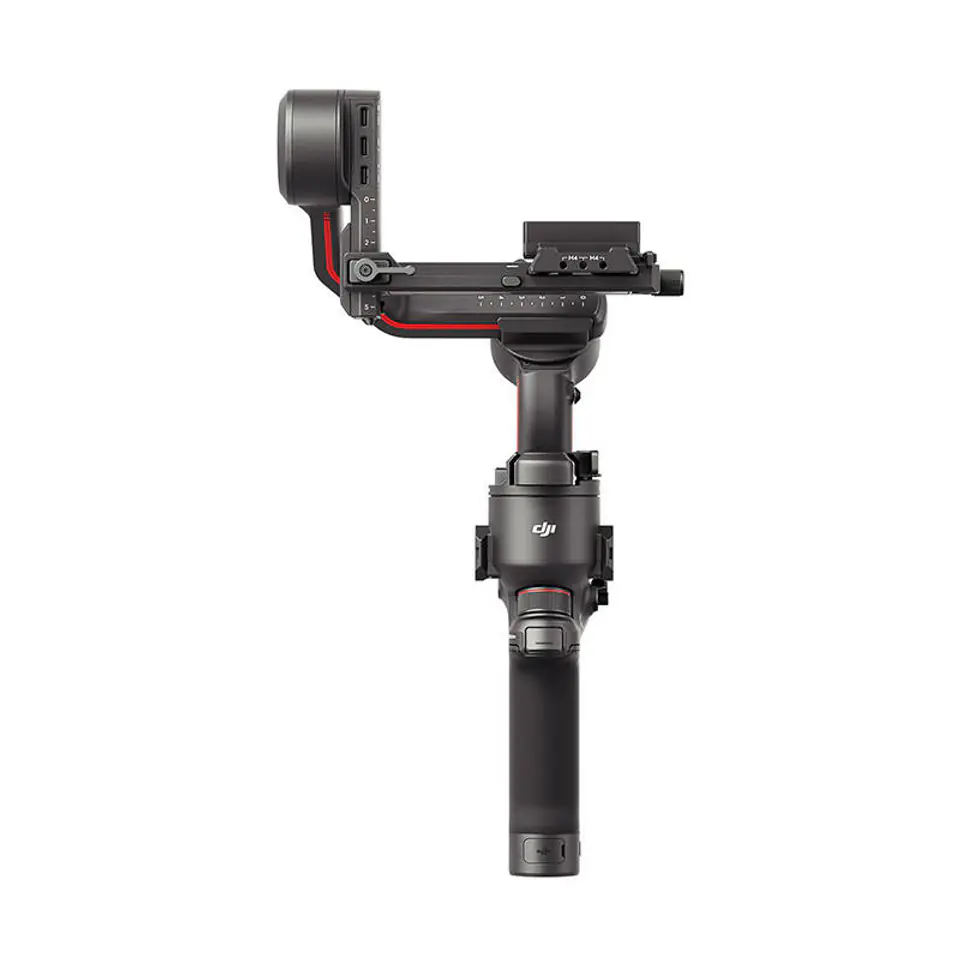

Create even more stable content and give yourself more flexibility when recording. The new DJI RS 3 stabilizer is the perfect choice for solo filmmakers and independent film crews. It allows you to enjoy professional stabilization and guarantees precise control. It is equipped with a large 1.8" OLED touch screen and is very convenient to use. Weighing only 1.3kg, it can handle cameras weighing up to 3kg. It also offers reliable 1080p/30FPS video transmission over long distances. Now you can easily record fantastic material!

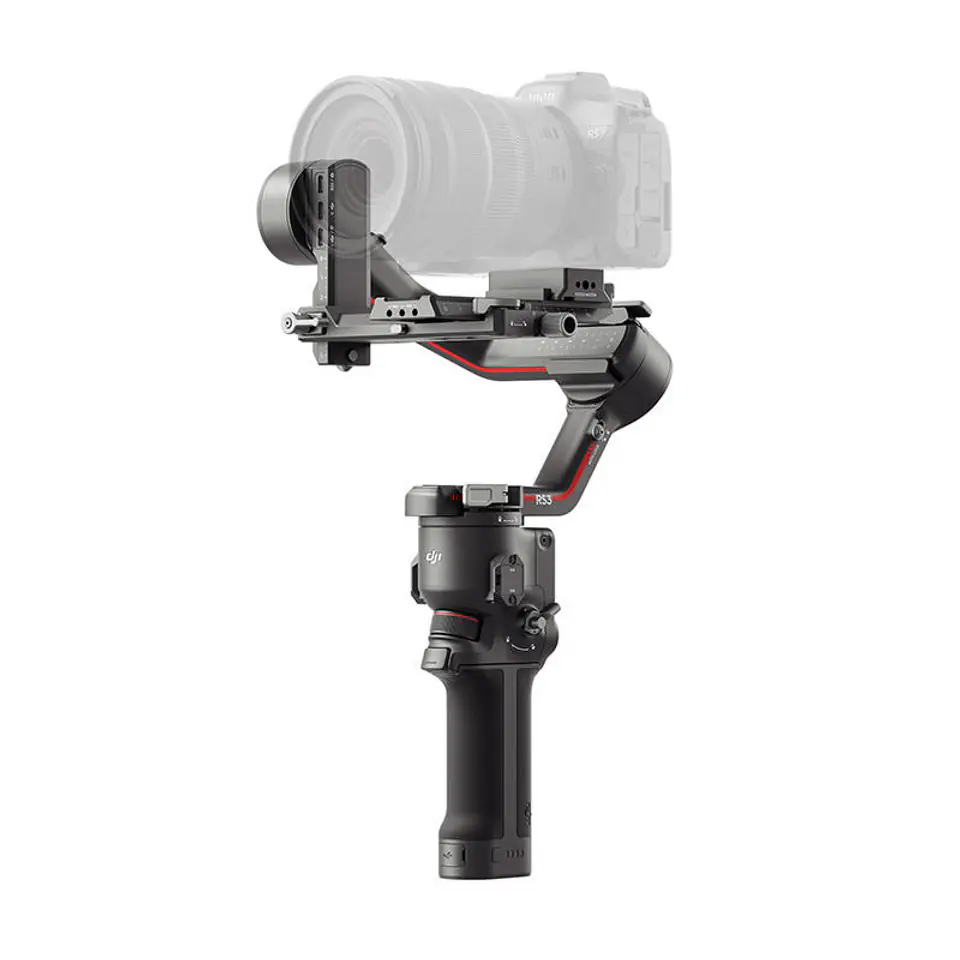

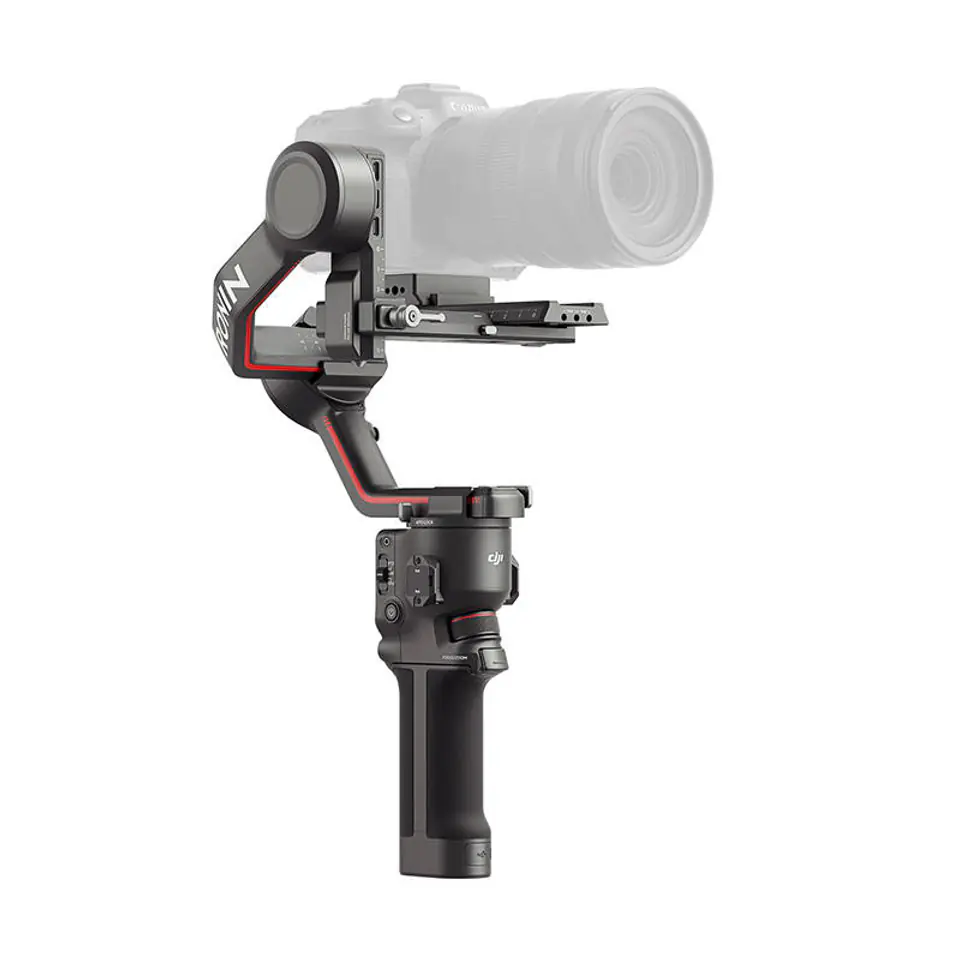

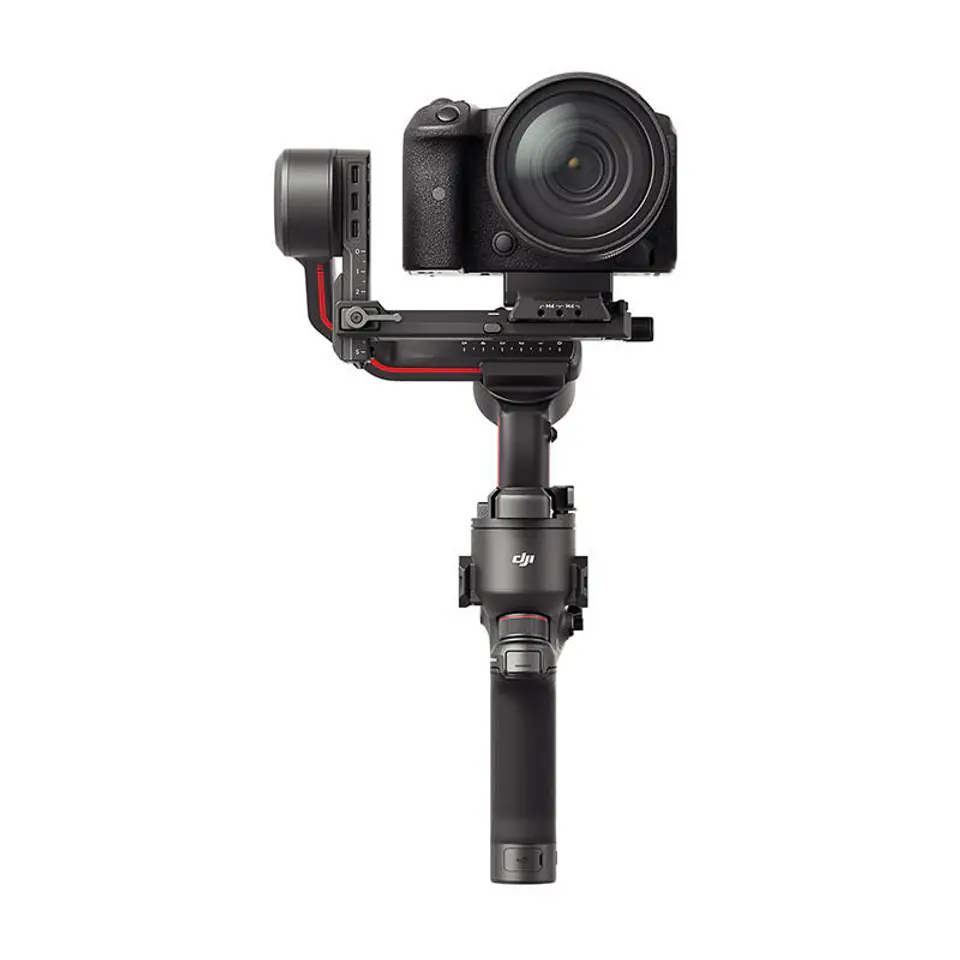

The DJI RS 3 has an excellent weight-to-payload ratio. It weighs 1.3 kg and its maximum load is as much as 3 kg. It can easily handle many commonly used cameras such as Canon R5 or Sony A7S3 with 24-70mm F2.8 lenses. With 2-layer quick-release plates, you can easily mount the camera on the stabilizer, and with the newly added tilt knob you can move it forward or backward with up to millimetre precision. You also don't have to rebalance the gimbal when you replace the memory card or battery.

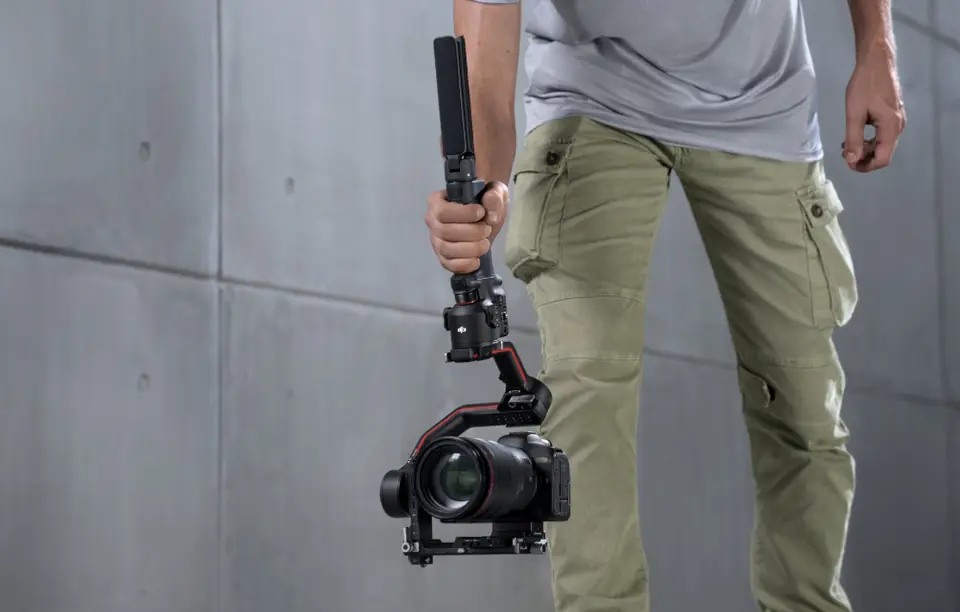

Don't waste time and enjoy the ability to start recording instantly. When you press and hold the power button, the gimbal will immediately unfold and its axes will be unlocked. So you can get started in no time! Want the axles to lock up and go into sleep mode? Just press the button again! What's more, when you press and hold it again, the gimbal will automatically fold and lock, making it much easier to transport and store.

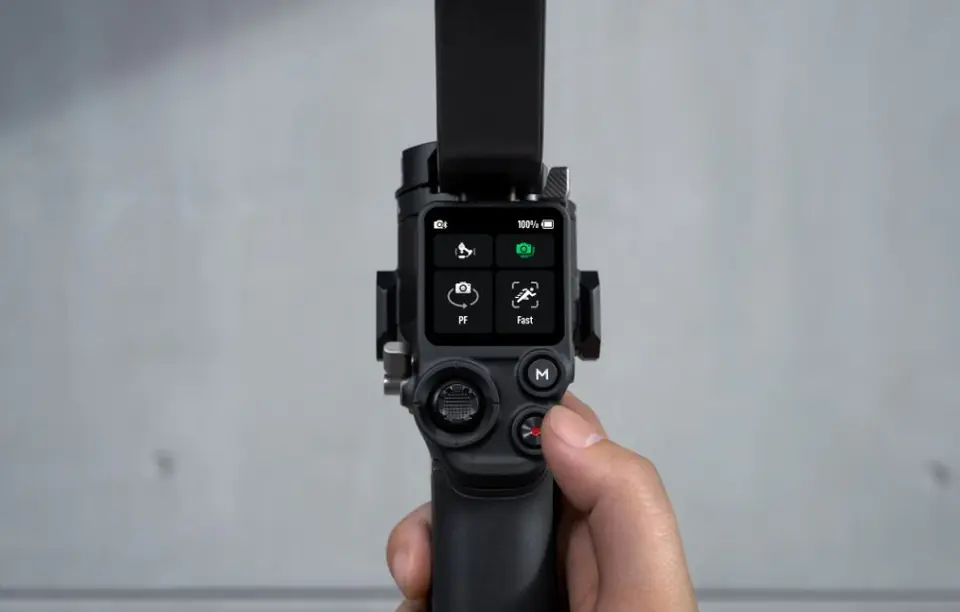

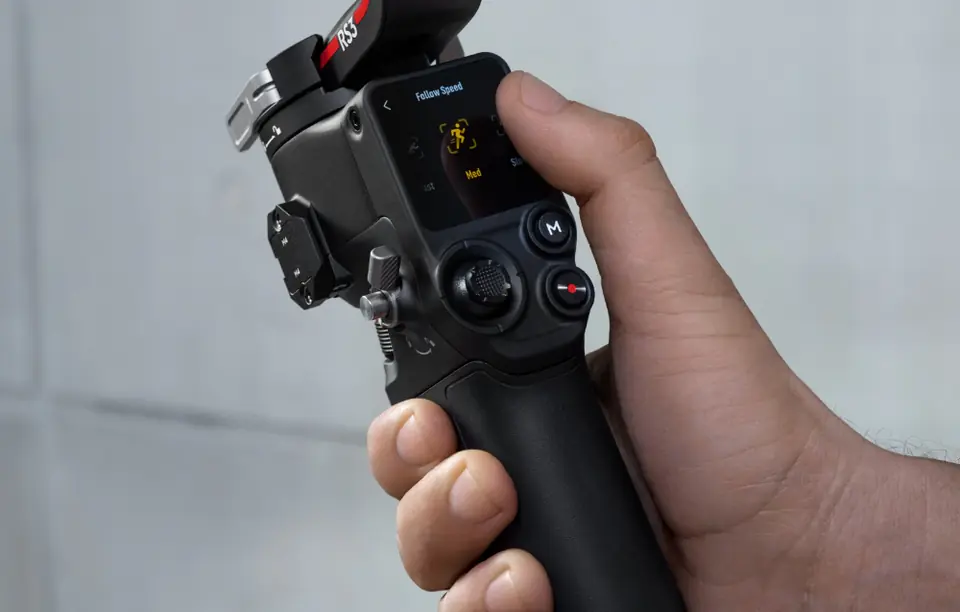

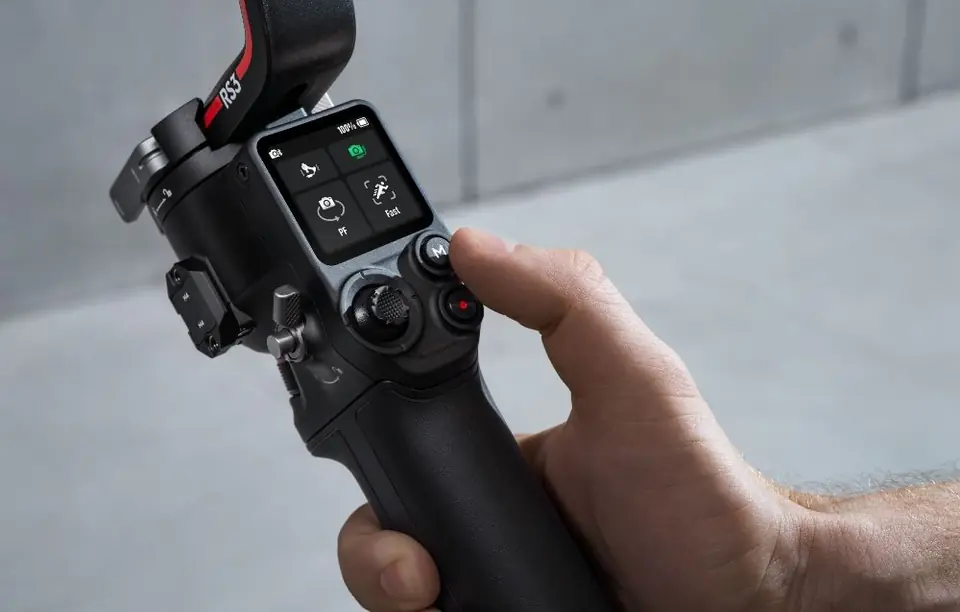

The RS 3 features a 1.8" colour OLED touch display and offers a brand new, more intuitive user interface. This means that you can control most of the Ronin settings even more easily. A new gimbal mode switch is also available. Just slide it to quickly change between DJI RS 3 Pro modes or FPV modes. The stabilizer also has a front knob that allows you to conveniently control focus or zoom. It can also perform another function - it is possible to customize it in such a way as to use it to control the shutter, ISO, gimbal movements or aperture.
What else makes operating the RS 3 so simple and convenient? Dual-Mode Bluetooth technology allows wireless shutter control. Simply pair your devices for remote control of recording and capturing photos with the appropriate button on the stabilizer. What's more, you don't have to reconnect equipment every time. Once paired, the cameras will automatically connect to the gimbal on subsequent uses - no need to waste time on this!
Compared to the RS 2, the new RS 3 delivers up to 20% better stabilization. This was made possible by the use of the RS stabilization algorithm, which makes the gimbal able to meet almost any challenge. It can easily handle, for example, running scenes or shots shot at low angles. Do you want more liquidity? Are you going to shoot extremely dynamic shots or use a lens with a focal length equivalent to 100mm? Activate SuperSmooth mode and the DJI RS 3 will increase the torque of the engine and provide even better stabilization.
Enjoy stable 1080p/30FPS HD video transmission with a low latency of about 60ms and a range of up to 100m - the DJI RS 3 supports the Ronin Image Transmitter (formerly known as the Ronin RavenEye Image Transmitter). Do you care about wireless monitoring? Simply attach your phone to the NATO stabilizer port! The transmitter also allows you to remotely control the gimbal using your smartphone thanks to Force Mobile. The RS 3 also allows you to adjust the camera's exposure from the Ronin app and control the stabilizer using the virtual joystick.
Record as long as you want. The new DJI RS 3 battery provides up to 12 hours of battery life. This means you can film all day long! In addition, 18 W fast charging allows you to restore all its energy in about 2.5 hours. It is also possible to charge the battery independently of the gimbal. If necessary, you can also use the DJI RS 3 when it's plugged in. This is not the end of possibilities! Thanks to the cassette design, battery replacement becomes much easier. The stabilizer is also slightly smaller, and thus easier to store.
Prepare your best video and surprise your viewers. The RS 3 Pro offers several smart features such as Track, Motionlapse and Panorama. You can also use several FPV modes, such as Portrait, DJI Roll 360 and Custom. That's not all! There are also various gimbal modes – including Vertical, Briefcase, and Underslung. All this means that you can easily adjust the stabilizer to your needs and record stunning materials!
Do you care about additional possibilities? Try additional accessories! The newly designed Briefcase Handle features a foldable yet ergonomic design. It also has a cold shoe adapter and 1/4"-20 mounting holes so you can connect external monitors. A vertical camera mount is also available to make it easier for you to take portrait photos. What's more, the new Focus Motor (2022) enables smooth focus adjustment, and its volume level has been reduced by up to 50%.

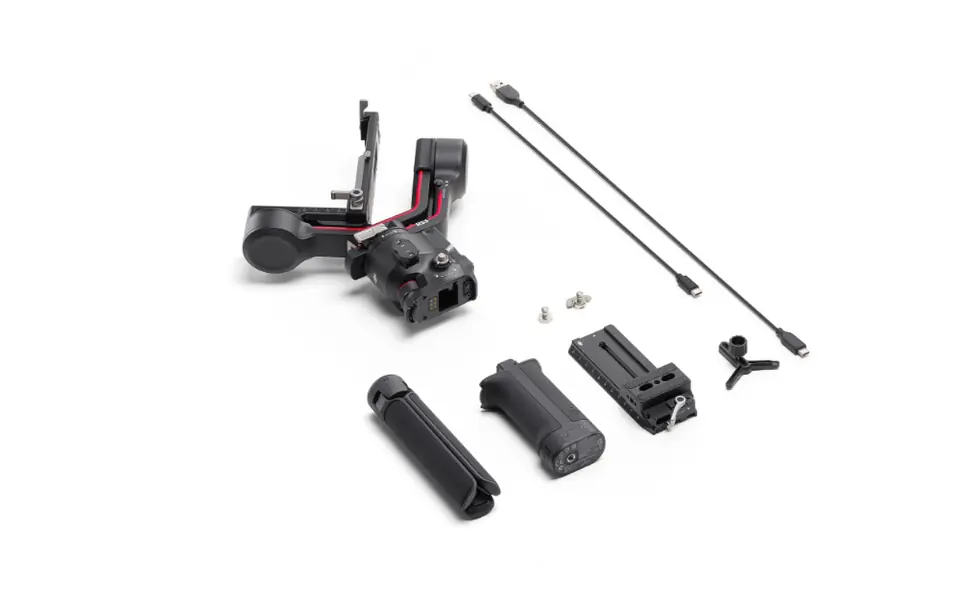

Included
- Gimbal
- BG21 bracket
- USB-C charging cable (40 cm)
- Lens mount support
- Extended handle / tripod (plastic)
- Quick connector mounting plate (Arca-Swiss / Manfrotto)
- MCC cable (USB-C, 30 cm)
- Screw set
Specification
Accessory Ports | Port NATO |
---|---|
Battery | Model: BHX711-3000-7.2V Type: 2S Capacity: 3000 mAh (21 Wh) Maximum working time: 12 hours Charging Time: About 2.5 hours (when using 18W fast charge; supports PD protocol) Suggested charging temperature: 5°-40° C (41°-104° F) |
Connectivity | Bluetooth 5.0 USB-C charging port |
Ronin application requirements | OS 11.0 or later Android 7.0 or later |
Available touch screen languages | English, Simplified Chinese, Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai |
Payload tested | 3 kg (6.6 lbs) |
---|---|
Maximum controlled traverse speed | Horizontal: 360°/s |
Mechanical inspection range | Horizontal: 360° continuous rotation Vertical: -95°-+240° Around its axis: -112°-+214° |
Operating frequency | 2.400-2.484 GHz |
---|---|
Bluetooth Power: | <8 dBm |
Operating temperature | 20°-45° C (-4°-113° F) |
Scales | Gimbal: Approx. 990 g (2.18 lbs) Handle: Approx. 200 g (0.44 lbs) Handle extension/tripod (plastic): Approx. 183 g (0.4lbs) Top and bottom quick connector: Approx. 107 g (0.23 lbs) |
Dimensions | Folded (without camera and brackets): 254 x 230 x 68 mm Folded (with handle and extension/tripod): 364 x 187 x 170 mm |
Ports | Power/Communication (USB-C) HDMI RSS Camera Control |
---|---|
Expansion Port | "cold foot" |
Operating frequency | 2.400-2.484 GHz 5.725-5.850 GHz |
Scales | 126 g (0.27 lbs) |
Dimensions | 82 x 63 x 24 mm |
Power (EIRP) | 2.400-2.484 GHz: <25 dBm (FCC) <20 dBm (CE/SRRC/MIC) 5.725-5.850 GHz: <25 dBm (FCC/SRRC) <14 dBm (CE) |
Accumulator | Capacity: 2970 mAh Compatible chargers: 5V/2A Charging time: About 2.5 hours Max Working Time: About 3.5 hours |
Transmission range | 200 m (SRRC/FCC) 100 m (CE) |
Delay | 60 ms |
Current/voltage | 900mAh / 3.7V |
Operating temperature | 0°-45° C (32°-113° F) |
