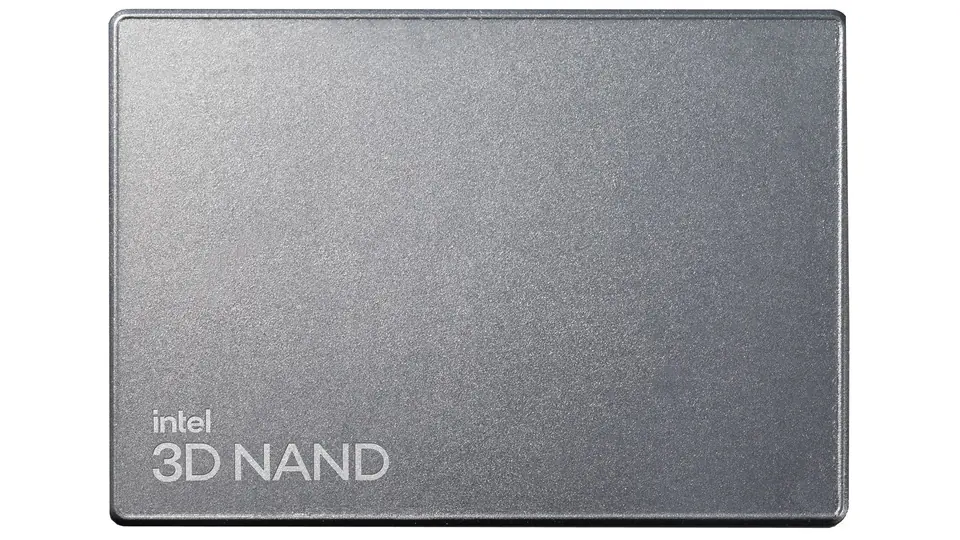

SSD Solidigm (Intel) P5520 1.92TB U.2 NVMe PCIe 4.0 SSDPF2KX019T1M1 1 DWPD
Specification
| Commodity classification automated tracking system (ccats): | G162706L1 |
|---|---|
| Component for: | Server/workstation |
| Dwpd: | 1 |
| End-to-end data protection: | Yes |
| Enhanced power loss data protection technology: | Y |
| Export control classification number (eccn): | 5A992C |
| Hardware encryption: | Yes |
| Harmonized system (hs) code: | 8523510000 |
| Interface: | PCI Express 4.0 |
| Internal memory type: | PCIe 4.0 x4, NVMe |
| Launch date: | Q2'22 |
| Maximum operating temperature: | 70 °C |
| Mean time between failures (mtbf): | 2000000 h |
| Memory type: | TLC 3D NAND |
| Non-operating vibration: | 3.13 G |
| Nvme: | Yes |
| Operating temperature (t-t): | 0 - 70 °C |
| Operating vibration: | 2.17 G |
| Power consumption (active): | 13 W |
| Power consumption (idle): | 5 W |
| Processor family: | Intel SSD D7-P5520 |
| Product series: | P5520 |
| Random read (100% span): | 700000 IOPS |
| Random write (100% span): | 114000 IOPS |
| Security algorithms: | 256-bit AES |
| Sequential reading: | 5300 MB/s |
| Sequential writing speed: | 1900 MB/s |
| Ssd capacity: | 1.92 TB |
| Ssd endurance rating: | 3.5 PBW |
| Ssd form factor: | U.2 |
| Ssd shock: | 1000G,0.5ms |
| Ssd temperature monitoring: | Y |
| Status: | Launched |
| Uncorrectable bit error rate (uber): | < 1 per 10^17 bits read |
| Use conditions: | Server/Enterprise |
| Weight: | 165 g |
