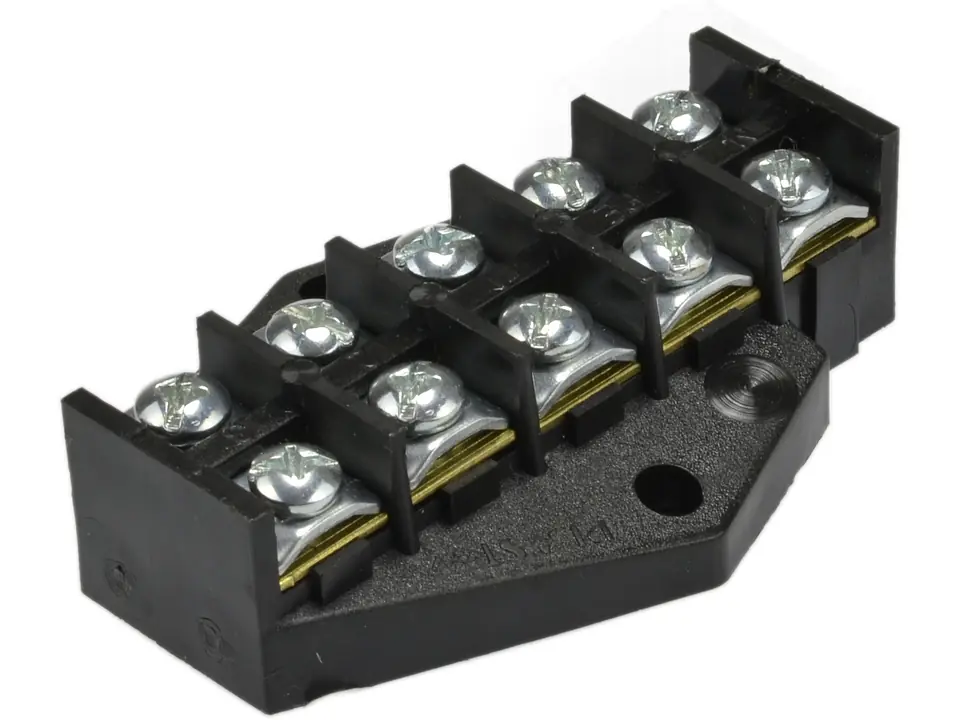

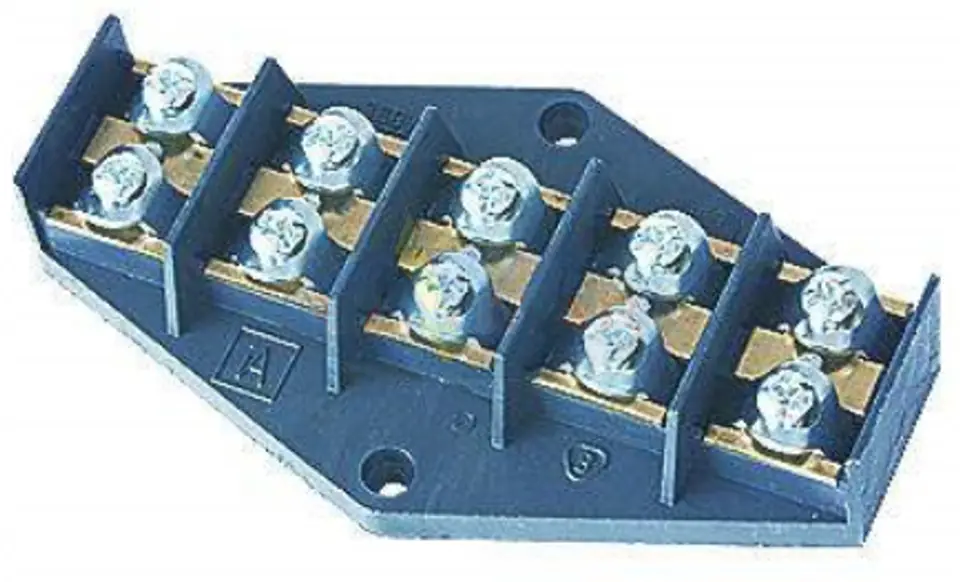

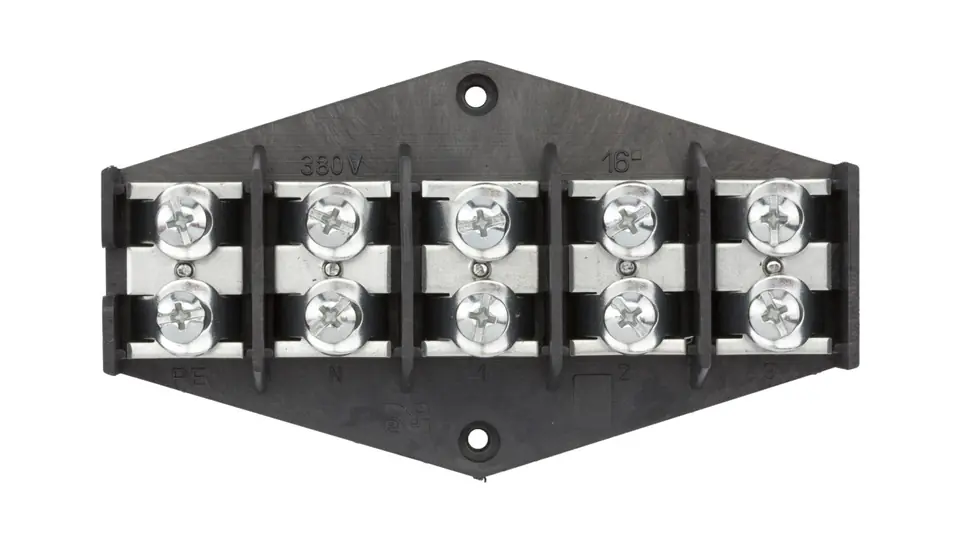

The branch board is used to connect the wires in the installation boxes.
380 volts
5x16 mm2
380 volts
5x16 mm2
SPLIT RING 5X16MM2 BLACK 0966-00
PLN 20.43
Shipping from warehouse: U1
Estimated shipping: Wed, Dec 3 - Mon, Dec 8
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- ELEKTRO-PLAST NASIELSK
- Product code:
- 0966-00 / 5906868438694
Share this product:
Specification
| Colour: | Black |
|---|---|
| Connection position: | Side / side |
| Cross-section of the connected cable without sleeve terminal [mm2] to: | 16 |
| Cross-section of the connected multicore cable [mm2] to: | 16 |
| Cross-section of the connected single-wire cable [mm2] to: | 16 |
| Electrical connection type 1: | Screw connection |
| Electrical connection type 2: | Screw connection |
| Explosion-proof ex-e - confirmed: | No |
| Explosion-proof version "eex e": | No |
| Mounting method: | Direct mounting |
| Number of poles: | 5 |
| Number of terminals per pole: | 2 |
| Required closing plate: | No |
| Transparent: | No |
| Type of insulating material: | Thermoplastic |
