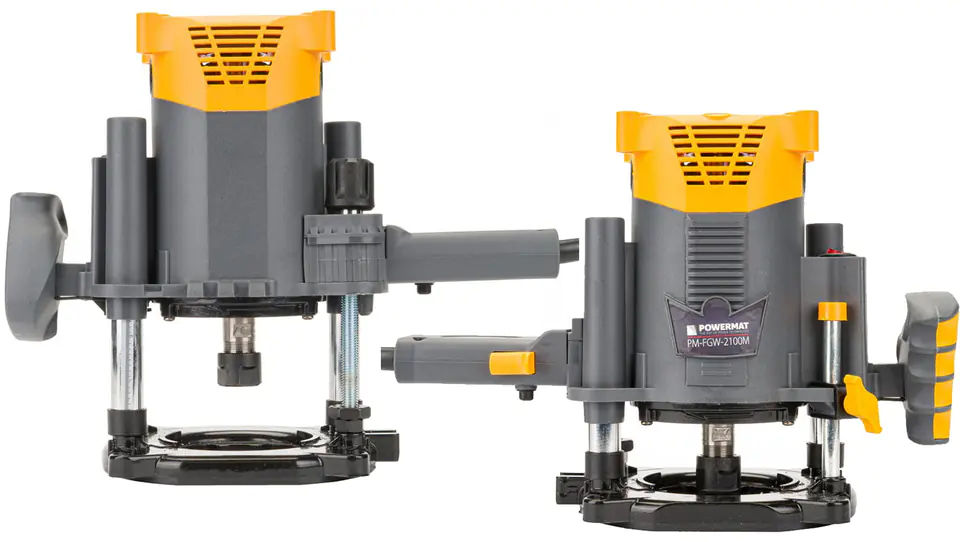

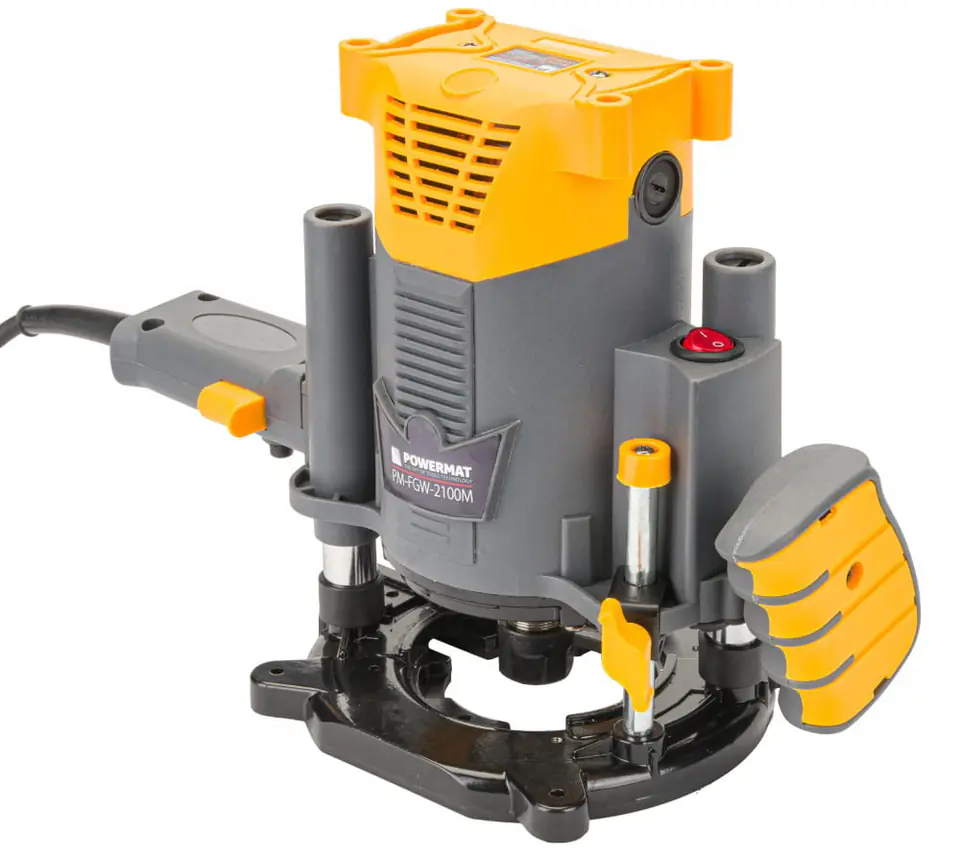

Powermat milling machine. Compact and lightweight design increases ease of use and comfort.
DIE-MILLING
- Adjustable depth limiter allows you to precisely choose the depth
- Butterfly that allows you to lock the device at the desired milling depth
- Possibility of mounting a parallel guide, contour guide and compass on the line
COPY RING
Indispensable when working with templates. The copy pin runs along the template and transfers the shape to the workpiece.

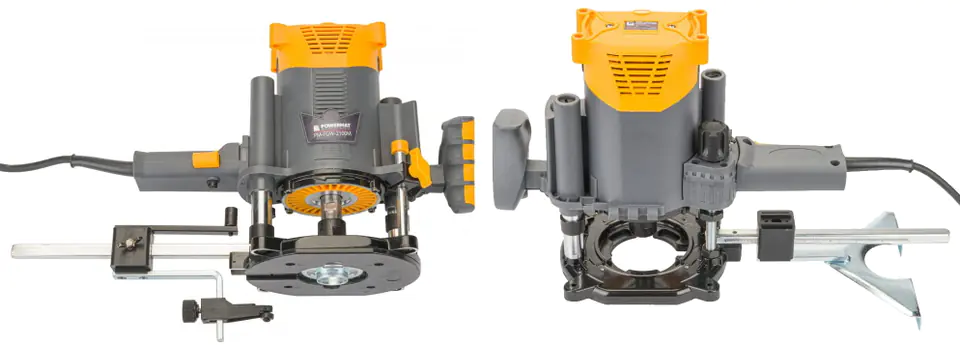

PARALLEL ATTACHMENT
Allows parallel guidance of the machine to the cutting edge
BUSHING 12 MM
Allows larger 12 mm cutters to be fitted
BUSHING 8 MM
Allows you to attach 8 mm cutters

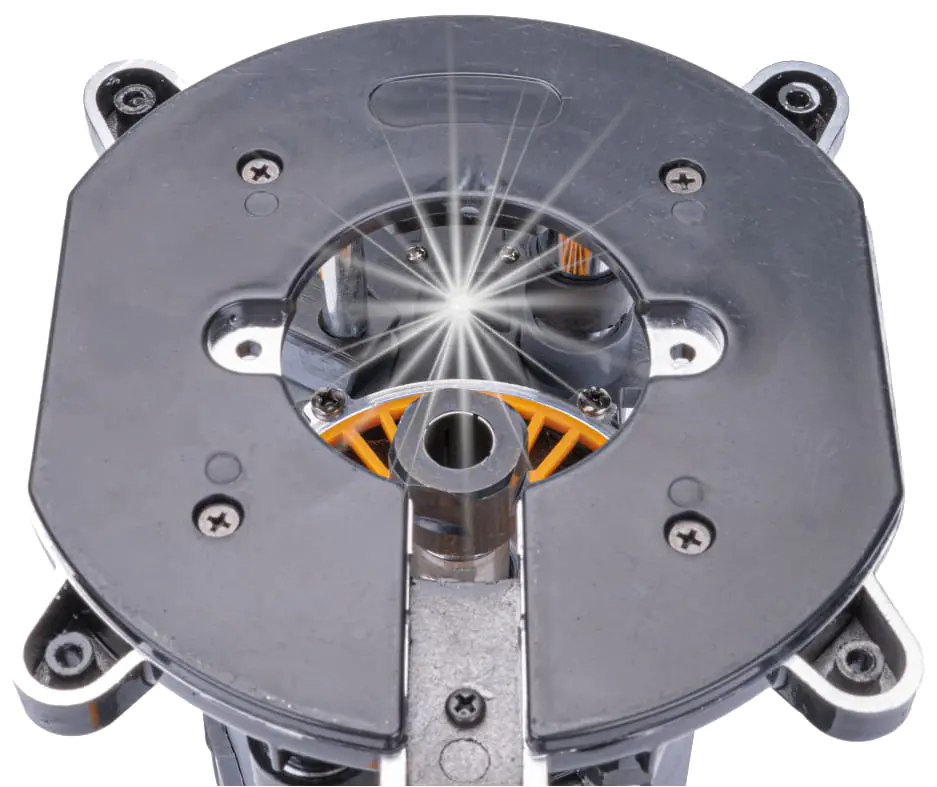

LED LIGHTING
Using a switch built into the body of the milling machine, it is possible to illuminate the workpiece with an LED lamp located underneath, next to the spindle.
TECHNICAL SPECIFICATIONS
Model: Powermat PM-FGW-2100M
Rated power: 2100W
Supply voltage: 230 V / 50 Hz
Cutter diameters: 8mm / 12mm
Milling unit stroke: 35mm
Milling depth: up to 55mm
Rotational speed: 23000 rpm
Power cord length: 175 cm

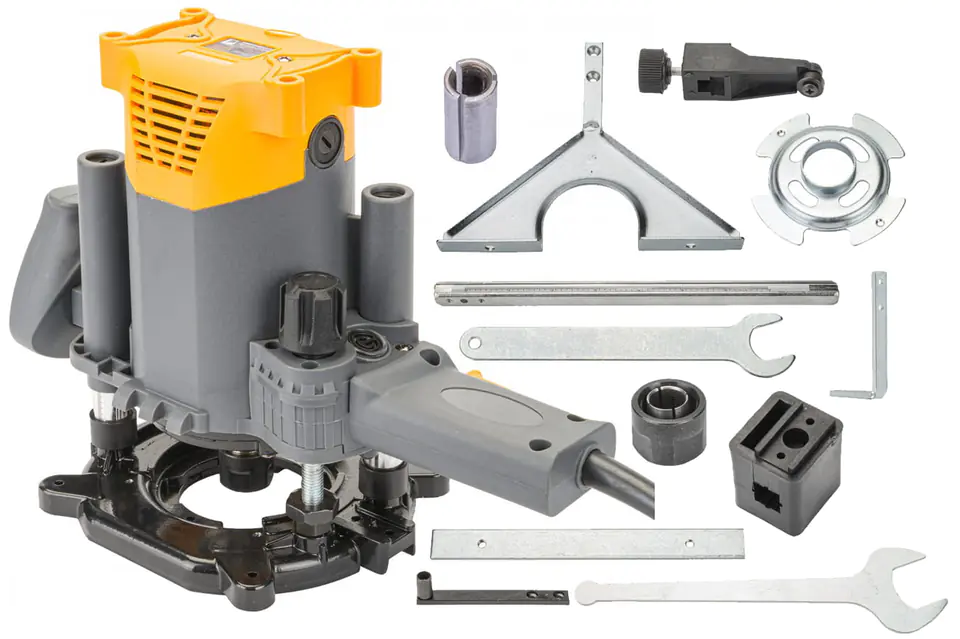

EQUIPMENT
Milling machine
Parallel guide
Contour guide
Copy ring
Box
Pair of compasses
Angle
Flat bar
Slide mounting block
Collet 8 mm
Collet 12 mm
2x nut wrench
User manual EN
