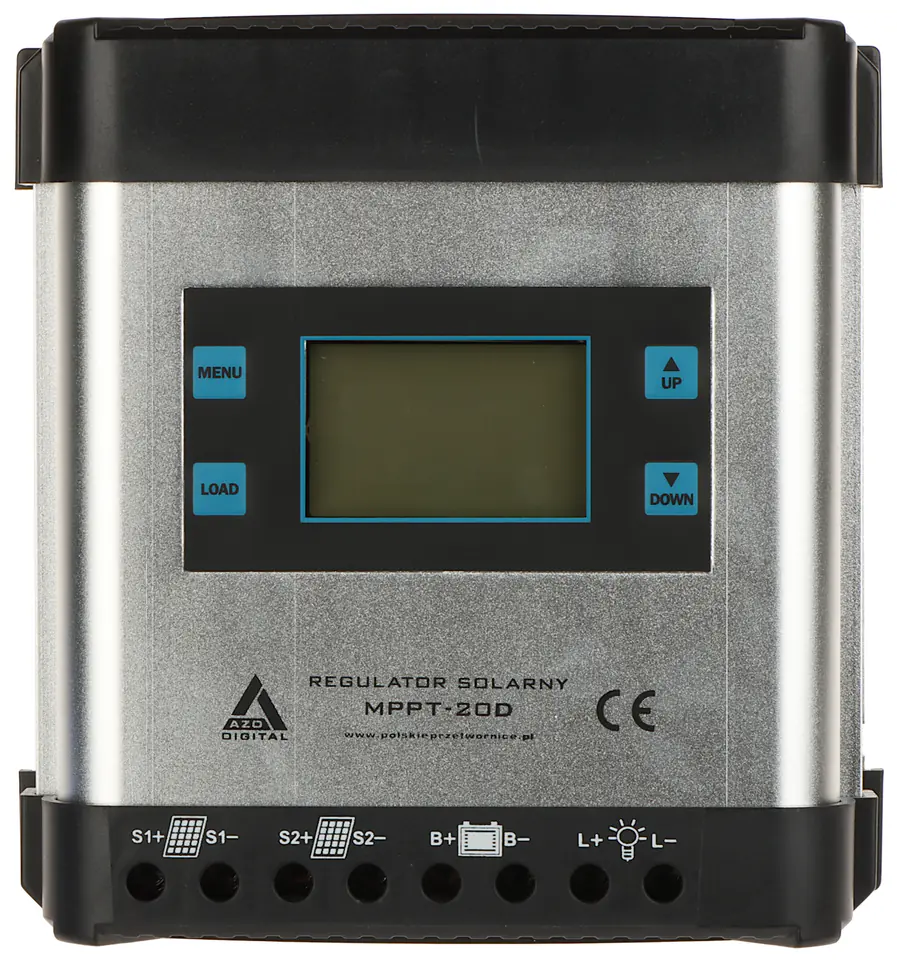

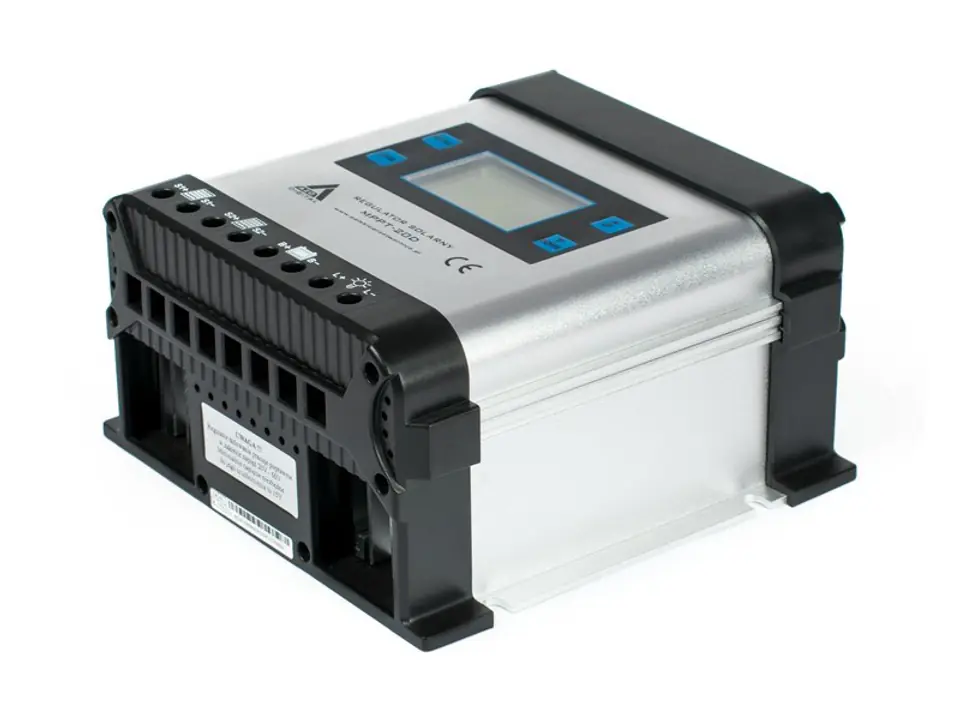

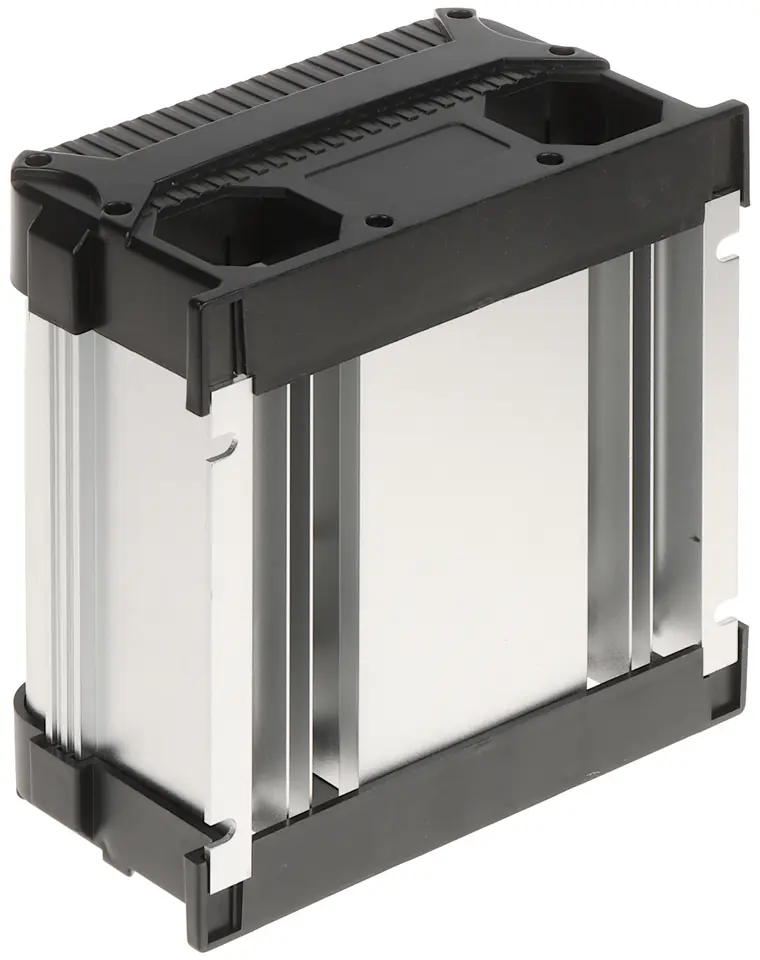

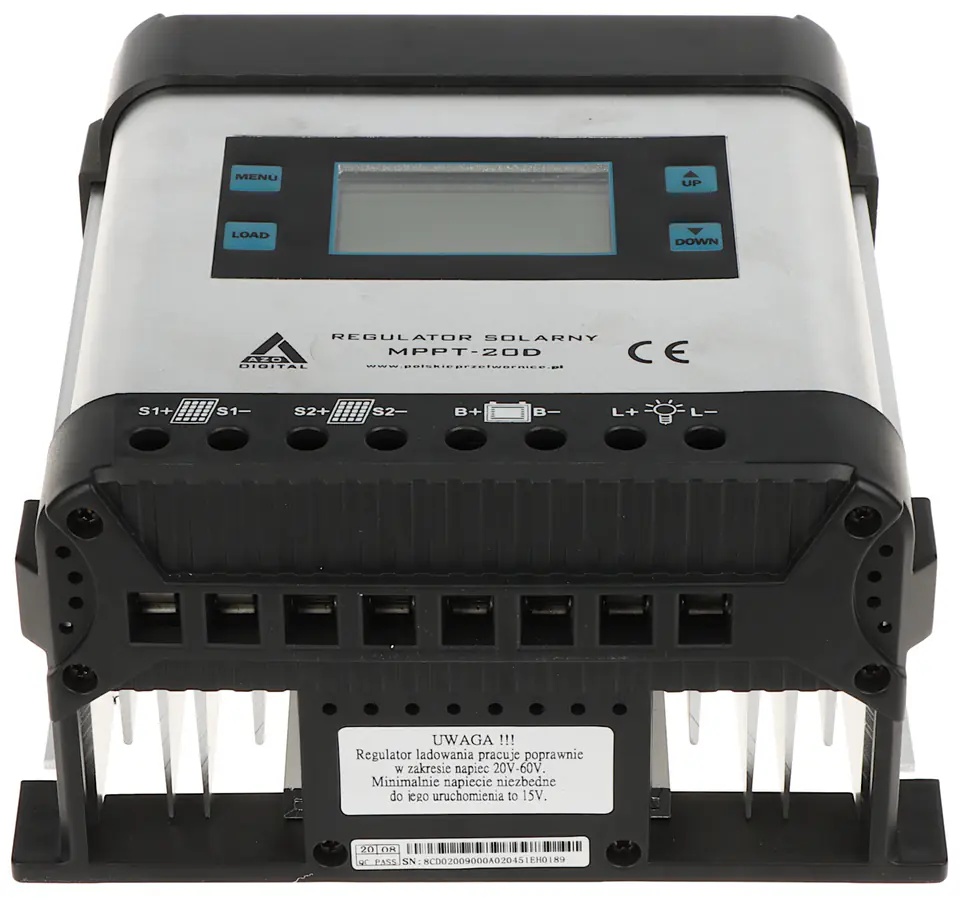

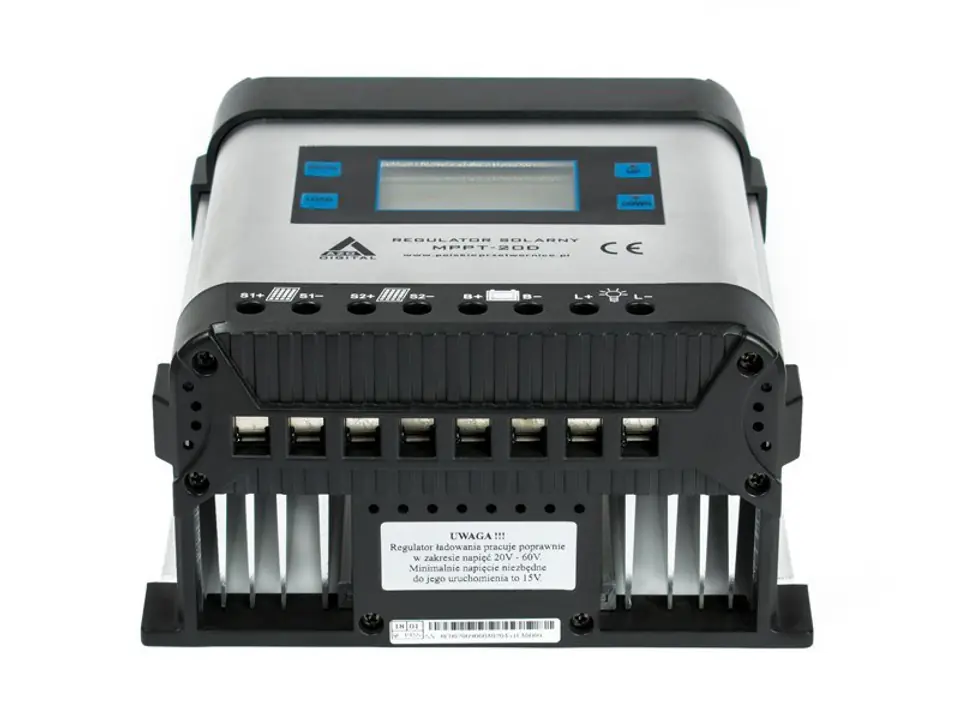

Solar MPPT charge controller AZO Digital 12/24 - 20A LCD display
This product is not available
- Availability:
- expected delivery
- Brand:
- AZO DIGITAL
- Product code:
- AZO00D1093 / 5905279203891
Share this product:
Specification
| Built-in display: | LCD |
|---|---|
| Conductor cross section (max): | 16mm / 6AWG |
| Dc battery voltage: | 12 / 24 V |
| Depth: | 175 mm |
| Height: | 95 mm |
| Input voltage: | 12V: 20V-60V / 24V: 30V-90V (auto-detection) |
| International protection (ip) code: | IP21 |
| Maximum charging current: | 20 A |
| Mppt function: | Yes |
| Operating temperature (t-t): | -40 - 50 °C |
| Power current type: | DC |
| Power protection features: | Overheating, Overvoltage protection, Overcharge, Over voltage |
| Product colour: | White |
| Specific features: | Internal power consumption: <1mA (standby) / 15mA (operation) / 130mA (operation with connected load) |
| Supported battery type: | AGM / Gel |
| Temperature compensation: | 12V: 18mV/°C / 24V: 36mV/°C |
| Weight: | 1.47 kg |
| Width: | 175 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
