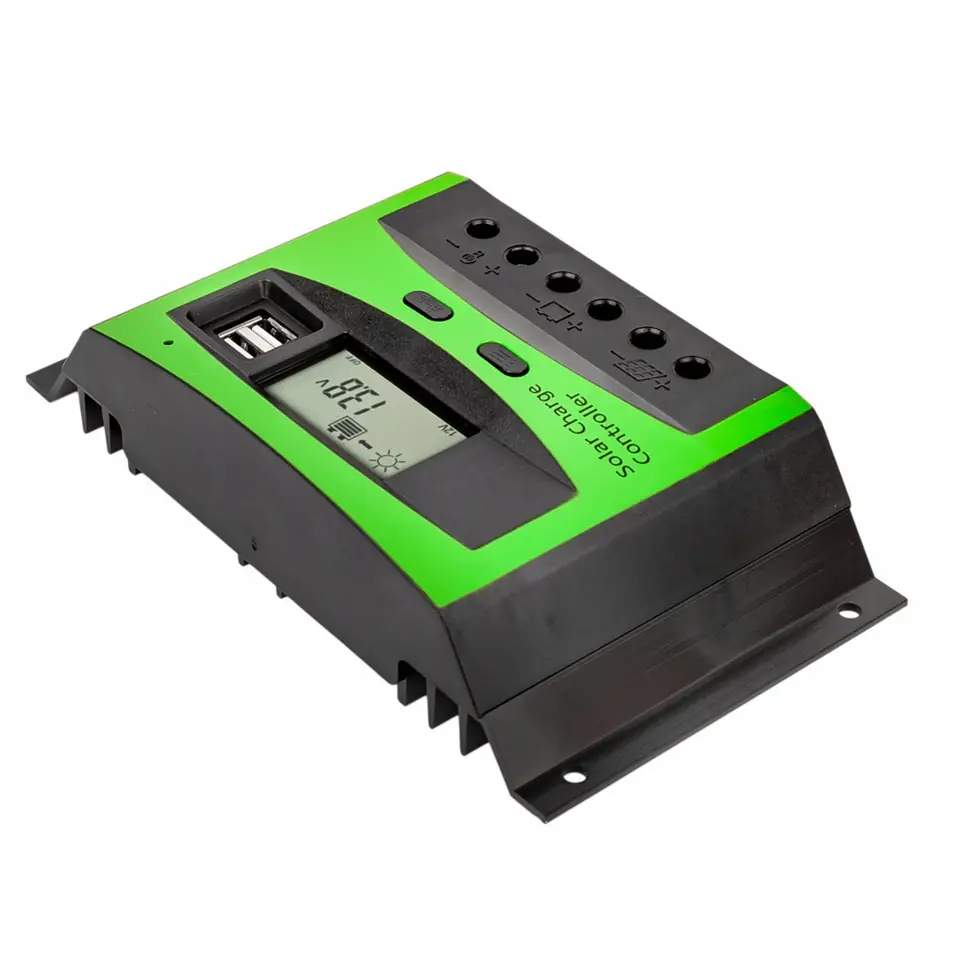

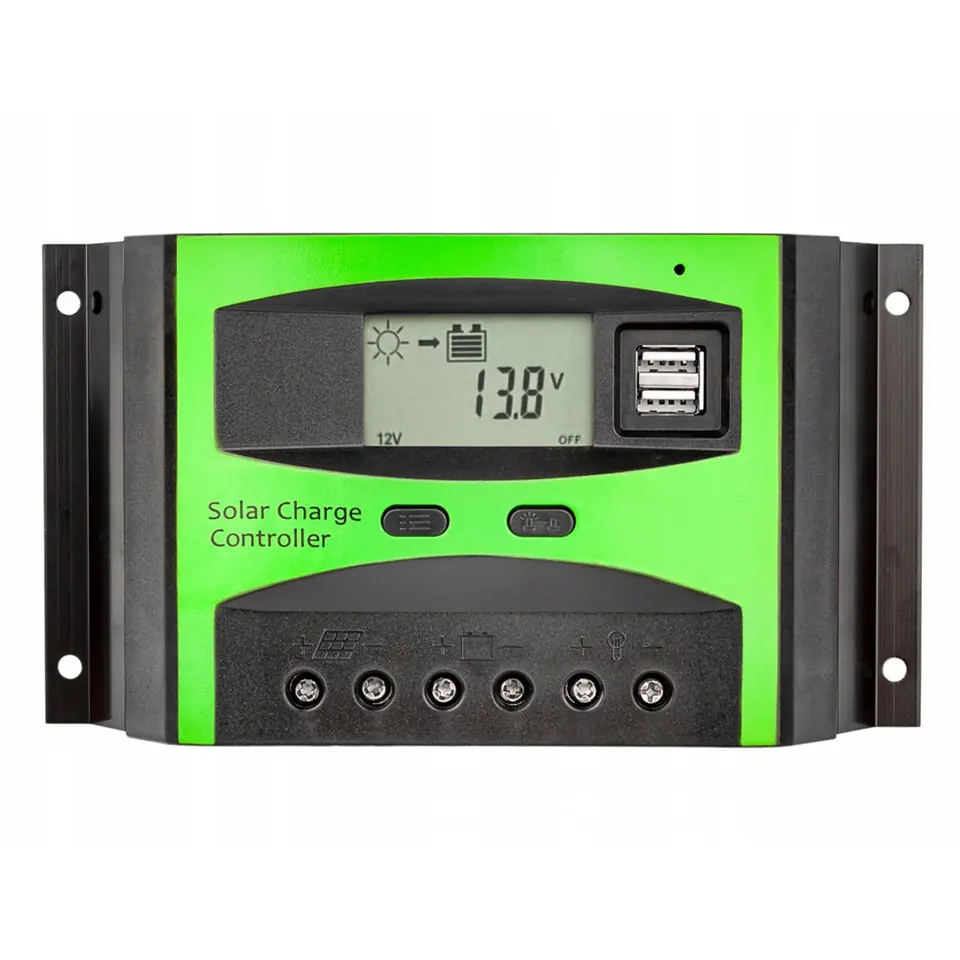

SOL PWM 40A Solar Controller [2 x USB Socket]
This product is not available
- Availability:
- expected delivery
- Brand:
- Product code:
- 3IPSSOLU40 / 5903293765487
Share this product:
Specification
| Battery operation: | Yes |
|---|---|
| Built-in display: | Yes |
| Charging mode: | PWM |
| Conductor cross section (max): | 28mm / 10AWG |
| Control type: | Buttons |
| Depth: | 98 mm |
| Display type: | LCD |
| Height: | 50 mm |
| Holding voltage: | 13.6V / 13V-15V x2 24V |
| Input voltage: | 12/24 V |
| Lvd: | 10.7V / 9V - 12V x2 24 V |
| Lvr: | 12.6V / 11-13.5V x2 24V |
| Maximum charging current: | 40 A |
| Operating temperature (t-t): | -35 - 60 °C |
| Permissible voltage of pv solar panels: | 50 V |
| Polarity reverse circuit protection: | Yes |
| Power current type: | DC |
| Power protection features: | Under voltage, Over voltage, Battery discharge, Over power, Overcharge |
| Product colour: | Black |
| Solar batteries support: | Yes |
| Usb ports quantity: | 2 |
| Weight: | 370 g |
| Width: | 187 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
