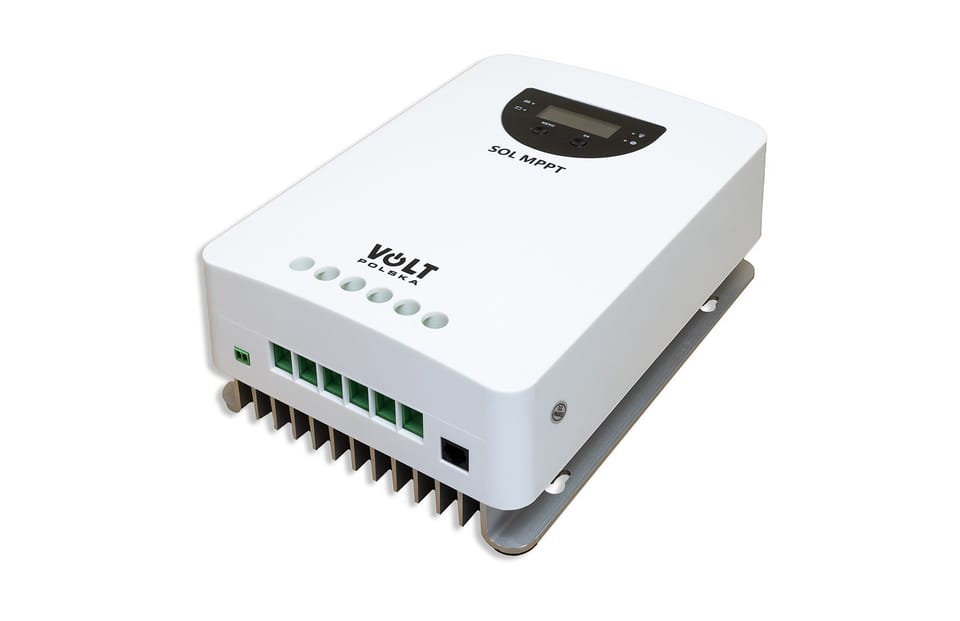

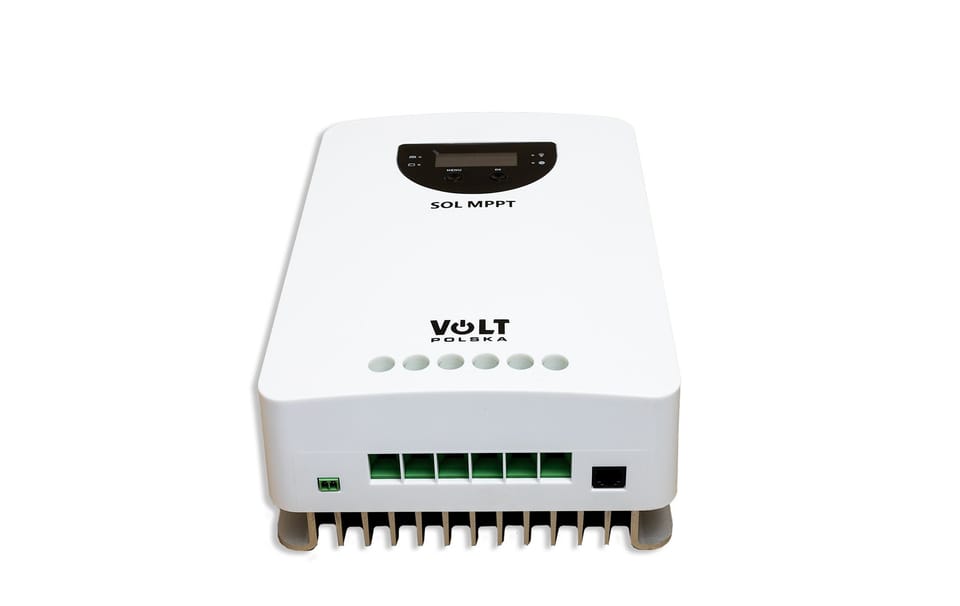

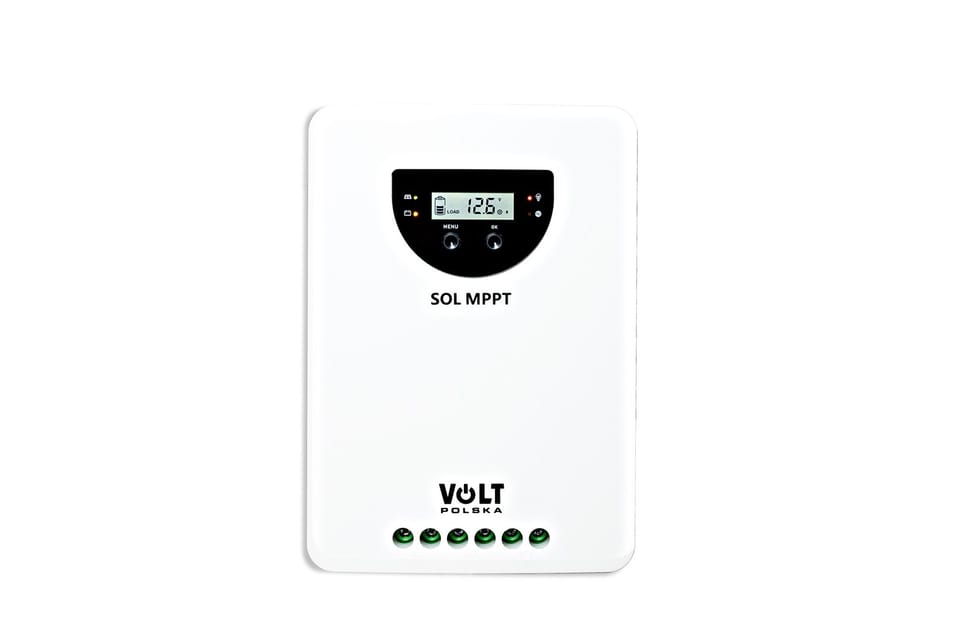

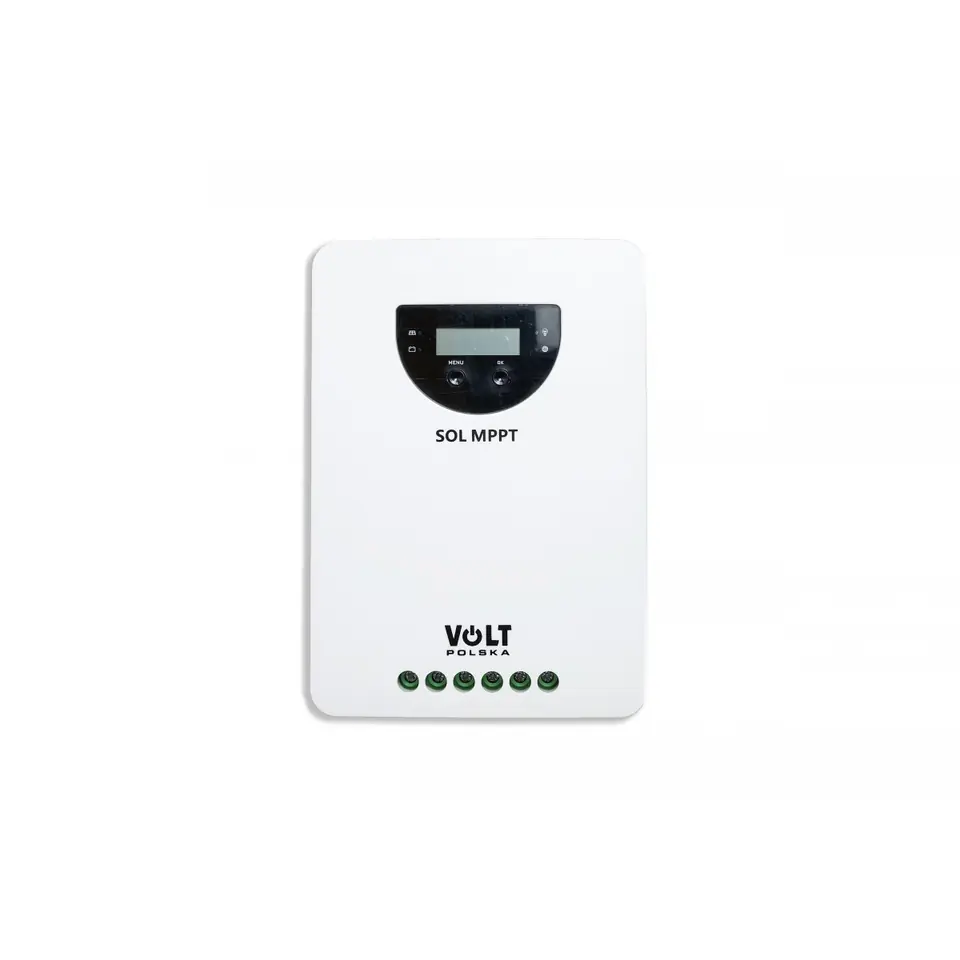

SOL MPPT Solar Controller 60A 150V) 12/24/36/48V + LCD + BLUETOOT
€240.96
Shipping from warehouse: V4
Estimated shipping: Fri, Dec 19 - Wed, Dec 24
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- 3IPSMPPT60 / 5904100450497
Share this product:
Specification
| Applications support: | Yes |
|---|---|
| Battery operation: | Yes |
| Bluetooth: | Yes |
| Boost voltage: | 14~59.2 V (przy 25°C) |
| Built-in display: | Yes |
| Charging mode: | MPPT |
| Control type: | Buttons |
| Dc battery voltage: | 12 V/24 V/36 V/48 V |
| Disconnection of consumers at low voltage: | 10.8~11.8 V/43.2~47.2 V |
| Display type: | LCD |
| Dusk/dawn detection voltage: | 5/10 V |
| Equalization voltage: | 14~60V (przy 25°C) |
| Float voltage: | 13~58 V (przy 25°C) |
| Height: | 97 mm |
| International protection (ip) code: | IP32 |
| Length: | 265 mm |
| Maximum charging current: | 60 A |
| Maximum current from imp panels: | 60 V |
| Overload protection: | 15.8~62.3 V |
| Own power consumption: | ≤16mA(12 V);≤12mA(24/36/48 V) |
| Permissible voltage of pv solar panels: | 150 V |
| Power protection features: | Overcharge, Overheating, Overvoltage protection, Over power |
| Product colour: | White |
| Reconnection voltage: | 11.4~12.8 V/45.6~51.2 V |
| Supported battery type: | AGM / Gel / LiFePO |
| Temperature sensor: | Yes |
| Weight: | 3 kg |
| Width: | 186 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
