SN 2 scissor riveting machine, 10.5 mm stroke GESIPA

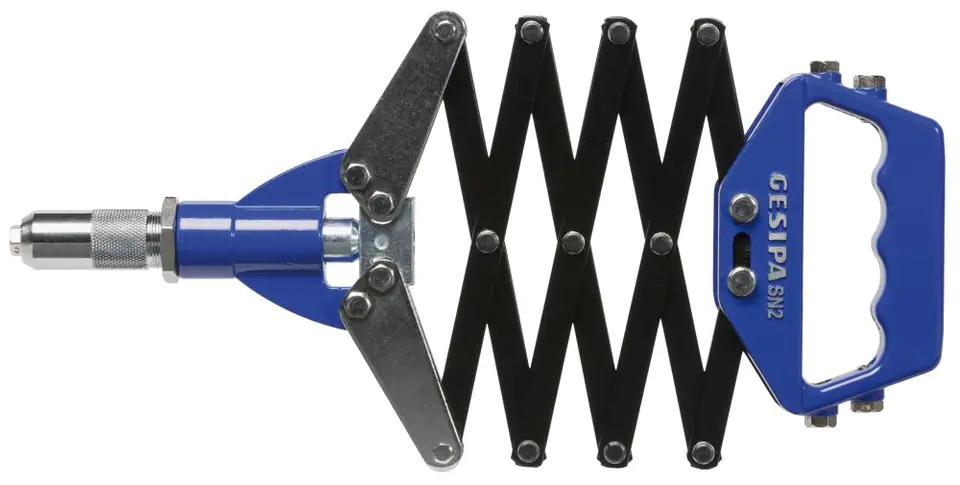

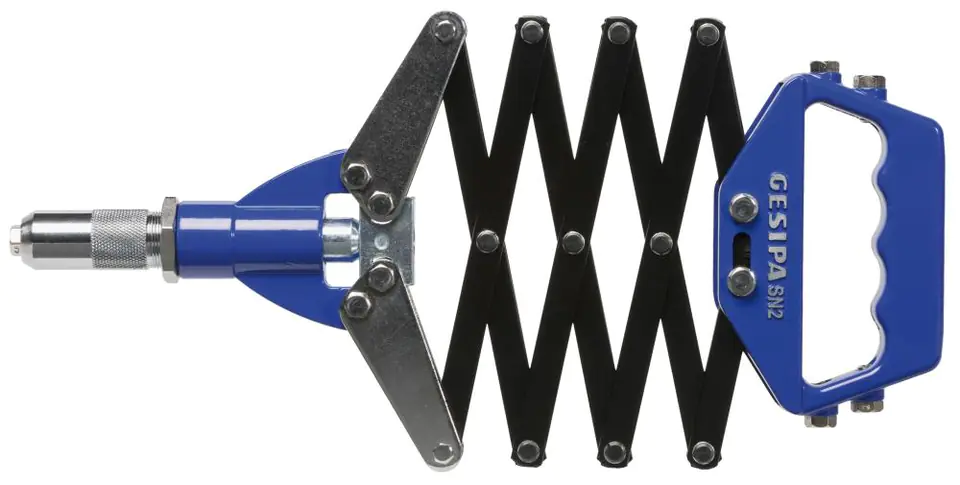

Scissor riveter SN 2
Execution: Made of high-quality die-cast aluminium with a closed casing for stability and protection against dirt. The riveter has a galvanized scissor system made of high-strength steel. The slim housing also allows you to work in hard-to-reach places. Thanks to the favorable arrangement of the lever and the placement on sliding stones in 4 places, the use of force during work is significantly reduced.
Use: For one-sided closed rivets with a diameter of 3 to 6.4 mm, of all materials, one-sided closed rivets G-Bulb up to a diameter of 4.8 mm.
Kit Contents: Scissor riveter SN 2, 5 sockets 17/24, 17/29, 17/32, 17/40, 17/45.
Cap assignment:
Rivet Ø; materials; cap
3 and 3.2; Al, Cu, steel, stainless steel, Stinox, Al, Al PG, PG steel; 17/24
4; Al, Cu; 17/24
4; steel, Al CAP, Cu CAP, Al, Al PG; 17/27
4; stainless steel, Stinox, PG steel; 17/29
4,8; Al CAP, Cu CAP; 17/29
5 and 4.8; Al, Al PG; 17/29
5 and 4.8; steel, Al; 17/32
5 and 4.8; stainless steel, Stinox, PG steel; 17/36
6; Al; 17/36
6; steel; 17/40
6,4; Al, Al PG; 17/40
6,4; steel, Al; 17/45
