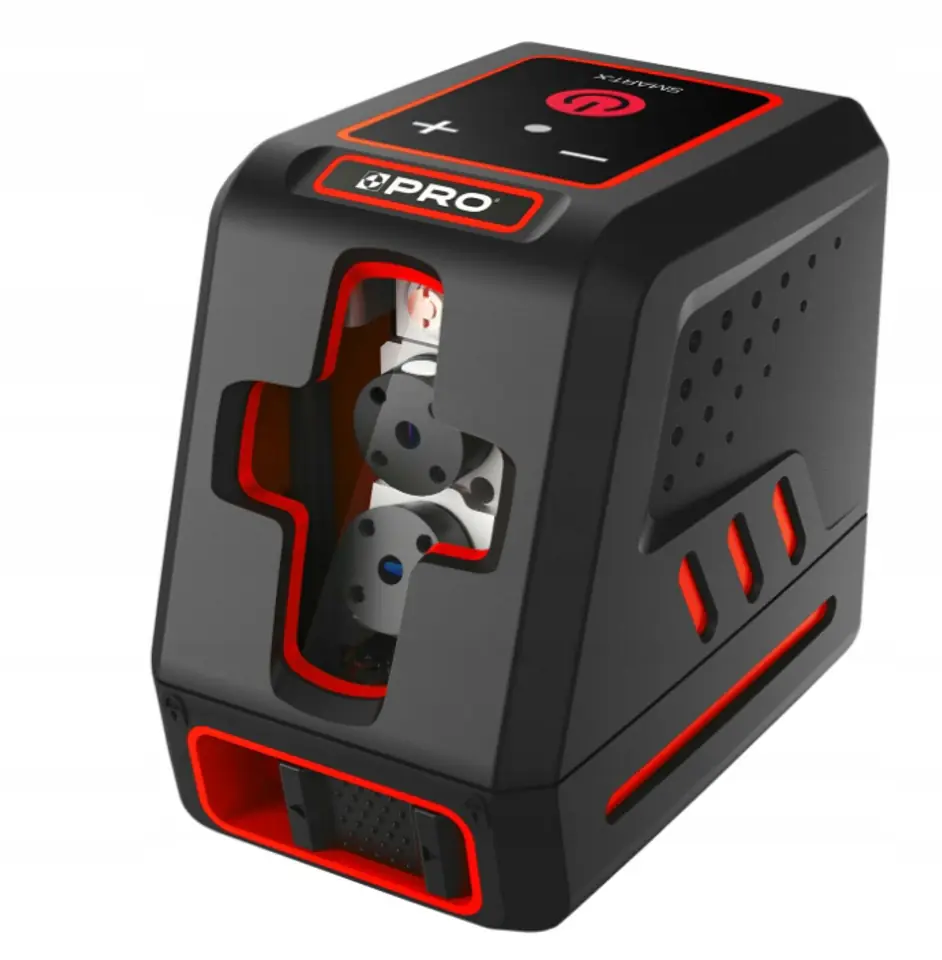

SMART-X RED CROSS LASER

Technical Specifications

Manufacturer: Pro
manufacturer's code: 3-01-06-L1-091
EAN: 5901571519456
Power supply: 4x AA batteries
Self-leveling system: Magnetic pendulum
Laser beam color: Red
Accuracy: ± 1.5mm/5m (± 0.3mm/1m)
Range (max): 15 m
Range with detector (max): 40 m
IP rating: IP-54
Dimensions: 76mm x 66mm x 76mm
Weight: 270 g



smart-x cross laser red

Two high-quality laser diodes, separate for horizontal and vertical
Generates one vertical beam and one horizontal beam, intersecting at 90°
Extremely thin lines, facilitating e.g. tiling work
Mechanical pendulum lock for slanting lines
Water and dust resistant - IP54 protection class
Self-leveling thanks to automatic damping of the compensator
The inclination of the device outside the operating range is indicated by the flashing of the laser line
Easy to mount on a tripod or pole with 1/4" thread
The set includes a laser, case, 4 AA batteries and a user manual
Working time (all beams included) - first setting - about 40 hours
Working time (all beams included) - tenth setting - about 180 hours


**

Illustrative photos
