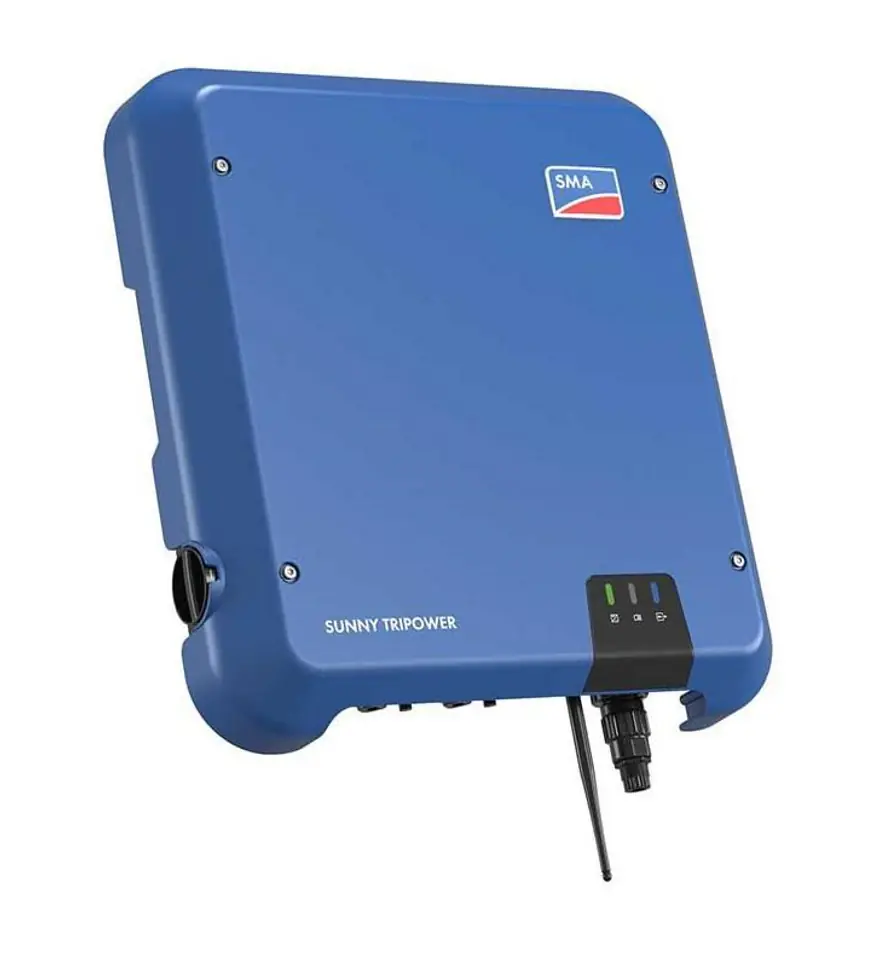

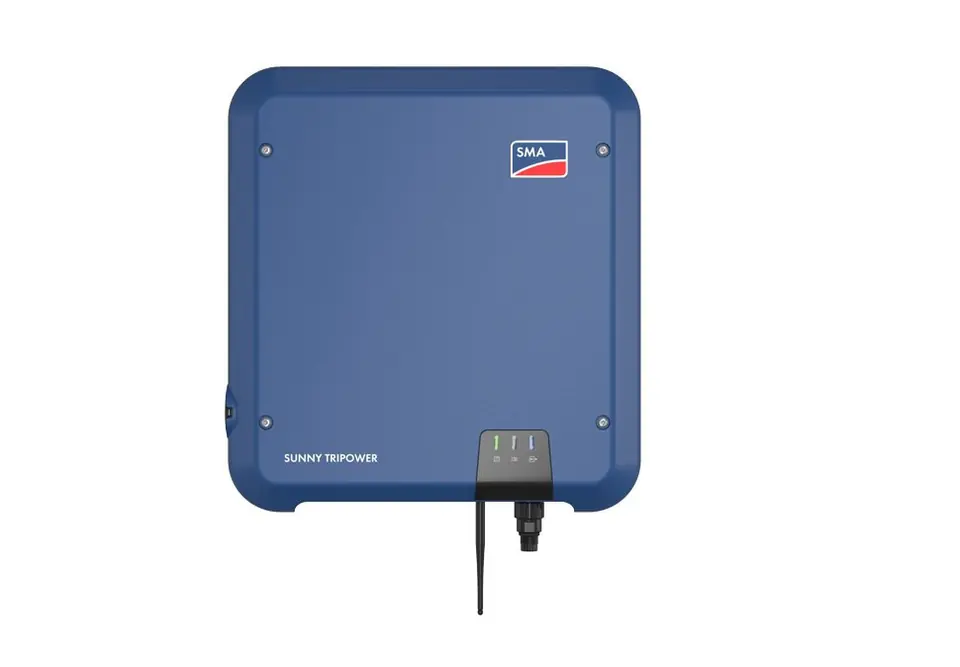

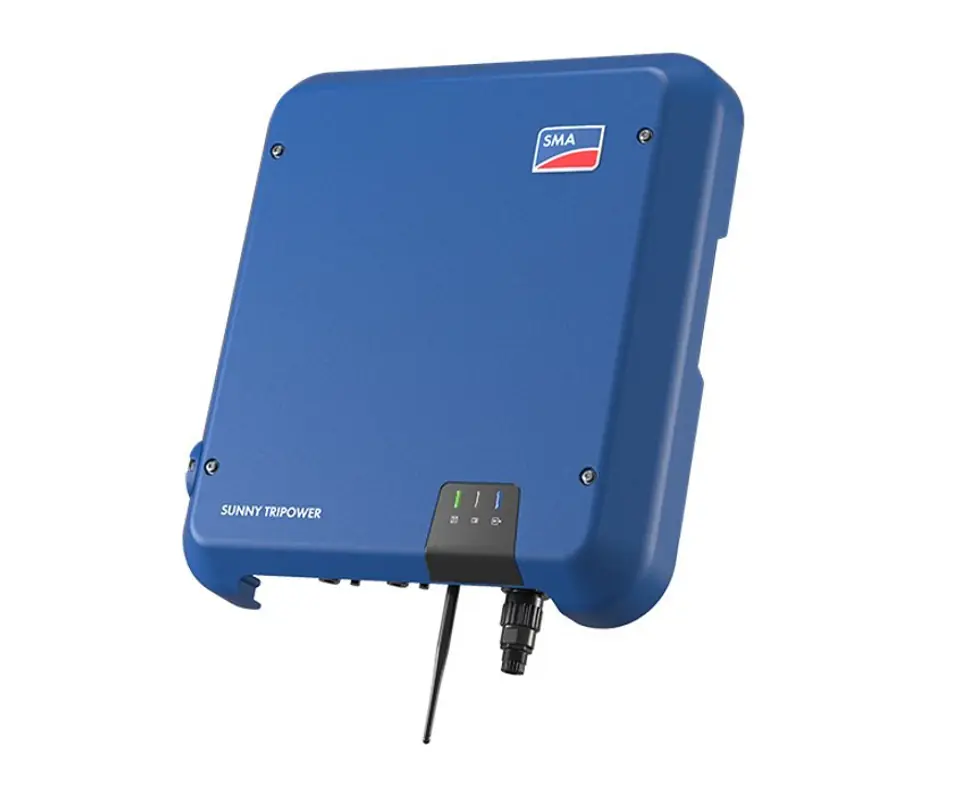

SMA Inverter - STP3.0-3AV-40
This product is not available
- Availability:
- expected delivery
- Brand:
- SMA
- Product code:
- STP3.0-3AV-40 /
Share this product:
Specification
| Apparent power: | 3000 VA |
|---|---|
| Built-in display: | No |
| Climate class: | 4K4H |
| Cooling system: | Convection |
| Depth: | 176 mm |
| Efficiency: | 96.5% |
| Ethernet: | Yes |
| Height: | 470 mm |
| Input current: | 12 / 12 A |
| International protection (ip) code: | IP65 |
| Max. short circuit current of the module field: | 18 / 18 A |
| Maximum ac current: | 3 x 4.5 A |
| Maximum input power: | 6000 W |
| Maximum input voltage: | 850 V |
| Monitoring of leakage current: | Y |
| Mppt voltage range: | 140 - 800 V |
| Noise level: | 30 dB |
| Nominal ac power: | 3000 W |
| Nominal operating voltage: | 580 V |
| Number of mpp trackers: | 2 |
| Number of phases: | 3 |
| Operating relative humidity (h-h): | 0 - 100% |
| Operating temperature (t-t): | -25 - 60 °C |
| Output voltage: | 3/N/PE, 220V/380V, 230V/400V 240V/415V |
| Overcurrent protection: | Yes |
| Overvoltage protection: | Y |
| Polarity reverse circuit protection: | Y |
| Power current type: | DC-to-AC |
| Power supply type: | Indoor/outdoor |
| Product colour: | Blue |
| Protection class: | I |
| Purpose: | Solar panel |
| Quantity per pack: | 1 pc(s) |
| Rated mains frequency (hz): | 50 |
| Rs-485 ports: | 1 |
| Safety: | IEC 62109-1/2 |
| Short circuit protection: | Yes |
| Topology: | Transformerless |
| Weight: | 17 kg |
| Width: | 435 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
