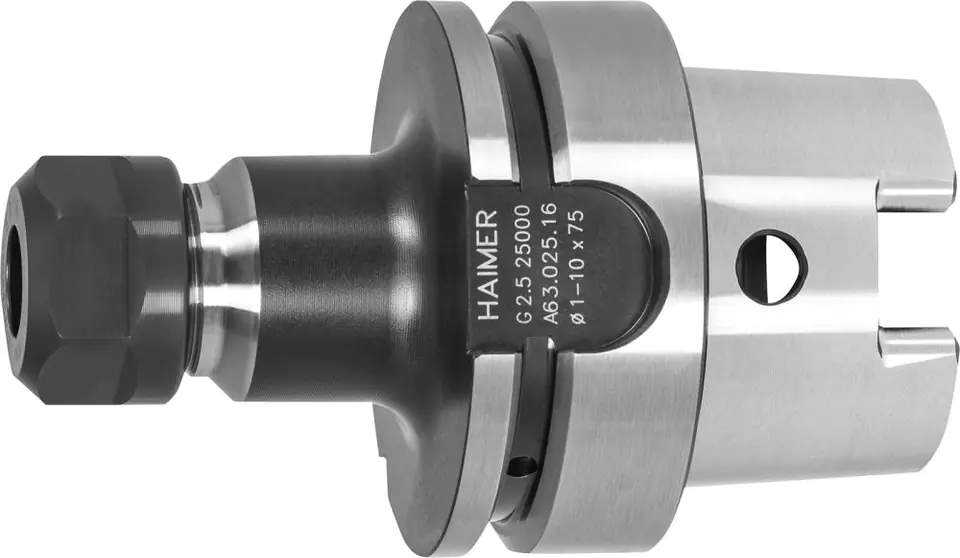

Compression sleeve holder, type ER, DIN 69893, shape A, HSK 63
*No thread for adjustment screw. *No thread for adjustment screw.
Sleeve holder DIN69893A-ER HSK-A63 25x75mm HAIMER
PLN 976.15
Shipping from warehouse: B6
Estimated shipping: Tue, Jun 16 - Fri, Jun 19
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- HAIMER
- Product code:
- A63.025.25 / 4034221035530
Share this product:

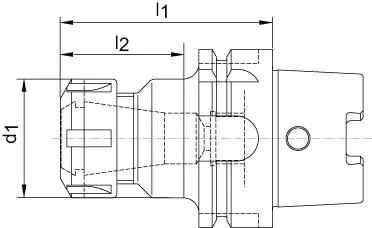

Specification
| Collet: | ER25 |
|---|---|
| Diameter d1: | 42 mm |
| L1: | 75 mm |
| L2: | 48 mm |
| Mounting range: | 1–16 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
