The four-channel SkyRC T400Q charger is a must-have for every model maker! The charger guarantees convenient charging of multiple devices at the same time. It is equipped with 4 ports that allow discharging and charging with a maximum power of up to 100 W and a charging current of 12 A. It automatically adjusts the charging intensity of devices and has a practical charging mode at low temperatures. It is extremely easy to use, and the ergonomic design allows you to easily transport it to any place!
The T400Q has 4 independent charging inputs that you can easily use at one time! It delivers up to 100 watts of power and 12 watts on each circuit, so you can quickly charge the receiver battery or 6S lithium batteries. In addition, thanks to gold-plated spring connectors, it is able to handle a maximum current of 60A for a longer period of time, not exceeding 80°C.

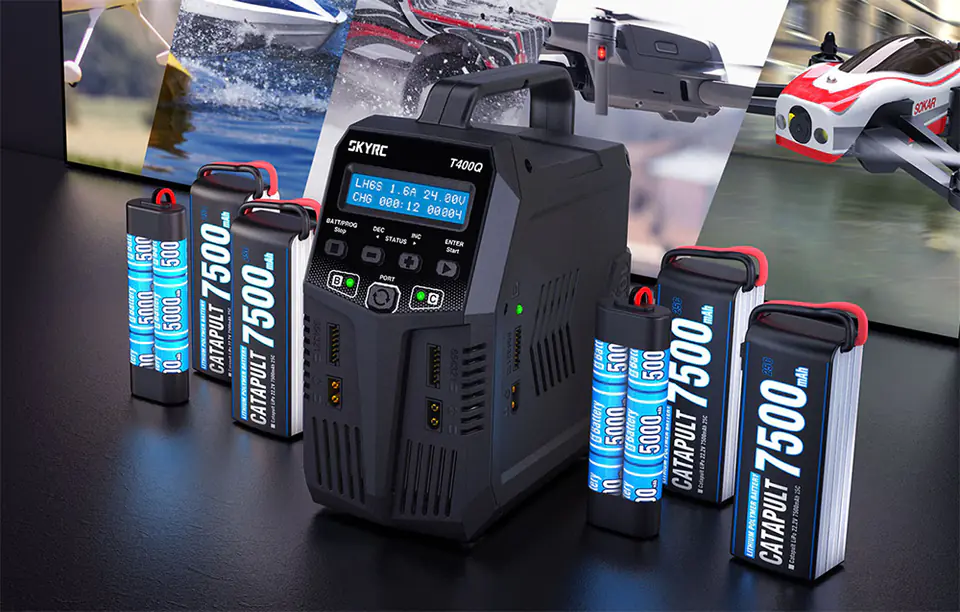

The SkyRc charger is adapted to a variety of batteries. Its charging algorithm is compatible with many popular types of batteries available on the market – LiPo, Lilon, LiHV, NiMH, NiCd and Pb. In addition, the built-in XT60 connector effectively prevents reversed polarity, ensuring reliable operation.

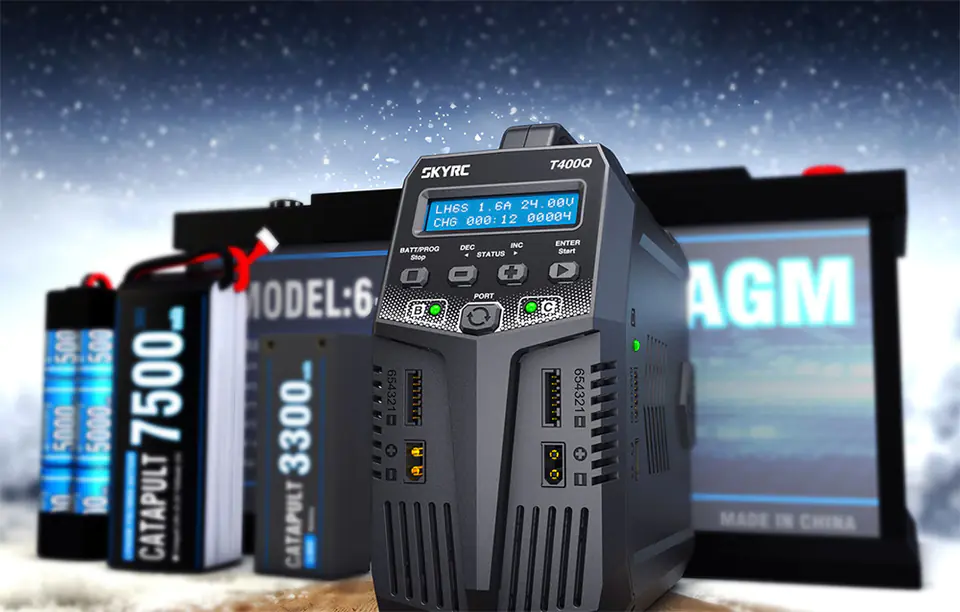

The charger is equipped with AGM and Pb charging mode, which will easily power a discharged battery (Pb mode is not available for AGM batteries). In addition, it has a special charging function at low temperatures, so you do not have to worry about problems with the battery of your car or airplane model on cold days!

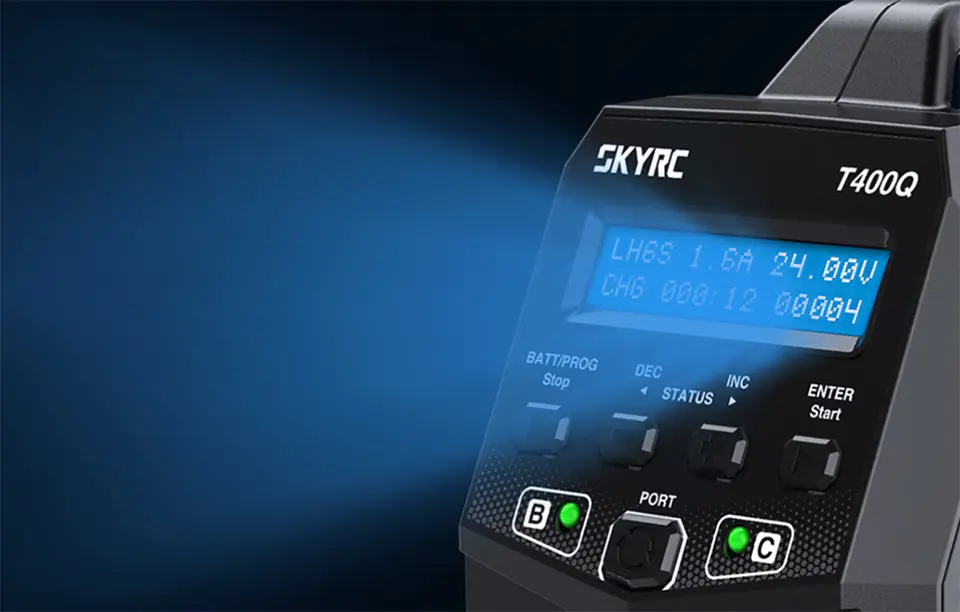

The charger is extremely easy to use! Thanks to intuitive buttons and LCD display, everyone can easily handle it – even inexperienced users. Using the INC or DEC keys you can easily adjust the values. To start charging, just press Enter. After just one use, you will have battery support in one finger! In addition, the device allows you to adjust the end voltage (only for advanced users).

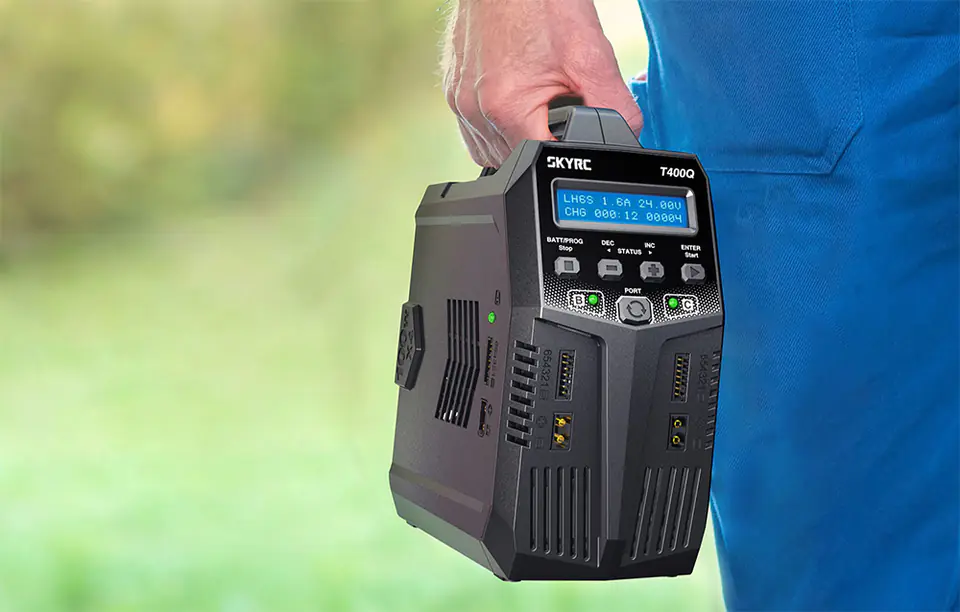

Minimalist design combined with functionality. The compact design of the charger means that it does not take up much space. In addition, the device is equipped with a practical handle that allows convenient transport.
The T400Q is equipped with a practical AUTO mode that automatically adjusts the current during charging or discharging, which can lead to explosions through improper use. In the case of lithium batteries, this effectively prevents overcharging. What's more, the device can automatically disconnect the circuit, as well as alarm if irregularities in operation are detected. You can easily configure all available settings yourself.
| Producer | SkyRC |
|---|---|
| Model | T400Q |
| Dimensions | 186 x 103 x 209 mm |
| Scales | 1610g |
| Housing material | Plastics |
| Display Type | 2 x 16 LCD |
| Display backlight | Blue |
| Charging power | 100W x 4 |
| Discharge power | 10W |
| DC input voltage | 11-18V |
| AC input voltage | 100-240V 50/60HZ |
| Battery types | LiPo/LiHV.LiFe/Lilon: 1-6S, NiMH/NiCd: 1-15S, Pb: 2-20V |
| Battery capacity range | NiMH/NiCd: 100-50000 mAh LiPo/LiFe/LiHV: 100-50000 mAh Pb: 100-50000 mAh |
| Charging voltage | NiMH/NiCd: Delta peak detection, LiPo: 4.18-4.25 V/S, LiFe: 3.58-3.7 V/S, Lilon: 4.08-4.2 V/S, LiHV: 4.25-4.35 V/S, Pb: 1.8-2.0 V/S |
| Discharge cut-off voltage | NiMH/NiCd: 0.1-1.1 V/S, LiPo: 3.0-3.3 V/S, LiFe: 2.6-2.0 V/S, Lilon: 2.9-3.2 V/S, LiHV: 3.1-3.4 V/S |
| Charging voltage range | 0.1-26.1 V/cell |
| Charging | 0.1A - 12.0A |
| Discharge current | 0.1A - 12.0A |
| Balance current | 500mA |
| Safety time | 1~720min & power off (default: 120min) |
| Operating temperature | 0°C-40°C |
| Working moisture | 0%-75% |
| Storage temperature | -10°C-70°C |
| Storage moisture | 0%-75% |
