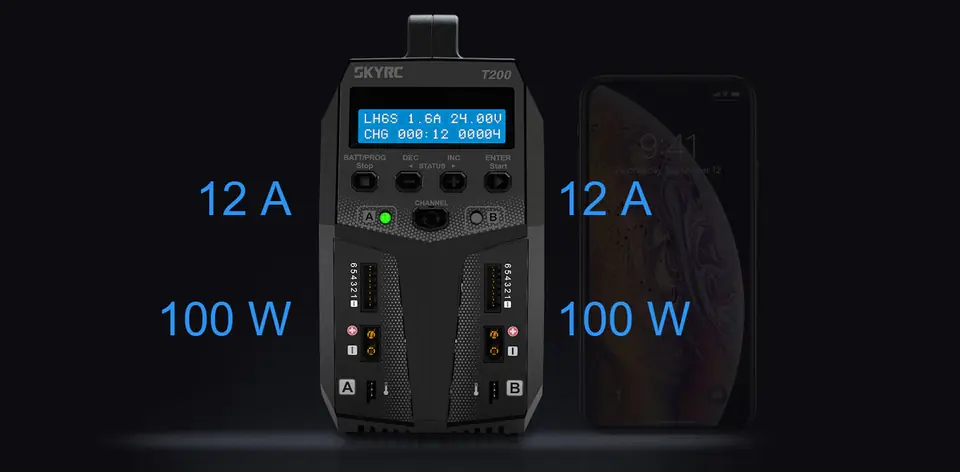

Double power and mobility

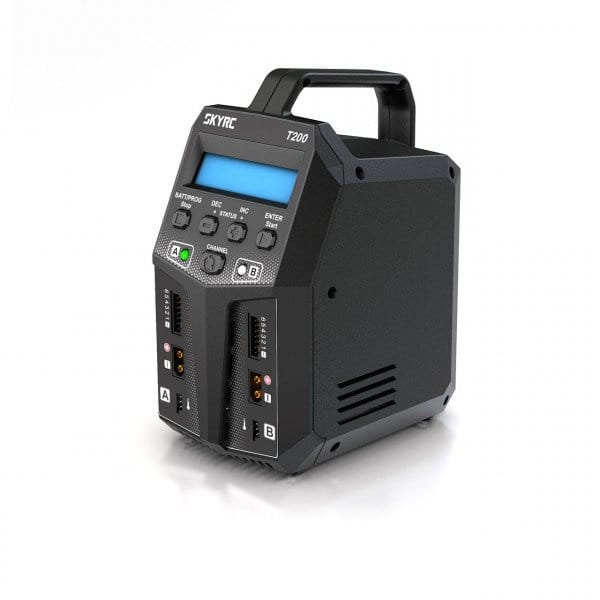

The SkyRC T200 has the most compact design, taking up minimal space as much as a pair of batteries. The charger delivers 100 watts of integrated power through each of the charging circuits. Behind the tasteful chassis, there's enough power to charge two batteries simultaneously at up to 12 amps per channel, so you can pump life into a wide range of batteries in no time, from receiver packs to 6S or NiMH and NiCD 15S lithium-polymer batteries. What's more, the charger provides the full programmability you expect from a modern, high-end charger.

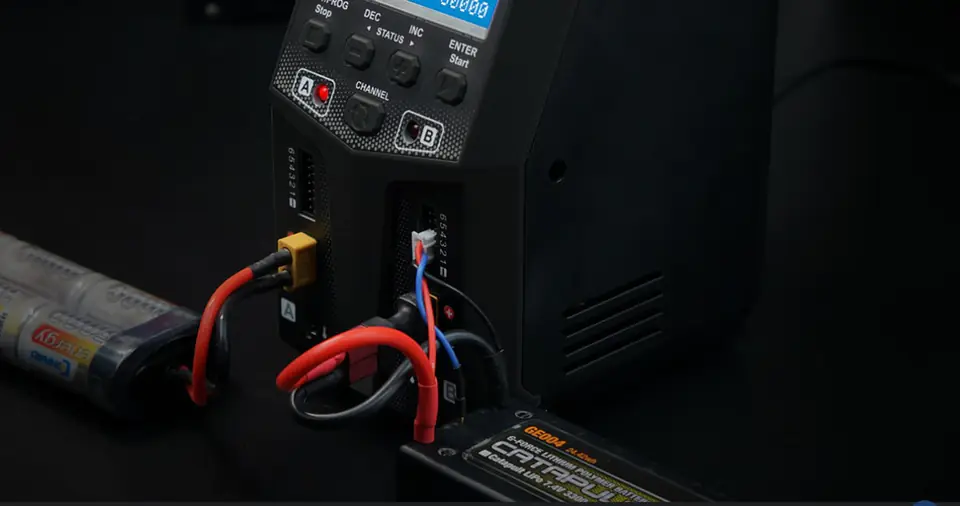

Multiply efficiency
Both charging channels can be programmed and operated individually. The T200 intelligently, automatically and simultaneously charges two batteries to their maximum capacity. What's more, the loaded targets do not have to have the same configuration or be of the same type. Feel complete freedom in the choice of charging packages.

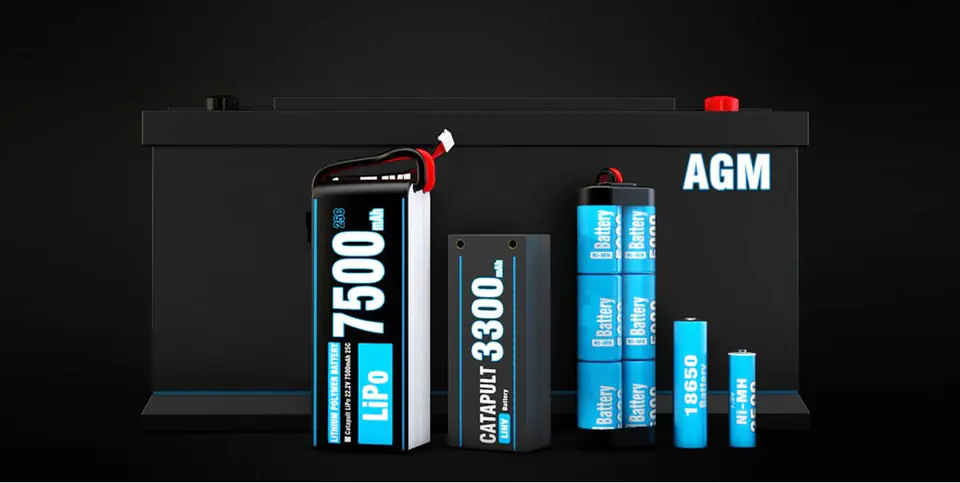

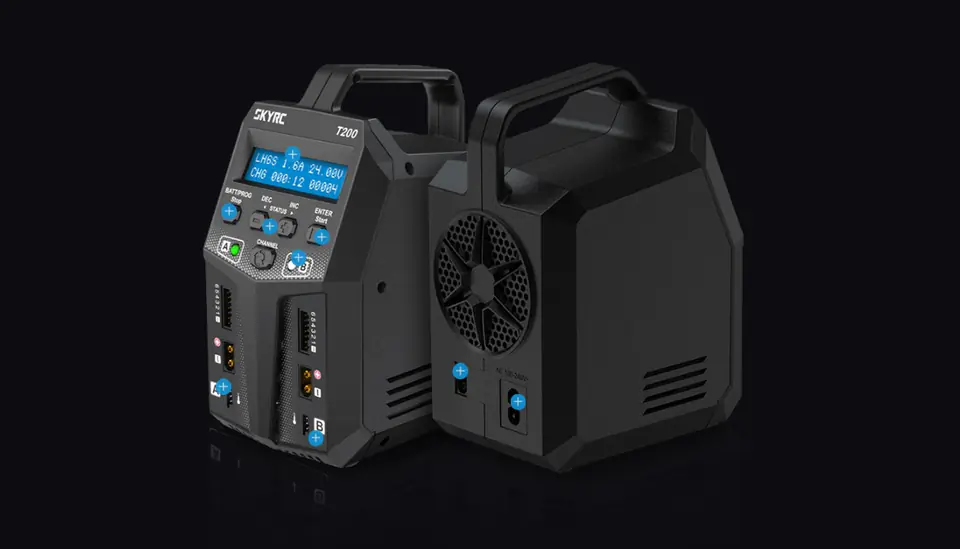

Compatibility and universal XT60 plug
The software has a charging algorithm that allows you to work with the most common types of batteries - LiPo, LiIon, LiHV, LiFe, NiMH, NiCD and Pb. XT60 interface prevents reversed polarity and provides a very stable connection.

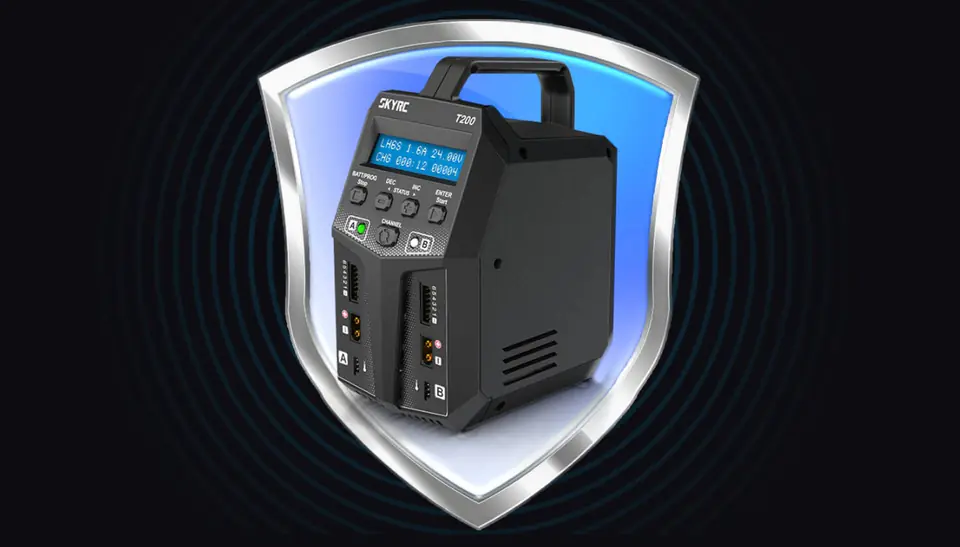

Optimized software
ASkyRC T200 has the so-called AUTO function, which automatically sets the current during charging and discharging. In particular, in the case of lithium batteries, the function helps to prevent over-charging, which can lead to an explosion due to the fault of the user. The function automatically shuts down the circuit and informs the user when irregularities are detected. All programs in the T200 are controlled by a two-way signal to ensure maximum security and minimize problems. All settings can be configured by the user.

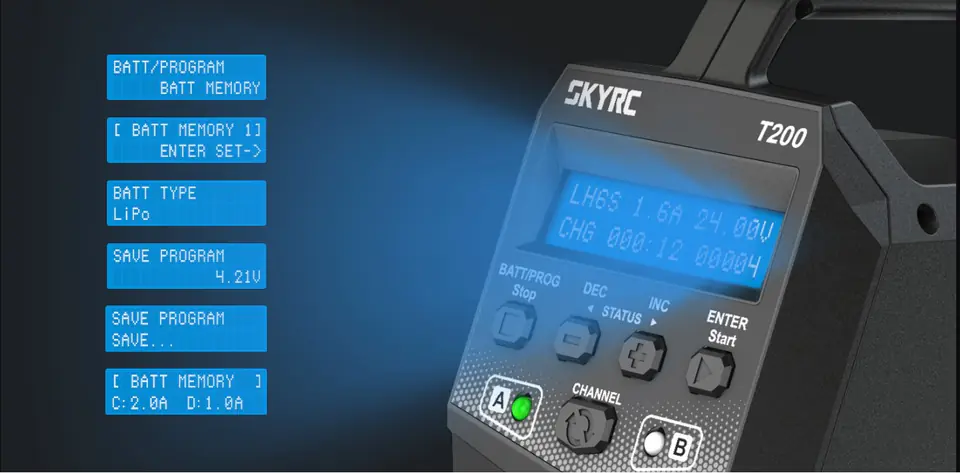

Intuitive

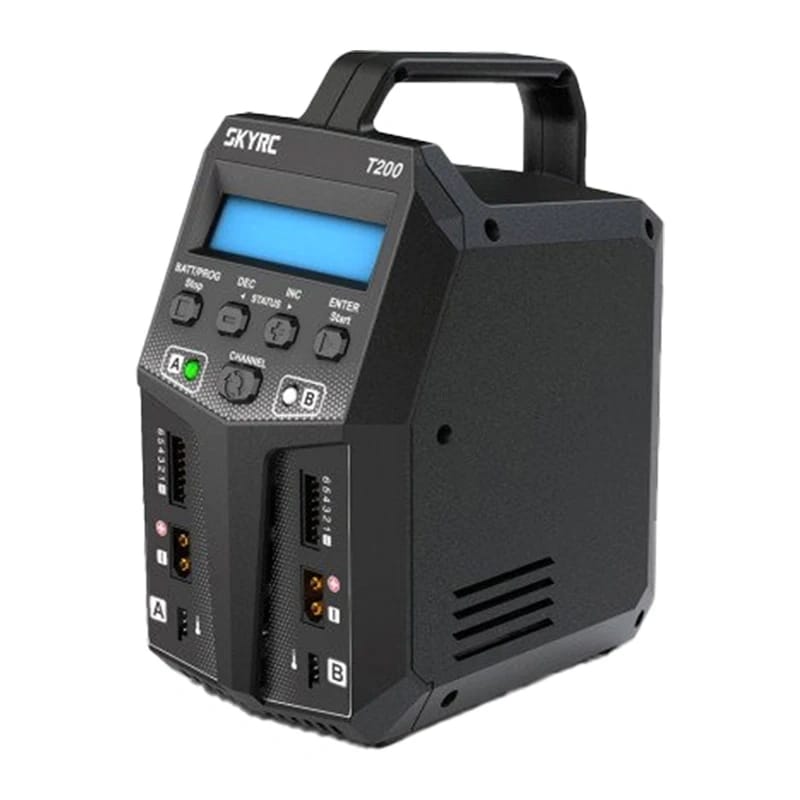

A panel consisting of five buttons and a brightly backlit LCD screen make operation trouble-free even for inexperienced users. Charging programs work in a similar way to other SkyRC chargers, but even if this is your first contact with a programmable charger, you'll easily move between parameters by using the up and down arrows to set the values, then clicking enter to confirm.

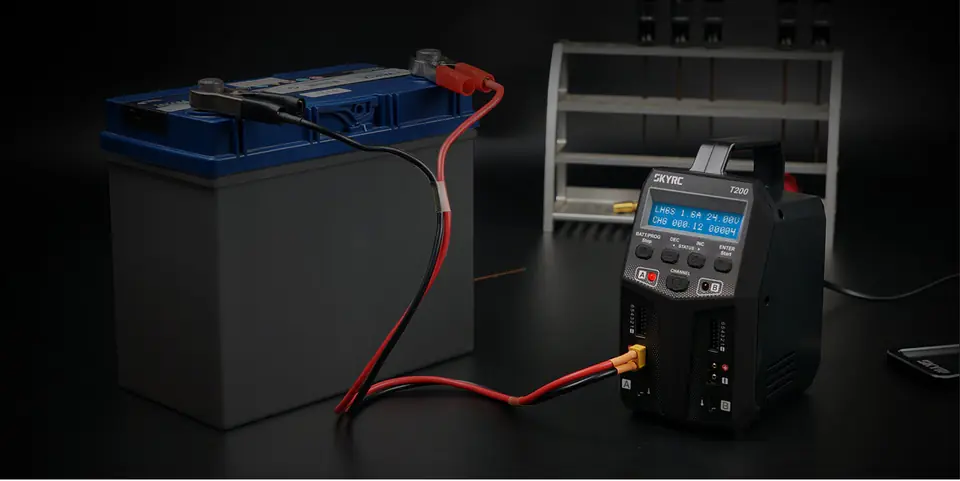

Versatility with AGM and cold modes
AGM batteries are easy to maintain, very stable and lighter than other lead-acid batteries. Although they have the same structure, the difference in chemical components translates into a big difference in action. Do not charge AGM batteries with a normal charger in Pb mode. Cold mode allows you to charge the battery at low temperature.
End voltage regulation
SkyRC T200 allows users to change the end voltage (for advanced users only).

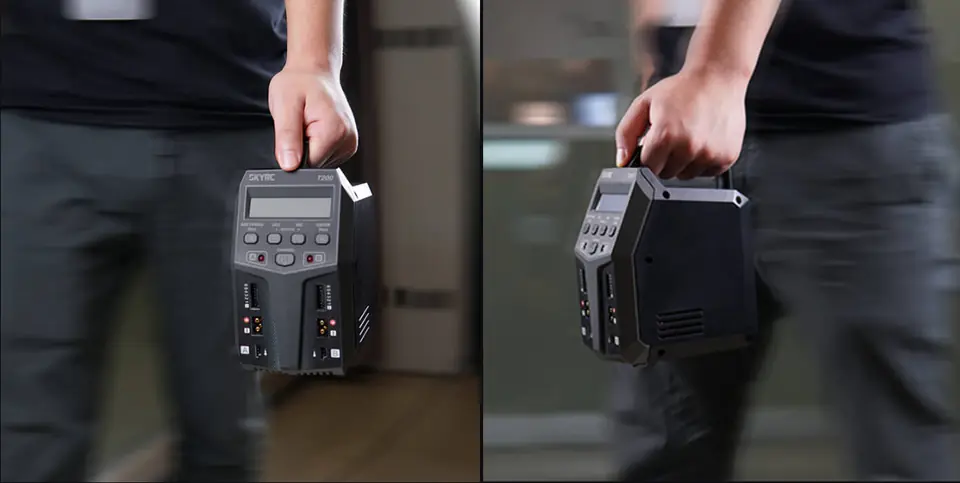

Special handle

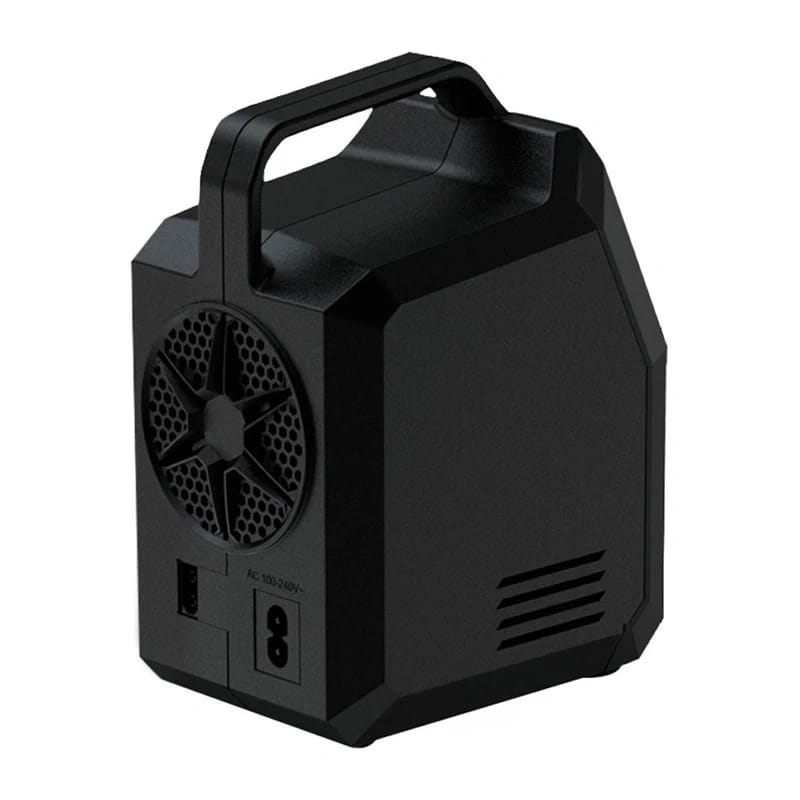

The charger is equipped with a special handle. Thanks to its compact design at less than 1 kg, it is the most convenient charger in transport.
Included
Specification
| Ładowarka T200 |
|---|
| Kabel zasilający |
| Zasilanie | DC 11-18 V, AC 100-240 V |
|---|---|
| Moc ładowania | 100 W x 2 |
| Moc rozładowania | 10 W |
| Typ akumulatora | LiPo/LiIon/LiFe/LiHV 1-6S, NiMH/NiCd 1-15S, Pb 2-20V |
| Pojemność akumulatora | LiPo/LiIon/LiFe/LiHV 100-50000 mAh, NiMH / NiCd 100-50000 mAh, Pb 100-50000 mAh |
| Prąd ładowania | 0,1 - 12 A |
| Prąd rozładowania | 0,1 - 2 A |
| Napięcie ładowania | LiPo: 4,18-4,25V/cela, LiIon: 4,08-4,2V/cela, LiFe: 3,58-3,7V/cela LiHV: 4,25-4,5V/cela, NiMH/NiCD - Detekcja Delta-Peak, Pb Normal: 2,4V/cela, Pb AGM: 2,45V, Pb Cold: 2,45V |
| Napięcie rozładowania | LiPo: 3,0-3,3V/cela, LiIon: 2,9-3,2V/cela, LiFe: 2,6-2,9V/cela LiHV: 3,1-3,4V/cela, NiMH/NiCD - 0,1-1,1V/cela |
| Balanser | 2-6S |
| Materiał obudowy | Plastik |
| Wymiary | 178 x 135 x 96 mm |
| Waga | 850 g |
| Wyłącznik czasowy | 1-120 minut |
| Temperatura pracy | 0℃-40℃ |
| Wyświetlacz | 2x16 LCD z podświetleniem |
| Zewnętrzne porty | Gniazdo balansera XH 1-6S, port czujnika temperatura, port akumulatora, wejście DC |
