Many possibilities
SkyRC ProgBox programmer is a multifunctional device. ProgBox allows you to configure the ESC controller, connect the controller to a PC, monitor the PPM signal, also has a servo-tester function and the ability to test motors (KV / RPM) and also allows you to monitor LiPo batteries.
Simple operation

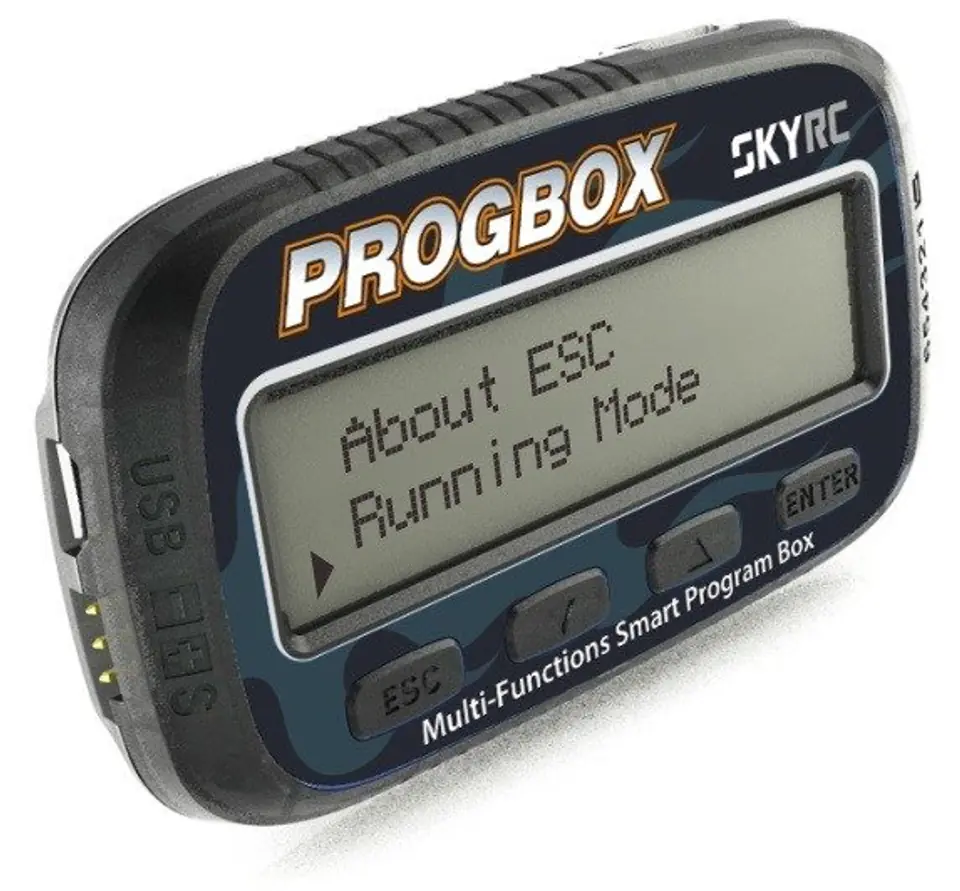

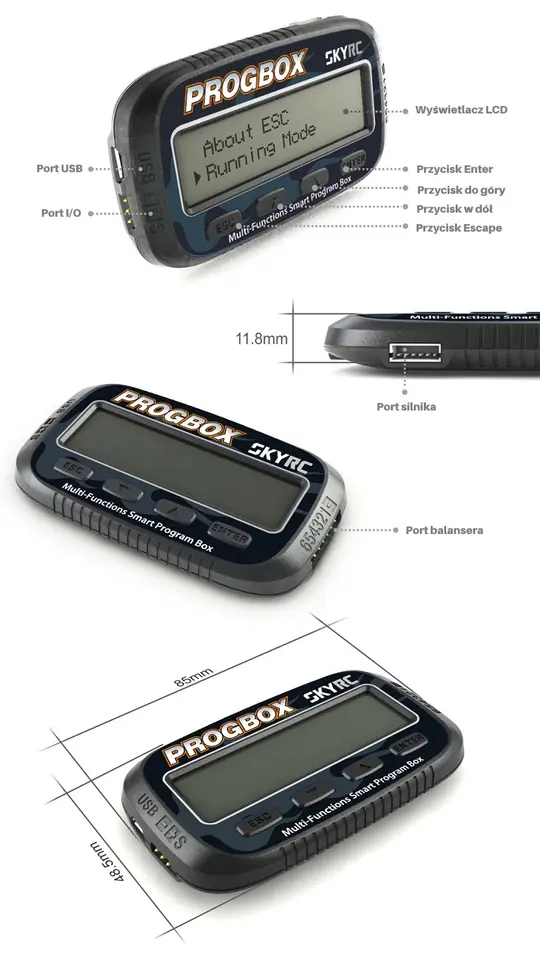

2-line LCD display allows for convenient operation of the device. In turn, 4 buttons are responsible for control on the ProgBox and selection of functions. The programmer also has a port for the motor sensor, a USB port, an I/O port and a balancer input.
Functionality

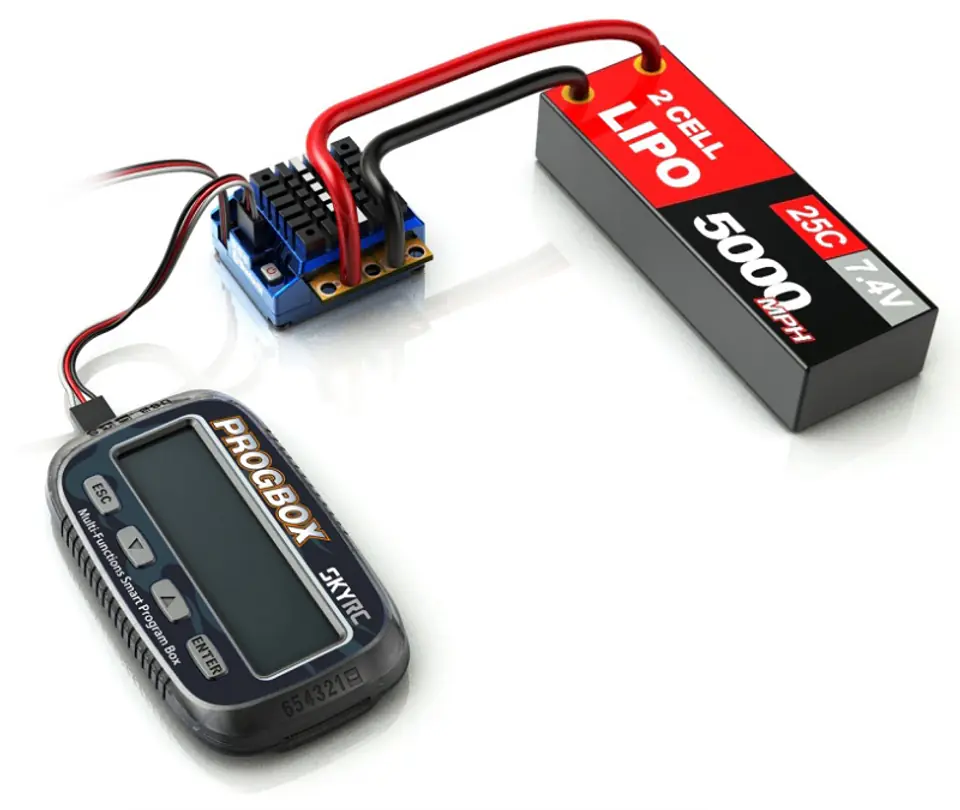

Usually, in order to precisely program the regulator, it is connected to a computer, but sometimes this is not possible (e.g. during a competition). At this point, the ProgBox is the most useful, it allows you to precisely set all the functions of the regulator. Just connect the regulator to the ProgBox.

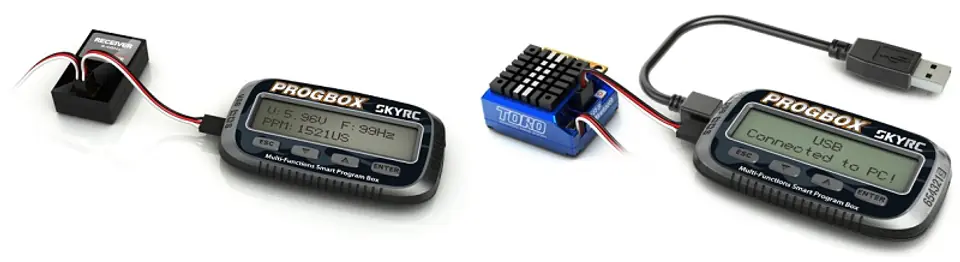

In addition, ProgBox can also work as SkyLink. It allows you to connect the controller to your computer to update software or configure settings. PPM signal monitoring is another function of the device that allows you to monitor the voltage in the receiver and the frequency of the transmitter.
Thanks to the servo-tester function, you can check whether the servo mechanism is working properly. In turn, the engine monitoring function allows you to read parameters such as voltage and rotation (KV / RPM).
In addition, ProgBox has the ability to monitor the status of the LiPo battery. With this function, you can check the total voltage of the battery, the voltage of individual cells and their difference.
