| Colour: | Silver |
|---|---|
| Detection: | Opening a door or window |

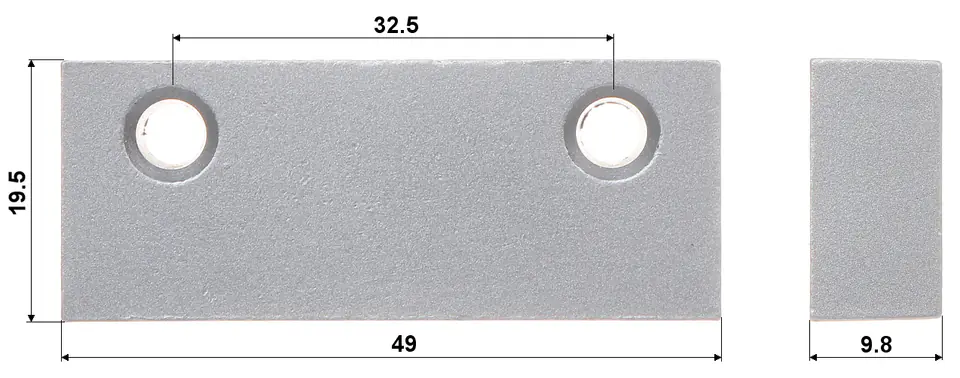

| Dimensions: | 49 x 19.5 x 9.8 mm |
| Distance of opening of reed contacts: | 20 mm |
| Maximum switchable current: | 10 mA |
| Maximum switchable voltage of reed switch: | 20 volts |
| Reed switch closing distance: | 19 mm |
| Scales: | 0.1 kg |
| Selected features: | Reinforced, metal hermetic housing NC output - magnet similar to reed switch - does not trigger alarm, contacts are shorted Cable length: 25 cm |
| Warranty: | 2 years |
Magnetic detectors can be used wherever there is a need to control the condition of doors, windows or other moving elements, e.g. to protect or control access to specific objects, rooms, devices, automation systems, etc.
The sensor is designed for surface mounting
