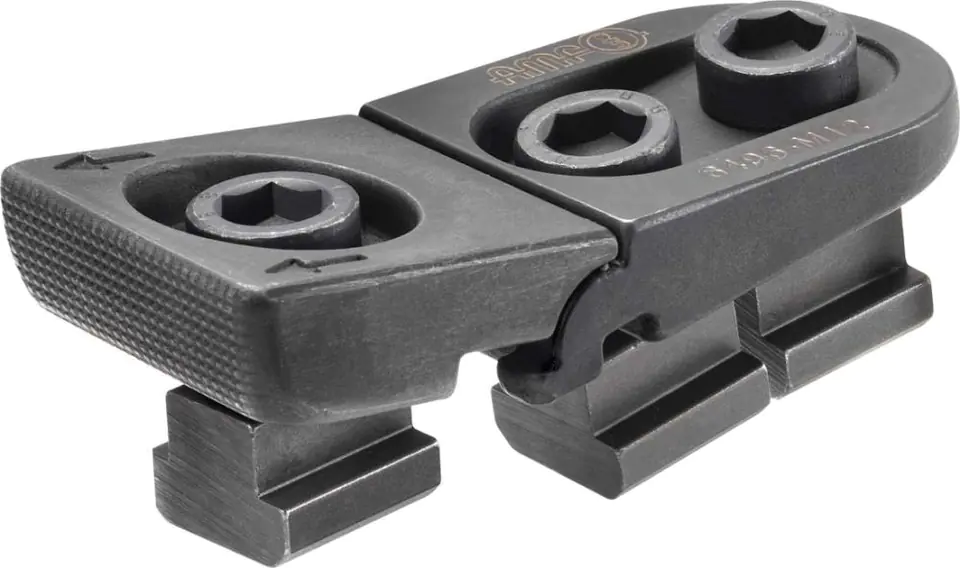

Side pressure, low 6496M12x16mm AMF

This product is not available
Availability:
expected delivery
Brand:
AMF
Product code:
374165 / 4020772374167

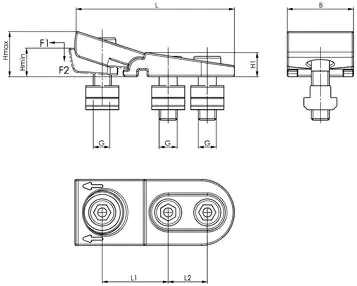

Specification

B:44
F1:15 kN
F2:7.5 kN
G:M12
Groove:16
H max.:25 mm
H min.:16 mm
H1:16
L:110
L1:45–48
L2:26
Scales:600 g
Size:M12 x 16

Side downforce, low

Made of: heat treated steel, tempered by oxidation.
Advantages:
• side fastening of elements for processing complete surfaces without interfering contours
• possibility of horizontal and vertical use
Application: for fixing very flat elements.
Scope of delivery: side pressure, low, complete with fastening.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
