Specifications:
Item no.: 78 41 125
EAN: 4003773040767
Pliers: blackened
Head: blackened
handles: with multi-component caps
Weight: 57 g
Dimensions: 125 x 65 x 12 mm
Standard: DIN ISO 9654
Soft wire cutting range (diameter): 0.2 – 1 mm

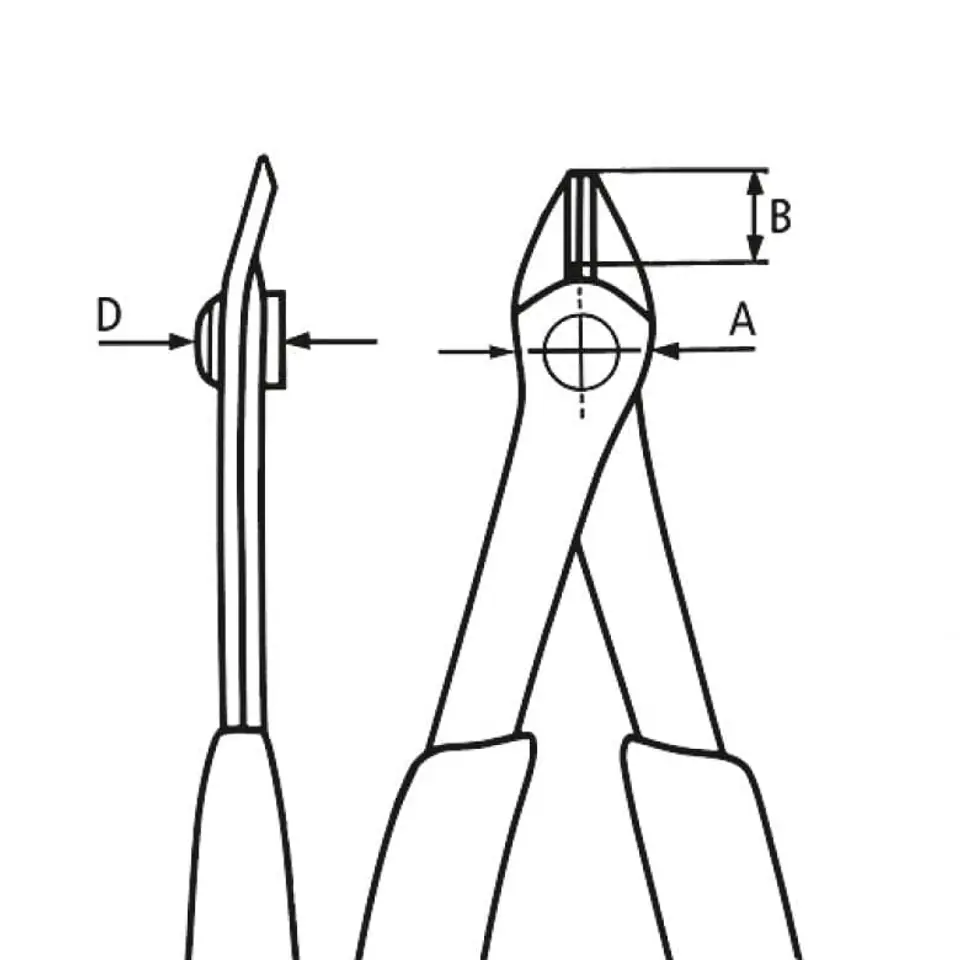

Jaw Length (B): 9mm
Jaw thickness (joint) (D): 7.5 mm
Detail bar width (A): 12.5 mm
Precision pliers for extremely accurate cutting, e.g. in electronics and mechanics
Grinded, very sharp blades without bevel for flat cutting
Precisely shaped tips also allow you to cut densely arranged wires with a diameter of 0.2 mm
Stainless steel rivet connector
Blades separately induction hardened
Extremely smooth pliers, ensures efficient cutting without fatigue
With opening spring and opening pin
INOX or special tool steel
Model:
Blades separately induction hardened, blade hardness approx. 60 HRC
With narrow head
With a spring to hold cut off pieces of wire
Special tool steel, blackened
**
Photos are for illustrative purposes.

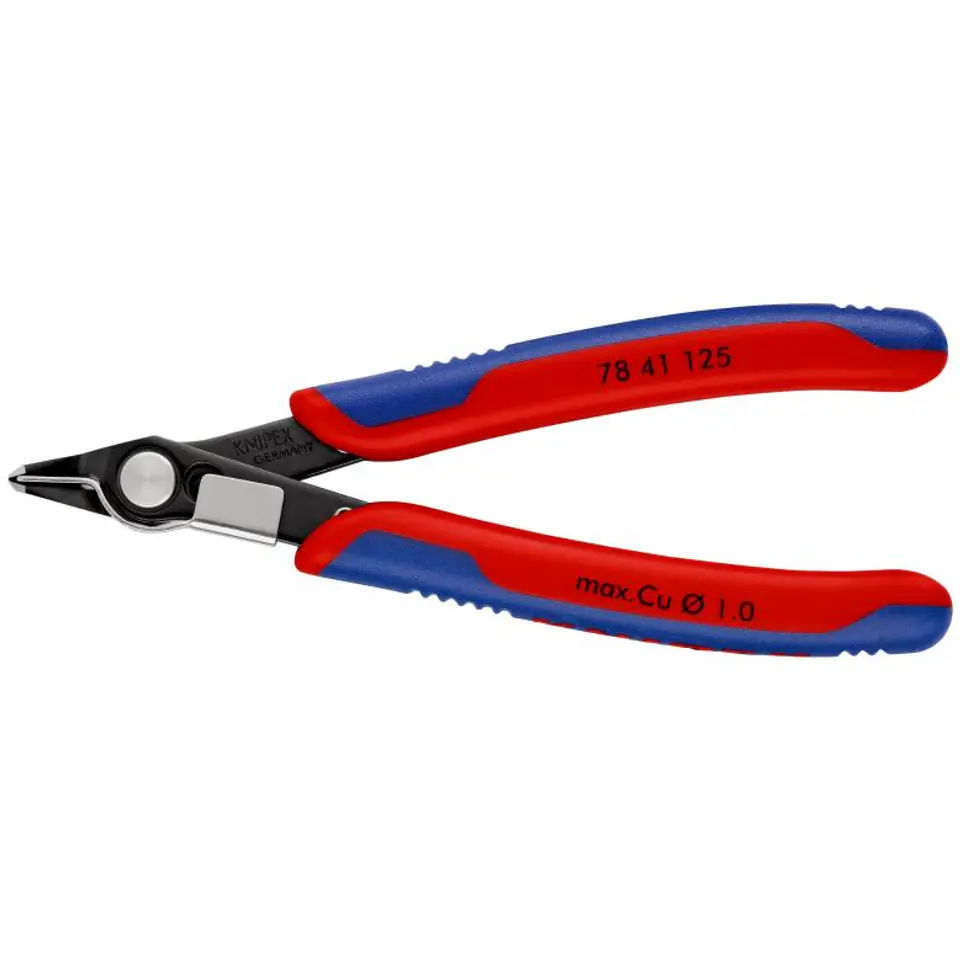

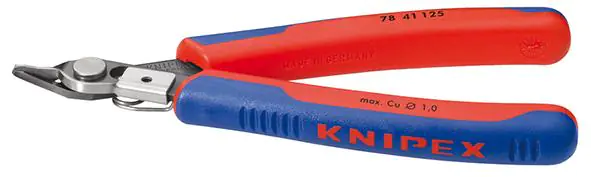

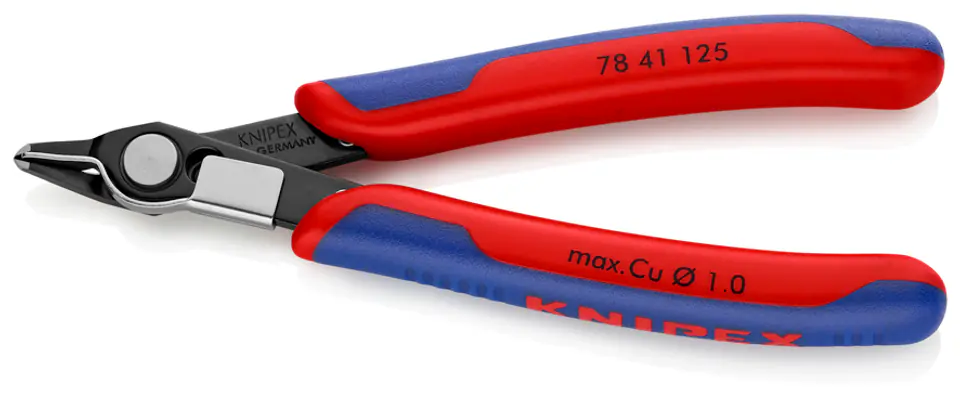

SIDE CUTTING PLIERS WITH SPRING INSULATED 125MM
PLN 122.77
Shipping from warehouse: B6
Estimated shipping: Mon, May 20 - Thu, May 23
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- KNIPEX
- Product code:
- 8253440010 / 4003773040767
Share this product:
Specification
| Cutting parameters, ø medium hard wire: | –Mm |
|---|---|
| Cutting parameters, ø soft wire: | 0.2 to 1.0 mm |
| Execution: | without bevel, slim head, wire clamp |
