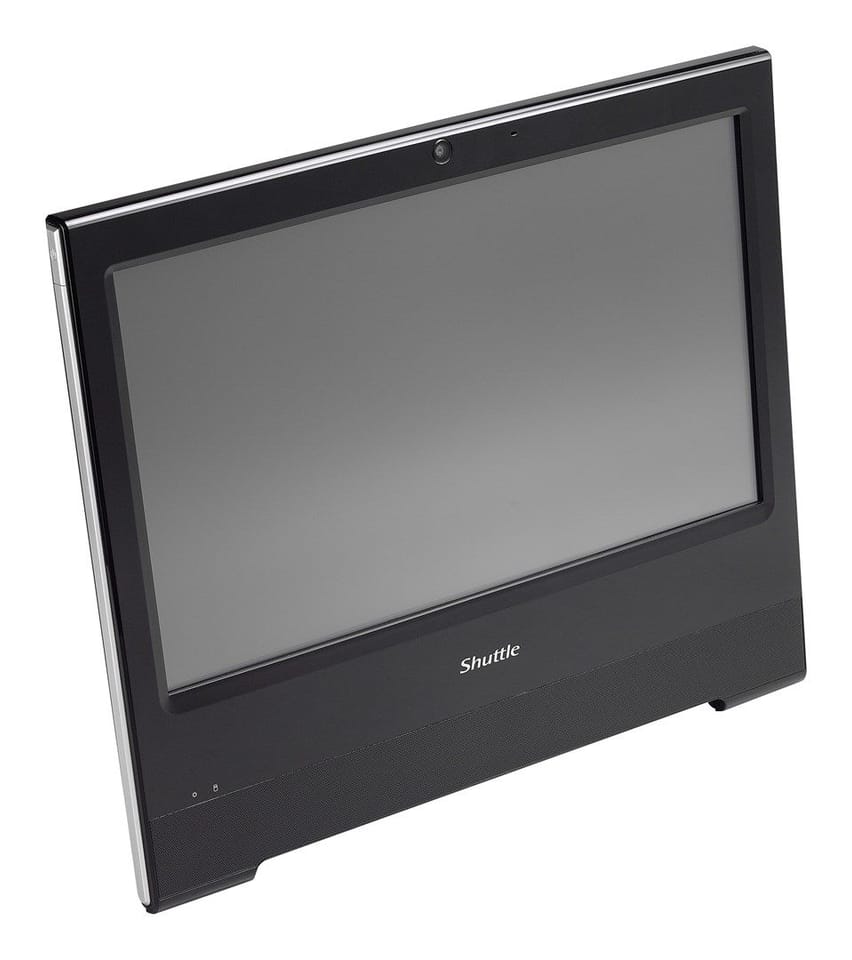

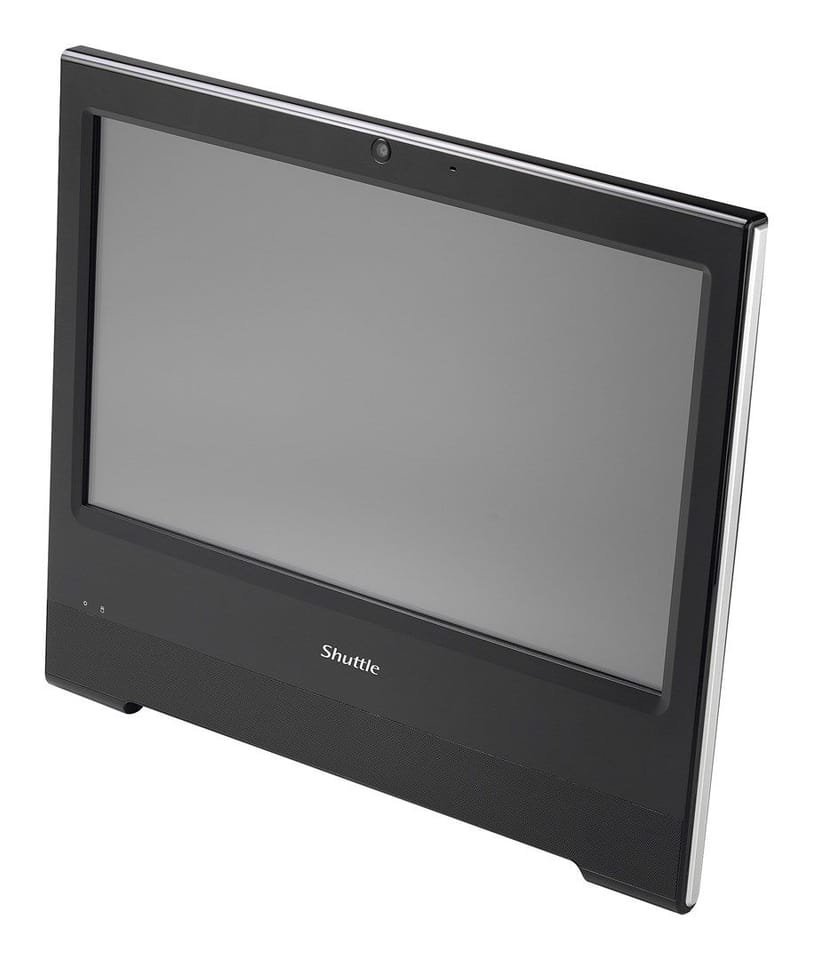

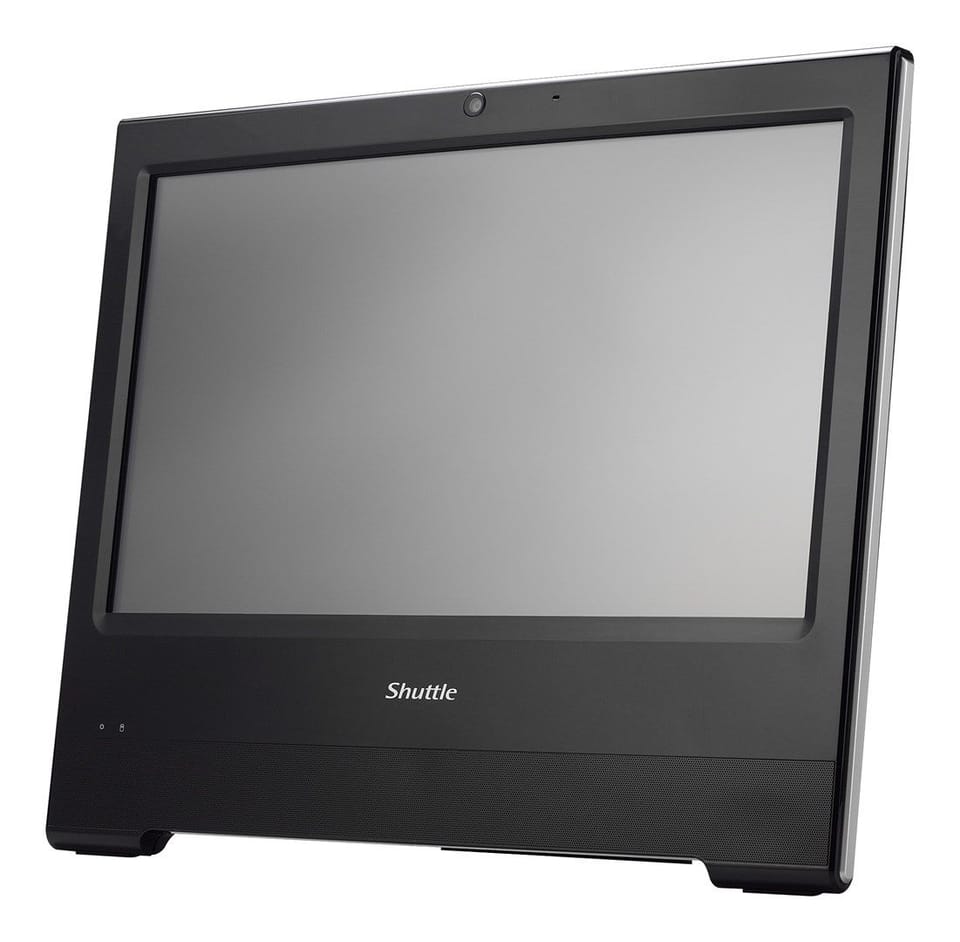

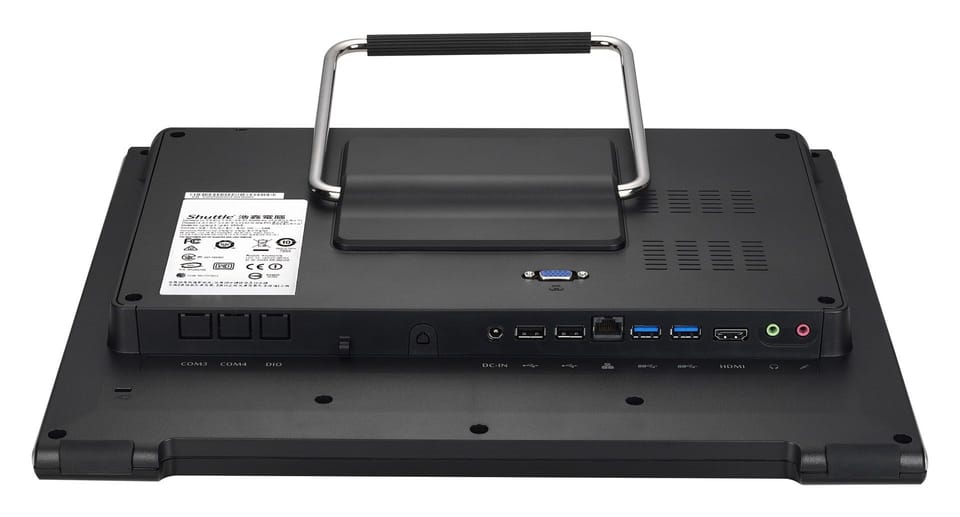

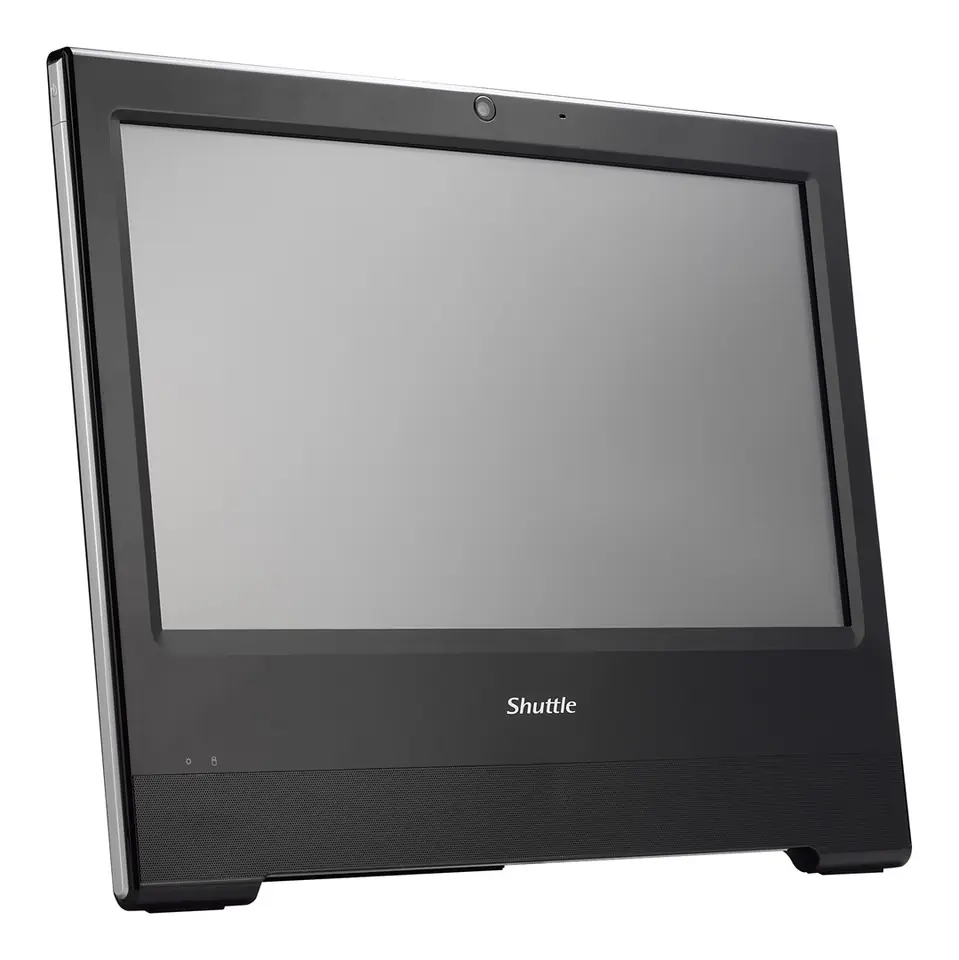

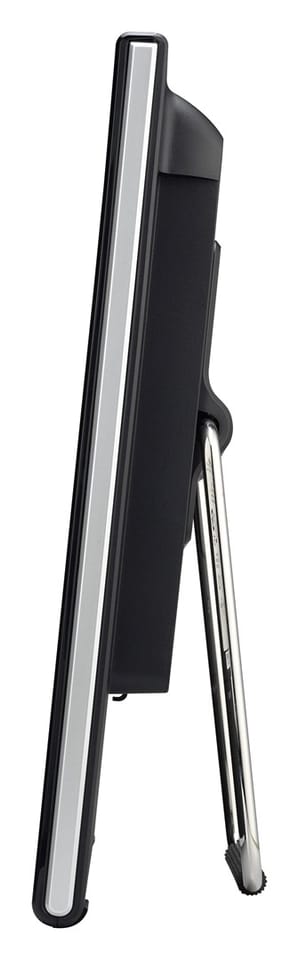

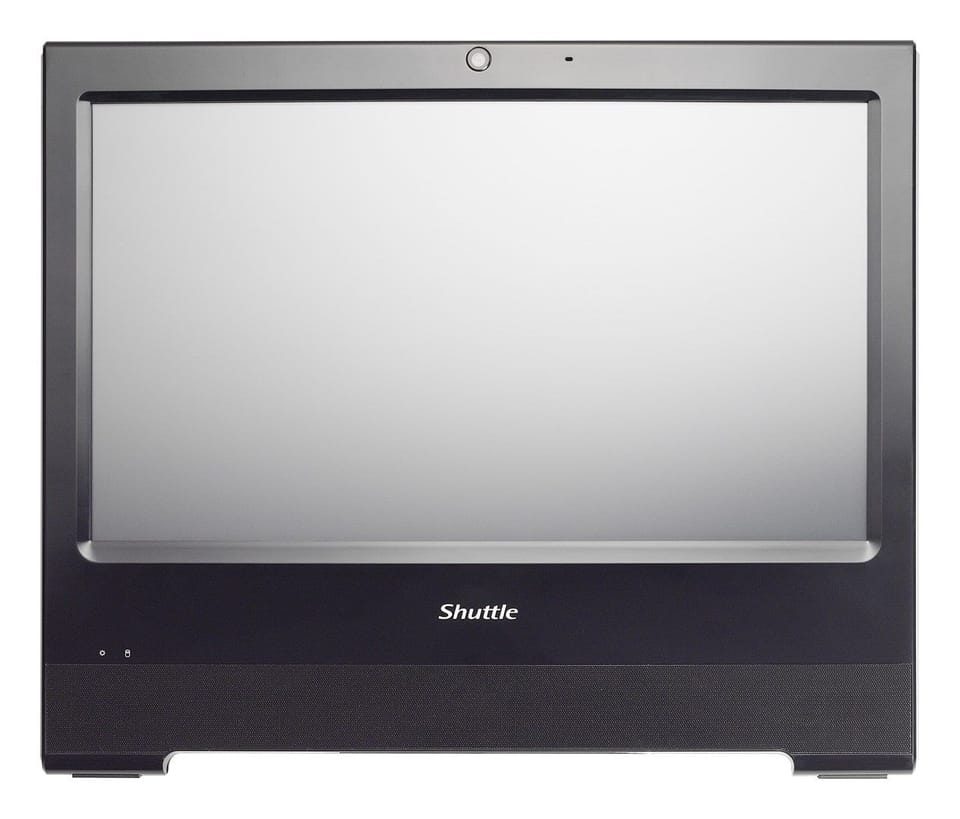

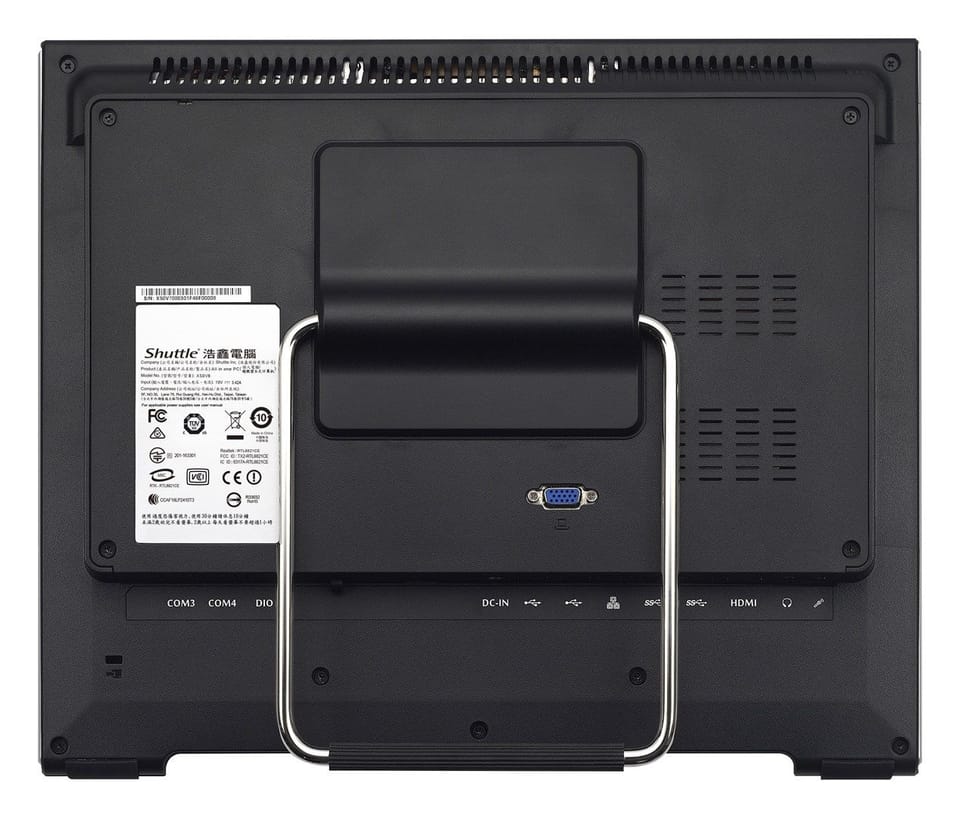

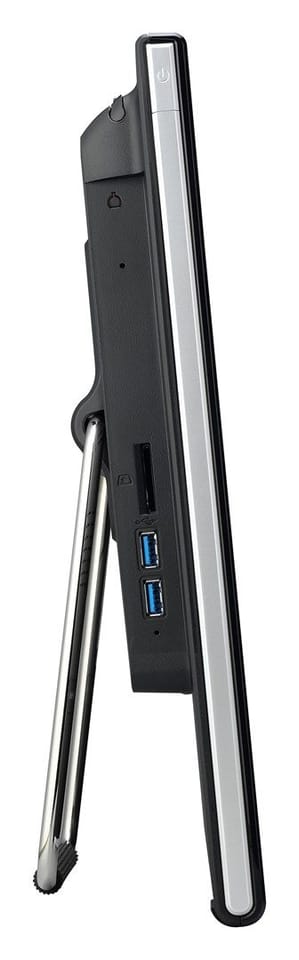

Shuttle All-In-One Barebone X50V8U3, 15.6" Single-Touch-Screen (resistive),Intel Core i3-10110U, Wifi, IP54, fanless, 24/7 permanent operation
This product is not available
- Availability:
- expected delivery
- Brand:
- Shuttle
- Product code:
- X50V8U3 / 0887993005089
Share this product:
Specification
| Ac adapter included: | Yes |
|---|---|
| Ac adapter output current: | 3.42 A |
| Ac adapter output voltage: | 19 V |
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Aspect ratio: | 16:9 |
| Bios type: | AMI |
| Bluetooth: | Yes |
| Bluetooth version: | 4.2 |
| Built-in processor: | Yes |
| Built-in speaker(s): | Yes |
| Cable lock slot: | Yes |
| Cable lock slot type: | Kensington |
| Card reader integrated: | Yes |
| Chassis type: | All-in-One |
| Compatible memory cards: | SDHC, SDXC, SD |
| Cooling type: | Passive |
| Cpu configuration (max): | 1 |
| Dc-in jack: | Yes |
| Depth: | 42 mm |
| Display brightness: | 220 cd/m² |
| Display diagonal: | 39.6 cm (15.6") |
| Display resolution: | 1366 x 768 pixels |
| Drivers included: | Yes |
| Embedded options available: | No |
| Enhanced intel speedstep technology: | Yes |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Execute disable bit: | Yes |
| Graphics card family: | Intel |
| Harmonized system (hs) code: | 84713000 |
| Hd type: | HD |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 1.4a |
| Headphone outputs: | 1 |
| Height: | 327 mm |
| Idle states: | Yes |
| Intel 64: | Yes |
| Intel clear video technology: | Yes |
| Intel flex memory access: | Yes |
| Intel stable image platform program (sipp): | No |
| Intel trusted execution technology: | No |
| Intel tsx-ni: | No |
| Intel virtualization technology (vt-x): | Yes |
| Intel virtualization technology for directed i/o (vt-d): | Yes |
| Intel vt-x with extended page tables (ept): | Yes |
| Led indicators: | Power, HDD |
| Linux operating systems supported: | Yes |
| Maximum internal memory: | 64 GB |
| Maximum resolution: | 3840 x 2160 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | SO-DIMM |
| Memory voltage: | 1.2 V |
| Microphone in: | Yes |
| Non-ecc: | Yes |
| Number of power supply units: | 1 |
| Number of speakers: | 2 |
| Number of storage drives supported: | 1 |
| On-board graphics card: | Yes |
| On-board graphics card model: | Intel® UHD Graphics |
| On/off switch: | Yes |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating system installed: | No |
| Operating temperature (t-t): | 0 - 40 °C |
| Package weight: | 4.2 kg |
| Panel type: | LCD |
| Power cord included: | Yes |
| Power supply: | 65 W |
| Power supply type: | External AC adapter |
| Processor boost frequency: | 4.1 GHz |
| Processor cache: | 4 MB |
| Processor cores: | 2 |
| Processor family: | Intel® Core™ i3 |
| Processor frequency: | 2.1 GHz |
| Processor generation: | 10th gen Intel® Core™ i3 |
| Processor lithography: | 14 nm |
| Processor manufacturer: | Intel |
| Processor model: | i3-10110U |
| Processor threads: | 4 |
| Product colour: | Black |
| Product type: | All-in-One PC barebone |
| Quick start guide: | Yes |
| Rms rated power: | 2 W |
| Ssd form factor: | 2.5" |
| Storage drive interface: | Serial ATA III |
| Storage drive sizes supported: | 2.5 |
| Supported memory clock speeds: | 2666 |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive types: | HDD & SSD |
| Thermal design power (tdp): | 15 W |
| Top wi-fi standard: | Wi-Fi 5 (802.11ac) |
| Touchscreen: | Yes |
| Trusted platform module (tpm): | Yes |
| Trusted platform module (tpm) version: | 2.0 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Vesa mounting: | Yes |
| Vga (d-sub) ports quantity: | 1 |
| Weight: | 3.5 kg |
| Wi-fi: | Yes |
| Wi-fi standards: | 802.11g, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Width: | 391 mm |
| Windows operating systems supported: | Windows 11, Windows 10 |
| Wlan controller model: | Realtek RTL8821CE |
