Spherical cutter, solid carbide

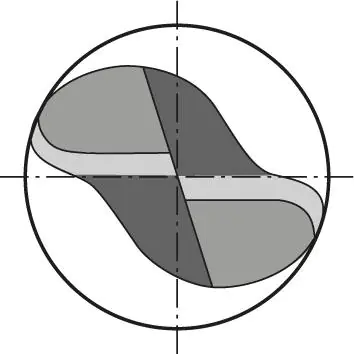

Execution: with center blade, suitable for drilling.
Application: for copy milling. Grinding the neck application surface enables optimal tool reach and is therefore suitable for mould manufacturing applications. For high-speed machining HSC of materials up to max. hardness 54 HRC.
Note: for copy milling; Preferred cutting parameters for AP = 0,05 × D1 and AE = 0,1 × D1.
Short spherical end WN, solid aluminum, type HSC Signum 30, shank HA 2mm GÜHRING
€80.75
Shipping from warehouse: B6
Estimated shipping: Mon, Sep 15 - Tue, Sep 16
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- GÜHRING
- Product code:
- 9038480020000 / 4031093736121
Share this product:
Specification
| Aluminium > 8% silicon: | 110 |
|---|---|
| Cast iron gg/gts: | 200 |
| Copper alloys: | 90 |

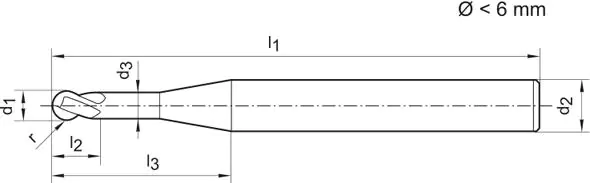

| Cutting part length l2: | 3.0 mm |
| Diameter d1 = h 8: | 2 mm |
| Ggg cast iron: | 160 |
| Hardened steel < 55 hrc: | 120 |
| Hardened steel < 55 hrc fz: | 0.030 mm/rev. |
| Inox austenite.: | 128 |
| Inox duplex: | 102 |
| Inox ferrite./martenz.: | 160 |
| Neck diameter d3: | 1.8 mm |
| Neck length l3: | 20 mm |
| Radius-r-±-001: | 1.0 mm |
| Shank diameter d2 = h6: | 6 mm |
| Steel < 1000 n/mm2: | 160 |
| Steel < 1400 n/mm2: | 128 |
| Steel < 700 n/mm2: | 200 |
| Titanium > 850 n/mm2: | 22 |
| Total length l1: | 57 mm |
