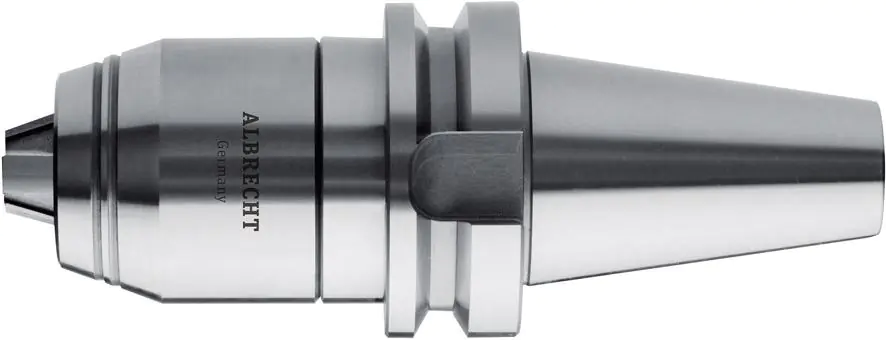

Precise short CNC chuck, right- and left-hand
Design: rigid guide elements, hardened and ground wear parts. Thanks to the self-locking of the worm gear, machining is also safe at left speed and fast spindle braking.
Cone angle tolerance: AT3
Cone surface roughness: Ra < 0,001 mm
Application: for drilling, countersinking, abrasion, threading and simple finishing milling. For machining centers, lathes, drills and milling machines.
Scope of delivery: short chuck with hex wrench.
Note: With special balancing, higher rotational speeds are possible. Also available in ULTRA version (radial run-out tolerance < = 0.015 mm).
