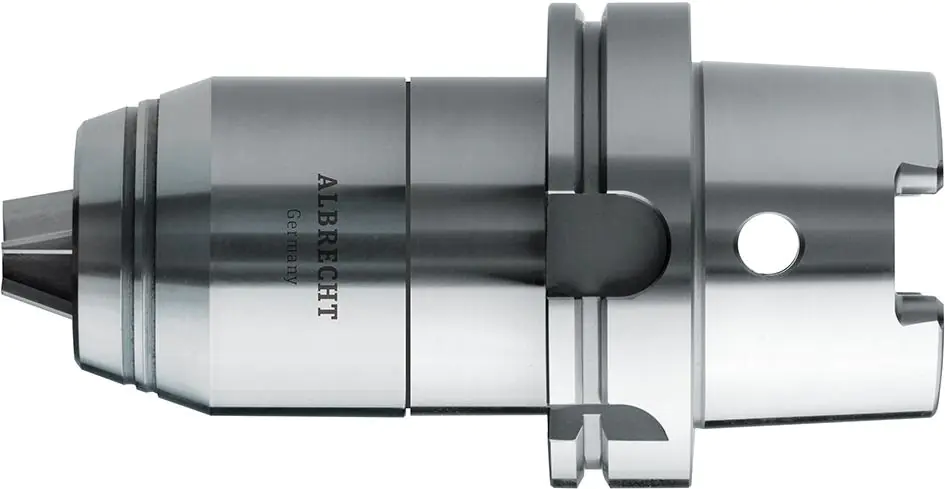

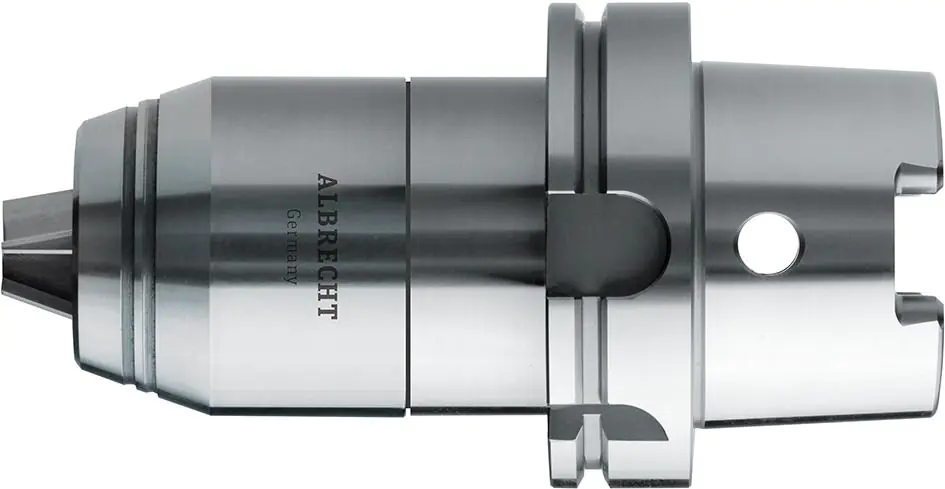

Precise short CNC AKL chuck, right and left
Design: rigid guide elements, hardened and ground wear parts guarantee low radial runout and long service life. 100% radial runout control with measuring pins of different diameters at different measuring points based on DIN ISO 10888. Compact design and high rigidity ensure the best machining results.
The integrated worm gear allows for high clamping forces with low effort, clamping torque > 75 Nm with a diameter of 13 mm. Thanks to the self-locking of the worm gear, machining is also safe at left speed and fast spindle braking.
Cone surface roughness: Ra < 0,001 mm
Application: for drilling, countersinking, abrasion, threading and simple finishing milling. For machining centers, lathes, drills and milling machines.
Scope of delivery: short chuck with hex wrench.
Note: With special balancing, higher rotational speeds are possible. Also available in ULTRA version (radial run-out tolerance < = 0.015 mm).
