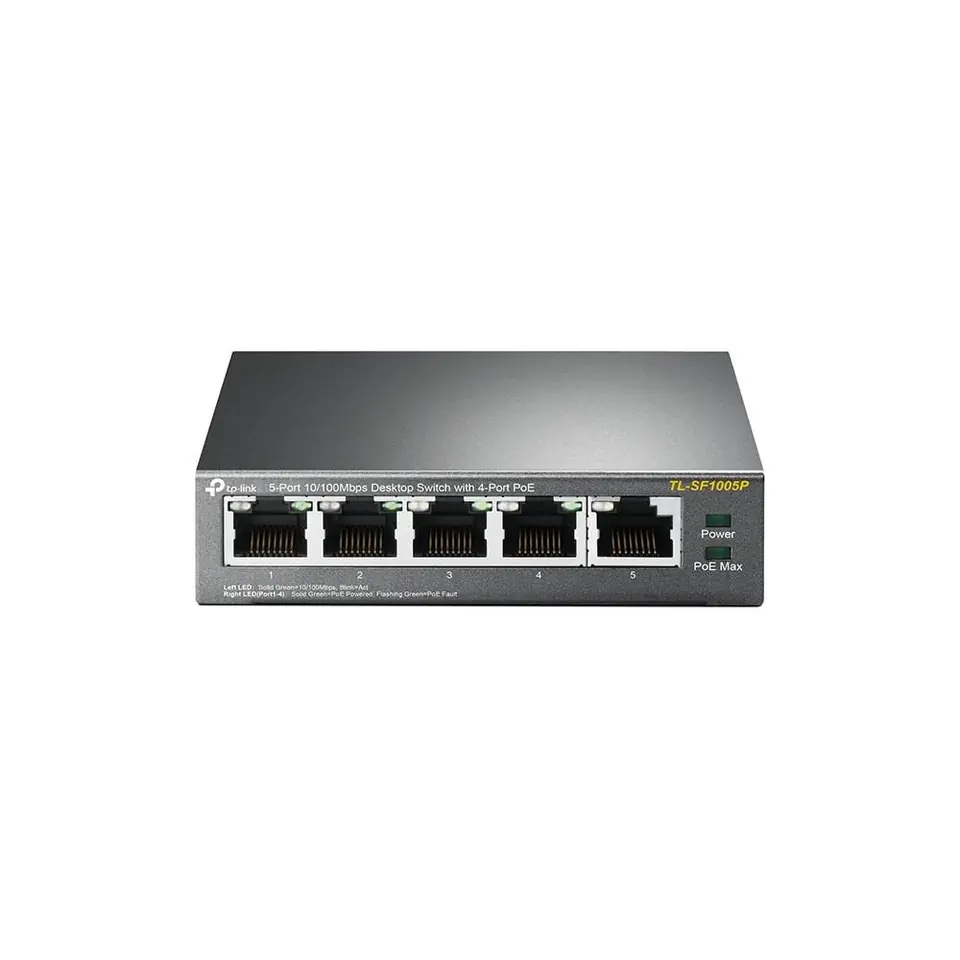

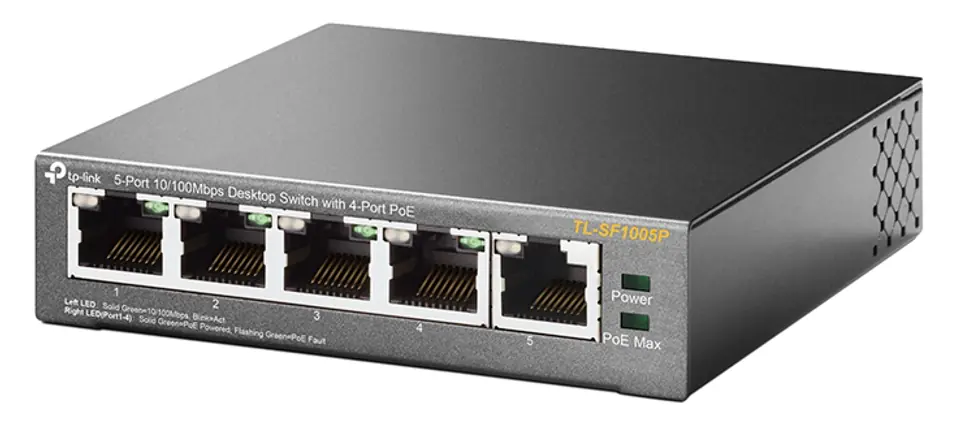

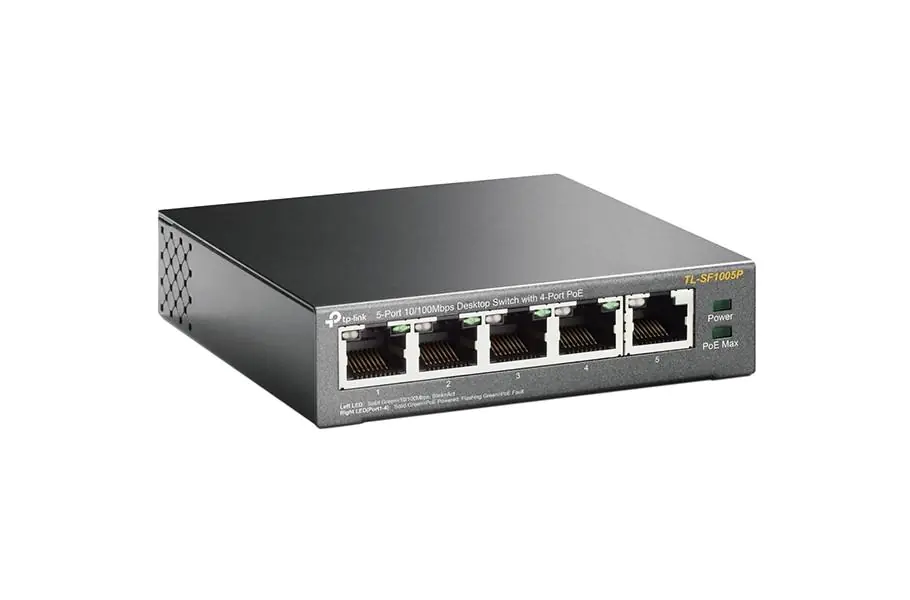

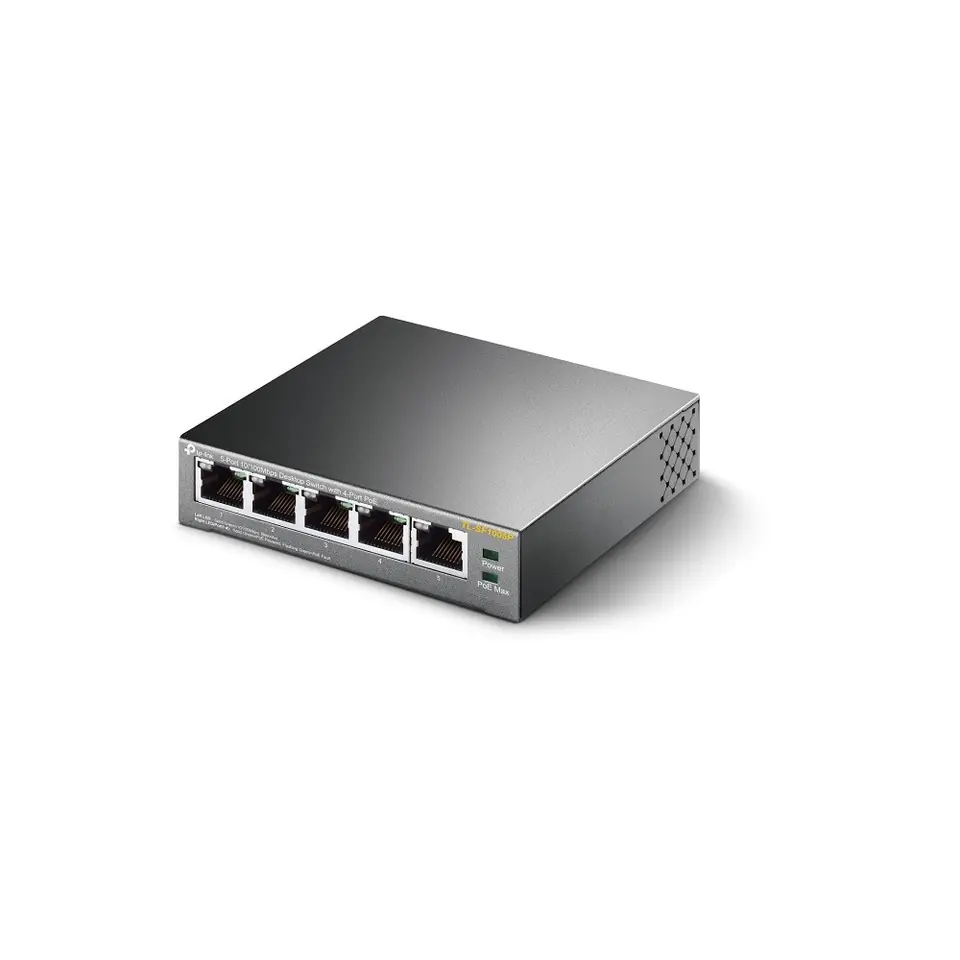

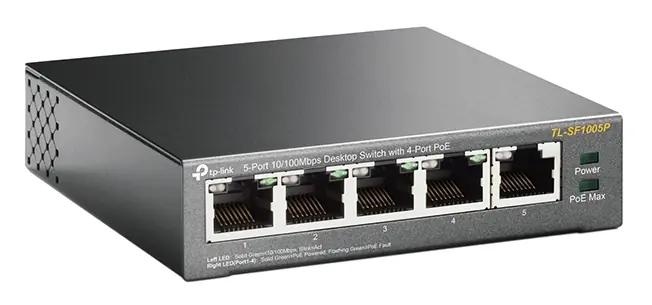

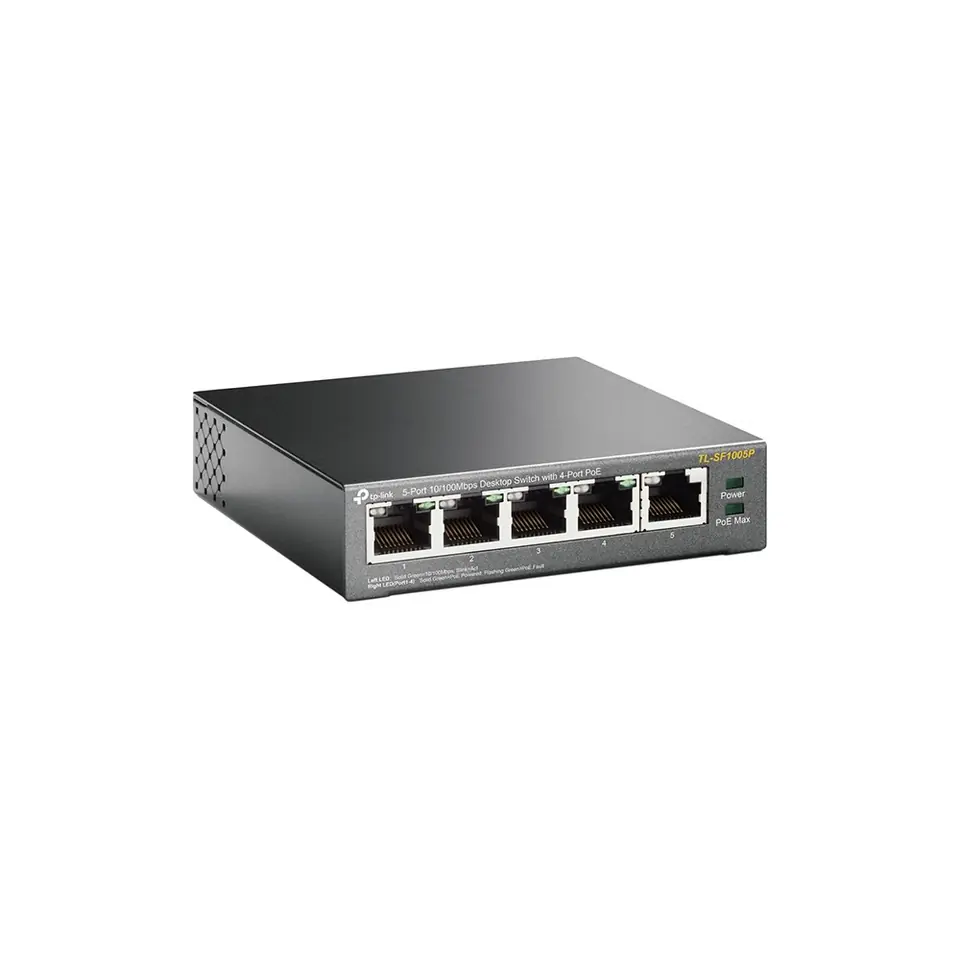

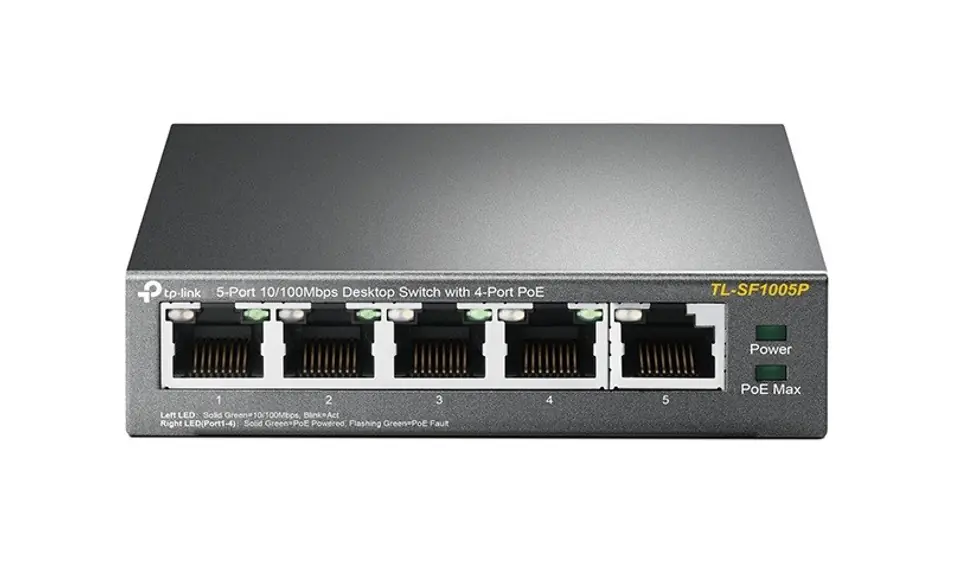

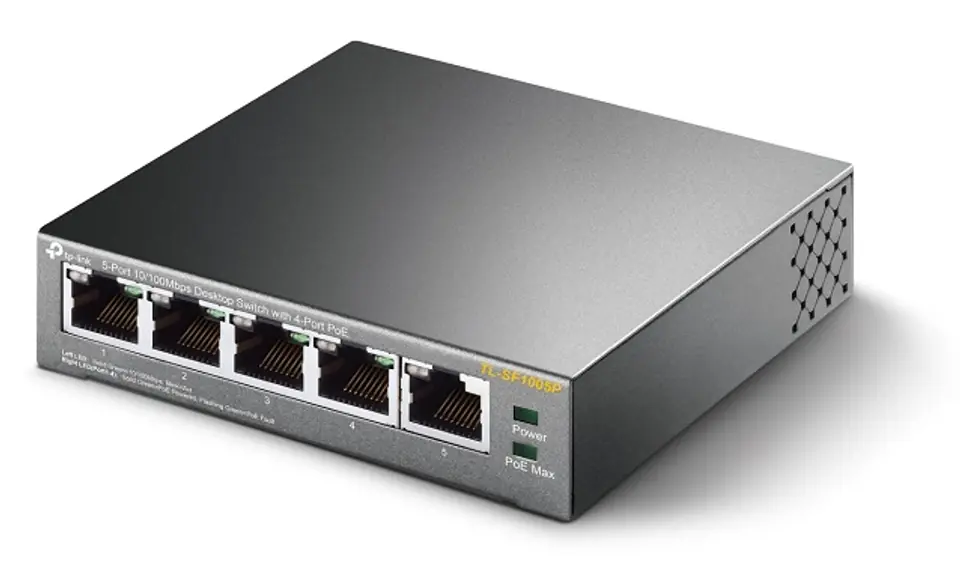

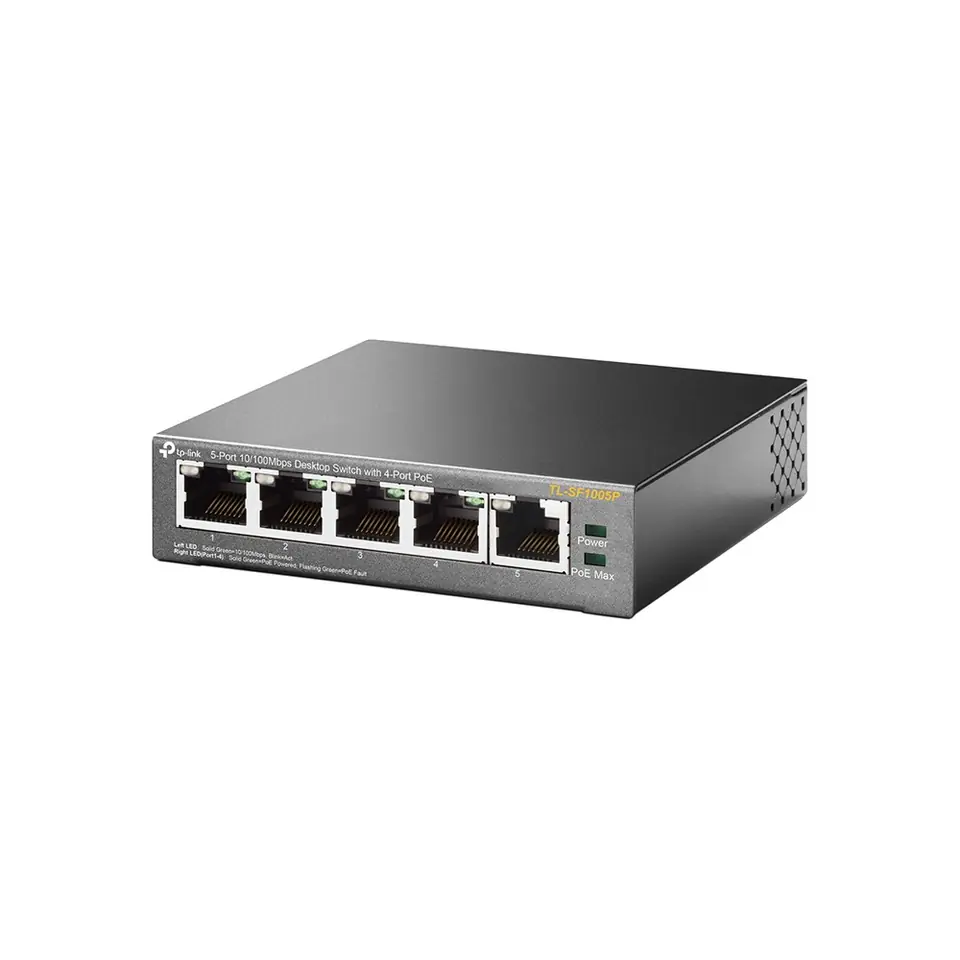

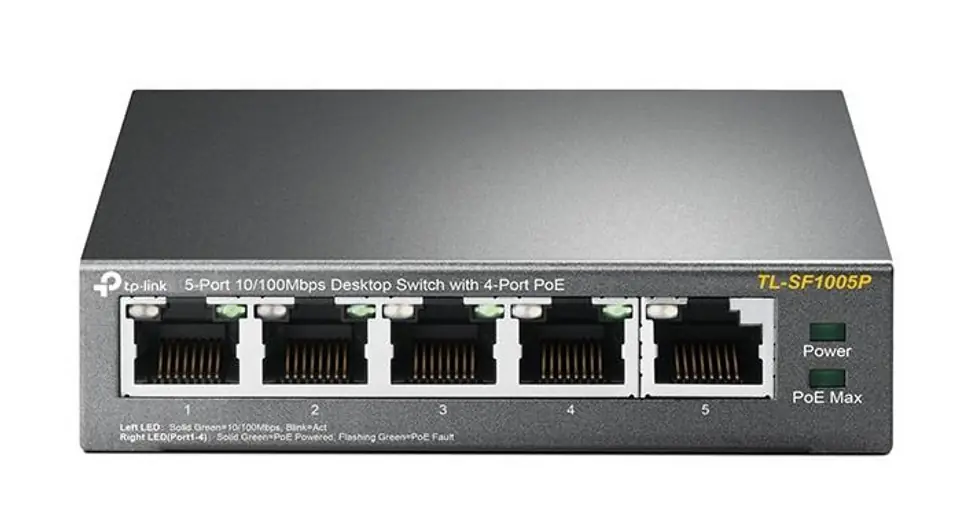

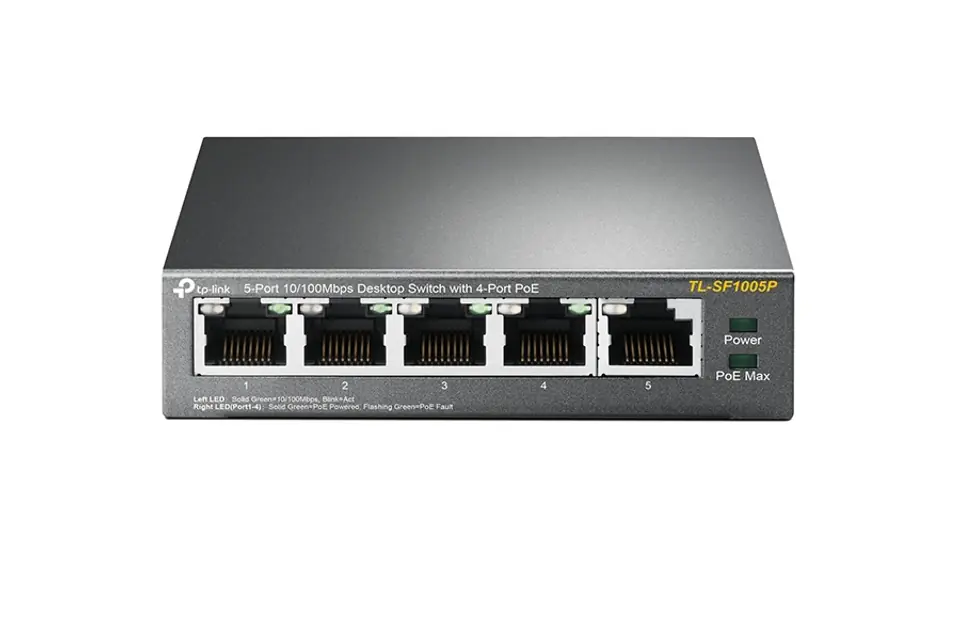

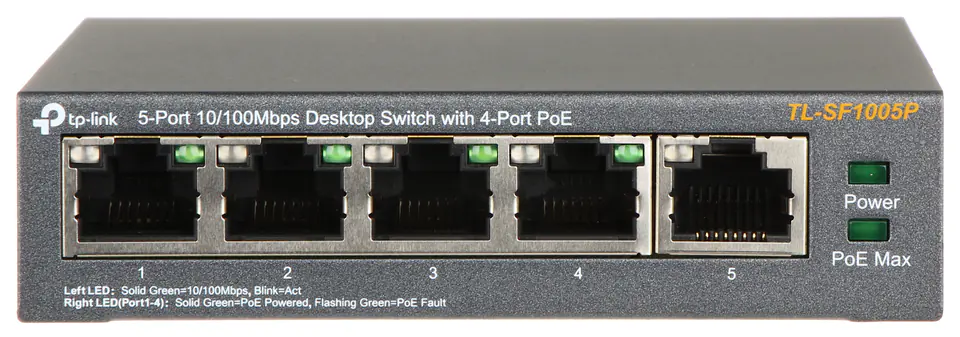

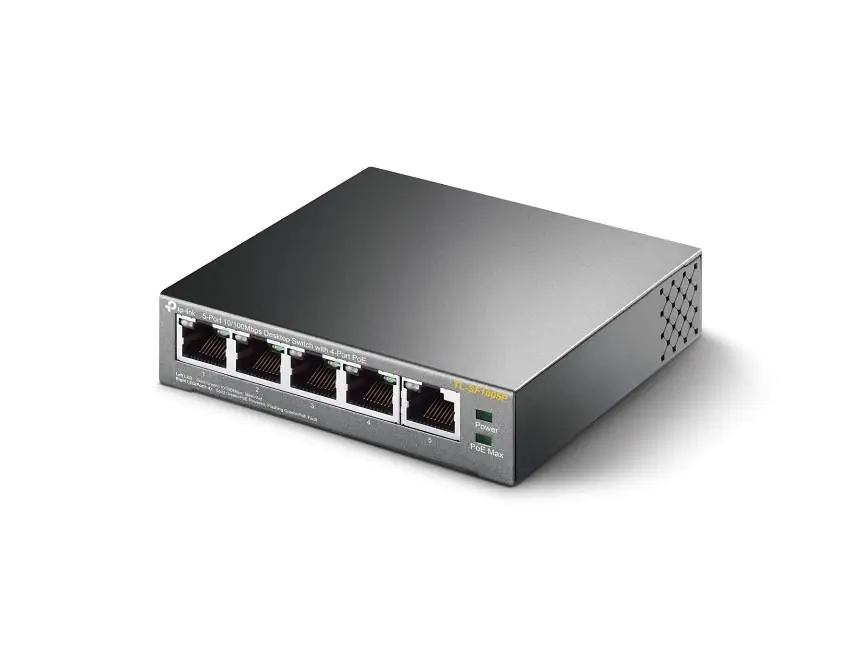

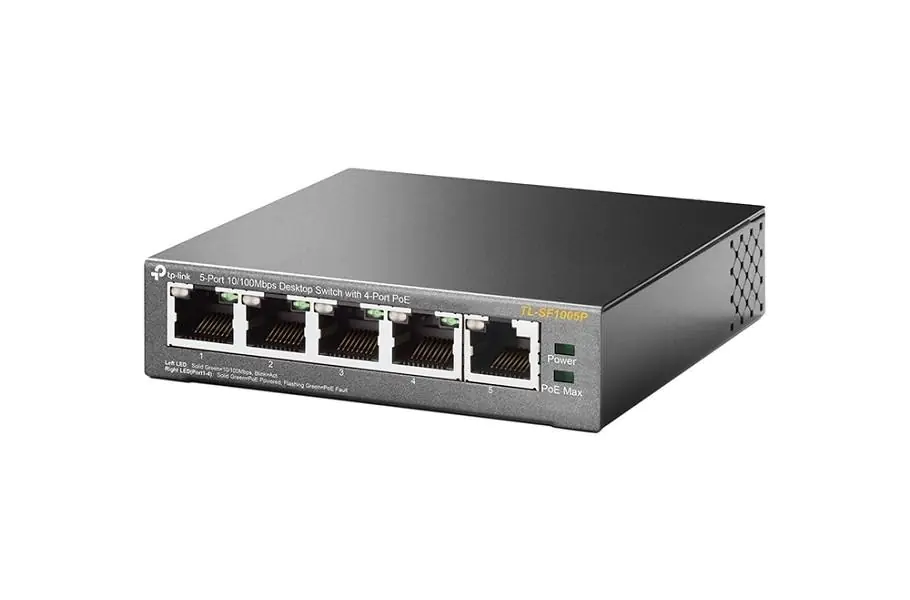

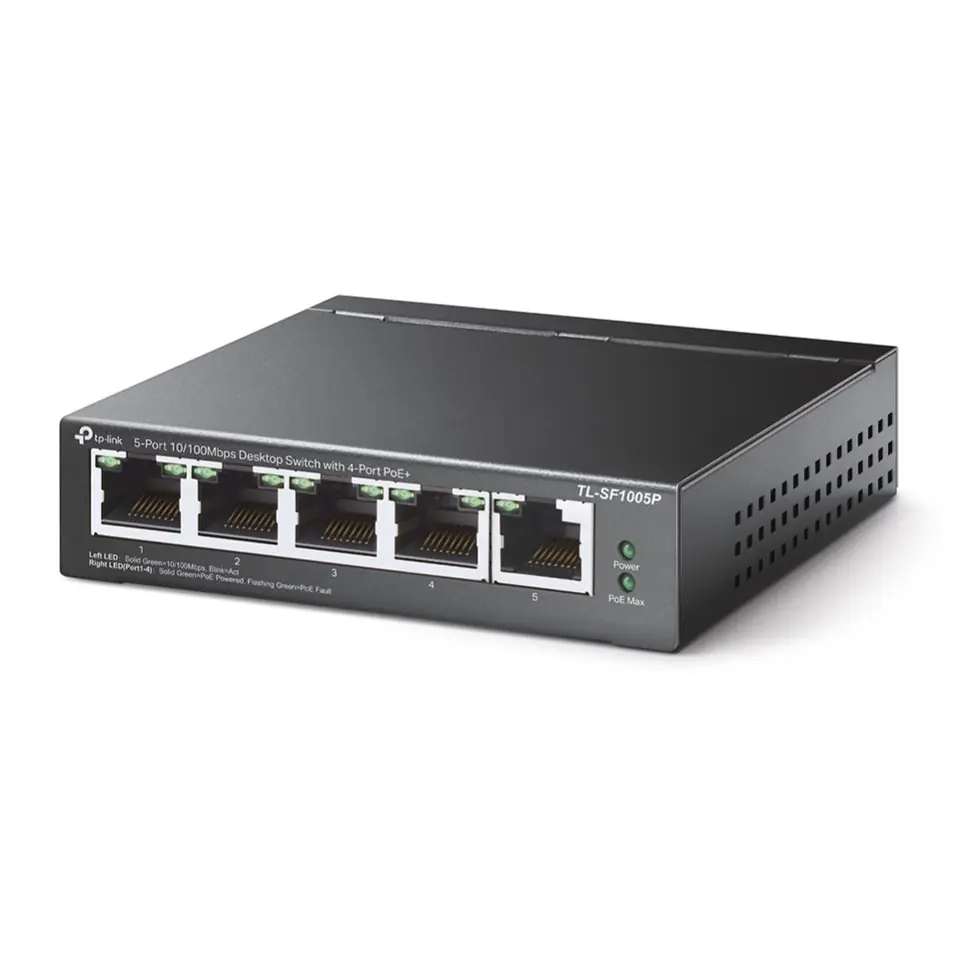

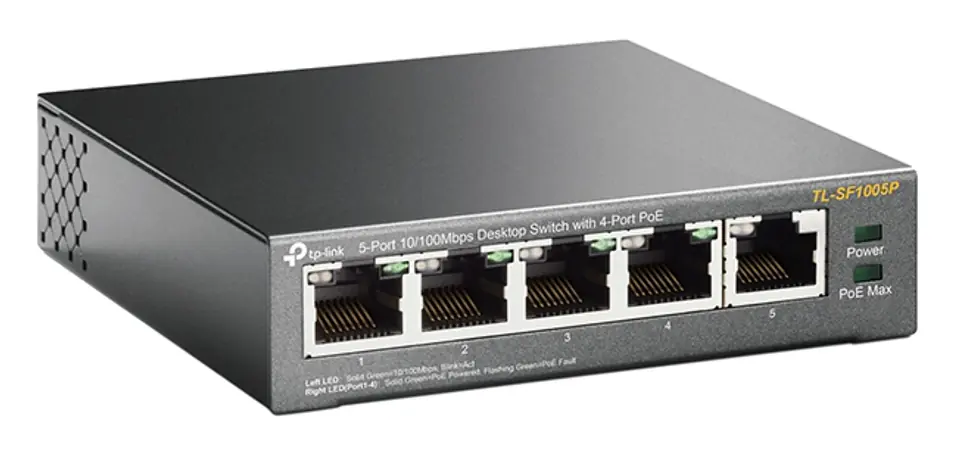

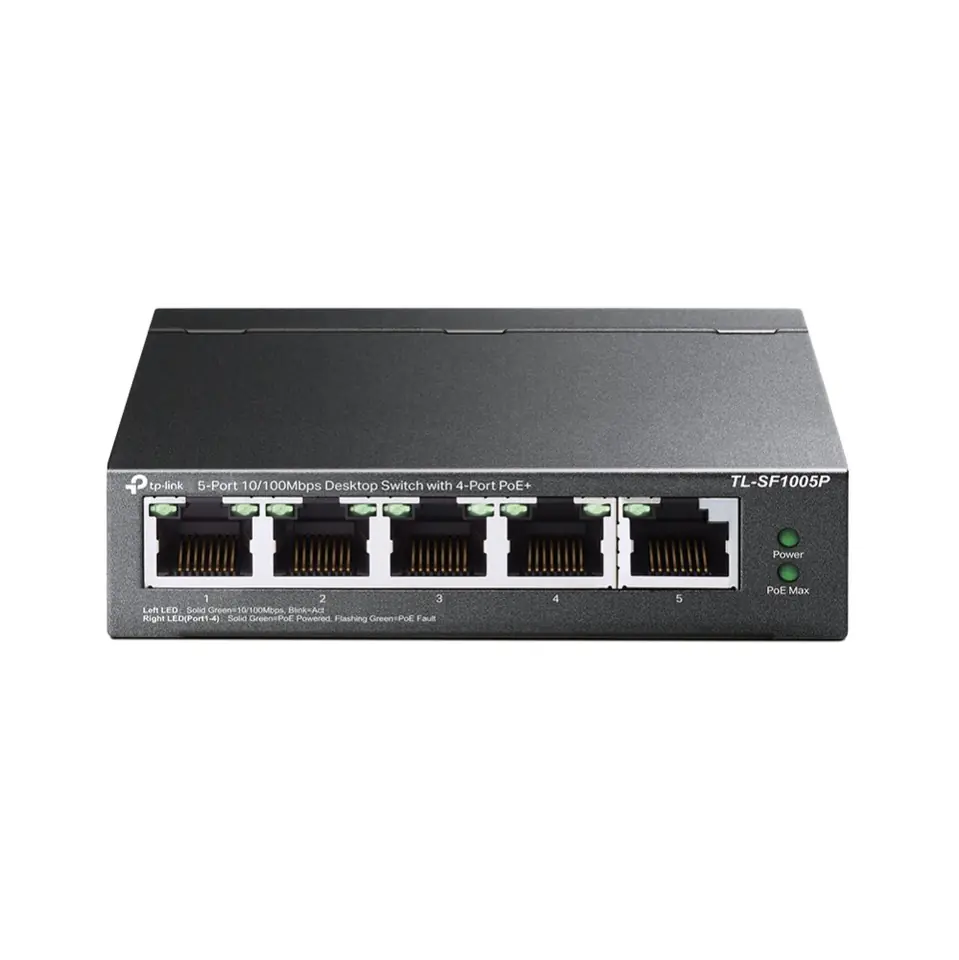

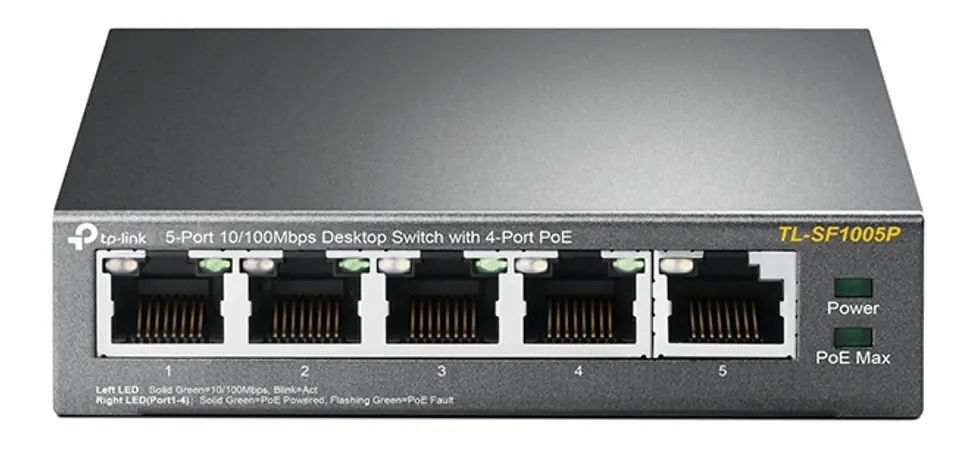

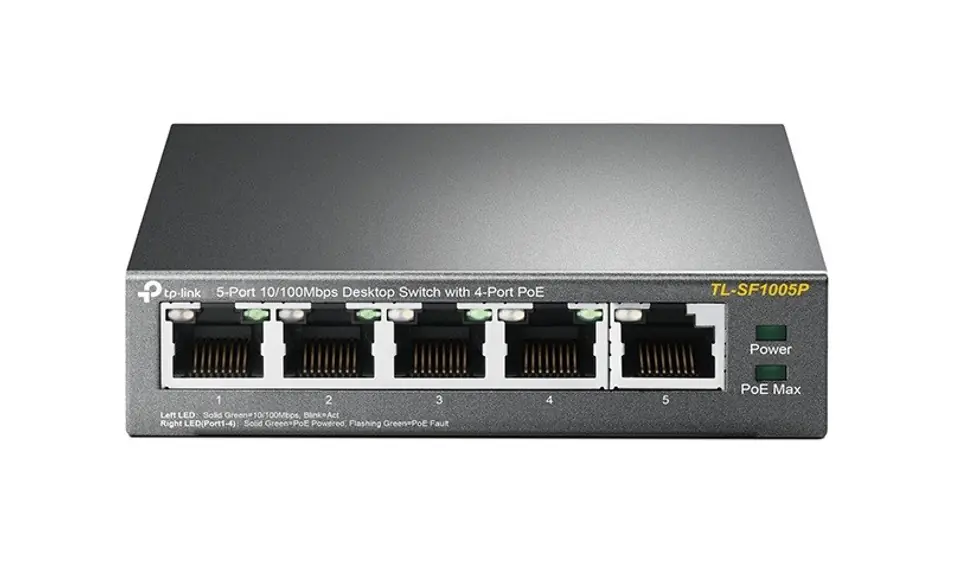

Switch SF1005P 5 x FE (4x PoE)
- 5 RJ45 10 / 100Mb / s ports

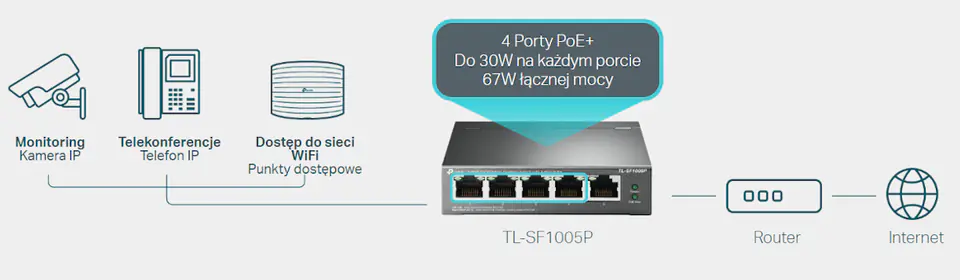

- 4 PoE ports, data transfer and device power supply using one cable
- Compliance with the IEEE 802.3af standard
- Up to 15.4W of power on each of the PoE ports
- Up to 58W total PoE power
- No configuration required
SF1005P switch 5xFE 4xPoE
€33.93
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Tp-Link
- Product code:
- TL-SF1005P / 6935364083199
Share this product:
Specification
| 10g support: | No |
|---|---|

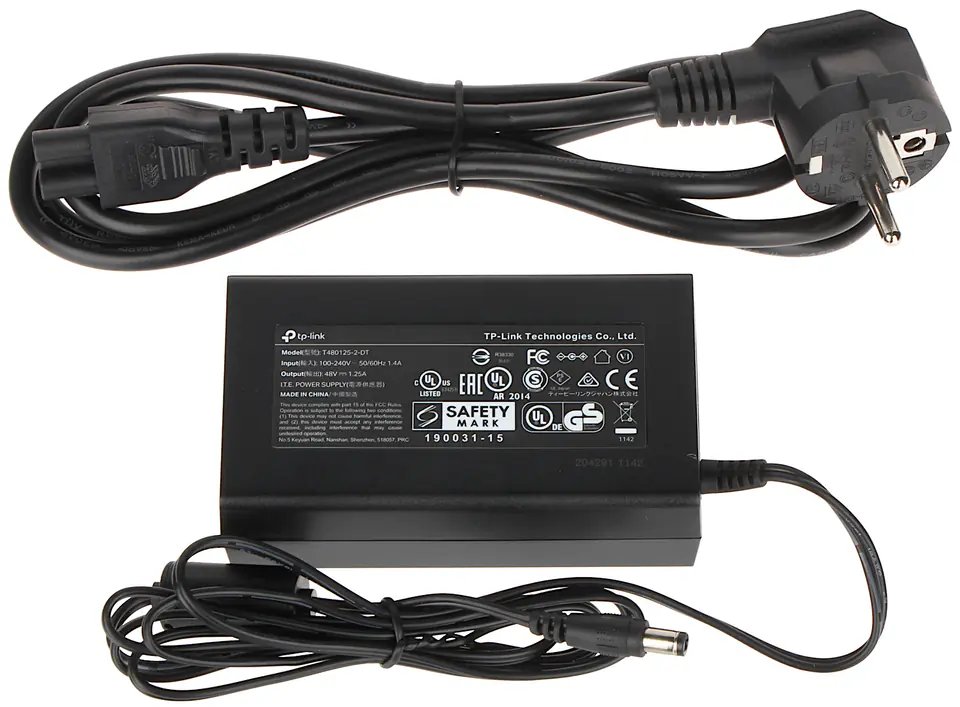

| Ac adapter included: | Yes |
| Ac input frequency: | 50 Hz |
| Ac input voltage: | 220 V |
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 5 |
| Basic switching rj-45 ethernet ports type: | Fast Ethernet (10/100) |
| Cable types supported: | Cat5, Cat3, Cat5e, Cat4, Cat6 |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-T, 100BASE-TX |

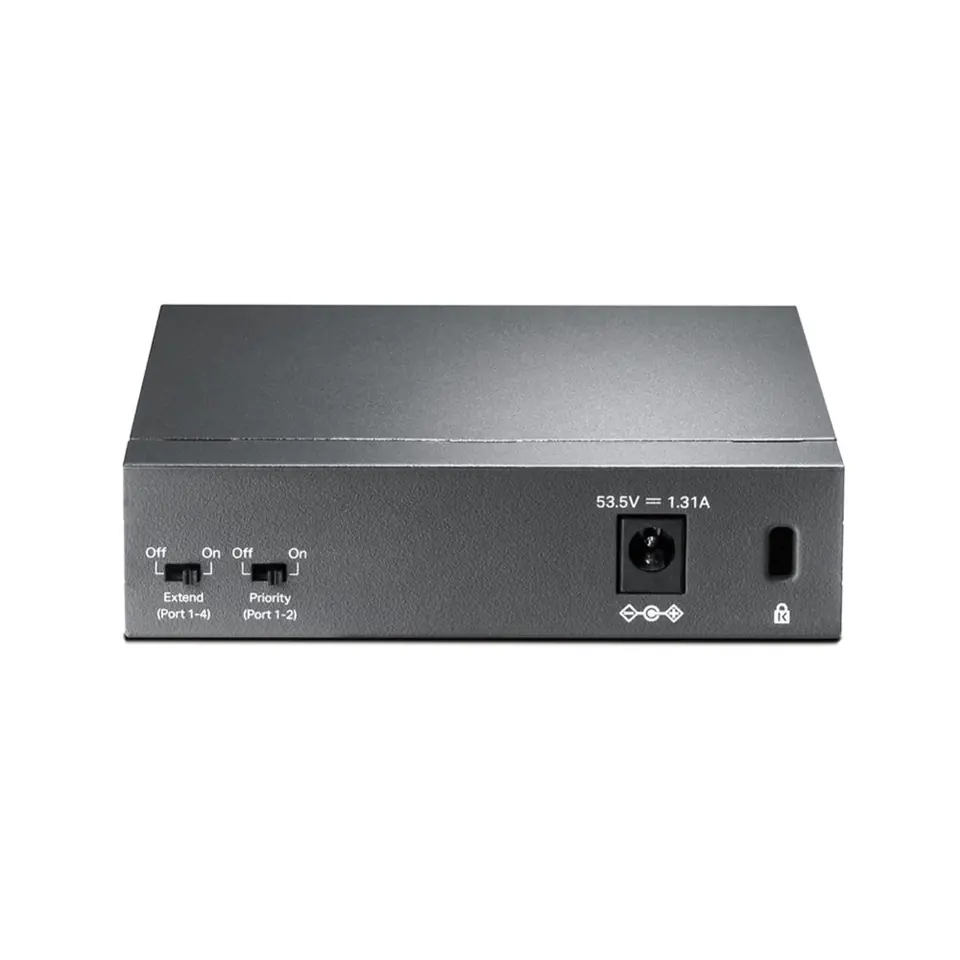

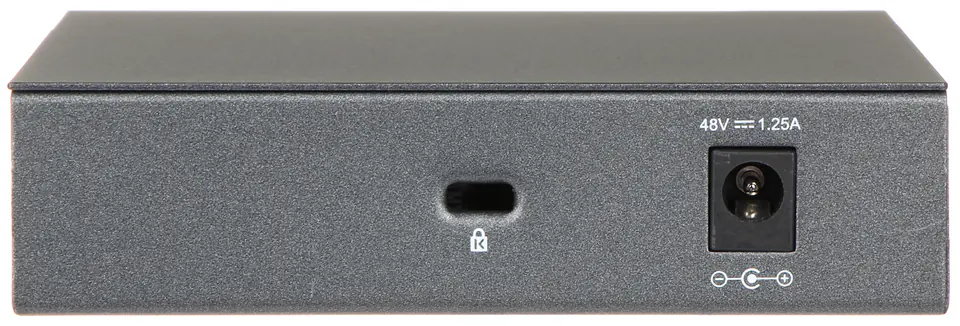

| Dc input voltage: | 53.5 V |

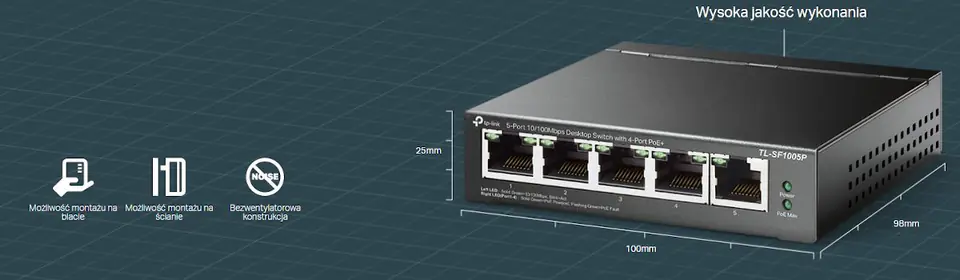

| Depth: | 98 mm |
| Fanless: | Yes |
| Flow control support: | Yes |
| Forwarding rate: | 0.744 Mpps |
| Full duplex: | Yes |
| Half duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Heat dissipation: | 252.34 BTU/h |
| Height: | 25 mm |
| Input current: | 1.31 A |
| Jumbo frames: | 2000 |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Mac address auto-aging supported: | Yes |
| Mac address auto-learning supported: | Yes |
| Mac address table: | 2000 entries |
| Maximum cable length: | 100 m |
| Networking standards: | IEEE 802.3x, IEEE 802.3af |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Package depth: | 196 mm |
| Package height: | 121 mm |
| Package type: | Box |
| Package weight: | 760 g |
| Package width: | 131 mm |
| Power consumption (max): | 74 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet plus (poe+) ports quantity: | 4 |
| Power source: | DC/PoE |
| Power supply included: | No |
| Product colour: | Black |
| Rack mounting: | No |
| Stackable: | No |
| Storage relative humidity (h-h): | 5 - 90% |
| Storage temperature (t-t): | -40 - 70 °C |
| Store-and-forward: | Yes |
| Sustainability certificates: | CE, RoHS, Federal Communications Commission (FCC) |
| Sustainability compliance: | Yes |
| Switch type: | Unmanaged |
| Switching capacity: | 1 Gbit/s |

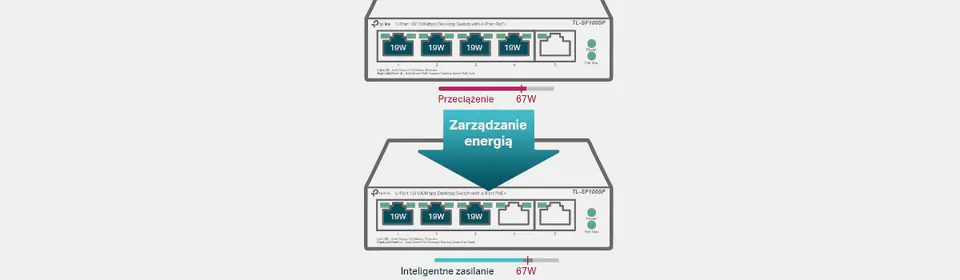

| Total power over ethernet (poe) budget: | 67 W |
| User guide: | Yes |
| Width: | 99.8 mm |
