SET OF UTP / 2-WIRE CONVERTERS FOR LAN+POE TRANSMISSION ETH10-2WIRE-SET SET OF 2 PCS ATTE

€93.46
Shipping from warehouse: ⁨H7⁩
Estimated shipping: Tue, Apr 30 - Fri, May 3
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
ATTE
Product code:
ETH10-2WIRE-SET / 5902143691334

Specification

Baud:10 Mbps

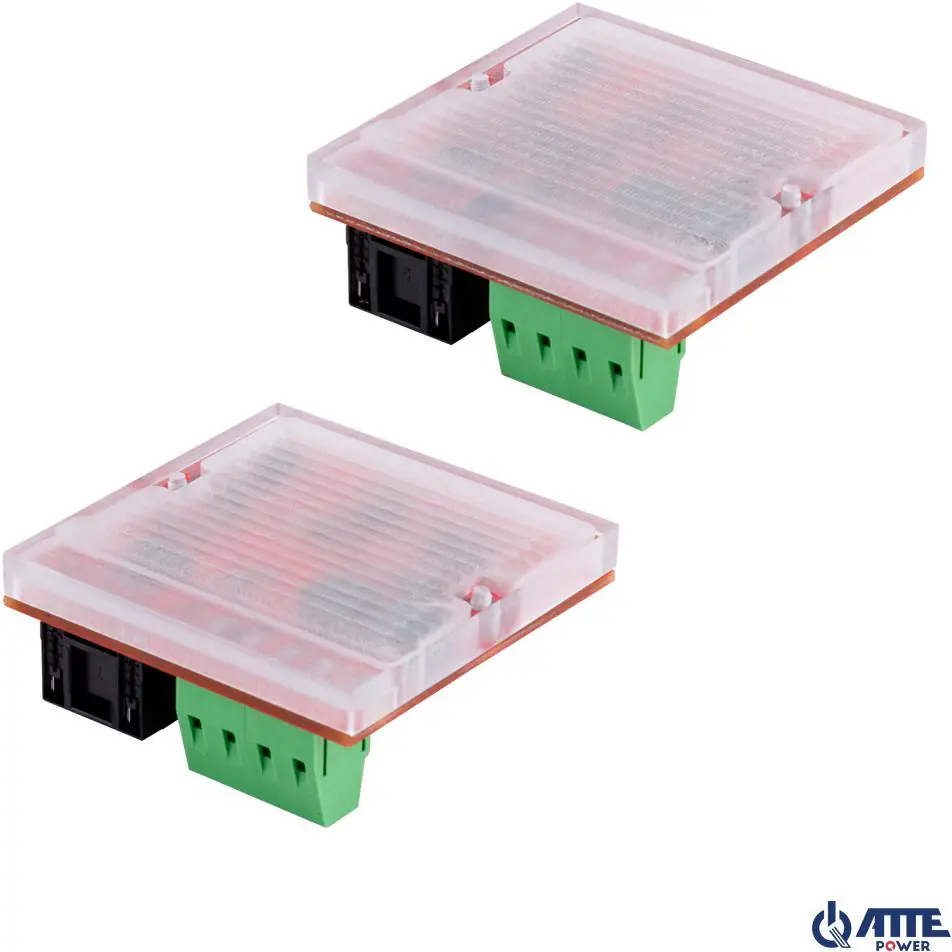

Case:Plastic (PC)
Connectors:1 pc RJ45 1 pc terminal block (screw terminals) - 0.32 ... 3.3 mm² ( 22 ... 12 AWG )

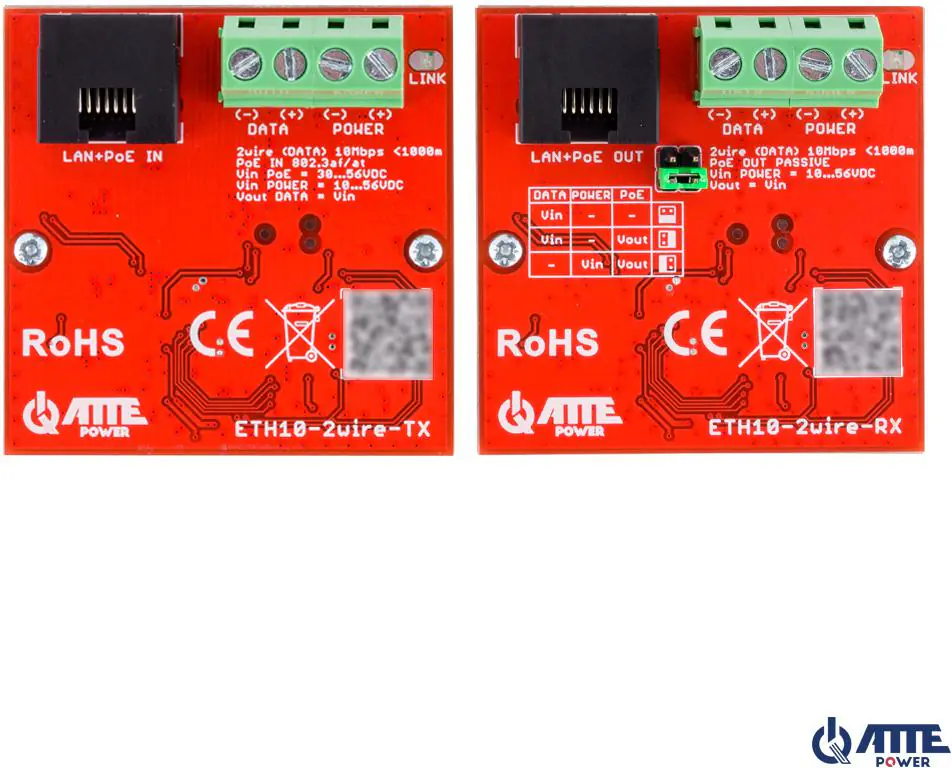

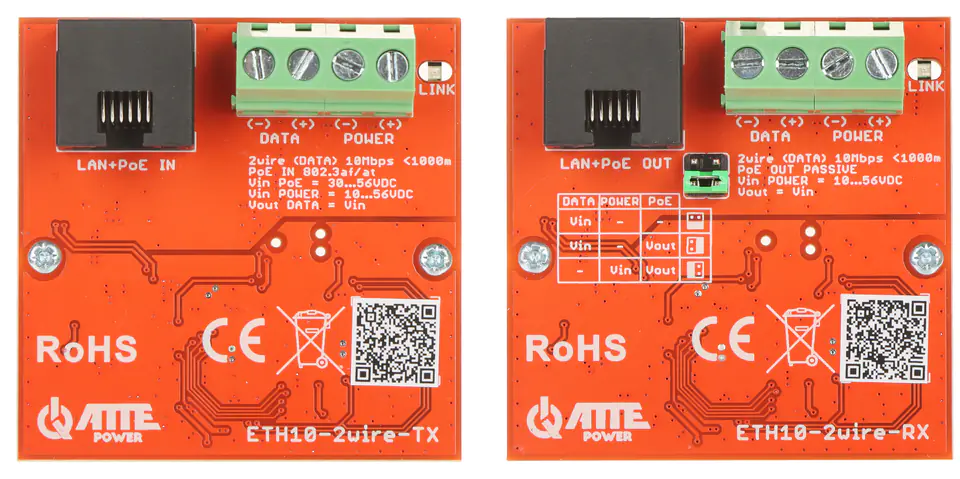

Description of connectors:ETH10-2WIRE-TX : PoE IN - Passive PoE ≤ 30 W, PoE (802.3at) ≤ 30 W, PoE (802.3af) ≤ 15 W("+/-": pins 1, 2; "+/-": pins 3, 6) or ("+/-": pins 4, 5; "+/-": pins 7, 8) Power DATA - 2-wire ETH10-2WIRE-RX : PoE OUT - Passive PoE("+": pins 4, 5; "-": pins 7, 8) Power DATA - 2-wire
Dimensions:51 x 51 x 24 mm (single piece)
Lan ports:1 pc RJ45 10Mbps
Operating temperature:-25 °C ... 65 °C
Power:ETH10-2WIRE-TX: 30 ... 56 V DC - PoE 10 ... 56 V DC - Power ETH10-2WIRE-RX : 10 ... 56 V - Power The output voltage of the PoE is equal to the input voltage
Power consumption:1.35 W (shared)
Producer / brand:ATTE
Scales:0.03 kg (single piece)
Sealing:IP20
Security:Surge Protector - LAN, DATA Reverse polarity protection - Power Overload 0.6 A - PoE IN ETH10-2WIRE-TX
Selected features:Plug & Play Support for IP cameras and network devices Full transparency for the network Operating modes - Set with jumpers
Signalling diodes:Power LAN 2-wire
Transmission range:1000 m @ 2-wire 100 m @ UTP : PoE switch - ETH10-2WIRE-TX 100 m @ UTP : ETH10-2WIRE-RX - IP Camera
Warranty:3 years

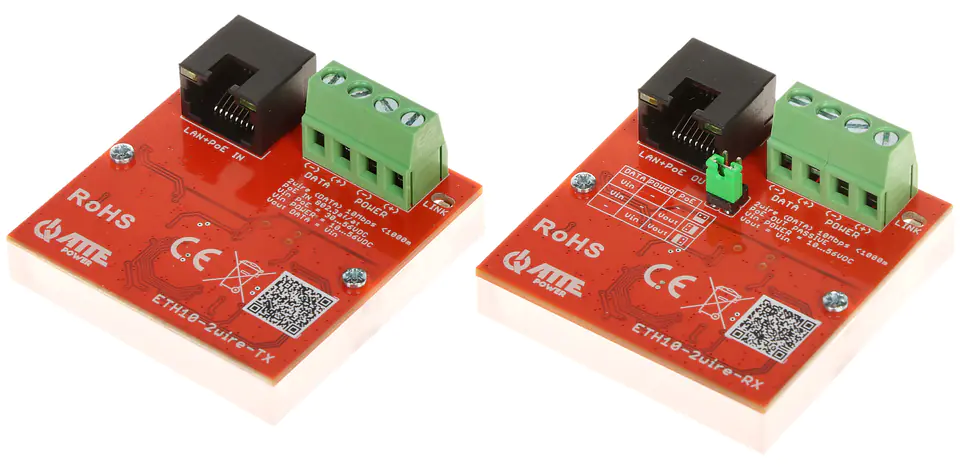

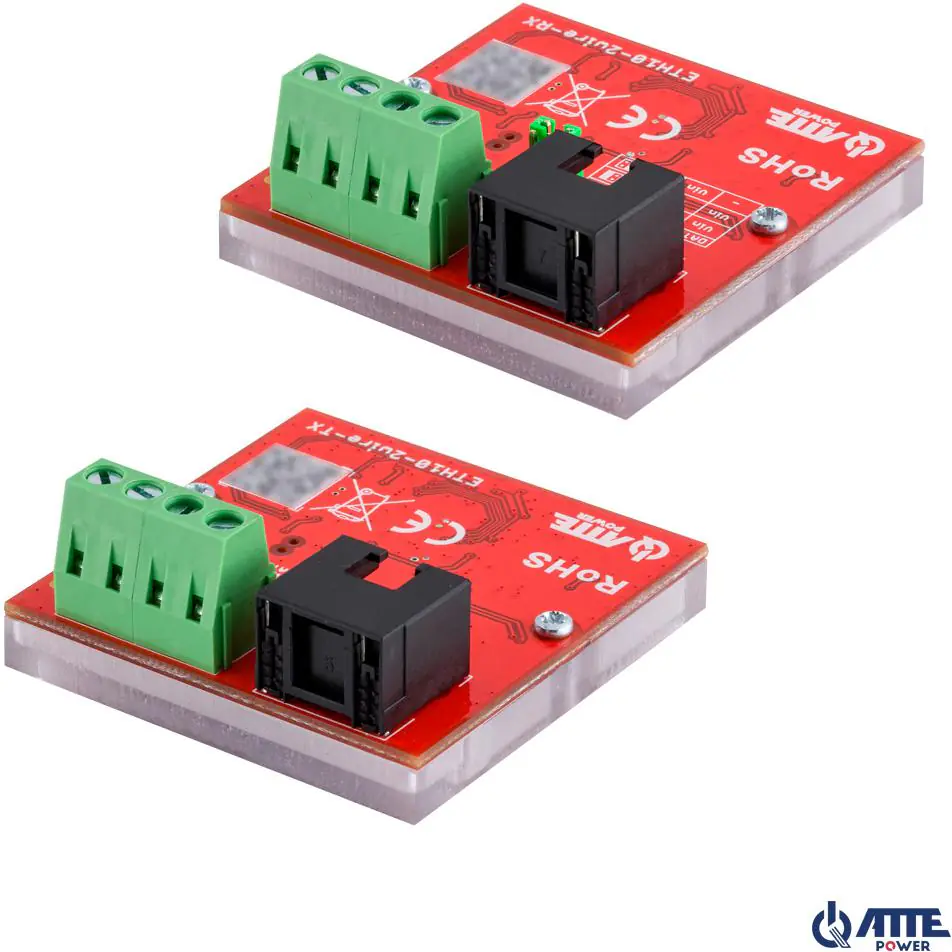

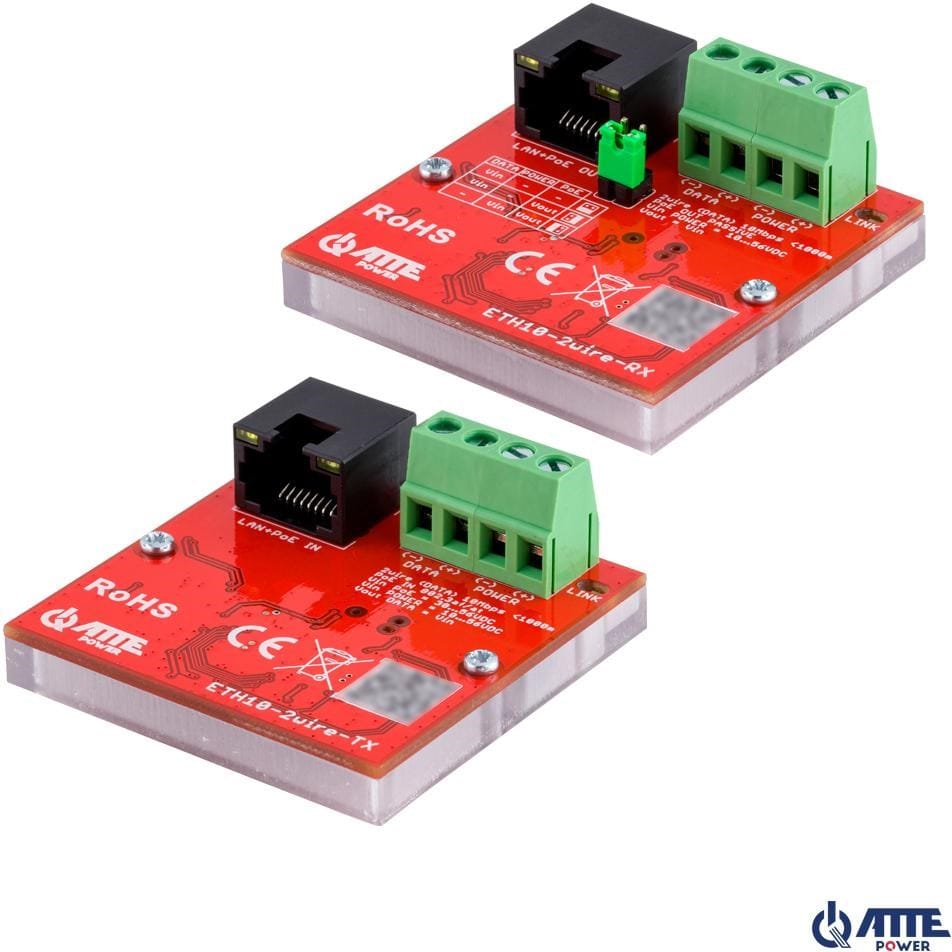

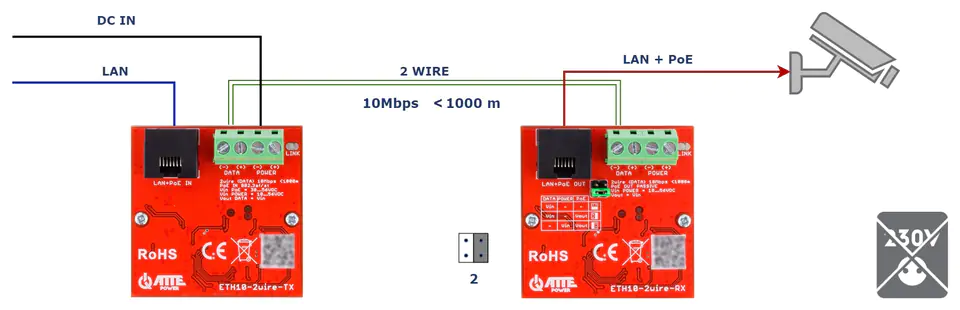

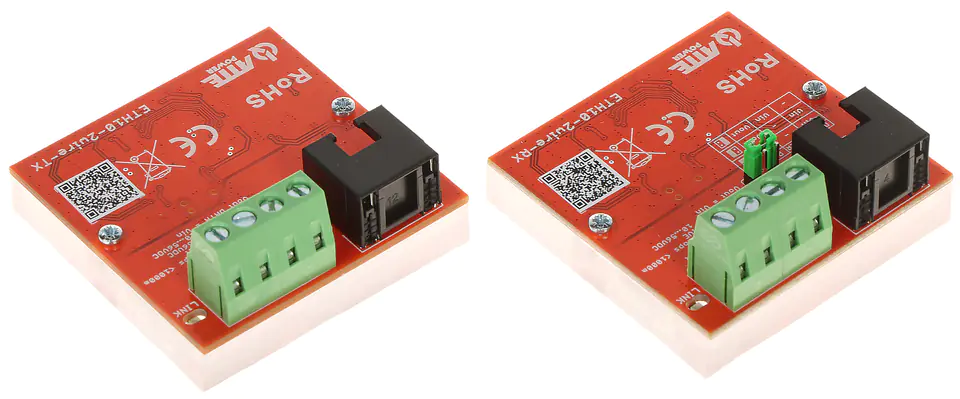

The ETH10-2WIRE-SET consists of transmitter and receiver modules, is used for Ethernet data transmission and PoE power supply using 2 cables, e.g. one pair of UTP twisted pair

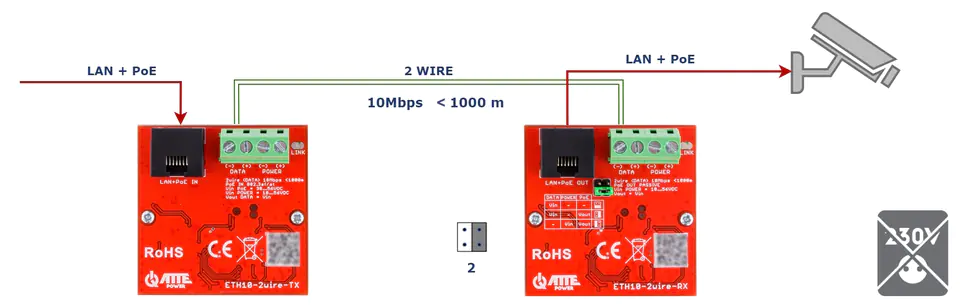

The devices enable the installation of cameras or other IP PoE devices in places where the replacement of existing cabling is impossible or unprofitableThe ETH10-2wire-TX module is powered from any PoE switch (RJ45 port) and then via 2 wires, enables two-way network communication and power supply of the ETH10-2wire-RX moduleA PoE receiver can be connected to the RJ45 port of the ETH10-2wire-RX module at the end of the lineThe devices can optionally be powered from POWER screw connectors

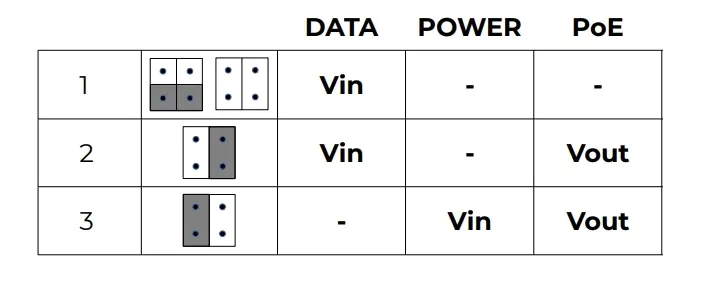

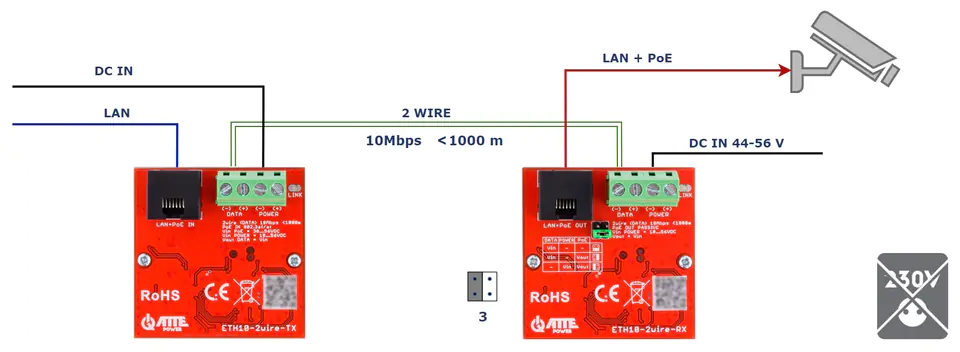

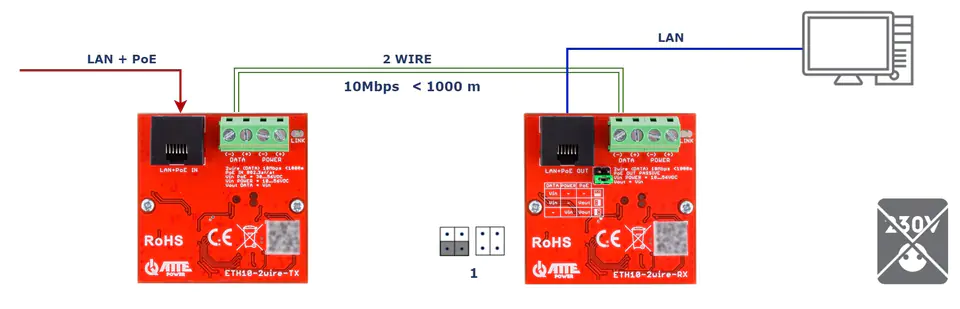

Depending on the selected mode of operation of the converters, power supply to them and devices connected to them can be implemented in several waysPoE power supply or from an external power supply, both from the side of the ETH10-2wire-TX transmitter and the ETH10-2wire-RX receiver (configuration using jumpers)

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
