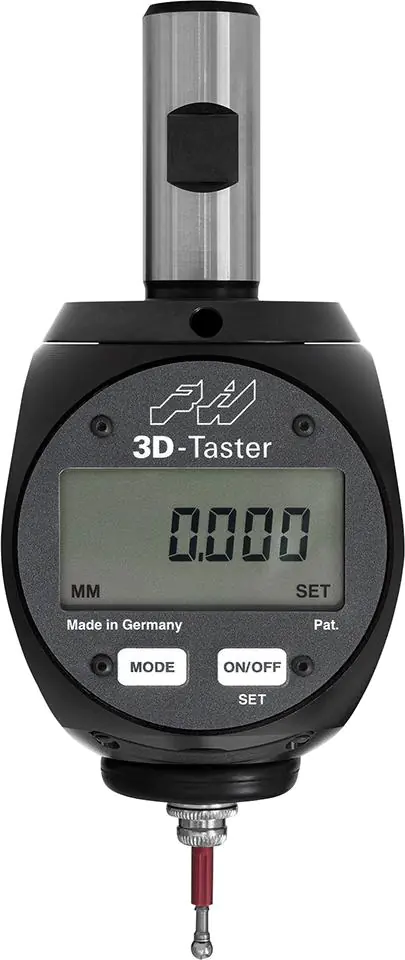

3D digital dial gauge
Design: the sensor is based on a proven 3D mechanical sensor. The spindle or machine head can be quickly and securely positioned at the reference edge. The start-up process can be observed on a digital measuring clock. The zero position is immediately found. The height of the digits on the LCD display is 8.5 mm.
Function: on and off, mm/inch switching.
Application: for determination of component zero points and length measurement on milling machines and machine tools for electrospark processing (insulated sensor tip) and for centering and centering of holes and shafts.
Scope of delivery: 3D dial indicator with battery and 4 mm diameter short measuring tip.
