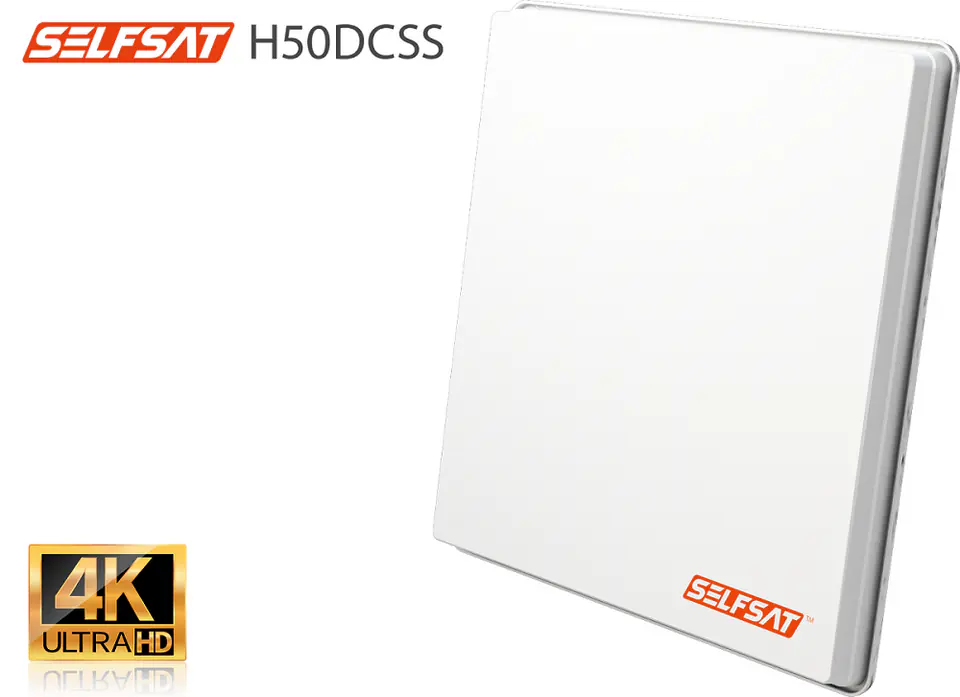

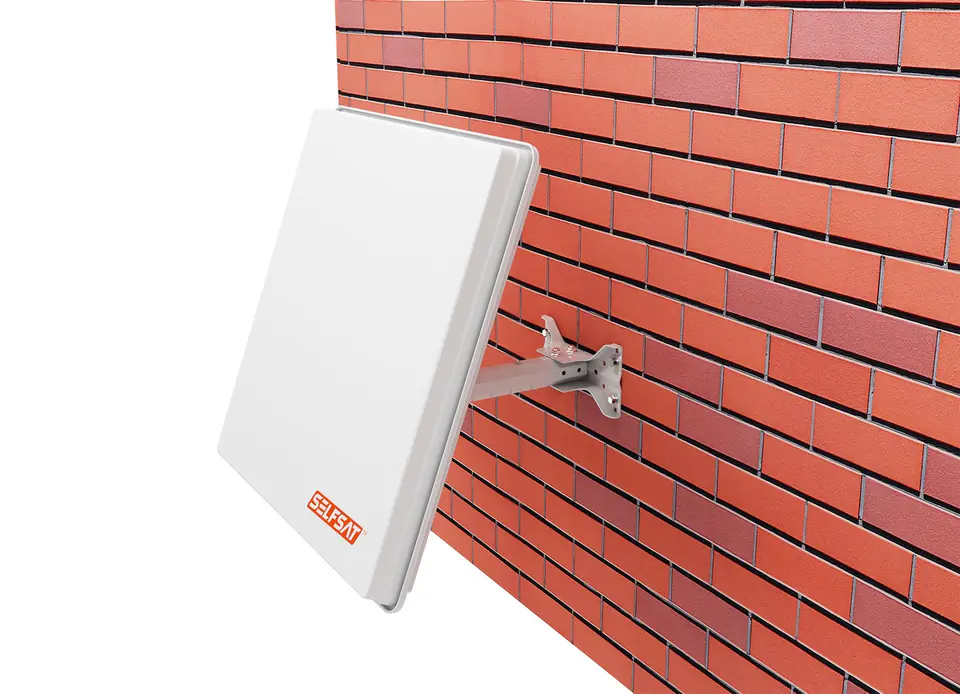

Selfsat H50dCSS+ Unicable 2 (CH:24) panel antenna with 2 Legacy outputs
- Selfsat H50dCSS+, built-in Unicable 2 converter (SCR-LNB according to EN50494/EN50607)
- 1 SCR 2 output for up to 24 devices

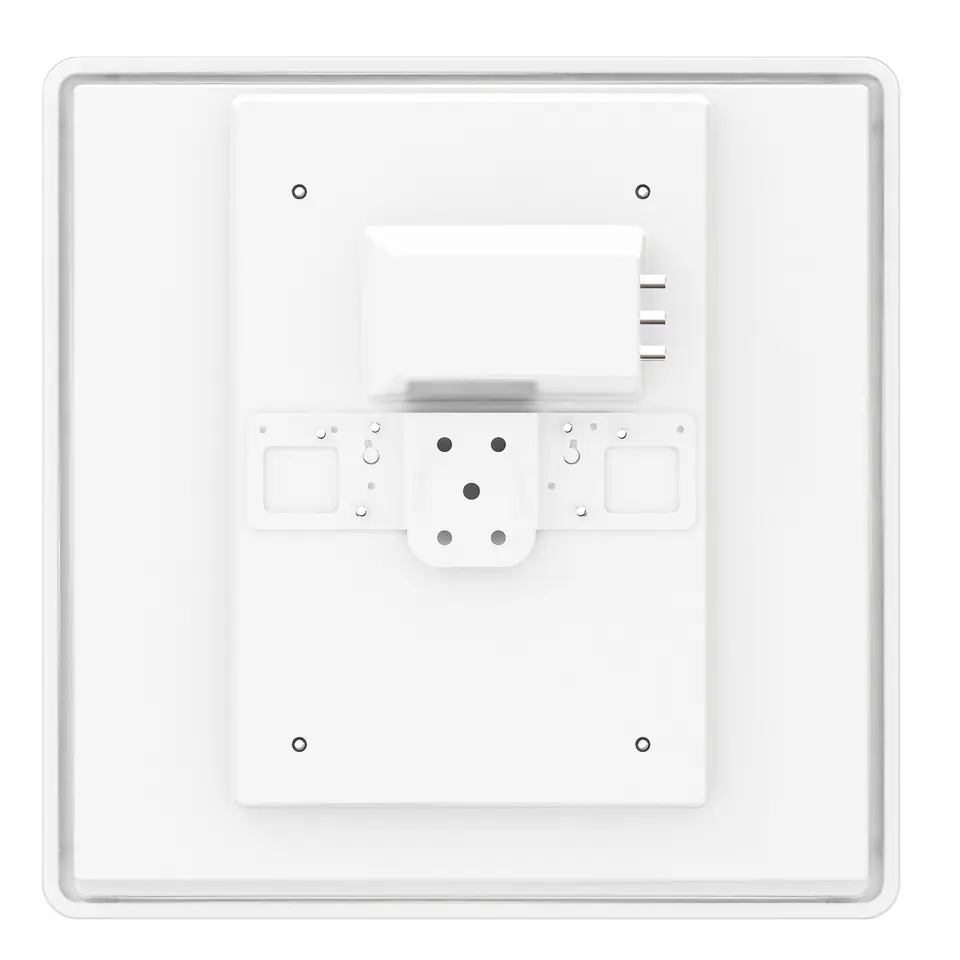

- 2 older outputs for conventional receivers (Legacy)
- Simplified assembly - thus saving material and labor costs
- Modern flat design

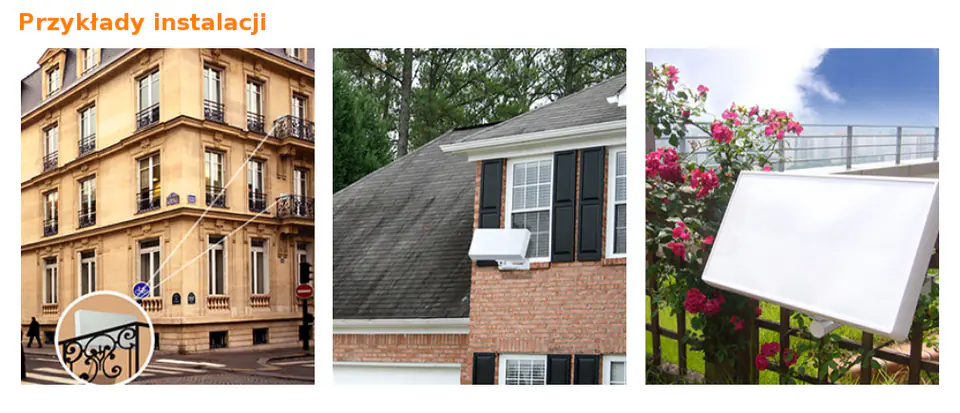

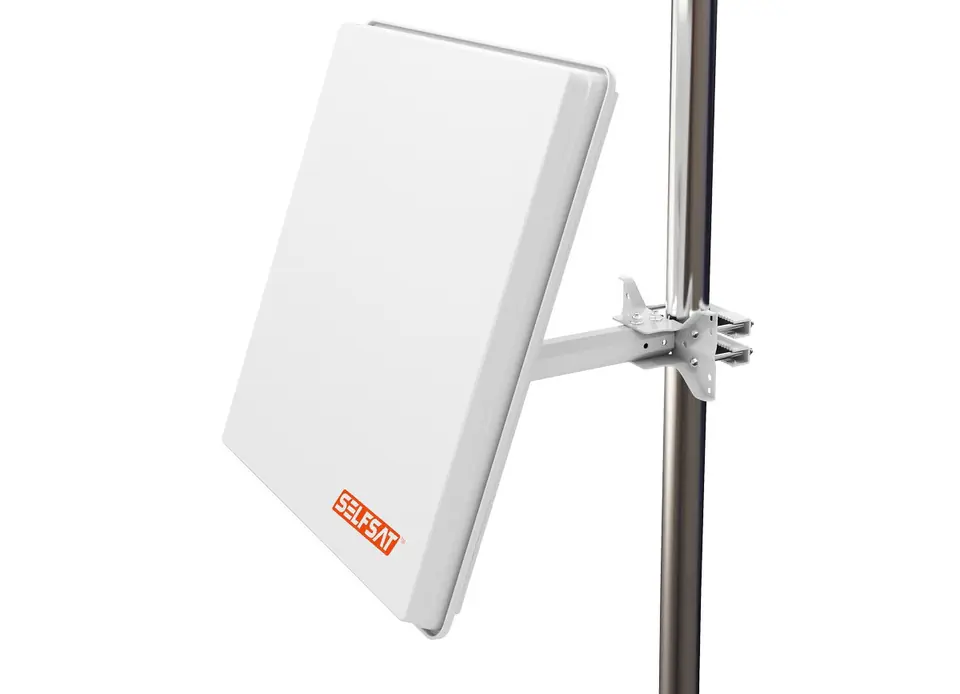

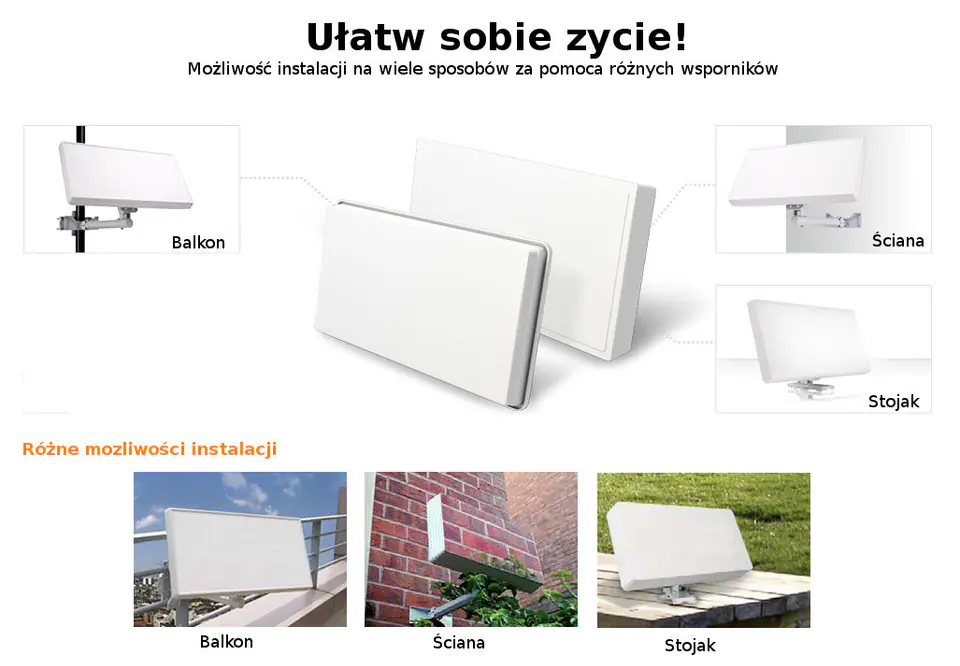

- All mounting options included
Setting Note: When using a satellite meter, the antenna behaves like a conventional satellite dish (single LNB). No special measuring device is required to position the antenna
Unicable Preset Frequencies (SCR):
- CH01: 1210 MHz
- CH02: 1420 MHz
- CH03: 1680 MHz
- CH04: 2040 MHz
- CH05: 1005 MHz
- CH06: 1050 MHz
- CH07: 1095 MHz
- CH08: 1140 MHz
- CH09: 1260 MHz
- CH10: 1305 MHz
- CH11: 1350 MHz
- CH12: 1475 MHz
- CH13: 1520 MHz
- CH14: 1565 MHz
- CH15: 1610 MHz
- CH16: 1725 MHz
- CH17: 1770 MHz
- CH18: 1815 MHz
- CH19: 1860 MHz
- CH20: 1905 MHz
- CH21: 1950 MHz
- CH22: 1995 MHz
- CH23: 2085 MHz
- CH24: 2130 MHzThe installed converter in the Unicable II antenna allows to connect up to 24 receivers supporting a single-cable system in EN50494/EN50607 technology. Ideal for 4K set-top boxes with PVR function, which allow you to record up to several channels at once without paying attention to the satellite frequency. Specifications:
- Polarization: vertical and horizontal
- Antenna gain: 36.1 dBi (at 12.7 GHz)
- Input frequency: 10.7~11.7GHz / 11.7~12.75GHz
- LO frequency: 9.75 GHz / 10.6 GHz
- LO deviation: ± 1 MHz (at 25°C)
- LO stability: ± 3 MHz (at -40~60°C)
LO phase noise:
- 60dBc/Hz (maximum) (at 1kHz)
- 75 dBc/Hz (maximum) (at 10 kHz)
- 100dBc/Hz (max.) (at 100kHz)
- Noise level: 0.8 dB
- Cross-polarization isolation: 20 dB (min.)
- VSWR output: 2.0 : 1 (max.)
- Current consumption: 250 mA (at 13 V) (max.)
- Output connection: 75Ω F type
- Operating temperature: -40°C~+60°C
- Size (WxDxH): 566 x 300 x 65 mm
- Weight: 7.0 kg
SCR output specifications
- Non-AGC conversion gain: 60dB (min.)
- Gain change: 7.5 dB P-P (Max.)
- IF target AGC output level in CW mode: -32~-17dBm
- Control signal: EN-50494 or EN50607
Legacy Twin output specifications:
- IF output: 950-2150 MHz
- Non-AGC conversion gain: 55dB (min.)
- Gain change: 7.5 dB P-P (Max.)
- IF target AGC output level in CW mode: -16~25dBm
