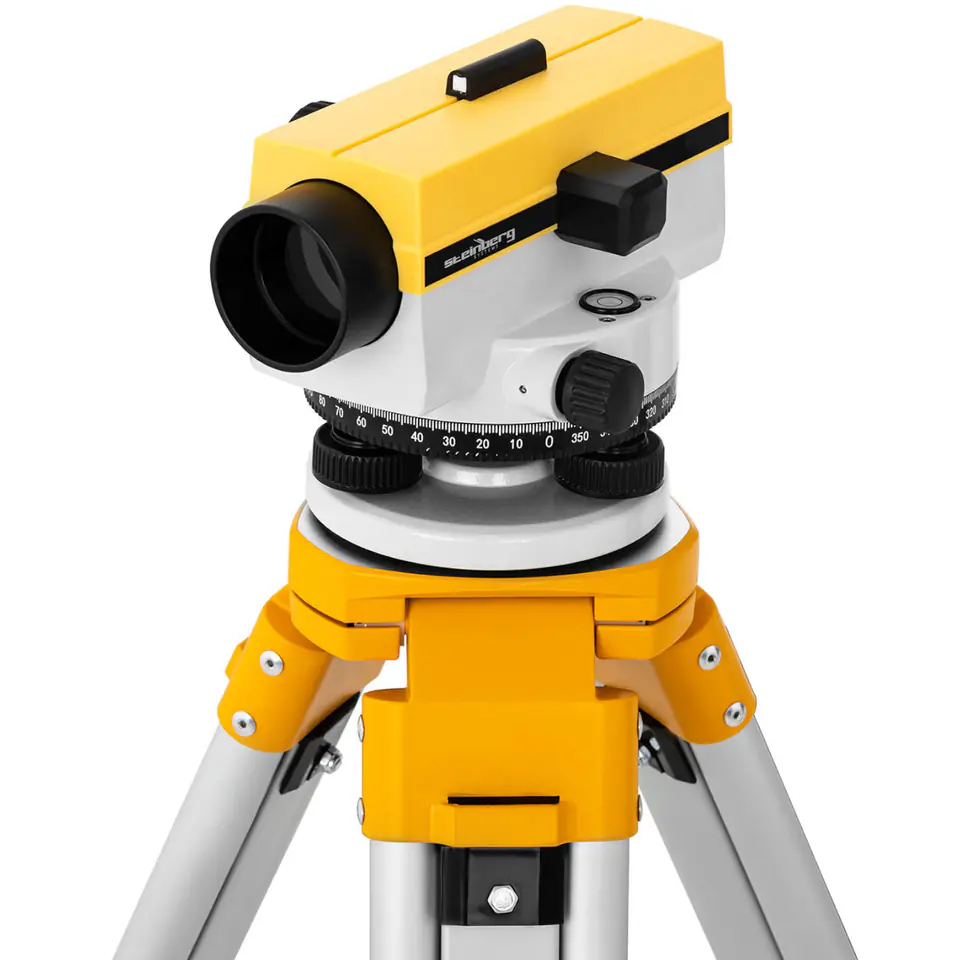

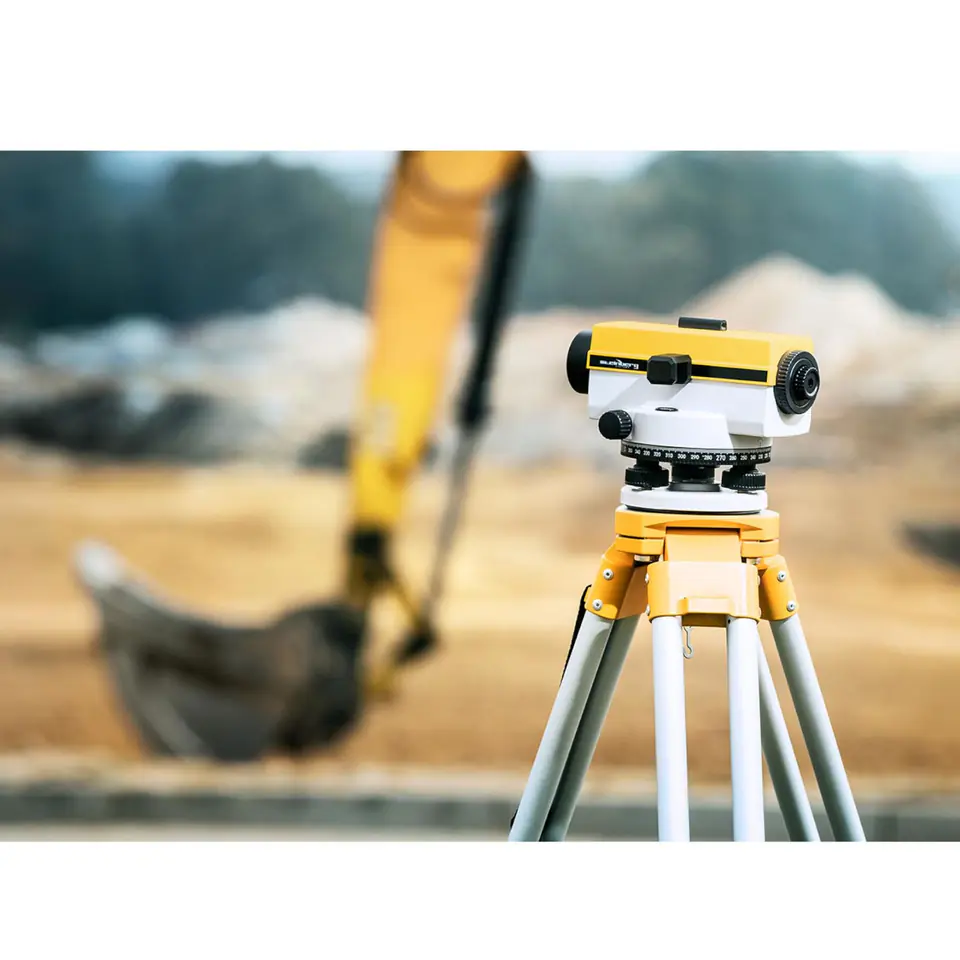

10030465 Steinberg Systems optical level with tripod to 34 mm lens zoom in 20 times Minimum focal length is 0.3 standard deviation2.5 mm Airheld compensatorPublic libella with mirror adjustable height Product features:
- - Solidity - the casing of the level is made of strong plastic and the tripod and patch are made of solid aluminum,
- - Precision - standard deviations are 2.5 mm,
- - Efficiency - 20x magnification + minimum focal length - 0.3 m,
- - Practicality - built-in air compensator automatically levels the instrument,

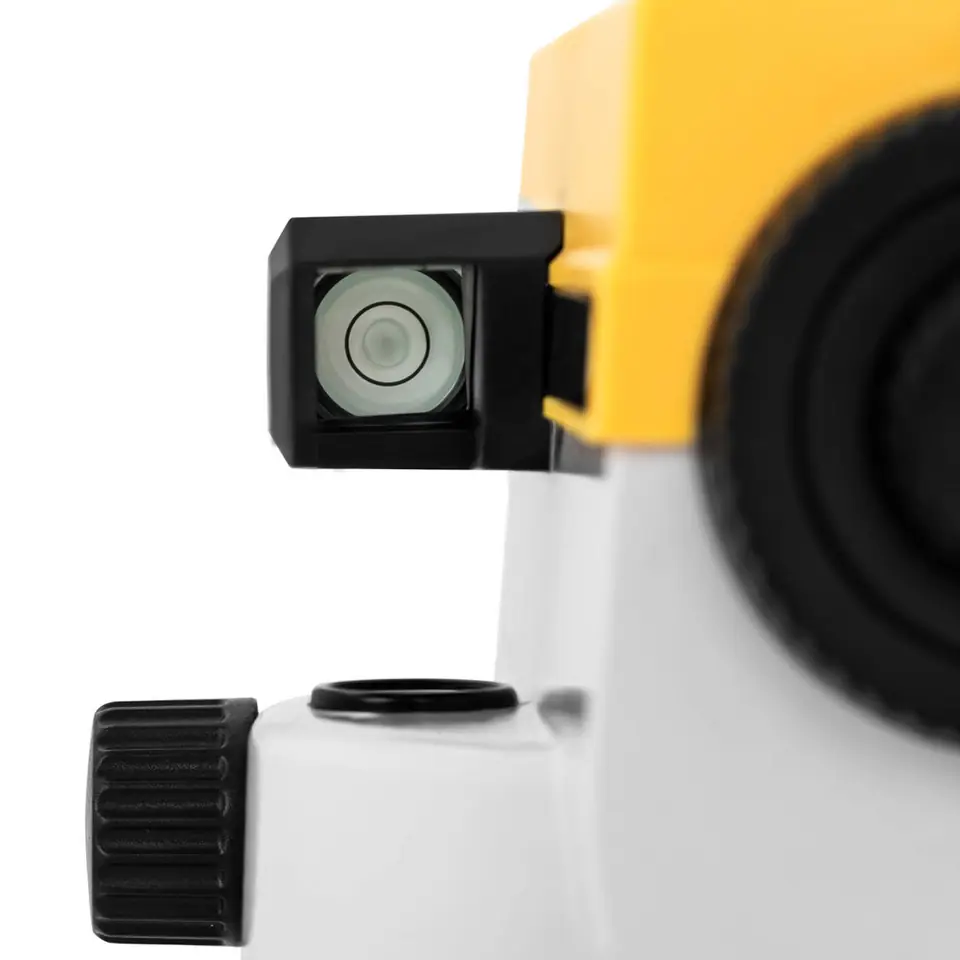

- - Convenience - box libella with mirror allows you to set the level without any problems.
- - Model - SBS-LIS-20/34
- - Catalog no. - 10030465
- - Article status - New
- - Housing material - Plastic
- - Standard deviation - 2.5 mm
- - Image - Simple
- - Magnification - 20x
- - Lens aperture diameter - 34 mm
- - Field of view - 120
- - Minimum focal length - 0.3 m
- - Compensator - Air damping
- - Compensator range - ±15
- - Compensator setting - Less than 2 s
- - Compensator precision - ±0.5
- - Libella sensitivity - 8/2 mm
- - Height - 1050-1650 mm
- - Clamp - Screw-down
- - External dimension of the head - 120 mm
- - Internal dimension of the head - 45 mm
- - Maximum length - 5 m
- - Number of sections - 5
- - Deviation with each meter - ±0.5 mm
- - Scale - Front: cm/E, Rear: mm
- - Transport length - 1230 mm
- - Dimensions (LxWxH) - 286 x 286 x 179 cm
- - Weight - 6.6 kg
- - Shipping dimensions (LxWxH) - 127 x 24.5 x 21.5 cm
- - Shipping weight - 8,35 kg
- - Level with suitcase
- - Tripod

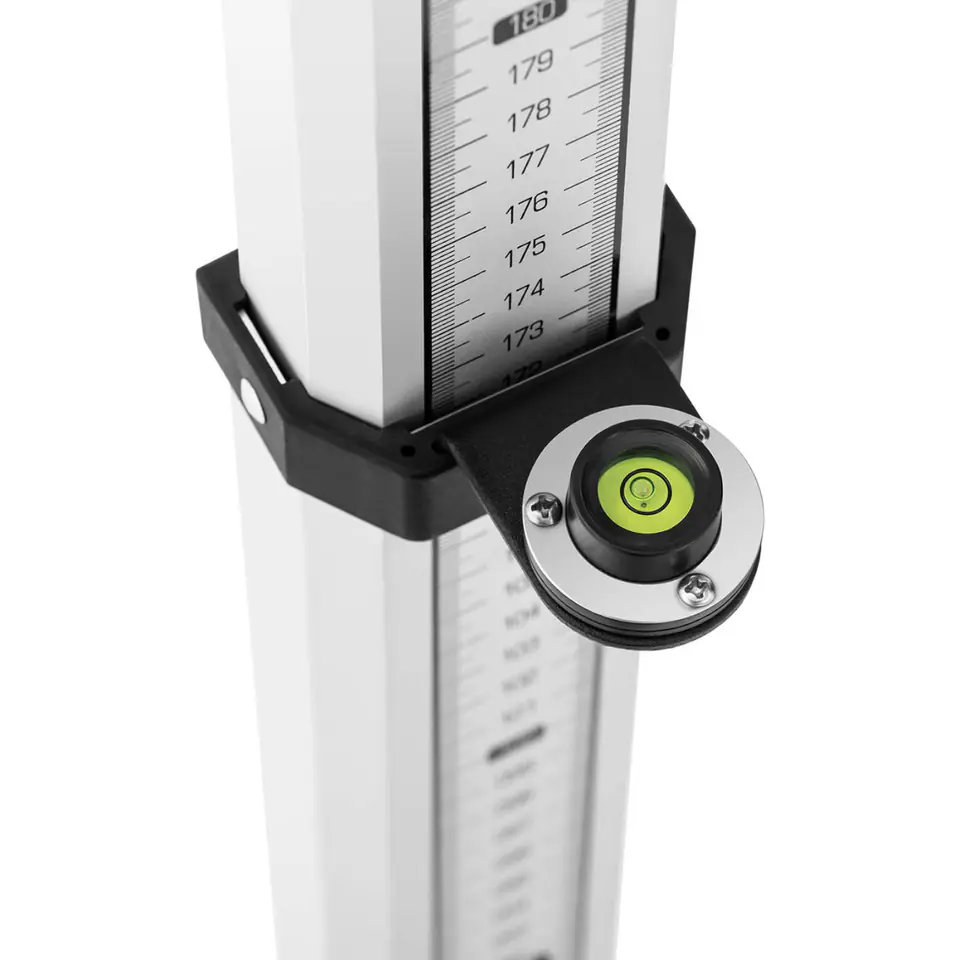

- - Leveling patch
- - String riser
- - Manual EN
