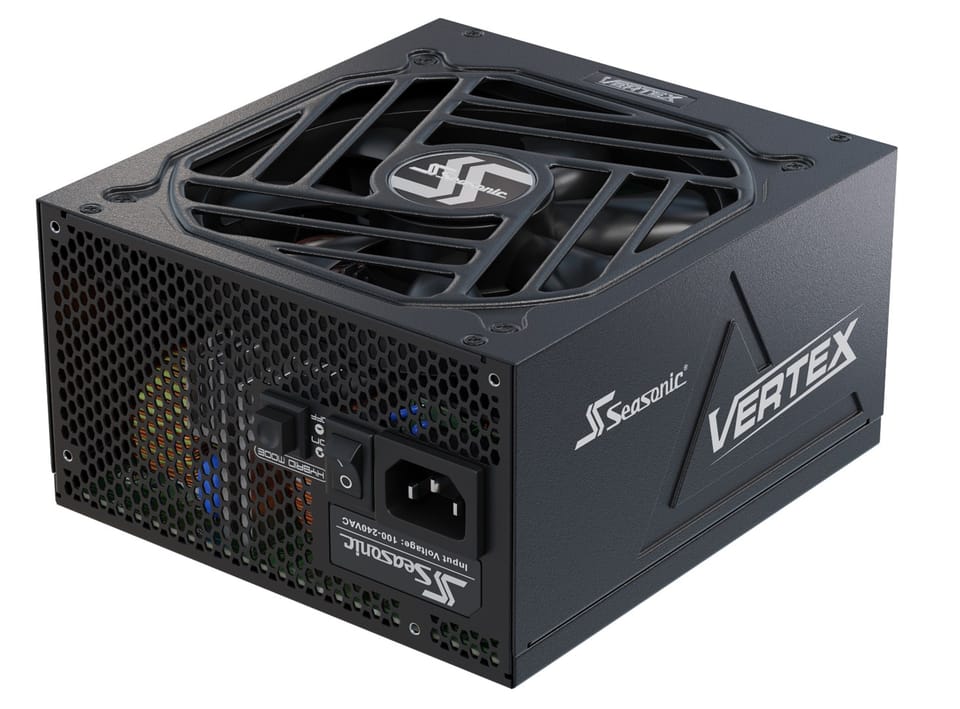

Seasonic VERTEX GX-850 power supply unit 850 W 20+4 pin ATX ATX Black
This product is not available
- Availability:
- expected delivery
- Brand:
- Seasonic
- Product code:
- VERTEX GX-850 / 4711173877707
Share this product:
Specification
| 80 plus certification: | 80 PLUS Gold |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Atx power connector (20+4 pin): | Yes |
| Atx version: | 3.0 |
| Bearing technology: | FDB |
| Cable tie(s) included: | Yes |

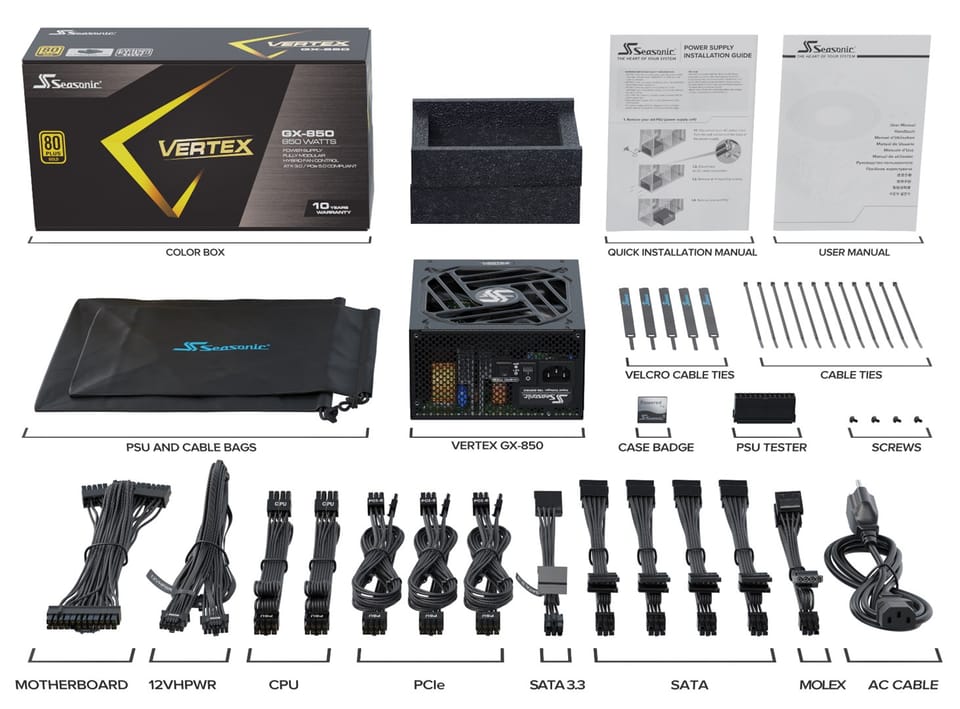

| Cables included: | AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA |
| Cabling type: | Fully-Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 840 W |
| Combined power (+3.3v): | 125 W |
| Combined power (+5v): | 125 W |
| Combined power (+5vsb): | 15 W |
| Compliance certificates: | RoHS, CE, REACH |
| Cooling type: | Active |
| Cpu p4 connector (4-pin): | 2 |
| Cpu power cable length: | 65 cm |
| Cpu power connector (4+4 pin): | Yes |
| Depth: | 160 mm |

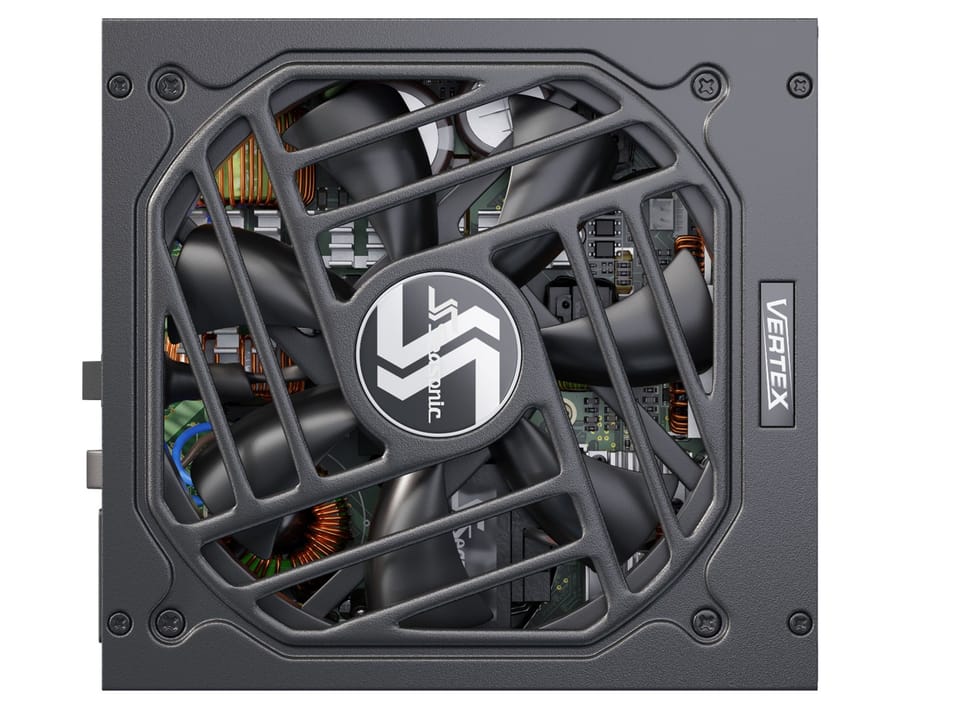

| Fan diameter: | 13.5 cm |
| Height: | 86 mm |
| Input current: | 11 - 5.5 A |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 70 A |
| Max output current (+3.3v): | 20 A |
| Max output current (+5v): | 20 A |
| Max output current (+5vsb): | 3 A |
| Mean time between failures (mtbf): | 150000 h |
| Motherboard power cable length: | 61 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 4 |

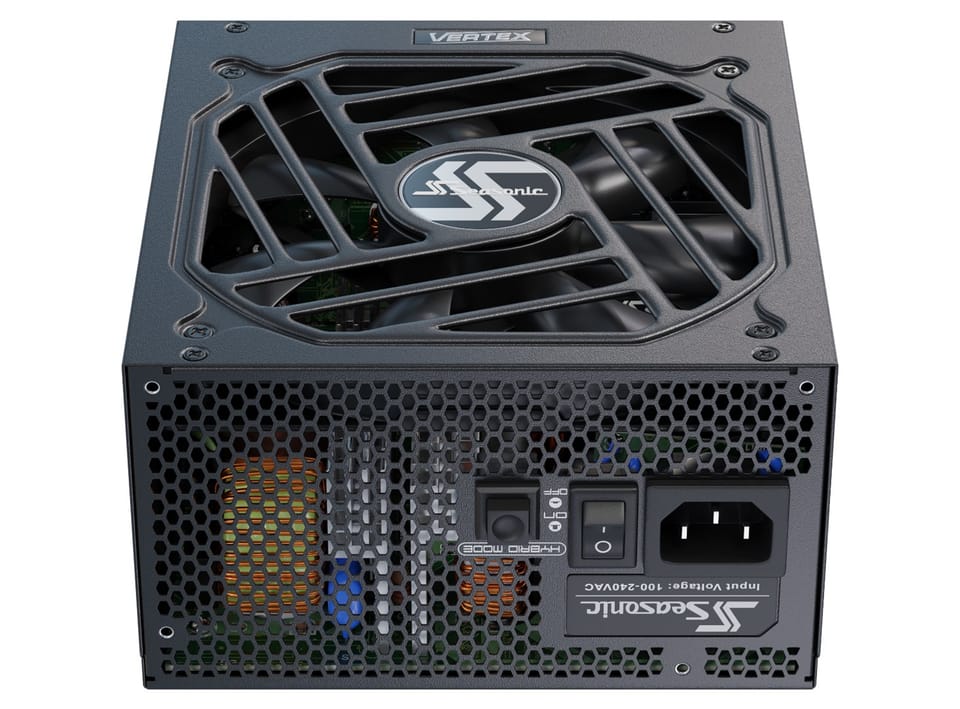

| On/off switch: | Yes |
| Operating temperature (t-t): | 0 - 50 °C |
| Package type: | Box |
| Peripheral (molex) power cable length: | 690 mm |
| Peripheral (molex) power connectors (4-pin): | 1 |
| Power protection features: | Over power, Under voltage, Over current, Short circuit, Over voltage |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Sata power cable length: | 950 mm |
| Total power: | 850 W |
| Warranty period: | 10 year(s) |
| Width: | 150 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
