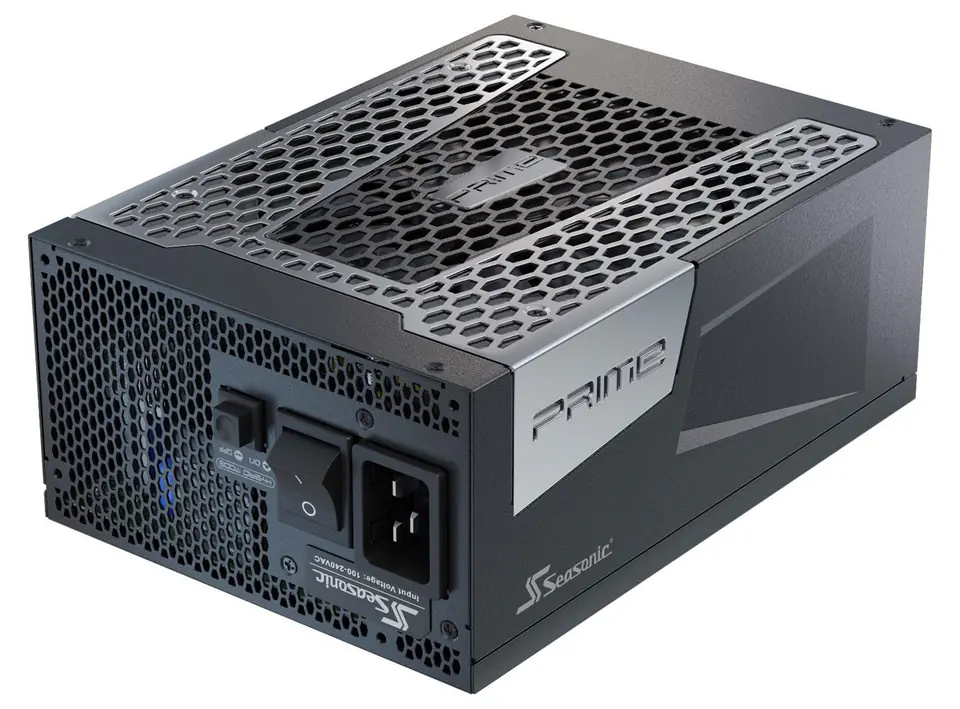

Seasonic Prime TX-1600, 80 PLUS Titanium Power Supply, modular, ATX 3.0, PCIe 5.0 - 1600 Watt
€658.60
Shipping from warehouse: A3
Estimated shipping: Mon, May 6 - Wed, May 8
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Seasonic
- Product code:
- PRIME-TX-1600-ATX30 / 4711173878018
Share this product:
Specification
| 80 plus certification: | 80 PLUS Titanium |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Bearing technology: | FDB |
| Cable tie(s) included: | Yes |
| Cables included: | AC, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA |
| Cabling type: | Fully-Modular |
| Combined power (-12v): | 6 W |
| Combined power (+12v): | 1600 W |
| Combined power (+3.3v): | 125 W |
| Combined power (+5v): | 125 W |
| Combined power (+5vsb): | 15 W |
| Cooling type: | Active |
| Depth: | 210 mm |
| Fan diameter: | 13.5 cm |
| Height: | 86 mm |
| Input current: | 15 - 10 A |
| Max output current (-12v): | 0.5 A |
| Max output current (+12v): | 133.3 A |
| Max output current (+3.3v): | 25 A |
| Max output current (+5v): | 25 A |
| Max output current (+5vsb): | 3 A |
| Mean time between failures (mtbf): | 150000 h |
| Motherboard power cable length: | 61 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 10 |
| On/off switch: | Yes |
| Operating temperature (t-t): | 0 - 50 °C |
| Package type: | Box |
| Pci express connector: | Yes |
| Peripheral (molex) power connectors (4-pin): | 3 |
| Power protection features: | Over current, Short circuit, Over voltage |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Total power: | 1600 W |
| Width: | 150 mm |
