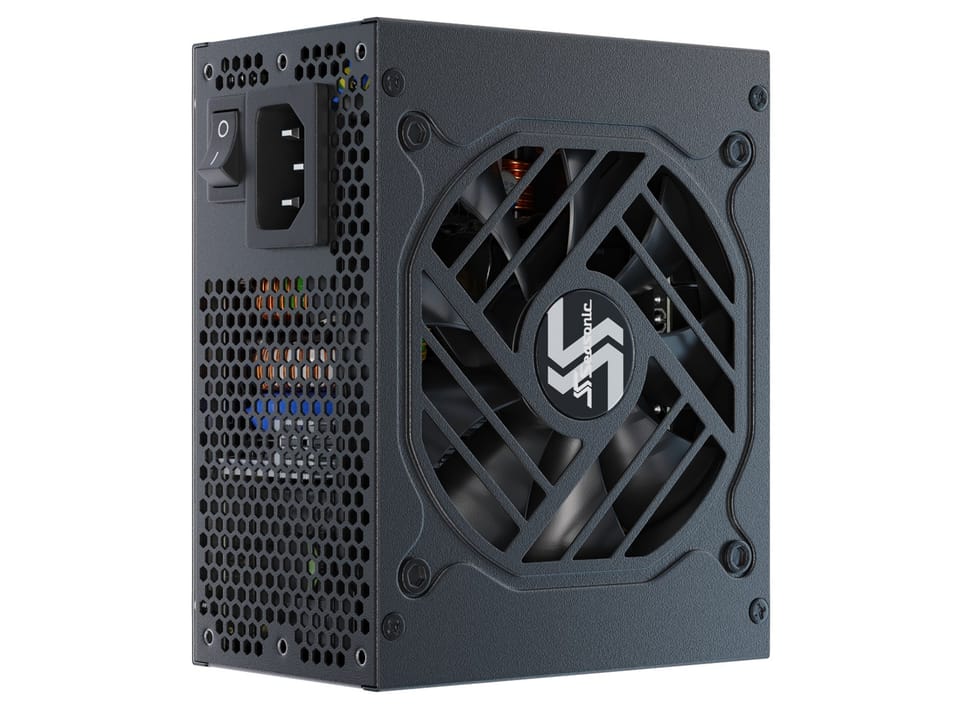

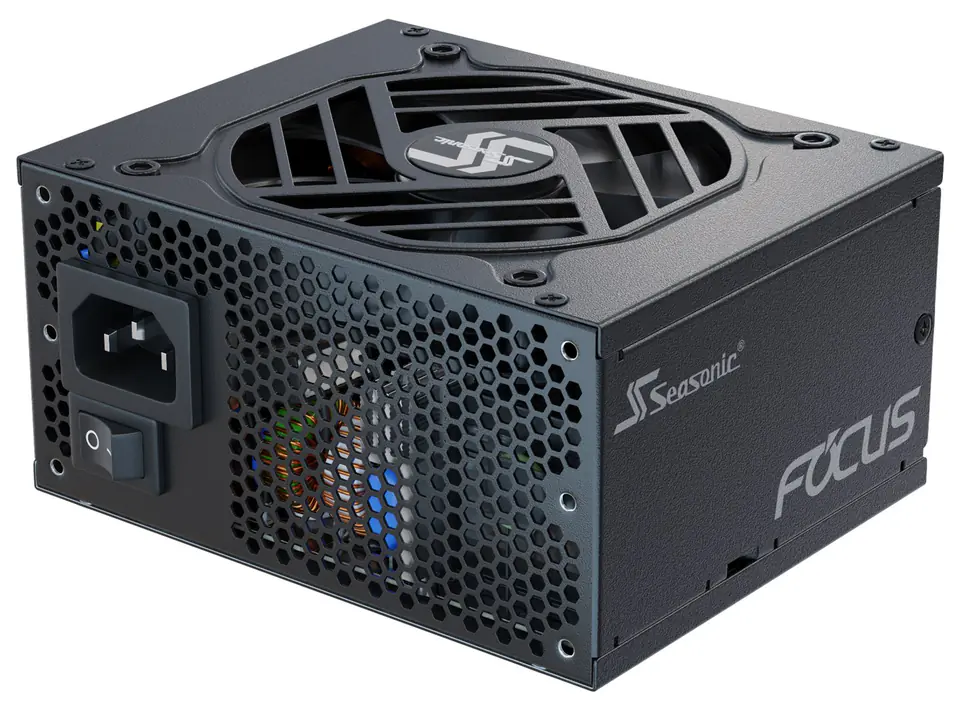

Seasonic FOCUS-SPX-650 power supply unit 650 W 20+4 pin ATX CFX Black
€189.21
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 10 - Tue, Nov 11
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Seasonic
- Product code:
- FOCUS-SPX-650 / 4711173877103
Share this product:
Specification
| 80 plus certification: | 80 PLUS Platinum |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Bearing technology: | FDB |
| Cable tie(s) included: | Yes |
| Cables included: | AC, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA |
| Cabling type: | Fully-Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 648 W |
| Combined power (+3.3v): | 120 W |
| Combined power (+5v): | 120 W |
| Combined power (+5vsb): | 15 W |
| Cooling type: | Active |
| Depth: | 100 mm |
| Fan diameter: | 9.2 cm |
| Height: | 63.5 mm |
| Input current: | 9 - 4.5 A |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 54 A |
| Max output current (+3.3v): | 20 A |
| Max output current (+5v): | 20 A |
| Max output current (+5vsb): | 3 A |
| Mean time between failures (mtbf): | 100000 h |
| Motherboard power cable length: | 35 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 6 |
| On/off switch: | Yes |
| Operating temperature (t-t): | 0 - 50 °C |
| Package type: | Box |
| Pci express power connectors (8-pin): | 4 |
| Peripheral (molex) power connectors (4-pin): | 3 |
| Power protection features: | Short circuit, Over voltage, Over current |
| Power supply unit (psu) form factor: | CFX |
| Product colour: | Black |
| Purpose: | PC |
| Total power: | 650 W |
| Width: | 125 mm |
