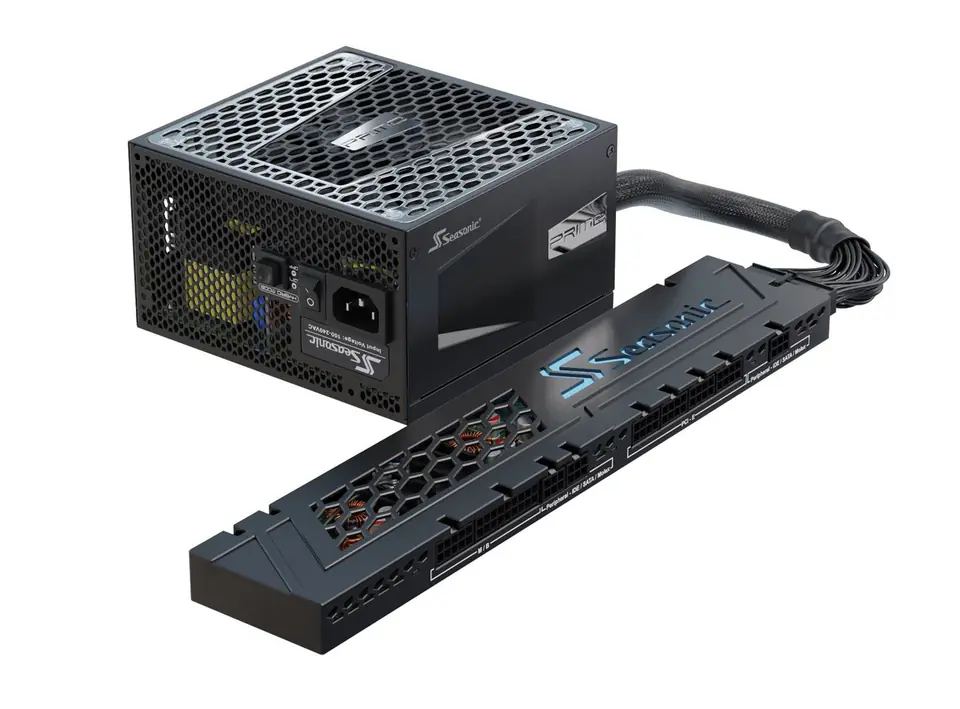

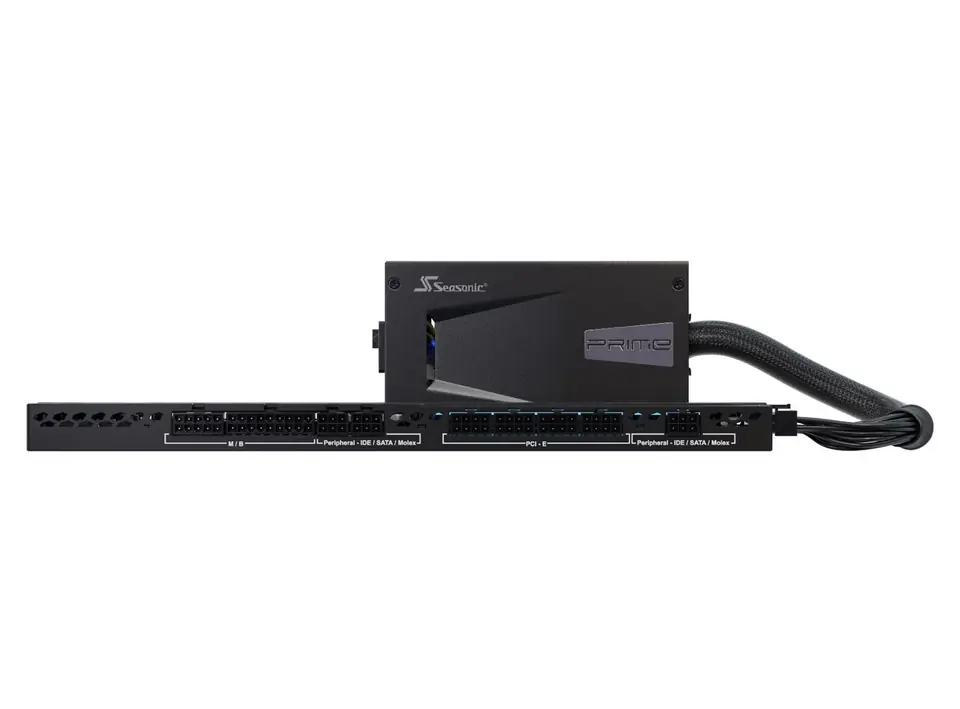

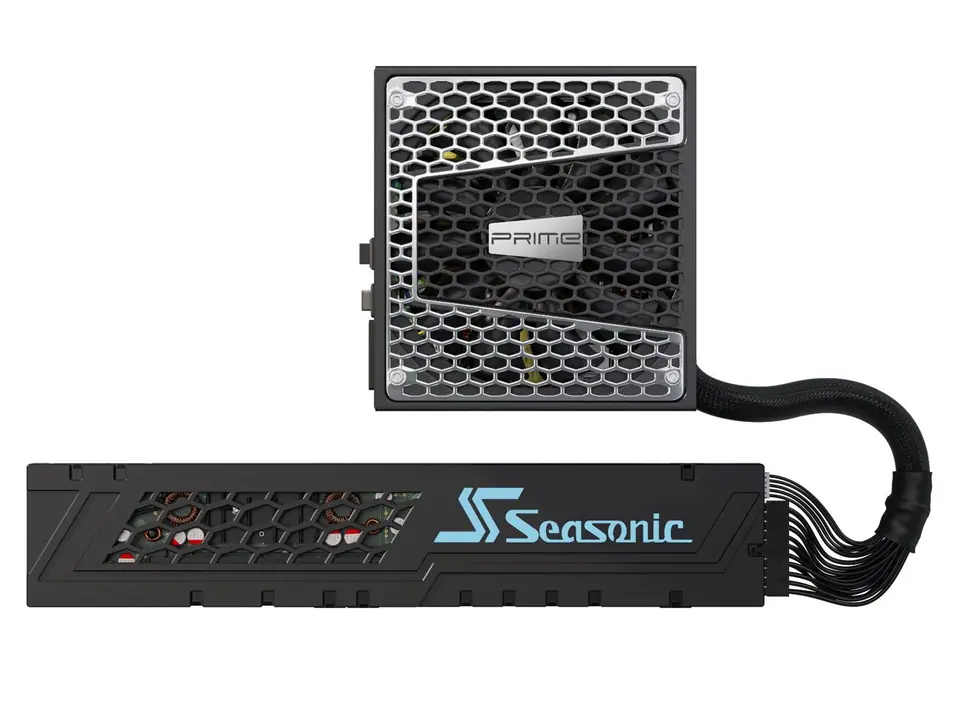

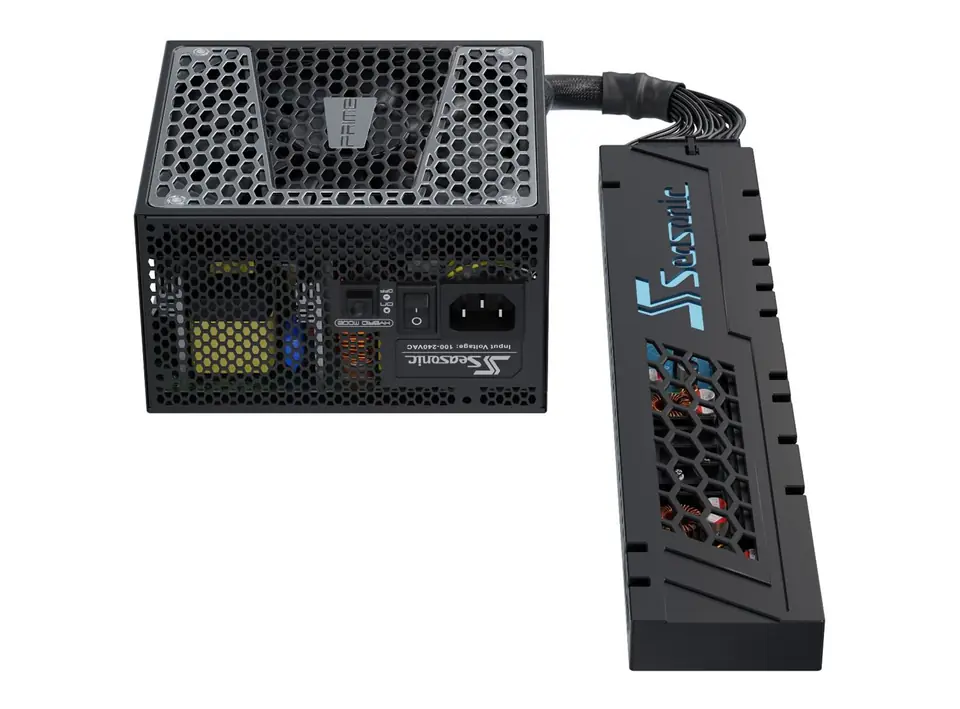

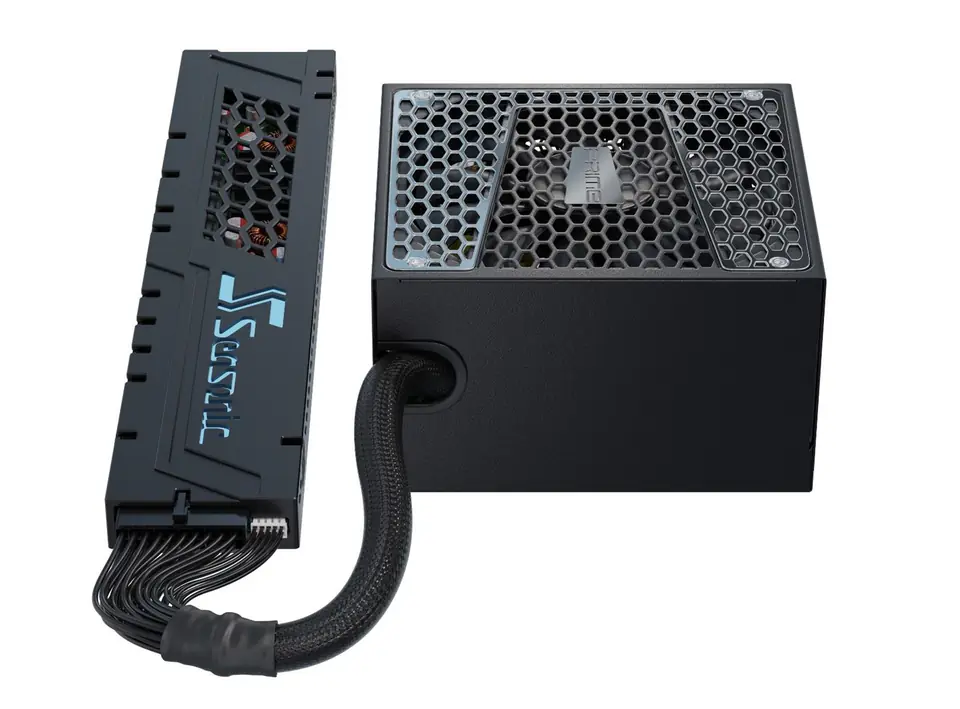

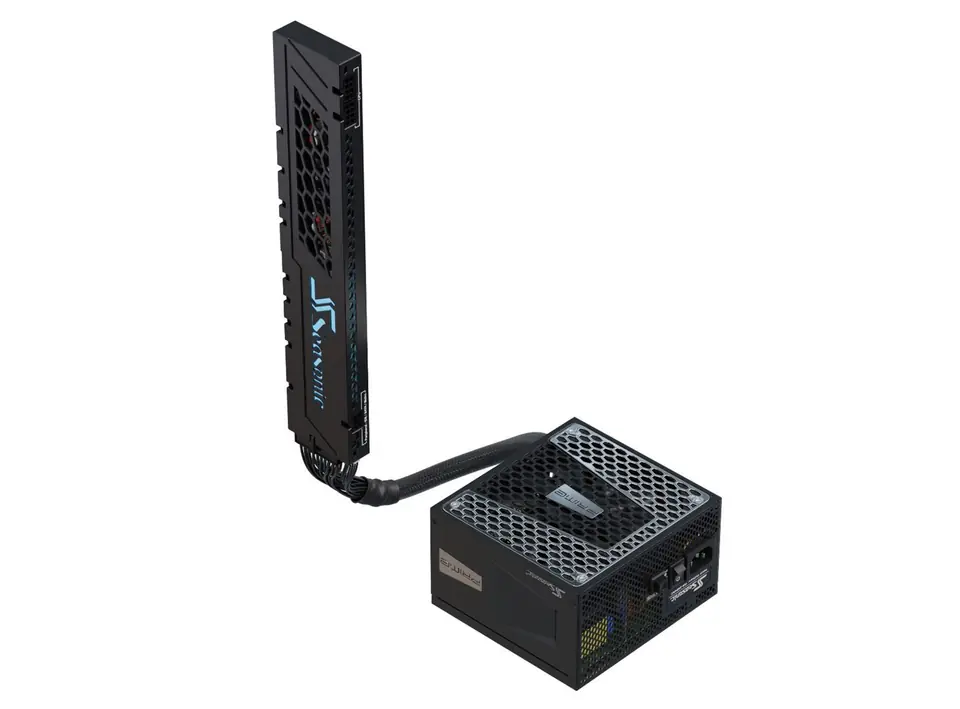

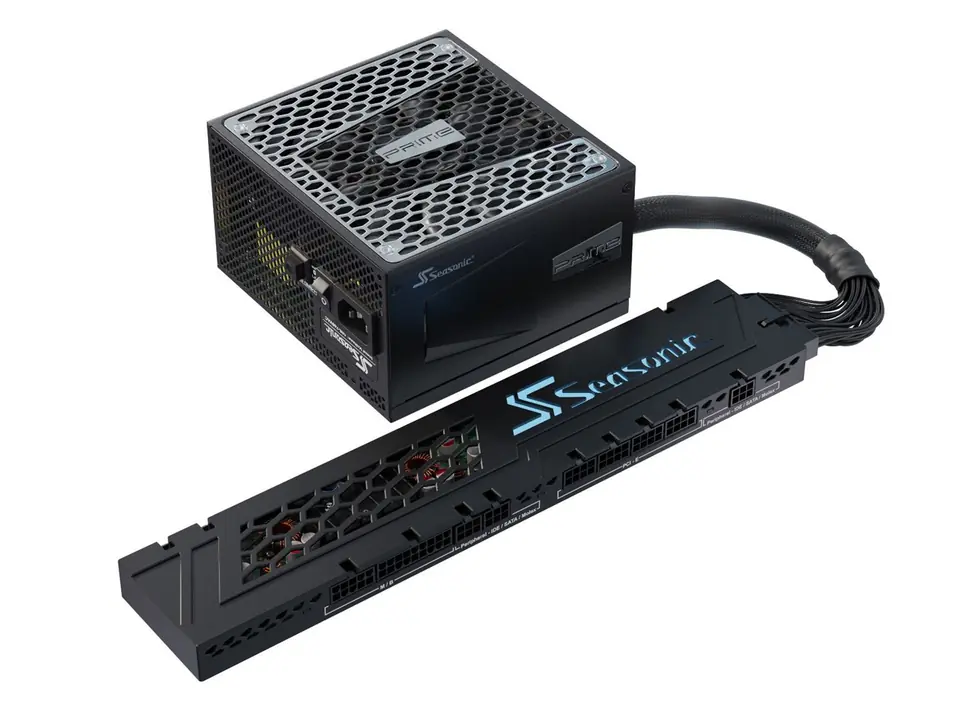

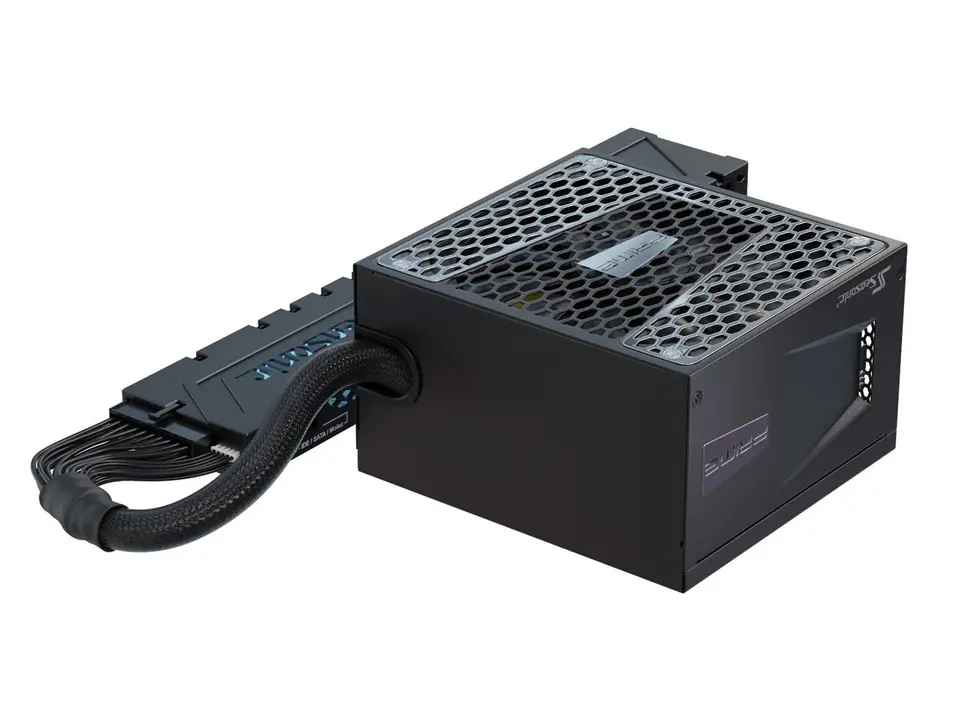

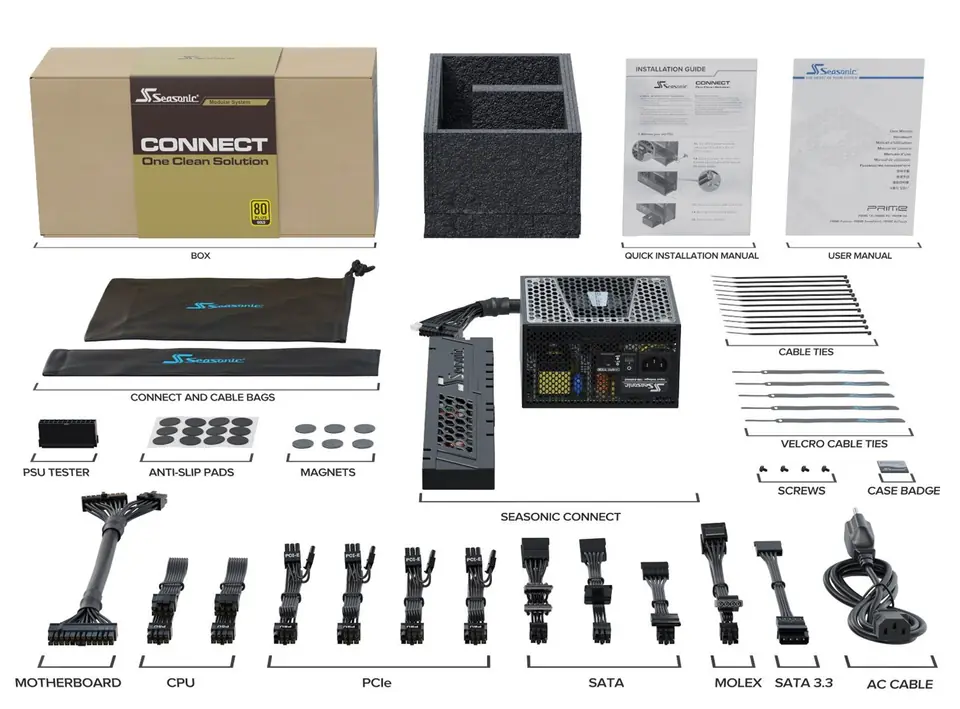

Seasonic CONNECT SSR-750FA - stromfors
€154.02
Shipping from warehouse: A3
Estimated shipping: Wed, May 1 - Mon, May 6
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Seasonic
- Product code:
- SSR-750FA / 4711173875611
Share this product:
Specification
| 80 plus certification: | 80 PLUS Gold |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Bearing technology: | FDB |
| Cables included: | CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA |
| Cabling type: | Fully-Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 744 W |
| Combined power (+3.3v): | 100 W |
| Combined power (+5v): | 100 W |
| Combined power (+5vsb): | 15 W |
| Cooling type: | Active |
| Cpu power cable length: | 23 cm |
| Cpu power connectors (8-pin): | 2 |
| Depth: | 140 mm |
| Harmonized system (hs) code: | 84733020 |
| Height: | 86 mm |
| Input current: | 5 - 10 A |
| Manual: | Yes |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 62 A |
| Max output current (+3.3v): | 20 A |
| Max output current (+5v): | 20 A |
| Max output current (+5vsb): | 3 A |
| Mean time between failures (mtbf): | 150000 h |
| Motherboard power cable length: | 20 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Number of sata power connectors: | 3 |
| Number of screws: | 4 |
| On/off switch: | Yes |
| Operating relative humidity (h-h): | 15 - 65% |
| Operating temperature (t-t): | 0 - 50 °C |
| Package type: | Box |
| Pci express power cable length: | 28 cm |
| Pci express power connectors (8-pin): | 4 |
| Peripheral (molex) power cable length: | 690 mm |
| Peripheral (molex) power connectors (4-pin): | 1 |
| Power protection features: | Over power, Short circuit, Over voltage, Under voltage, Over current |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Sata power cable length: | 230, 210, 470 mm |
| Screws included: | Yes |
| Supported motherboard form factors: | ATX |
| Sustainability certificates: | ENERGY STAR, RoHS |
| Total power: | 750 W |
| Width: | 150 mm |
