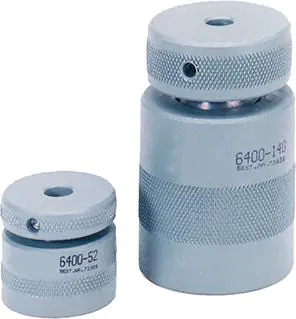

Screw stand, flat bearing surface
Material: heat treated steel. Spindle with self-locking trapezoidal thread. Centering hole with a diameter of 12 mm for attaching various pads.
Directions for use:
Medium-heavy screw supports are suitable for clamping feet with a gap width of approx. 14-22 mm.
Note: see the relevant overlays (Article codes 3930 and 3932). Directions for use:
Medium-heavy screw supports are suitable for clamping feet with a gap width of approx. 14-22 mm.
Note: see the relevant overlays (Article codes 3930 and 3932).
Screw Support,wlk.100 70-100mm AMF
PLN 205.21
Shipping from warehouse: B6
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- AMF
- Product code:
- 72413 / 4020772072414
Share this product:

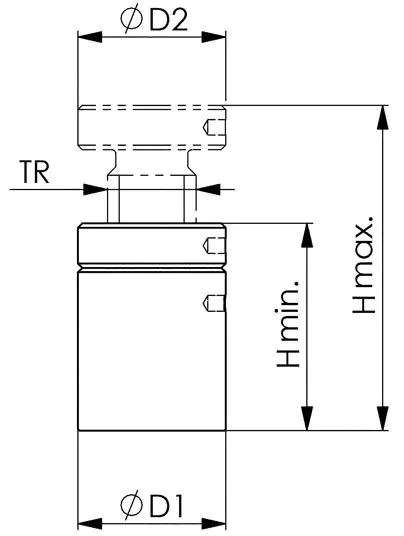

Specification
| Base diameter d1: | 50 mm |
|---|---|
| Cap diameter d2: | 50 mm |
| Clamping height h-h: | 70-100 mm |
| Lifting capacity: | 100 kN |
| Size: | 100 mm |
| Tr: | 30 x 4 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
