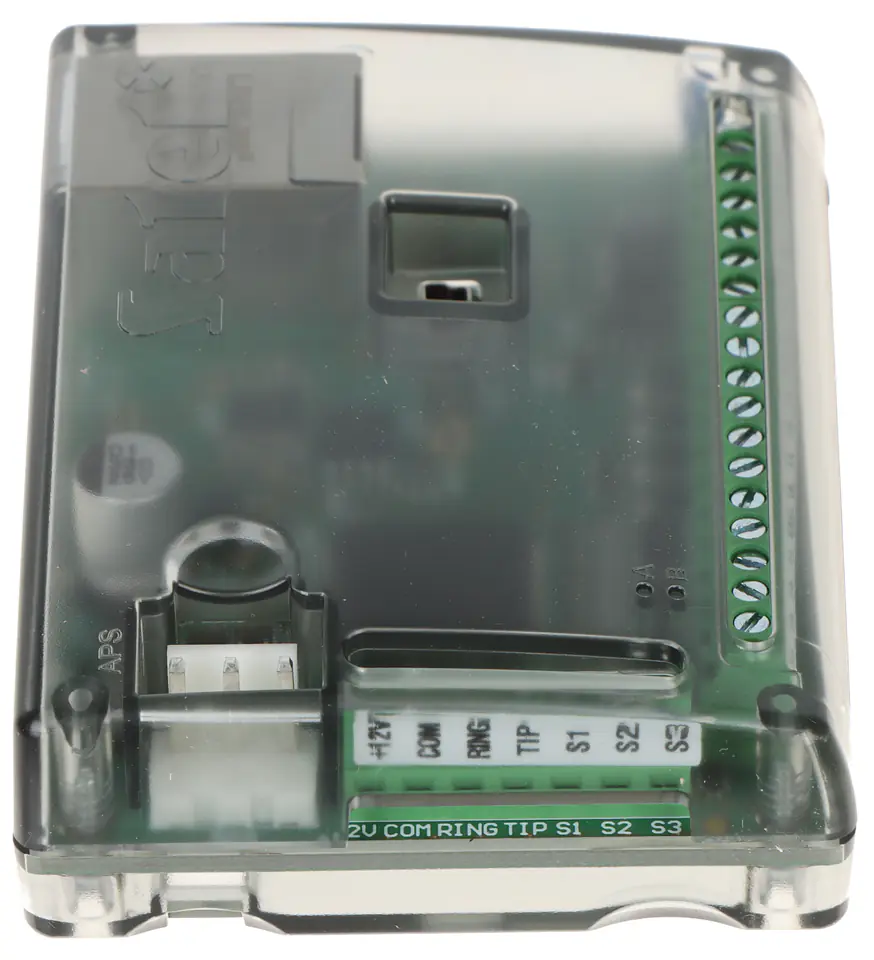

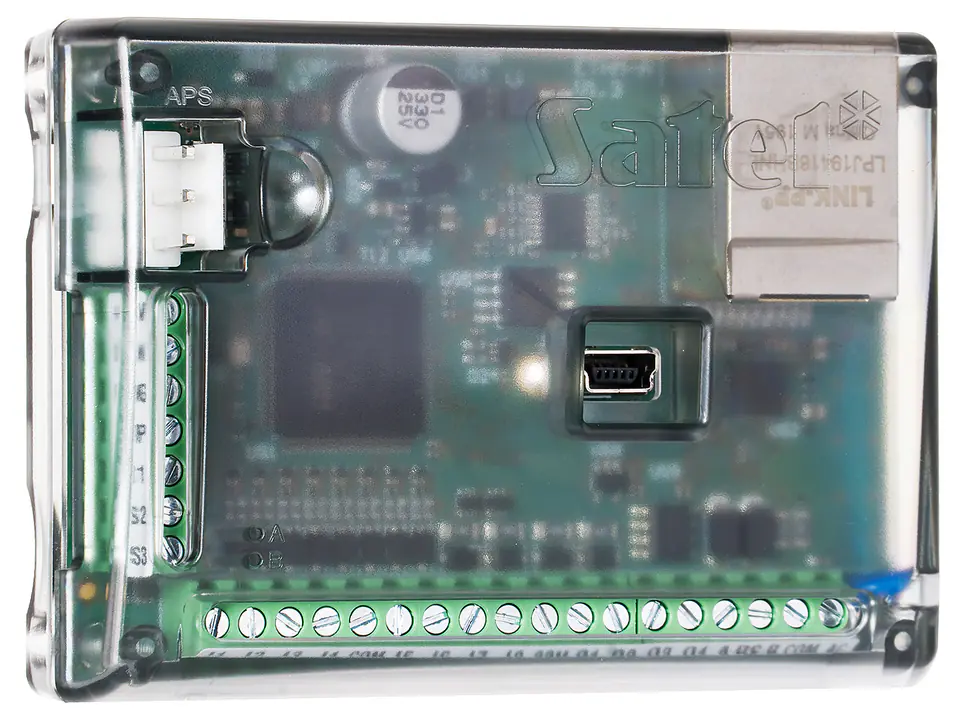

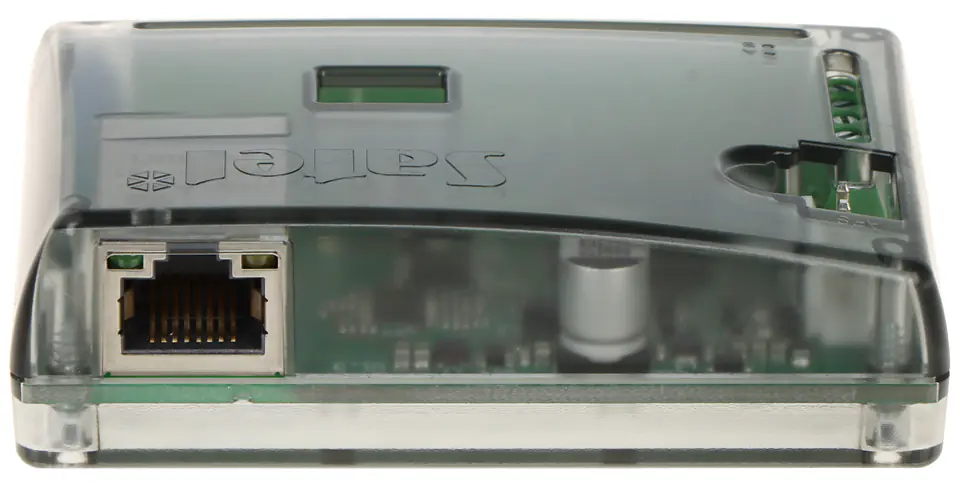

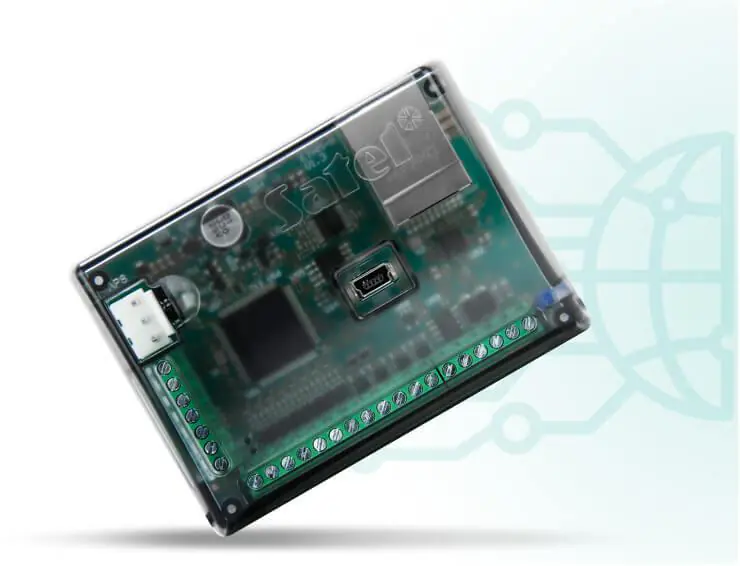

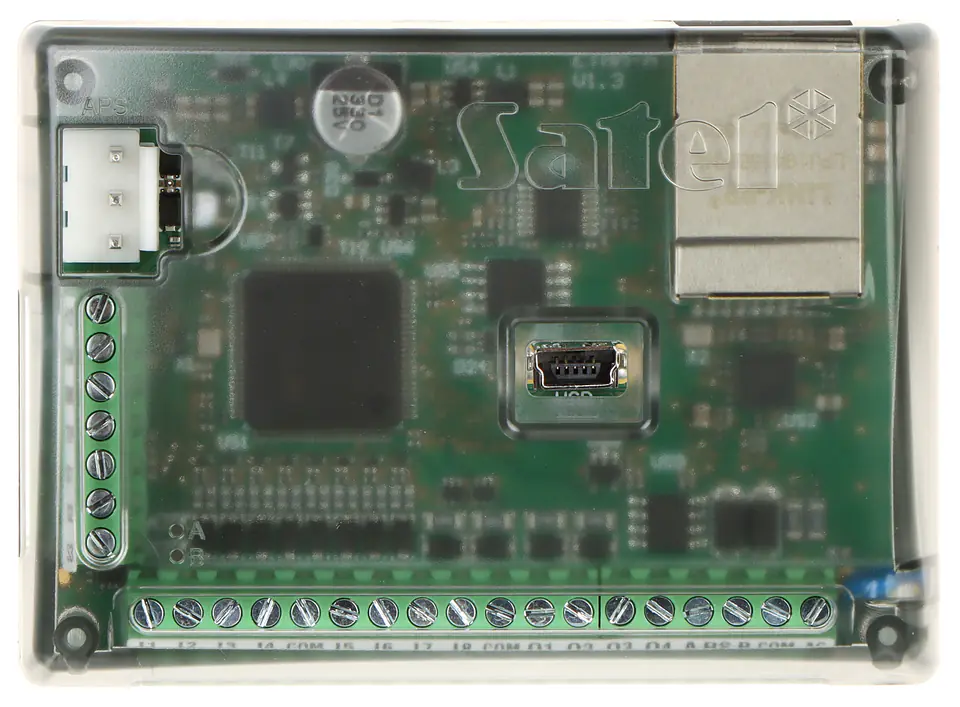

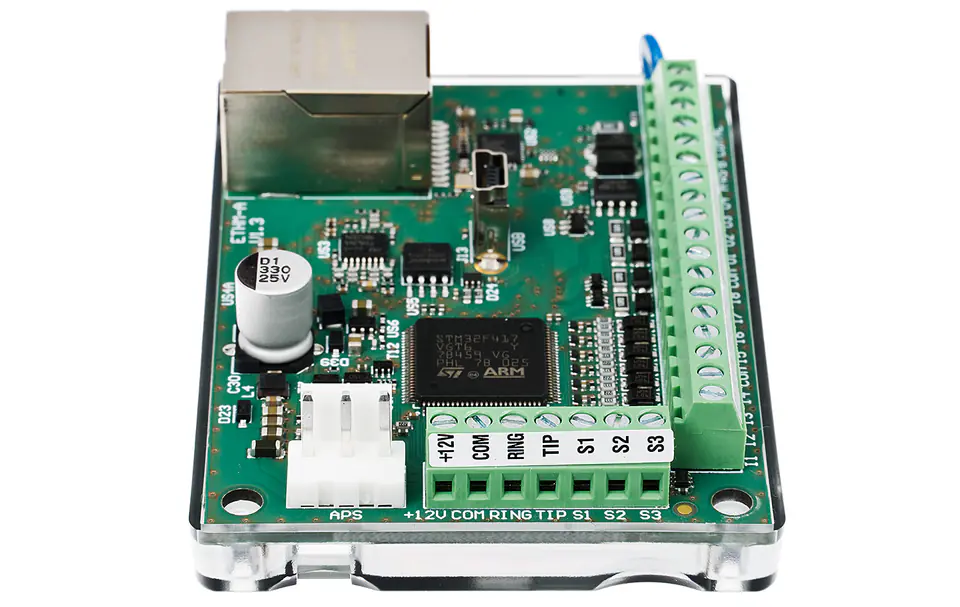

SATEL'S UNIVERSAL ETHM MONITORING MODULE

Name: SATEL'S UNIVERSAL ETHM MONITORING MODULE
Brand: Satel
SKU: 515502
Price: 105.06 EUR
Availability: InStock

€105.06

Shipping from warehouse: ⁨H7⁩

Estimated shipping: Fri, May 3 - Mon, May 6

14 days returnUnconditional return policy

Availability:: large quantity
Brand:
Product code:: ETHM-A / 5905033337183

Specification

Current consumption::	60 mA, max. 80 mA

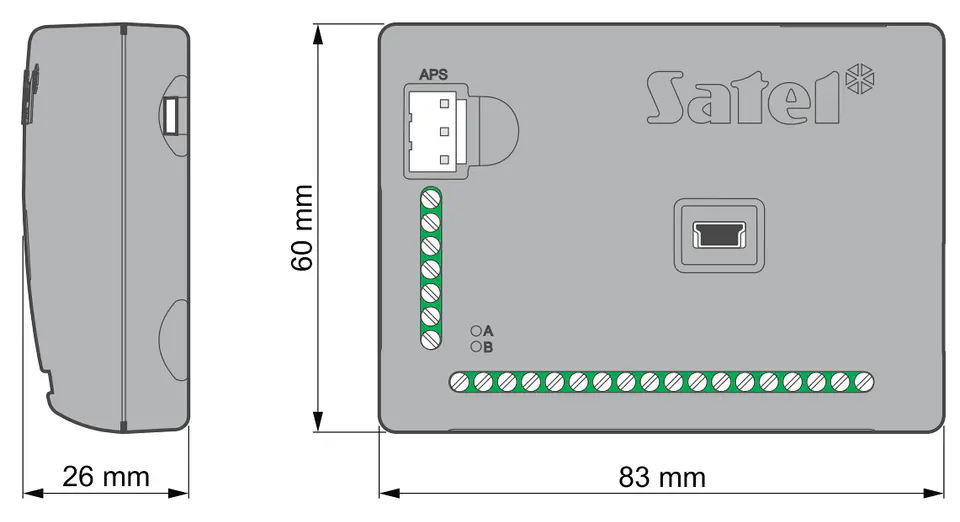

Dimensions::	83 x 60 x 26 mm
Environmental class en 50130-5::	II
Manufacturer / brand::	SATEL

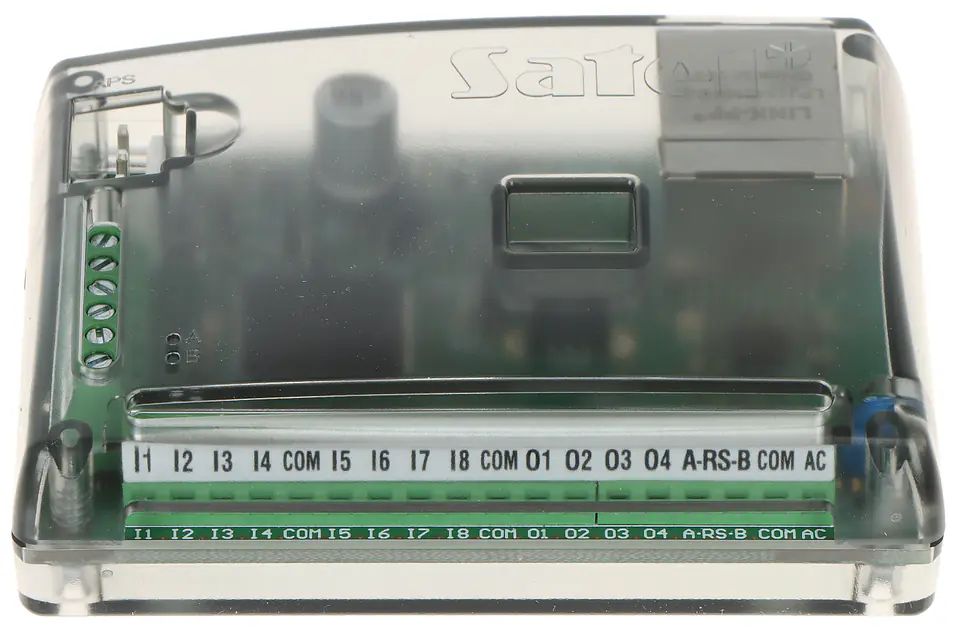

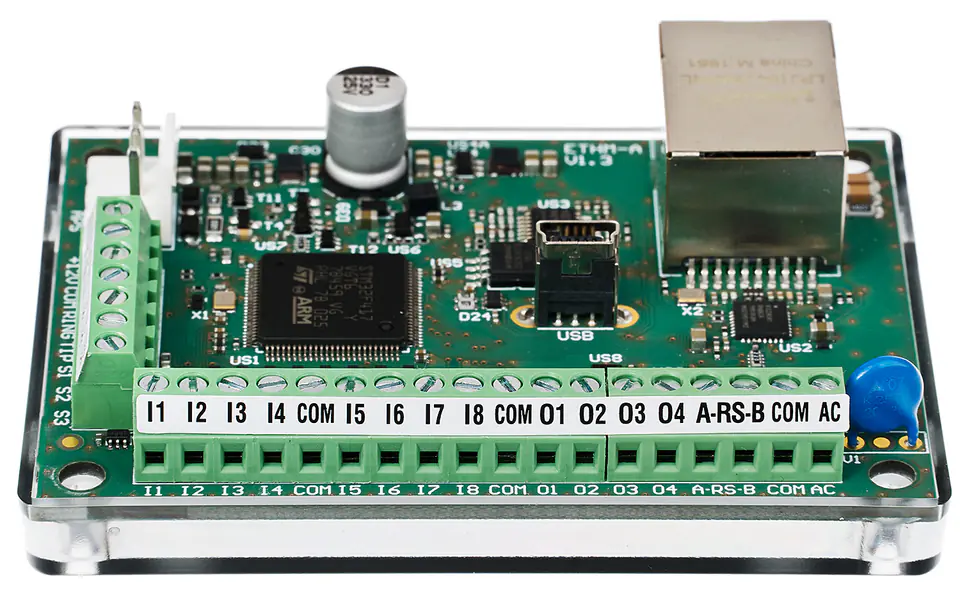

Number of inputs::	8
Number of outputs::	4 - Type OC
Operating temperature::	-10 °C ... 55 °C
Permissible relative humidity::	93 % ± 3 %
Power::	12 V DC ± 15 %
Scales::	0.08 kg

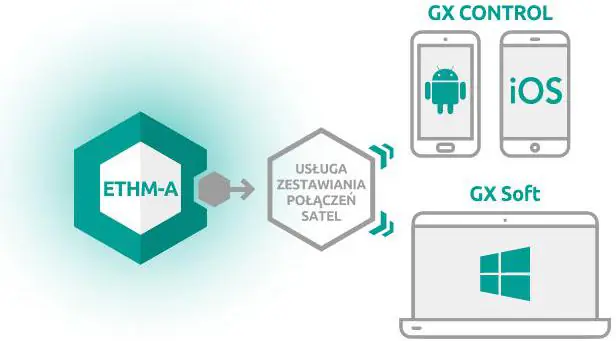

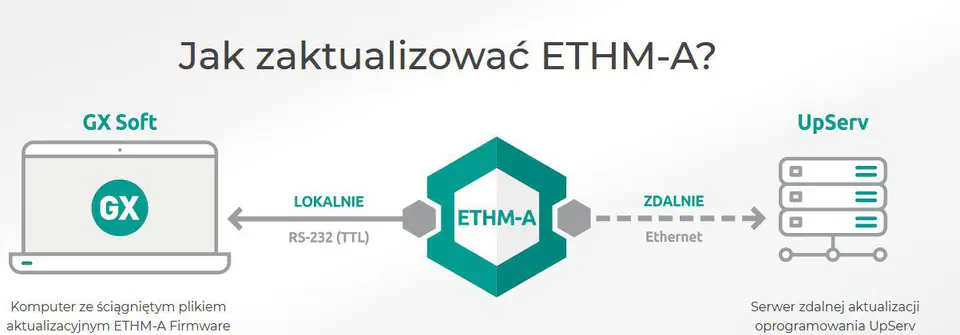

Selected features::	Event monitoring up to two monitoring stations, Possibility of monitoring to two monitoring station servers Conversion and retransmission of event codes received from the alarm control panel (simulation of a telephone monitoring station) Notification of events concerning the module and received from other devices 8 addresses for notification by e-mail Possibility of notifying users of the GX Control application by means of push messages Possibility of remembering up to 500 events generated by the module or received from the control panel 1-Wire bus - support for up to 8 digital 1-Wire temperature sensors Control of outputs or blocking of module inputs using: inputs, GX Soft program, GX Control application Encrypted communication via Ethernet Work within the Internet of Things (IoT) - the possibility of integrating the module, e.g. with automation and measurement data acquisition systems Free GX Control application enabling remote operation of the module Free GX program Soft for local (USB port) and remote (Ethernet) configuration of the Remote Software Update module
Warranty::	2 years

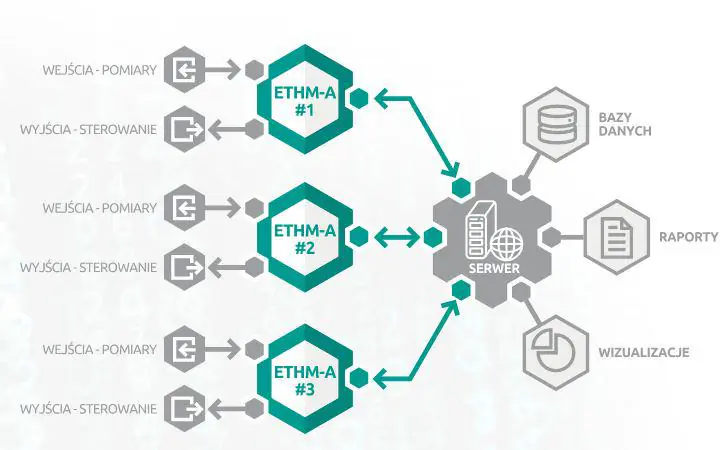

ETHM-A is a universal monitoring module enabling the transmission of information via EthernetModule is used in many existing and newly built installations, enabling monitoring of devices and transmission of information about events in the system or collected data

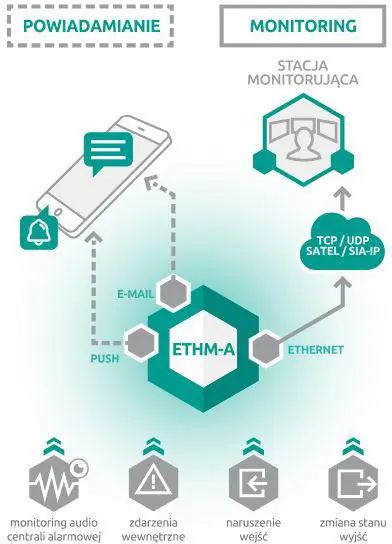

For monitoring and notification, ETHM-A uses several types of protocols and transmission formats, which allows not only to work in local networks, but also to connect the module to the Internet, thanks to which users gain access to the information received by the module from anywhere with access to the Internet network

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
