| Alarm signaling:: | LED, Signal for alarm control panel |
|---|---|
| Colour:: | Dark graphite |
| Cooperation:: | Alarm control panel |
| Detection:: | Door or window opening, Vibration, Water |
| Dimensions:: | 20 x 102 x 23 mm (sensor) Ø 10 x 28 mm ( magnet ) |
| Environmental class en 50130-5:: | II |
| Grade:: | 2 |
| Manufacturer / brand:: | SATEL |
| Operating temperature:: | -10 °C ... 55 °C |
| Permissible load on relay contacts (resistive):: | 40 mA / 24 VDC |
| Power:: | 12 V DC / 14 mA (max) |
| Scales:: | 0.023 kg |

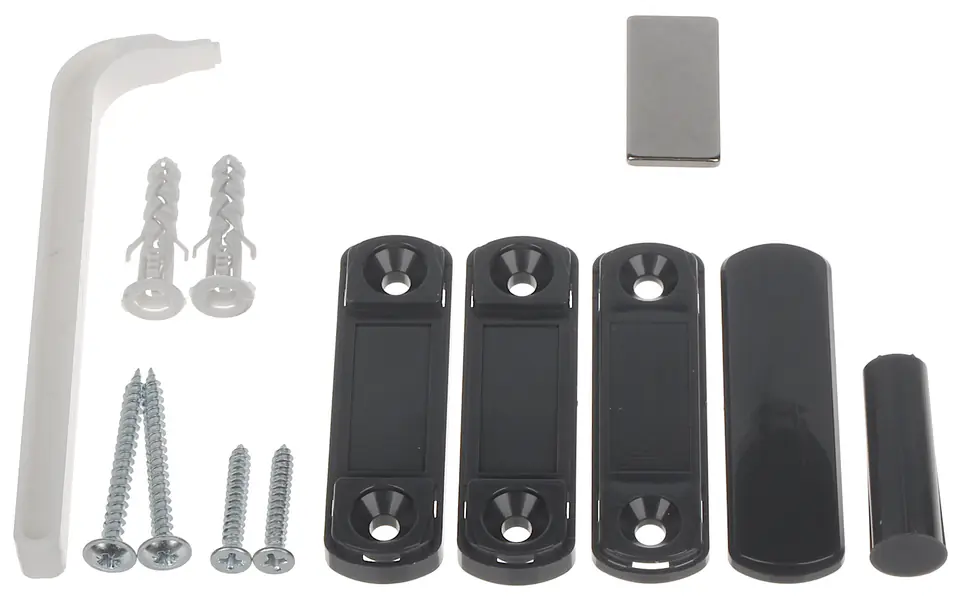

| Selected features:: | Operating modes: Magnetic detector- Opening a door or window - input enabling connection of a wired detector type NC- 1 Alarm output Shock detector - Detection of shocks and vibrations accompanying attempts to force through a door or window - Range: 3 m - input enabling connection of a wired detector type NC- 1 Alarm output Shock and magnetic detector - Detection of shocks and vibrations accompanying attempts to force force through a door or window - Opening a door or window - entrance enabling connection of a wired detector type NC- 2 Alarm outputs Water flood sensor - FPX-1 probe required available separately - detection of the presence of water in rooms at risk of flooding - 1 Alarm output Tamper detection - housing opening, detachment from the ground LED signaling Supply voltage supervision 2 magnets included (for surface mounting and flush mounting) Compliance with EN 50130-4 standards, EN 50130-5, EN 50131-1, EN 50131-2-6 |
| Warranty:: | 2 years |

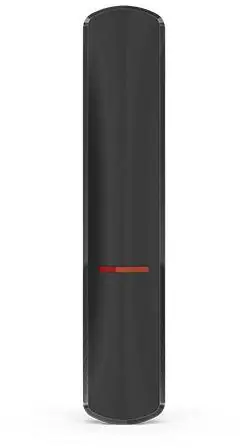

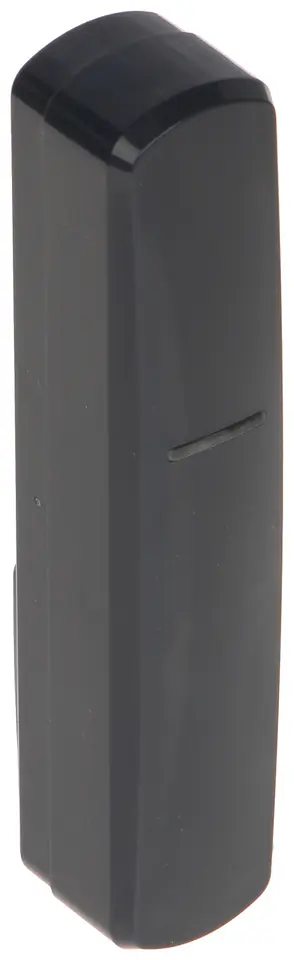

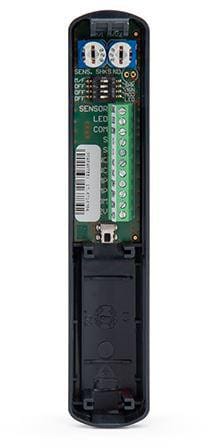

The XD-2-DG wired detector can work in one of 4 modes, which makes it an extremely versatile deviceThe device, depending on your needs, can be configured as: magnetic detector, shock detector, shock detector with reed switch or water flood detector (external FPX-1 probe required - available separately)
XD-2-DG works with any alarm control panel
