| Cooperation:: | SATEL ABAX 2 Ads |
|---|---|
| Current consumption:: | 8 mA max. 15 mA |
| Dimensions:: | 126 x 158 x 32 mm |
| Environmental class en 50130-5:: | II |
| Frequency band:: | 868 ... 868.6 MHz |
| Manufacturer / brand:: | SATEL |
| Number of supported wireless devices:: | Max. 46 |
| Operating temperature:: | -10 °C ... 55 °C |

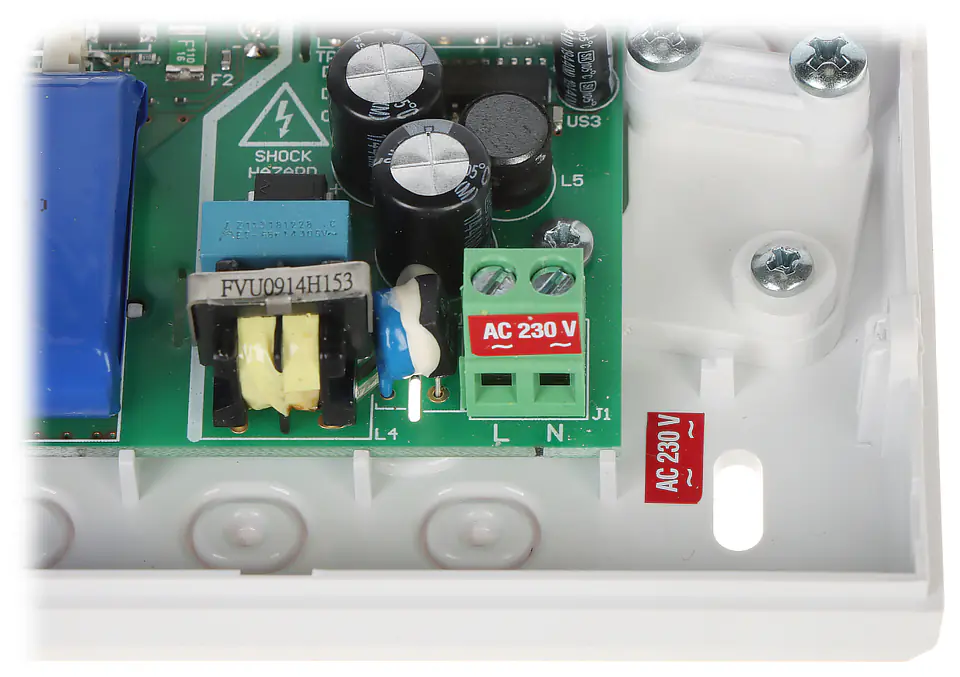

| Power:: | 230 VAC |
| Radio communication range (in open area):: | 2000 m @ ACU-220, 1600 m @ ACU-280 |
| Scales:: | 0.27 kg |
| Selected features:: | LED indicator indicating the operating status, Microswitch detecting manipulator tamper sabotage, Encrypted AES two-way radio communication in the 868 MHz frequency band, Automatic selection of one of 4 transmission channels, allowing transmission without interference with other signals, Built-in advanced power supply with extensive diagnostics, Li-Ion battery 3.7 V / 1800 mAh |
| Warranty:: | 2 years |

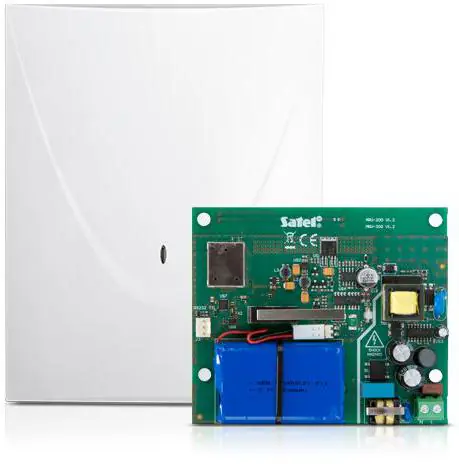

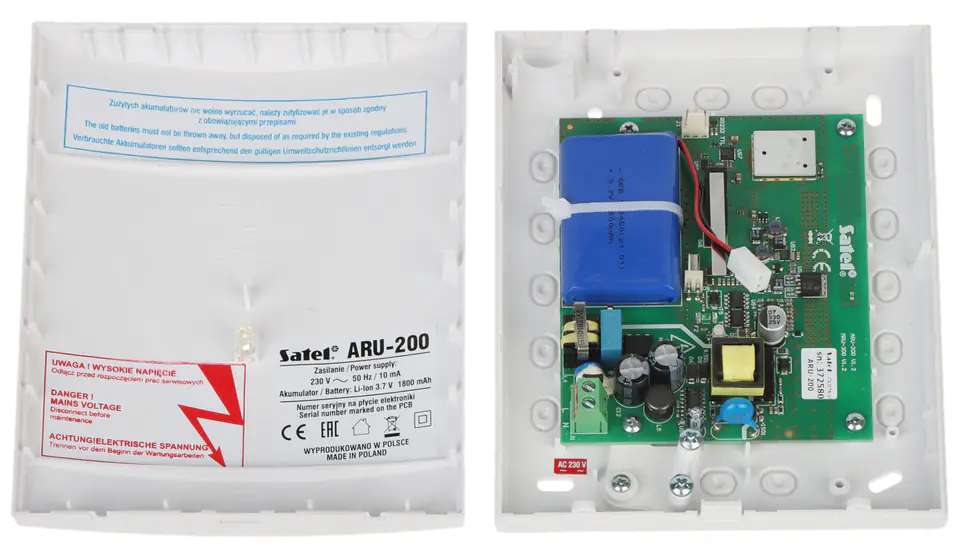

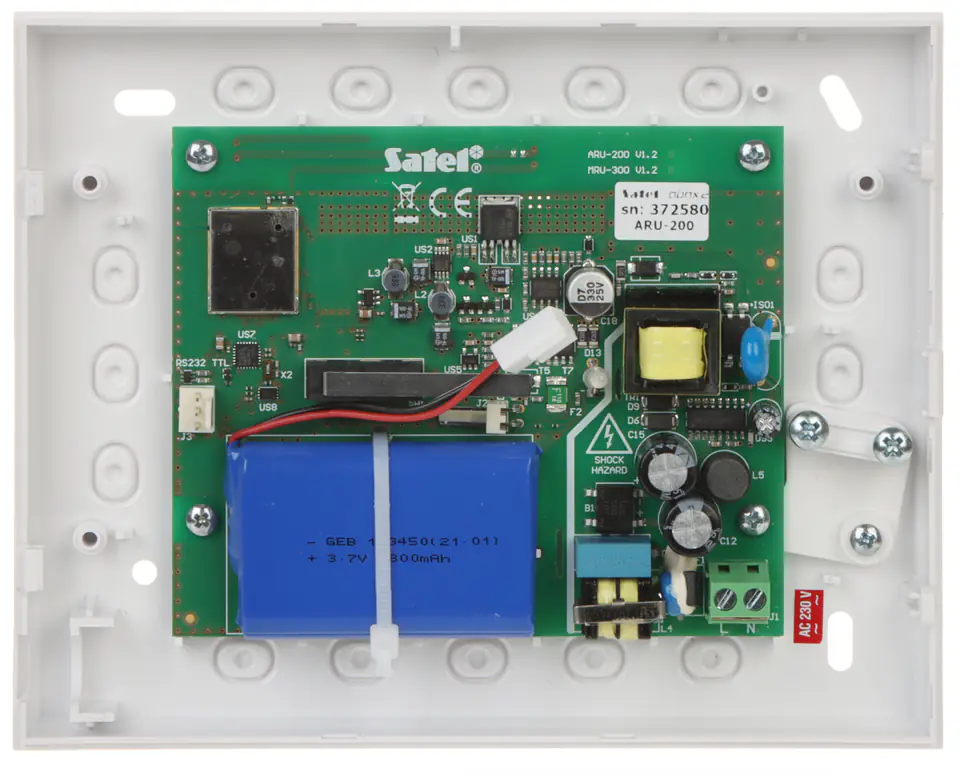

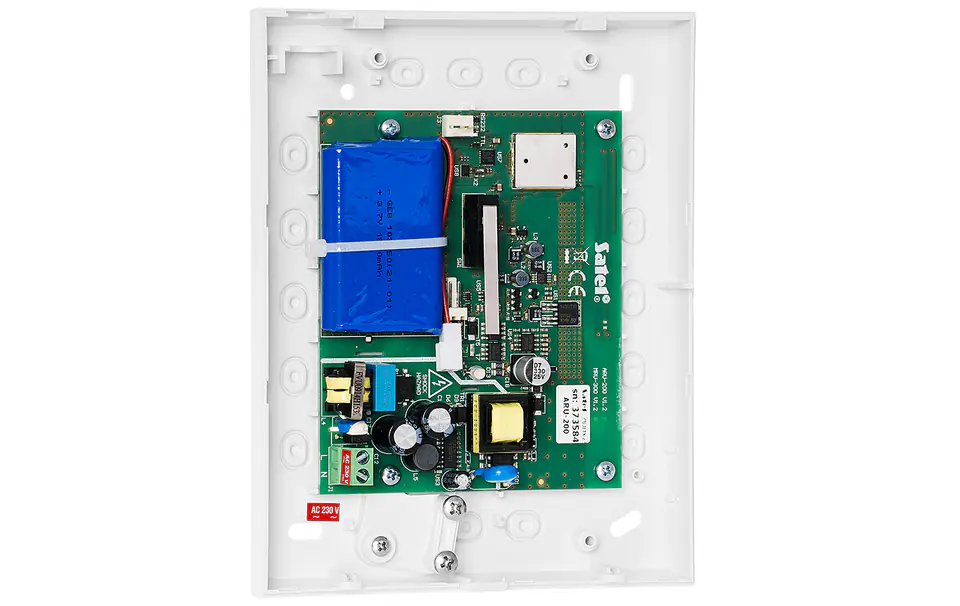

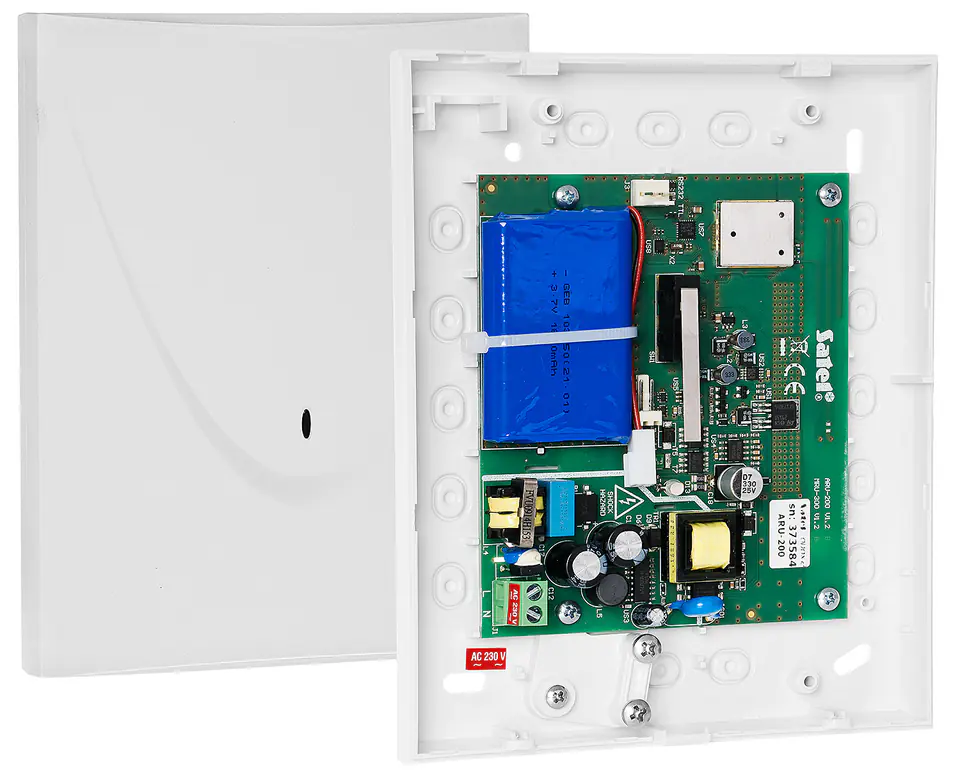

The ARU-200 module is used to receive transmissions from ABAX 2 wireless devices, and then their retransmissionARU-200 also allows to increase the radio communication range of the ABAX 2 system
The device is equipped with a buffer power supply and a built-in battery with a capacity of 1.8Ah
