| Alarm signaling:: | Acoustic (buzzer) Optical (LED) |
|---|---|
| Alarming concentration:: | 50 ... 75 ppm for 75 minutes75 ... 120 ppm for 25 minutes> 120 ppm for 1 minute |
| Battery life:: | ~ 5 years - Autonomous work ~ 2 years - ABAX2 |

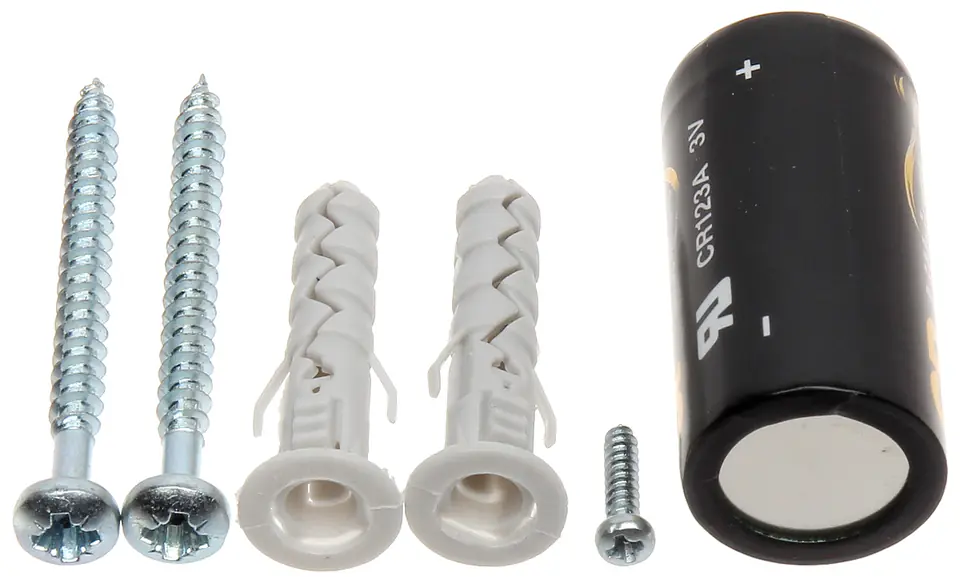

| Battery:: | 1 x CR123A 3V battery (included) |
| Cooperation:: | SaTEL ABAX2 wireless alarm systems |
| Current consumption:: | 120 mA (max)14 μA (standby) - Standalone operation62 μA (standby) - ABAX2 |
| Detection:: | Carbon monoxide (CO) |
| Dimensions:: | Ø 108 x 49 mm |
| Frequency band:: | 868.0 ... 868.6 MHz |
| Manufacturer / brand:: | SATEL |
| Operating temperature:: | 0 °C ... 55 °C |
| Radio communication range (in open area):: | 2000 m - ABAX2 @ ACU-220, 1200 m - ABAX2 @ ACU-280 |
| Recommended mounting height:: | 1.5 ... 2.0 m from the floor |
| Scales:: | 0.14 kg (without batteries) |
| Selected features:: | Electrochemical Carbon Monoxide Sensor Life: 10 Years Test Mode Gas Sensor Supervision Failure Signaling Battery Status Control Low Battery Alarm The "ECO" option allows up to four times the battery life extension (only in ABAX2) Two-way encrypted radio communication - AES Jamming protection by switching frequencies ensures reliable transmission Built-in temperature sensor, Temperature measurement: 0 °C ... 55 °C Tamper protection - enclosure opening |
| Use:: | Internal |
| Warranty:: | 2 years |

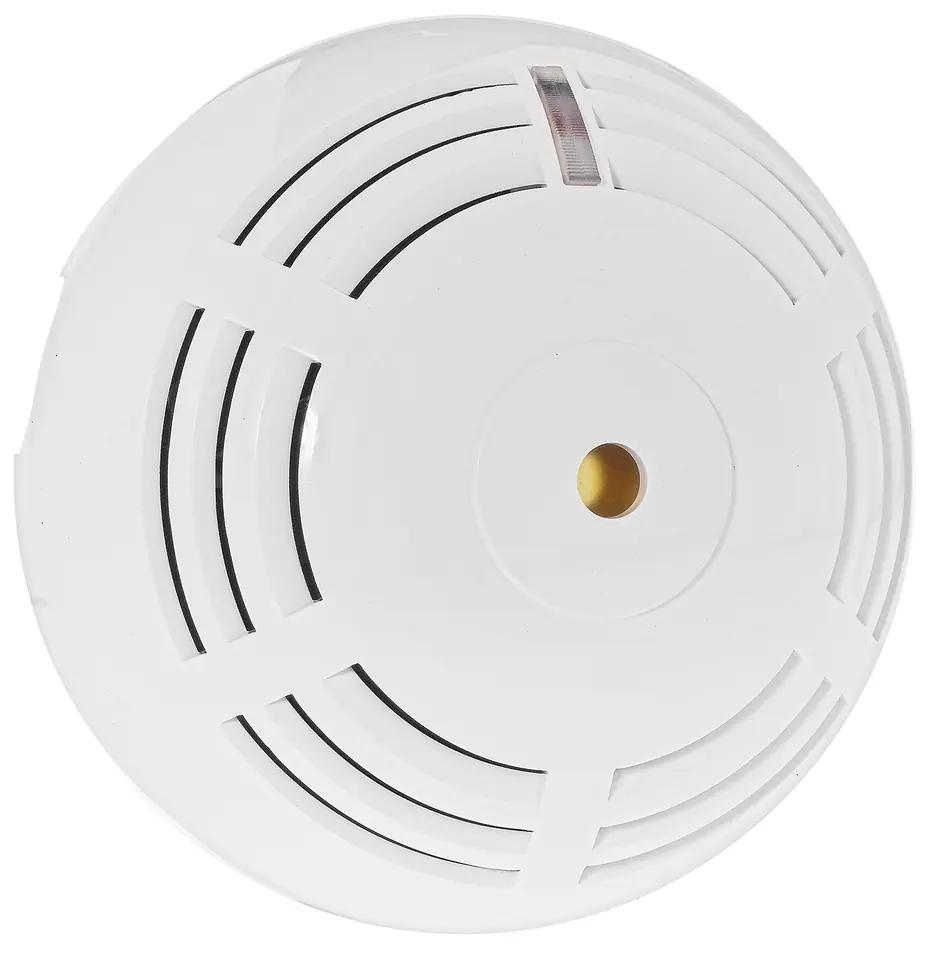

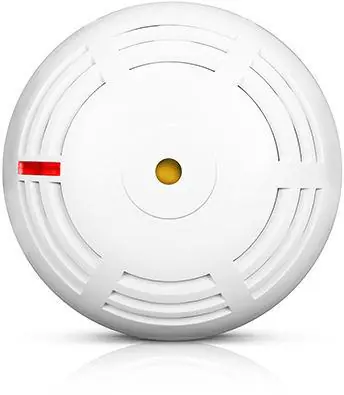

ACMD-200 is a wireless carbon monoxide (carbon monoxide) detector that detects dangerous concentrations of this gas in the supervised roomThe digital temperature compensation mechanism allows operation in a wide temperature rangeACMD-200 can work autonomously or as part of the ABAX2 bidirectional wireless system
Exceeding the threshold gas concentration is signaled optically and acousticallyThe installation of the device is recommended at a height of approx. 1.5 ... 2.0 m from the floor
