| 1 turn of the hand: | 1.0 mm |
|---|---|
| Measuring range: | 10 mm |
| Ø enclosures: | 58 mm |
| Read: | 0.01 mm |
| Variant: | with increased measuring pressure |

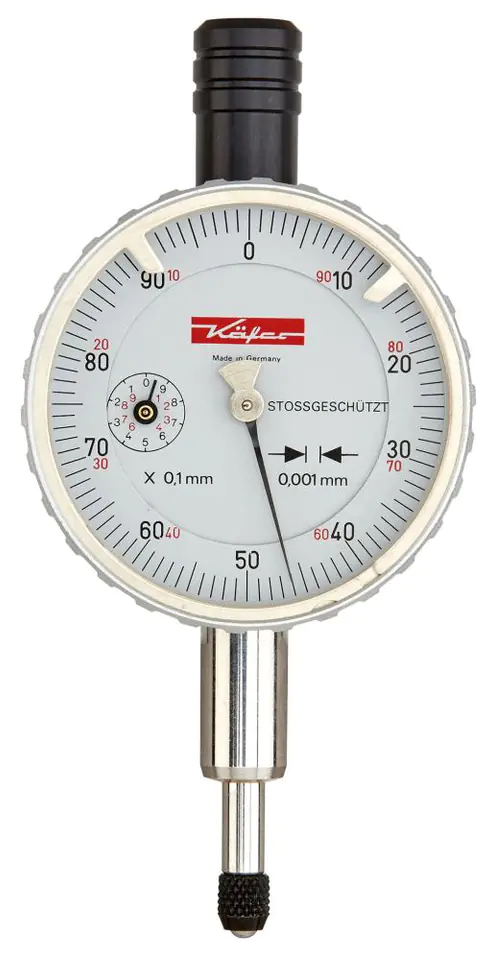

Dial indicator, Käfer
Material: solid metal housing, measuring pin and fixing pin (diameter 8 mm h6) are hardened, ground, made of stainless steel. Delivery in a plastic cassette.
Note: Matching M2.5 test tips available on request.
Sensor reset by rotation of the dial, two pivoting tolerance markers.
