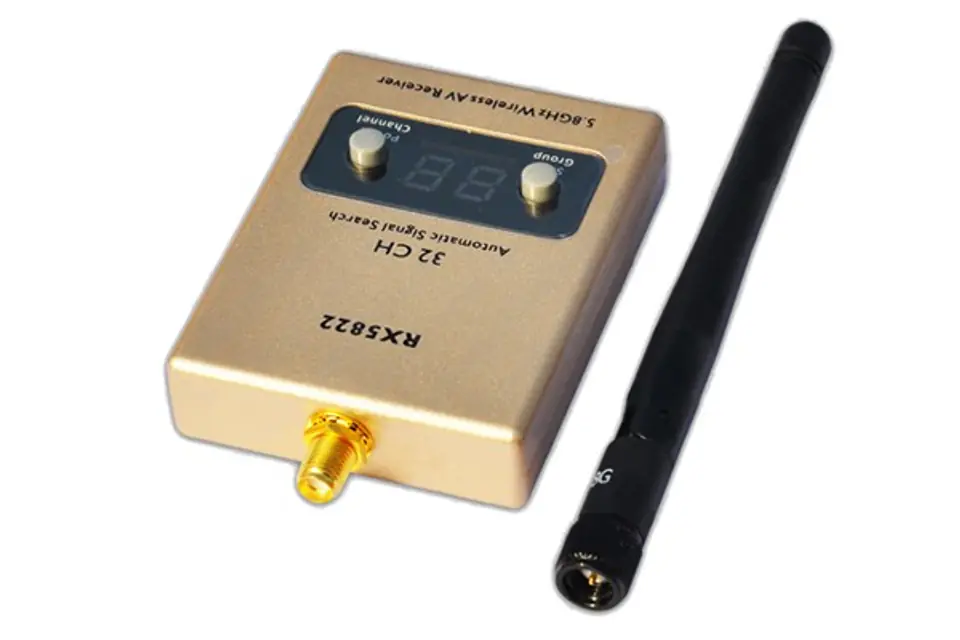

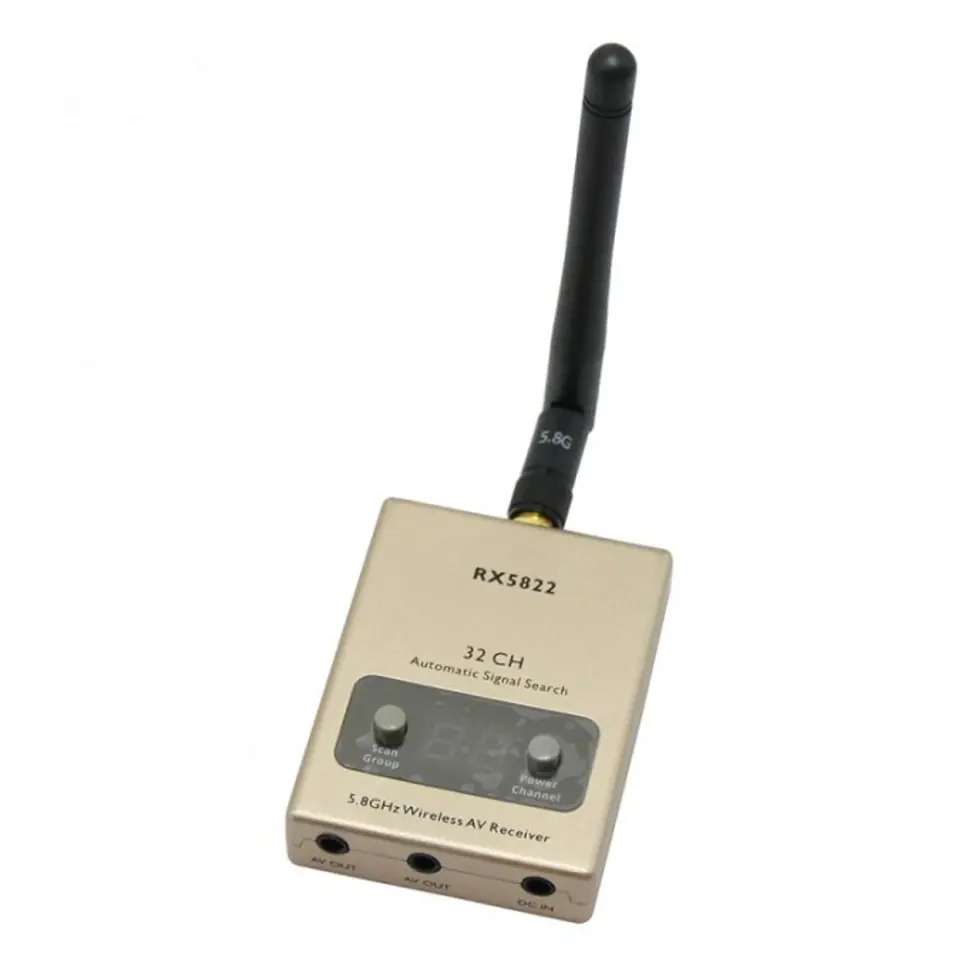

AV receiver operating at 5.8GHz.
The receiver has the ability to change the channel through the button on its front. The selected channel is displayed on a 7-segment display.
Specifications
- Transmission Frequency: ISM 5.6GHz-5.95GHz 32CH
- Supply voltage: 7-24V
- Current consumption: 100mA @12V
- Antenna impedance: 50Ω
- Antenna Gain: 3dB
- Video Input: 75Ω/1Vpp
- Audio Input: 10KΩ/1Vpp
- System: PAL / NTSC / SECAM (AUTO)
- Bright LED display
- Resistant to 2.4 GHz interference
- Dimensions: 60 x 42 x 25mm
- Receiver
- Power cord
- FPV cable
