| Compliance with standards:: | EN 61000-6-3, EN 60950-1, ETSI EN 300 220-2, ETSI EN 301 489-1, ETSI EN 301 489-3, EN 50581 |
|---|---|
| Cooperation:: | SPECTRA Digiplex & Digiplex EVO |
| Country of origin:: | Canada |
| Current consumption:: | 50 mA |
| Dimensions:: | 172 x 154 x 29 mm |
| Frequency range:: | 433 MHz |
| Grade:: | 2 |
| Manufacturer / brand:: | PARADOX |
| Operating temperature:: | 0 °C ... 50 °C |
| Power:: | 12 VDC |
| Receiver sensitivity:: | -120 dBm |
| Scales:: | 0.232 kg |
| Selected features:: | LED Signaling Adjustable Interference Detection Two Transistor Outputs ( 150 mA, Programmable ) Relay Output ( 28 V DC / 5 A, Programmable ) Support up to 32 remote controls |
| Warranty:: | 2 years |

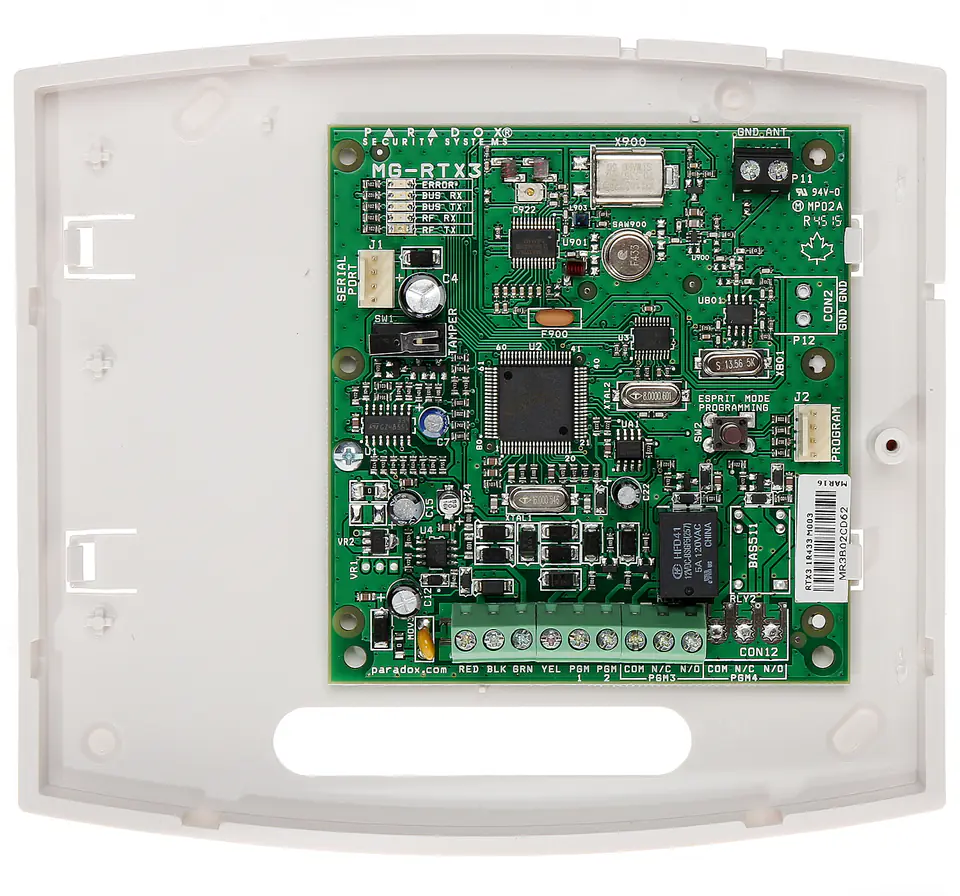

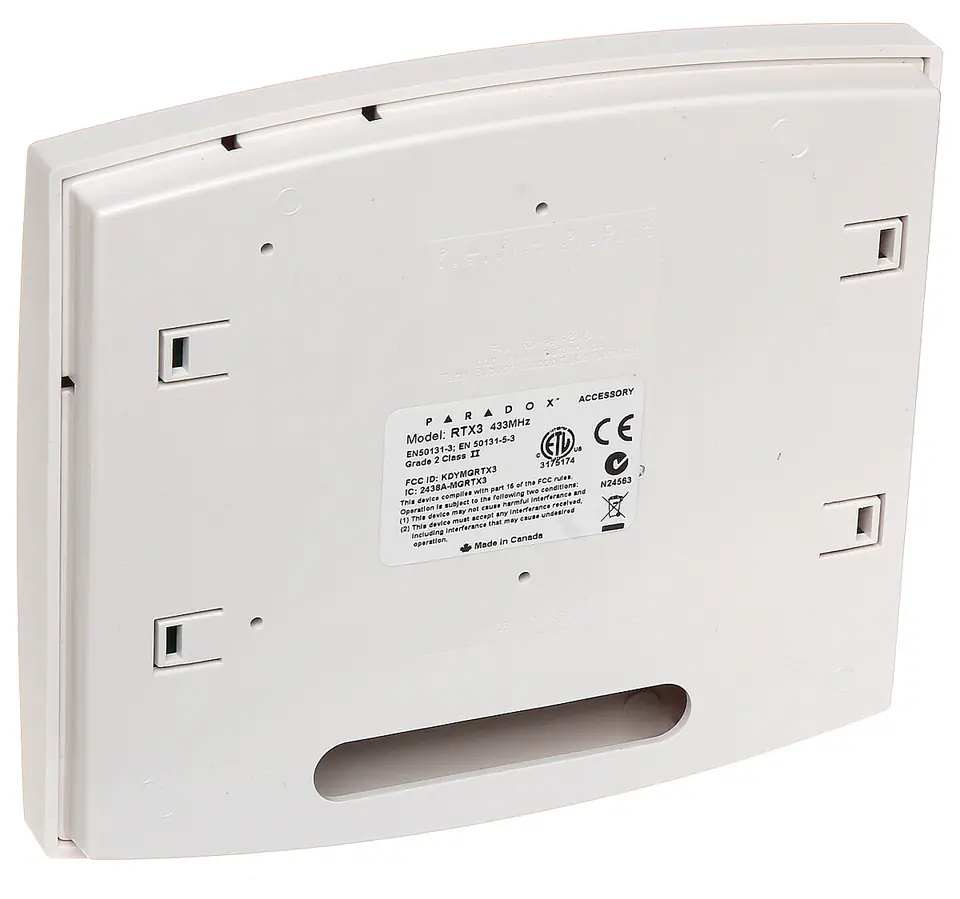

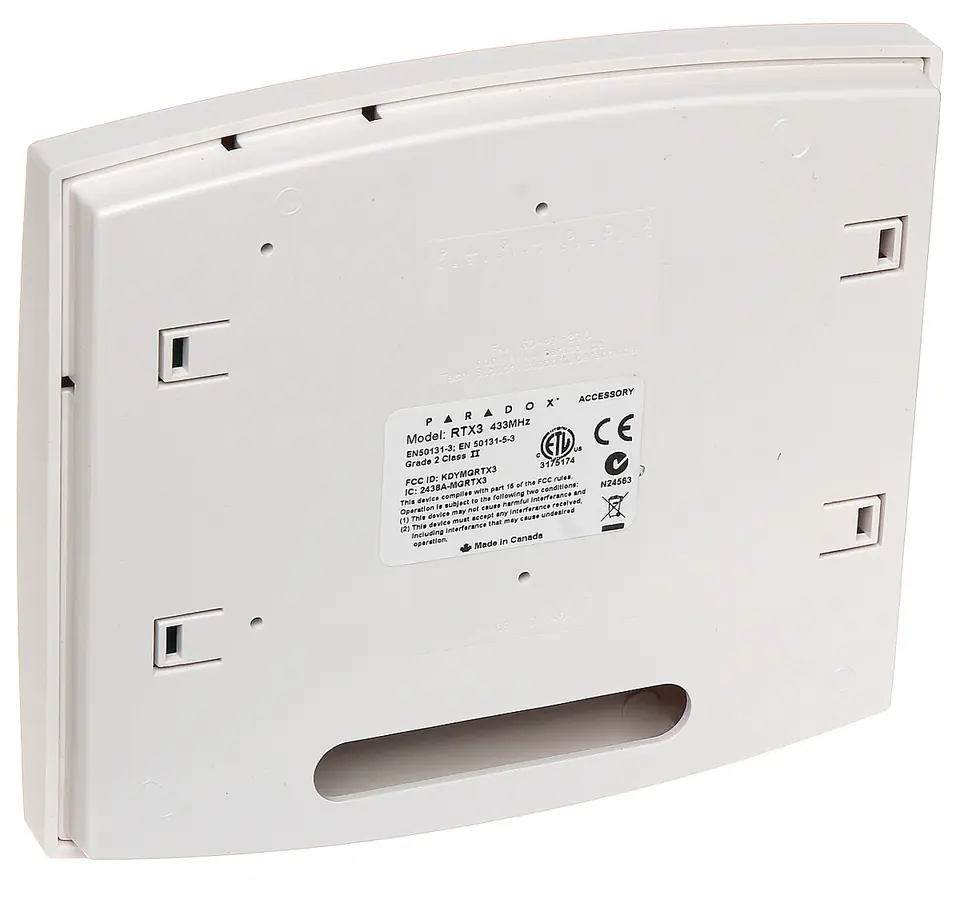

The RTX-3 radio module is designed for PARADOX control panels of Spectra SP, Digiplex, Digiplex EVO series
The module can be installed next to the control panel or connected at any bus pointThe device is addressable and occupies one address in the system
