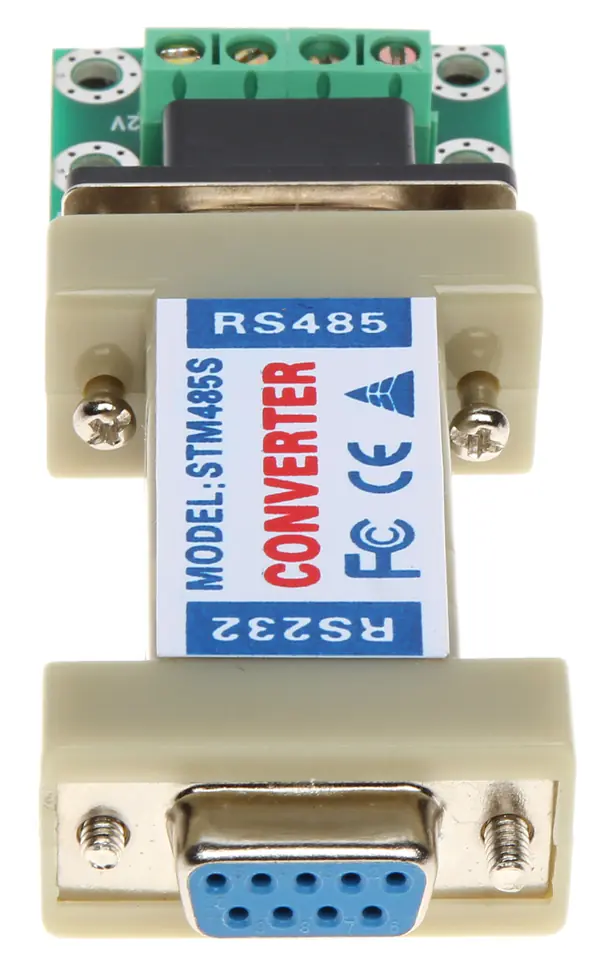

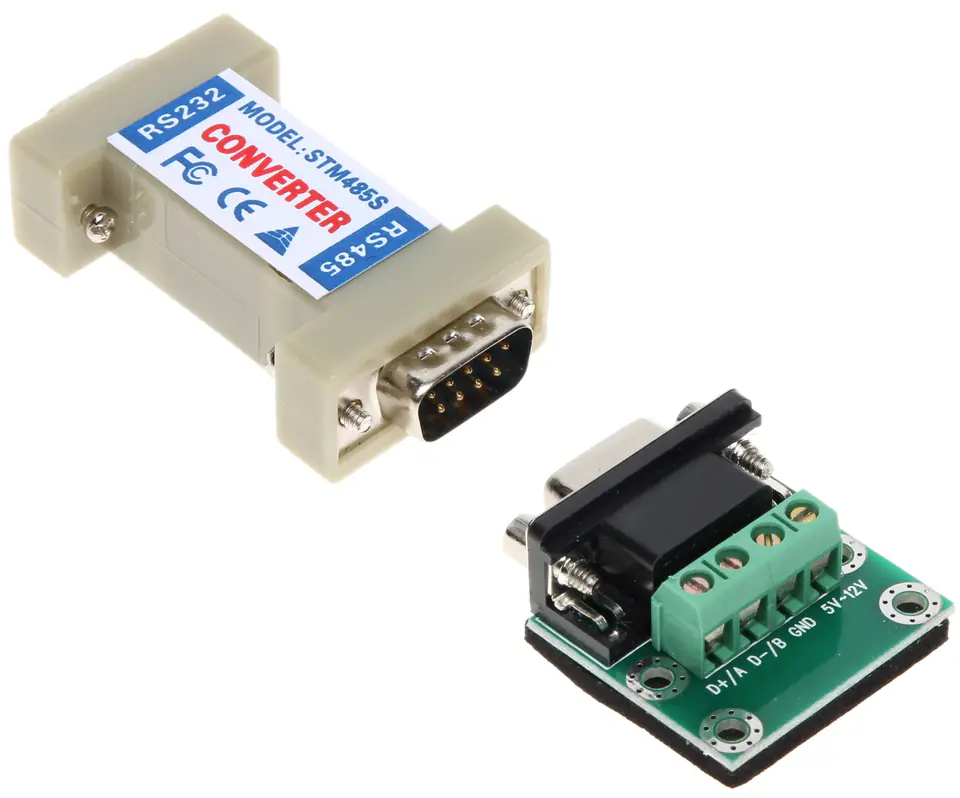

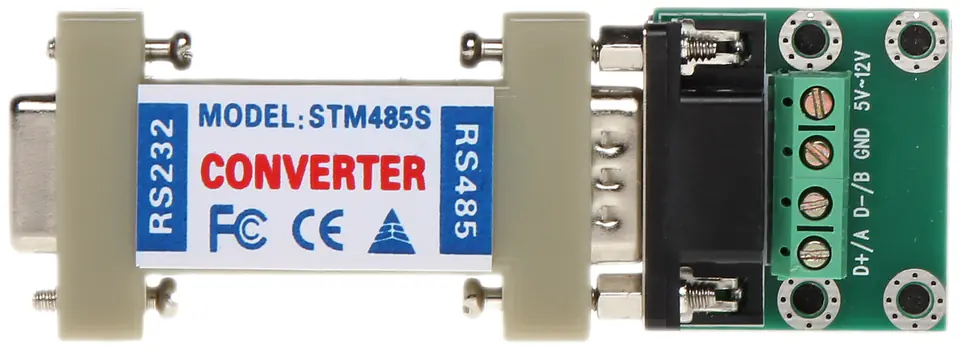

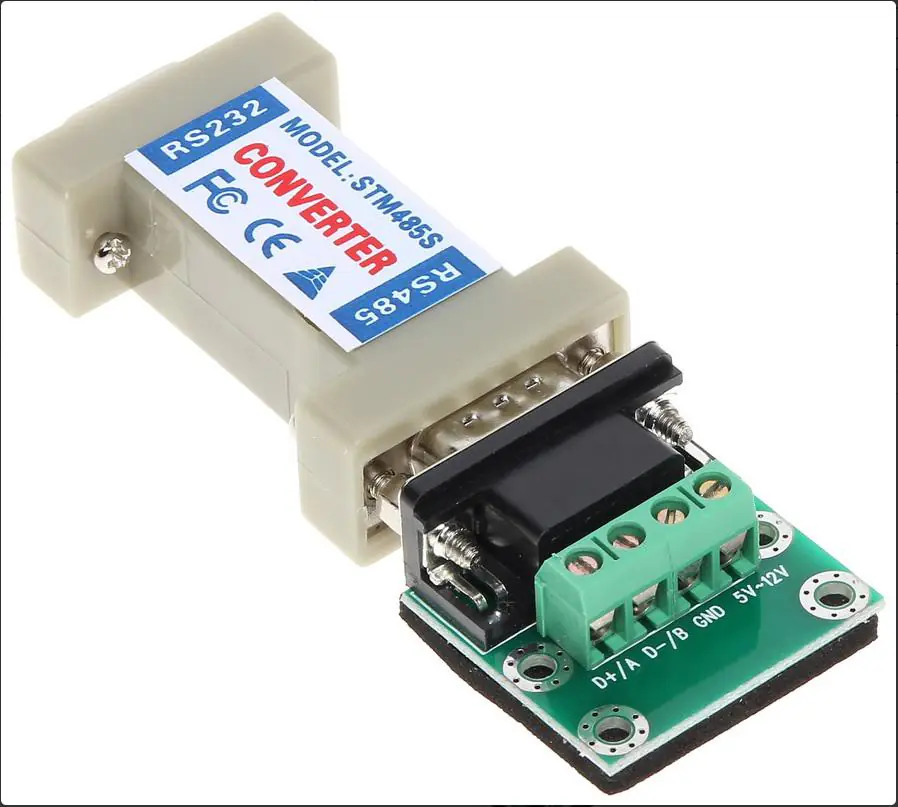

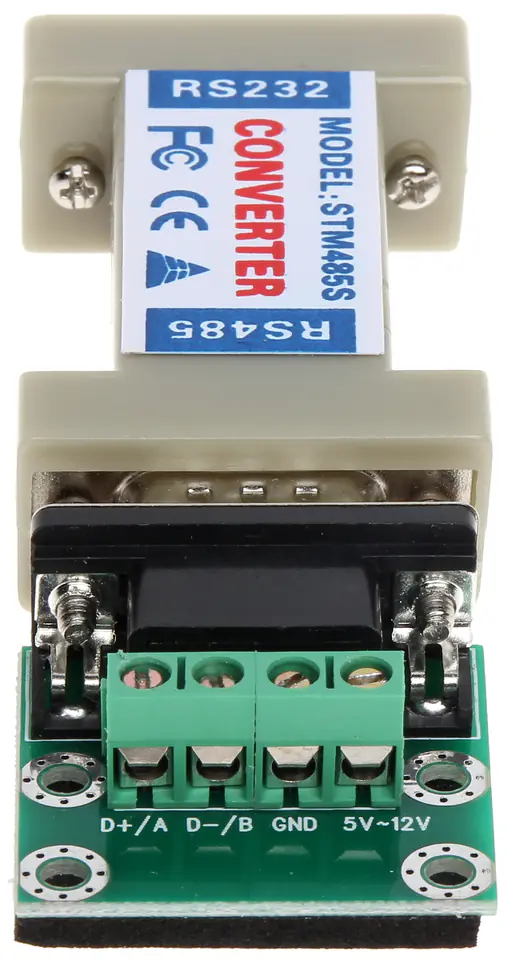

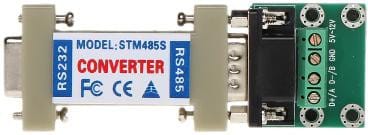

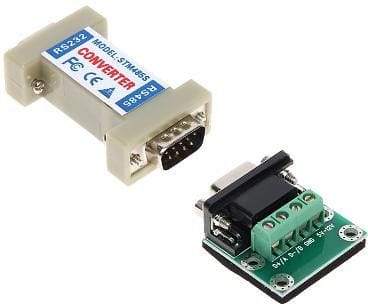

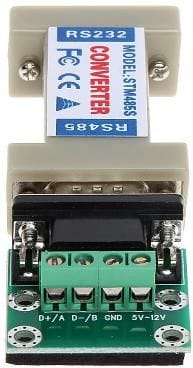

RS-232 to RS-485 interface converter
RS-485/RS232 CONVERTER
€4.66
Shipping from warehouse: D4
Estimated shipping: Mon, Oct 27 - Thu, Oct 30
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- INNY-D
- Product code:
- RS-485/RS232 / 5902887010972
Share this product:
Specification
| Communication: | Asynchronous, Half Duplex: 57600 bps |
|---|---|
| Connectors: | DB9/RS232Cable terminals |
| Dimensions: | 95 x 33 x 17 mm |
| Egress: | RS-485 |
| Entrance: | RS-232 |
| Number of inputs: | 1 pc |
| Number of outputs: | 1 pc |
| Operating temperature: | -25 °C ... 70 °C |
| Power: | 5 ... 12 volts DC |
| Power connector: | cable clamps |
| Scales: | 0.03 kg |
| Transmission range: | 1200 m (RS-485 output)5 m (RS-232 output) |
| Warranty: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
