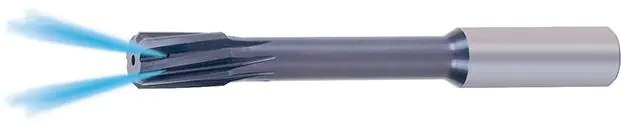

HNC reamer for high throughput, internal cooling, for through holes
With special HPC blade geometry, right-wing, beveled groove, UE graduation, for mounting in hydraulic chucks, shrink chucks and precision clamping brackets. TiAlN coated surface. Full diameter tolerance H7, one hundredth of a diameter tolerance of +0,004/0.
Rozwiert.HNC WN VHM TiALNtyp UNI,to open flight. 11.97mm BECK
This product is not available
- Availability:
- expected delivery
- Brand:
- BECK
- Product code:
- 30131528 / 4332163793779
Share this product:

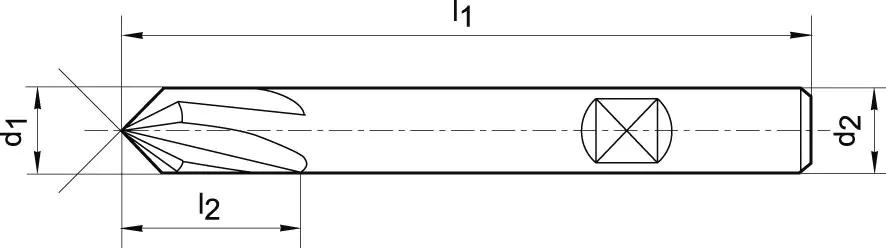

Specification
| Cast iron gg/gts: | 110 |
|---|---|
| Cutting part length: | 20 mm |
| Ggg cast iron: | 90 |
| Grip ø h6: | 12 mm |
| Ø nominal d1: | 11.97 mm |
| Overall length: | 120 mm |
| Steel < 1000 n/mm2: | 140 |
| Steel < 1400 n/mm2: | 140 |
| Steel < 700 n/mm2: | 180 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
