Omada Gigabit VPN Router with 10G Ports
- Operation integrated with the Omada SDN platform: Unattended ZTP (ZTP) configuration*3, central cloud management and intelligent monitoring.
- Centralized management: Access from the cloud and Omada app is the convenience of management.
- Two 10GE SFP+ ports: 1x WAN and 1x 10GE SFP+ WAN/LAN enable aggregation of high-bandwidth connections.
- Up to 10 WAN Ports: Band-balanced fiber and RJ45 ports increase multi-line capability.
- Highly secure VPN: SSL/ IPSec / PPTP / L2TP VPN / OpenVPN / L2TP over IPSec VPN standards are ideal for branch-to-branch and remote work.
- Reliable Security: Powerful Firewall, DoS Protection, IP/MAC/URL Filtering, IP-MAC Binding, and One-Click ALG Activation provide world-class network protection.
Centralized management in the cloud
Seamless integration with the Omada SDN platform
2.2 GHz quad-core processor
Industrial-grade device design for maximum performance
Two 10GE SFP+ ports
High-bandwidth aggregation with ports: 1× WAN and 1× WAN/LAN
Up to 10 WAN ports
Multi-WAN Bandwidth Balancing increases multi-line capability
Two USB 3.0 ports
4G/3G connection possible via USB Modem as LTE WAN backup link
High performance
Support for up to 2,300,000 simultaneous sessions
Secure VPN
Enterprise grade standard SSL / IPSec / PPTP / L2TP VPN and OpenVPN / L2TP over IPSec VPN
Increased security
Powerful Firewall, DoS protection, IP/MAC/URL/Keyword Filtering

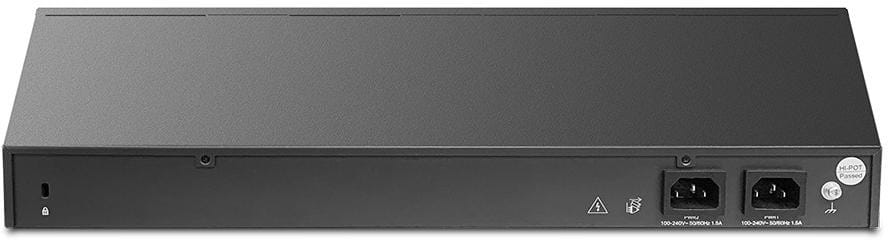

Redundant power
Carrier-grade reliability for enterprise networks
High performance Quad-core processor clocked at 2.2GHz
Manage your entire network with high computing power. Redundant power adds carrier-grade reliability to corporate networks.
Make the most of your 10G broadband connection with the Omada Gateway

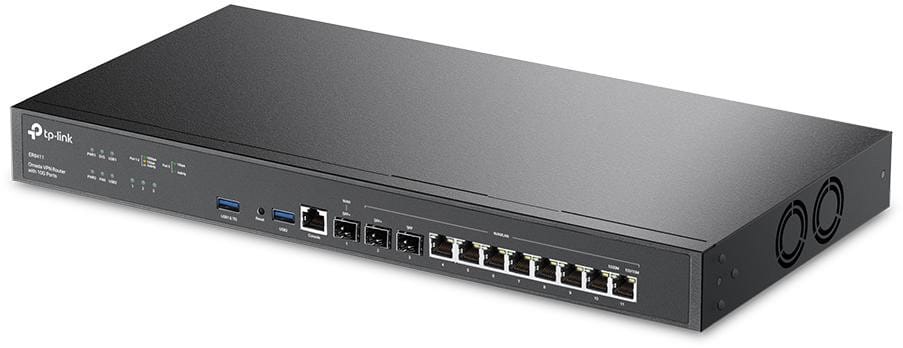

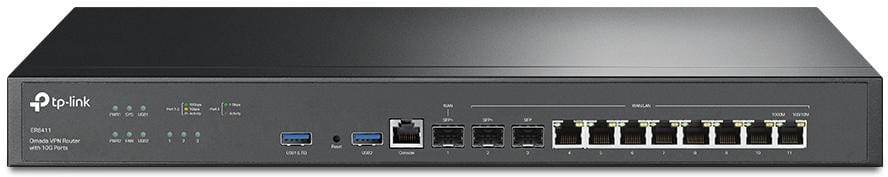

Build an ultra-fast network with the Omada ER8411 Enterprise VPN Router with 10G ports. This router exceeds the high speed, reliability and security needs of corporate networks. It is an ideal solution for large scale deployments such as offices, schools and hotels.
10 WAN Ports and One USB WAN for Mobile Link
Up to 10 available SFP+, SFP and RJ45 WAN ports allow the router to support various Internet connections. Multi-WAN Bandwidth Balancing separates data streams based on the bandwidth ratio of each WAN port to increase utilization of multi-lane links. Connect a 4G/3G modem to one of the USB 3.0 ports for LTE WAN backup.
Secure and efficient VPN
The ER8411 provides traffic pass-through and support for multiple VPN protocols, including SSL, IPSec, PPTP and L2TP in Client/Server mode. One-click Auto IPSec VPN greatly simplifies VPN setup, network management and deployment. The router also has a built-in hardware VPN engine to support and manage hundreds of IPSec, PPTP, L2TP, SSL VPN and OpenVPN tunnels.
Integration with the Omada SDN platform
The Omada Software Defined Networking (SDN) platform integrates network devices such as Access Points, Switches and Routers to provide 100% centralized cloud management and a highly scalable network managed from a single interface.
